Komatsu D61PX-24 Parts Catalog
D61PX-24 S/N 40001-UP
Explore real parts diagrams and catalog sections for this machine.
Available catalogs
D61PX-24 S/N 40001-UPThis catalog is selected for D61PX-24. Use the machine serial number, if available, to confirm the exact catalog version.
Main catalog sections
Other catalog variants
- D61PX-24 S/N B60001-UP
- D61PX-24 S/N B65001-UP
- D61PX-24 S/N 48001-UP
- SAA6D107E-3F S/N 26635492-UP (For D61EX-24/D61EXI-24/D61PX-24/D61PXI-24)
Edition and sample parts
D61PX-24 S/N 40001-UP
Publication reference: 0000904C.
Match the complete model and the S/N range above to your machine plate. Also check the section range: it can be narrower than the range on the book cover. This example belongs to the following section, not to every version of the machine.

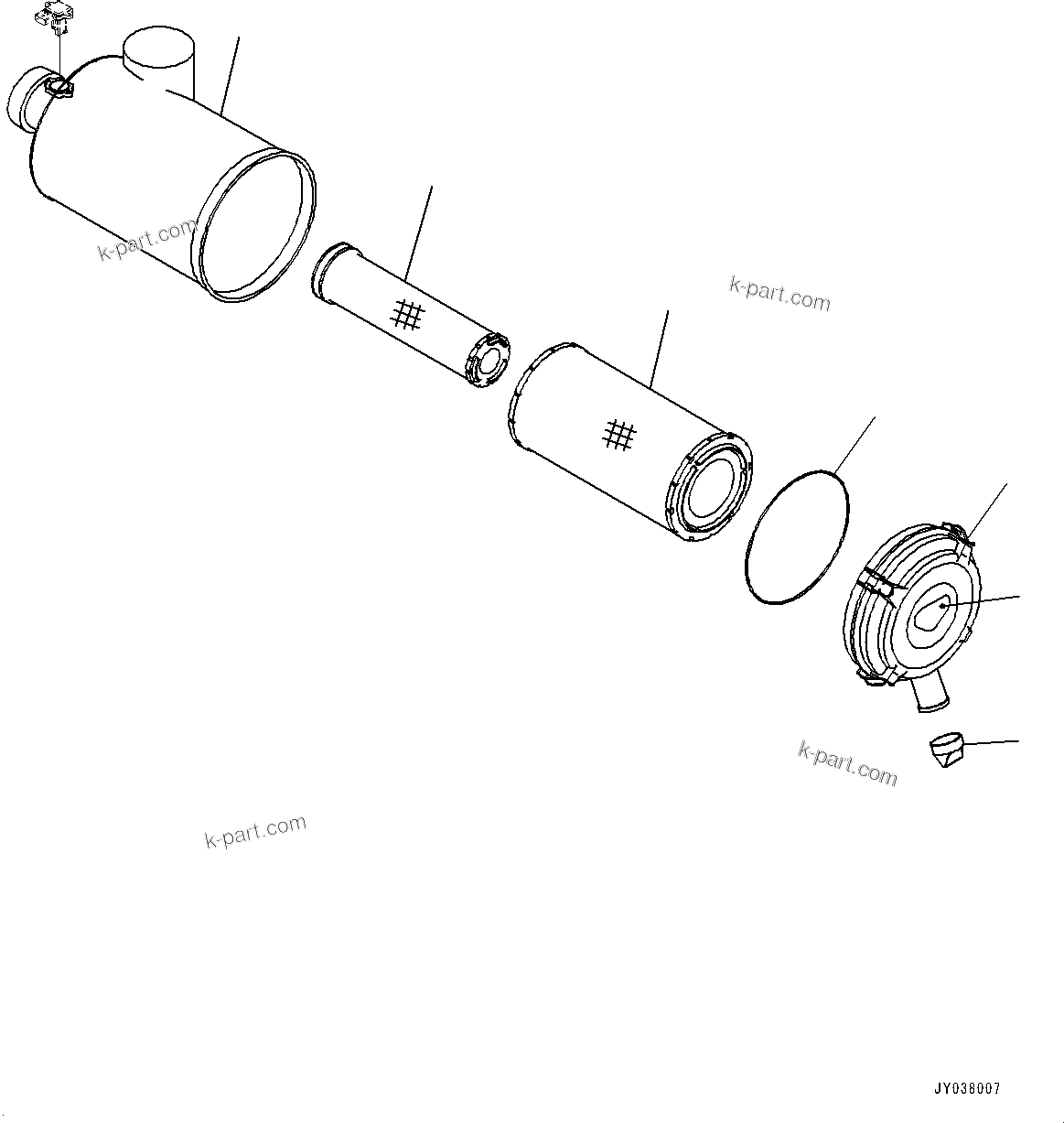

Air Cleaner Related Parts (#40001-)
| Item | Part number | Source description | Quantity |
|---|---|---|---|
| 19 | 6643-11-4641 | Bolt | 2 |
| 18 | 6150-11-5840 | Band | 2 |
| 17 | 07299-00105 | Clamp | 1 |
| 16 | 07299-00120 | Clamp | 1 |
| 15 | 13Y-02-21131 | Hose | 1 |
| 14 | 08672-01000 | Indicator | 1 |
| 13 | 08211-10720 | Clip | 2 |
| 12 | 7861-93-1430 | Sensor, Dust Indicator | 1 |
The numbers identify parts in this publication. K-Part provides catalog information; this page does not confirm stock or sell these physical parts.
