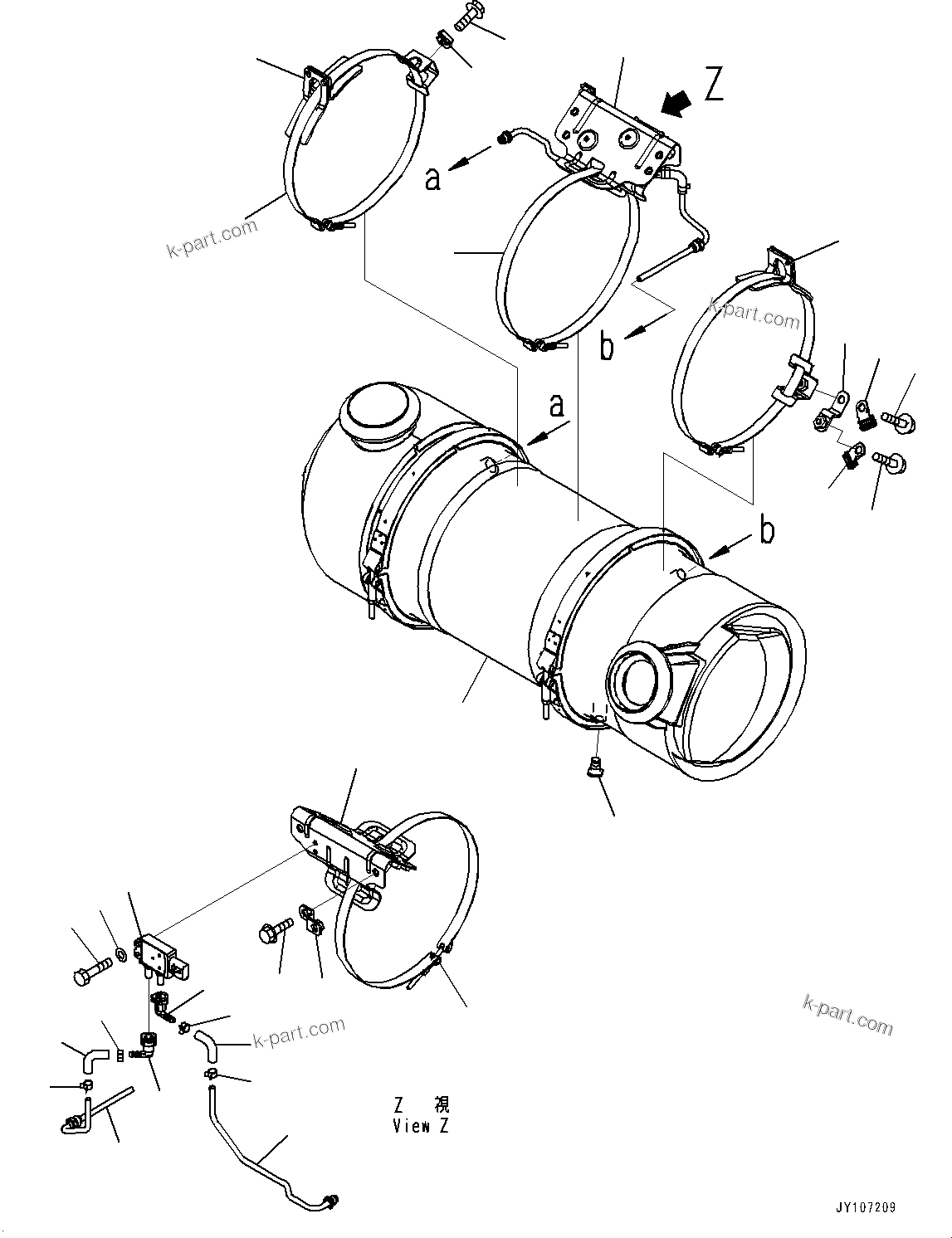

Parts diagram: Komatsu Diesel Particulate Filter (KDPF) and SCR Assembly, Inner Parts, Komatsu Diesel Particulate Filter (KDPF)(#70002-) — D71PX-24E0 S/N 70002-UP Explore this diagram
Diagram from the selected catalog book. Open it to explore the catalog section.
Interactive parts catalog

Komatsu D71PX-24E0 Parts Catalog

D71PX-24E0 S/N 70002-UP

Explore real parts diagrams and catalog sections for this machine.

Explore catalog Search by part number

Available catalogs

D71PX-24E0 S/N 70002-UP

448 catalog pages · 338 diagrams

This catalog is selected for D71PX-24E0. Use the machine serial number, if available, to confirm the exact catalog version.
