Komatsu PC200-6 Parts Catalog
PC200-6 S/N 80001-UP (Overseas Version)
Explore real parts diagrams and catalog sections for this machine.
Available catalogs
PC200-6 S/N 80001-UP (Overseas Version)This catalog is selected for PC200-6. Use the machine serial number, if available, to confirm the exact catalog version.
Main catalog sections
Other catalog variants
- PC200-6 S/N 80001-UP
- PC200-6 Serial NO.60001 and up, PC200LC-6 Serial NO.70001 and up
- PC200-6/LC-6 Supplement S/N 80001-UP
Edition and sample parts
PC200-6 S/N 80001-UP (Overseas Version)
Publication reference: pc200-7c.
Match the complete model and the S/N range above to your machine plate. Also check the section range: it can be narrower than the range on the book cover. This example belongs to the following section, not to every version of the machine.

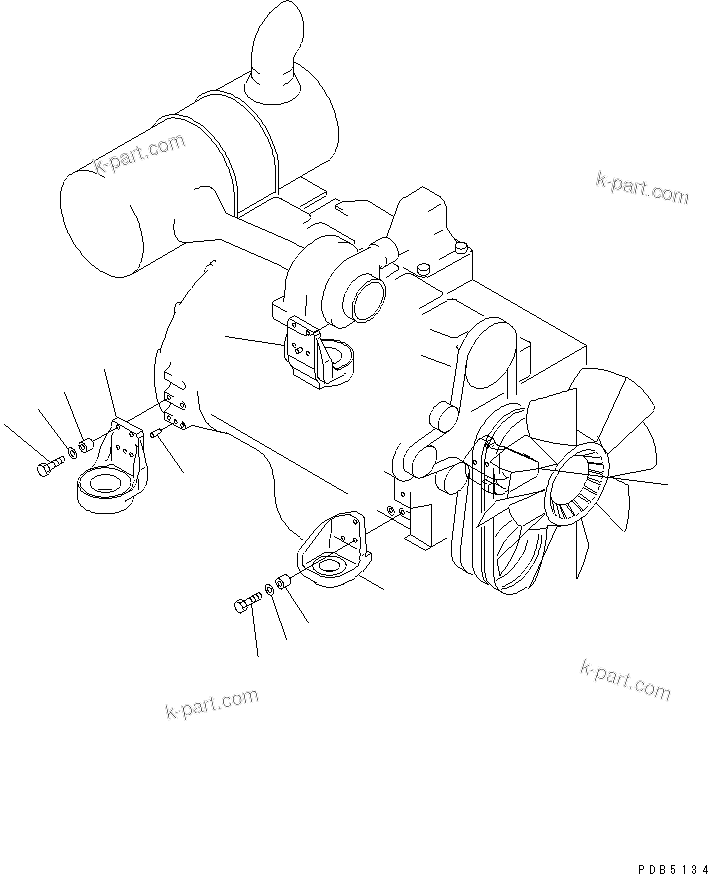

ENGINE RELATED PARTS (BRACKET)(#96514-106005)
| Item | Part number | Source description | Quantity |
|---|---|---|---|
| 10 | 04020-01228 | PIN,DOWEL | 1 |
| 9 | \0\6131-22-3750 | BOSS | 8 |
| 8 | 01643-31232 | WASHER | 8 |
| 9 | 20Y-01-21260 | SPACER | 8 |
| 7 | 01010-81265 | BOLT | 8 |
| 6 | 20Y-01-22120 | BRACKET | 2 |
| 5 | 20Y-01-21260 | SPACER | 6 |
| 5 | \0\6131-22-3750 | BOSS | 6 |
The numbers identify parts in this publication. K-Part provides catalog information; this page does not confirm stock or sell these physical parts.
