Komatsu WA270-8 Parts Catalog
WA270-8 S/N 83001-UP
Explore real parts diagrams and catalog sections for this machine.
Available catalogs
WA270-8 S/N 83001-UPThis catalog is selected for WA270-8. Use the machine serial number, if available, to confirm the exact catalog version.
Main catalog sections
Other catalog variants
- WA270-8 S/N H75051-UP
- WA270-8 S/N 83001-UP
- WA270-8 S/N 88001-UP
- WA270-8 A28001- UP
Edition and sample parts
WA270-8 S/N 83001-UP
Publication reference: 0001010C.
Match the complete model and the S/N range above to your machine plate. Also check the section range: it can be narrower than the range on the book cover. This example belongs to the following section, not to every version of the machine.

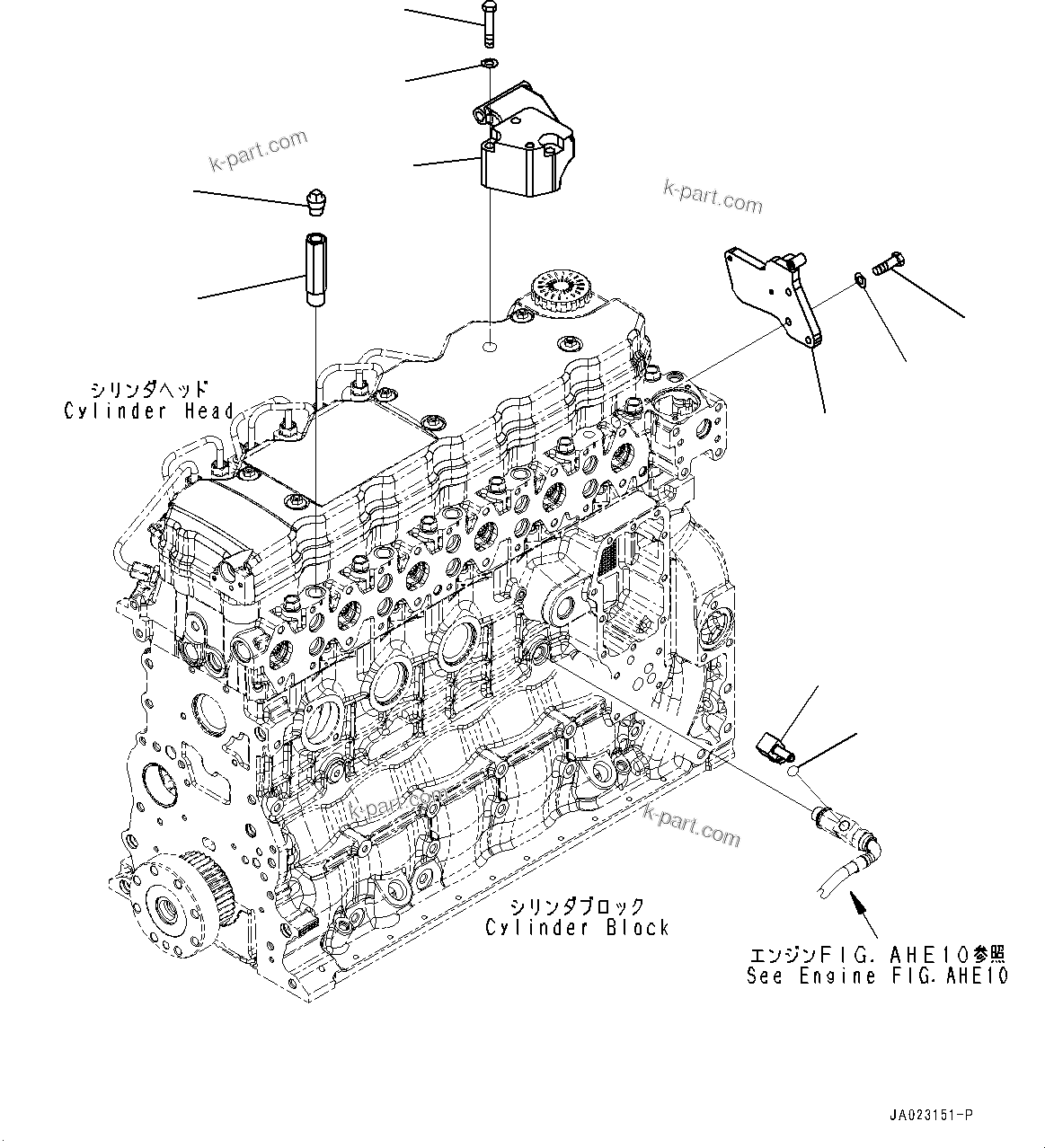

Engine Accessory (#83001-)
| Item | Part number | Source description | Quantity |
|---|---|---|---|
| 10 | 07002-11423 | O-ring | 1 |
| 9 | 205-03-31360 | Elbow | 1 |
| 8 | 07042-A0312 | Plug, Taper | 1 |
| 7 | 22B-979-1560 | Adapter | 1 |
| 6 | 01643-30823 | Washer | 3 |
| 5 | 01010-80825 | Bolt | 3 |
| 1 | 419-S62-5320 | Bracket | 1 |
| 2 | 01010-81075 | Bolt | 2 |
The numbers identify parts in this publication. K-Part provides catalog information; this page does not confirm stock or sell these physical parts.
