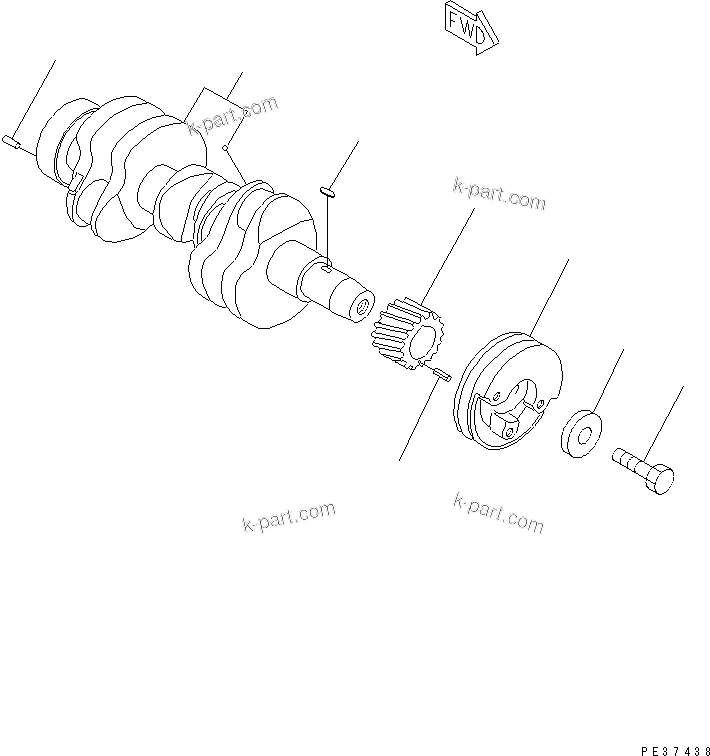

Komatsu parts book diagram for 3D78N-1A S/N 00101-UP: CRANKSHAFT(#.-)

? ? ? ? ? ? ? ?

	#	Part Number	Partname	Quantity	Options	Reference
	?	YM719811-21700	CRANKSHAFT ASS'Y	1	SN: 00101-UP
	?	YM129150-21200	GEAR,CRANK	1	SN: 00101-UP
	?	YM22512-070140	KEY	1	SN: 00101-UP
	?	YM129100-01580	PIN,DOWEL	1	SN: .-UP
	?	YM22351-040010	PIN,SPRING	1	SN: .-UP
	?	YM171301-21650	PULLEY,CRANK	1	SN: 00101-UP
	?	YM129795-21661	WASHER	1	SN: 00101-UP
	?	YM121850-21680	BOLT	1	SN: 00101-UP

Komatsu 3D78N-1A S/N 00101-UP parts catalog PDF

CRANKSHAFT(#.-) (0231A) in 3D78N-1A S/N 00101-UP. Diagram image and parts list.
