3D78N-1A S/N 00101-UP

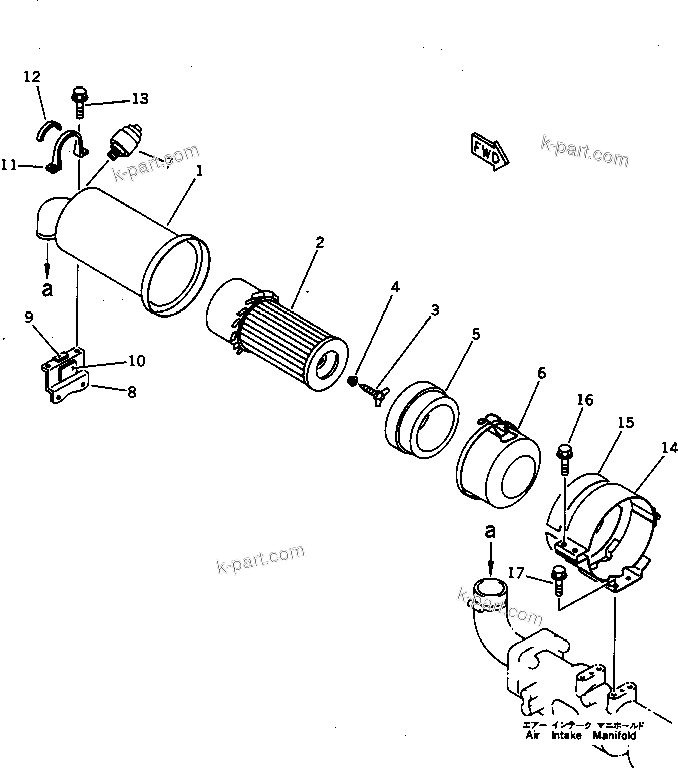

Komatsu parts book diagram for 3D78N-1A S/N 00101-UP: AIR CLEANER AND MOUNTING(#00186-)

	#	Part Number	Partname	Quantity	Options	Reference
	?	YM119836-12500	AIR CLEANER ASS'Y	1	SN: 00101-UP
	?	YM121120-12901	ELEMENT	1	SN: 00101-UP
	?	YM121120-12561	BOLT,WING	1	SN: 00101-UP
	?	YM121120-12571	WASHER,SEAL	1	SN: 00101-UP
	?	YM121120-12541	BUFFLE	1	SN: 00101-UP
	?	YM121120-12531	PAN,DUST	1	SN: 00101-UP
	?	YMXWAD065002	INDICATOR	1	SN: 00101-UP
	?	YM119836-12810	SUPPORT	1	SN: 00186-UP
	?	YM129132-12890	SEAT	1	SN: 00186-UP
	?	YM129132-12900	DAMPER	1	SN: 00186-UP
	?	YM129132-12800	BAND ASS'Y	1	SN: 00186-UP
	?	YM129132-12860	SEAT	1	SN: 00186-UP
	?	YM26106-060142	BOLT	2	SN: 00186-UP
	?	YM129132-12581	SUPPORT ASS'Y	1	SN: 00101-UP
	?	YM129132-12561	SUPPORT	1	SN: 00101-UP
	?	YM119640-12580	SEAT	2	SN: 00101-UP
	?	YM26106-080252	BOLT	2	SN: 00101-UP
	?	YM26106-080142	BOLT	4	SN: 00101-UP

Komatsu 3D78N-1A S/N 00101-UP parts catalog PDF

AIR CLEANER AND MOUNTING(#00186-) (0141A) in 3D78N-1A S/N 00101-UP. Diagram image and parts list.
