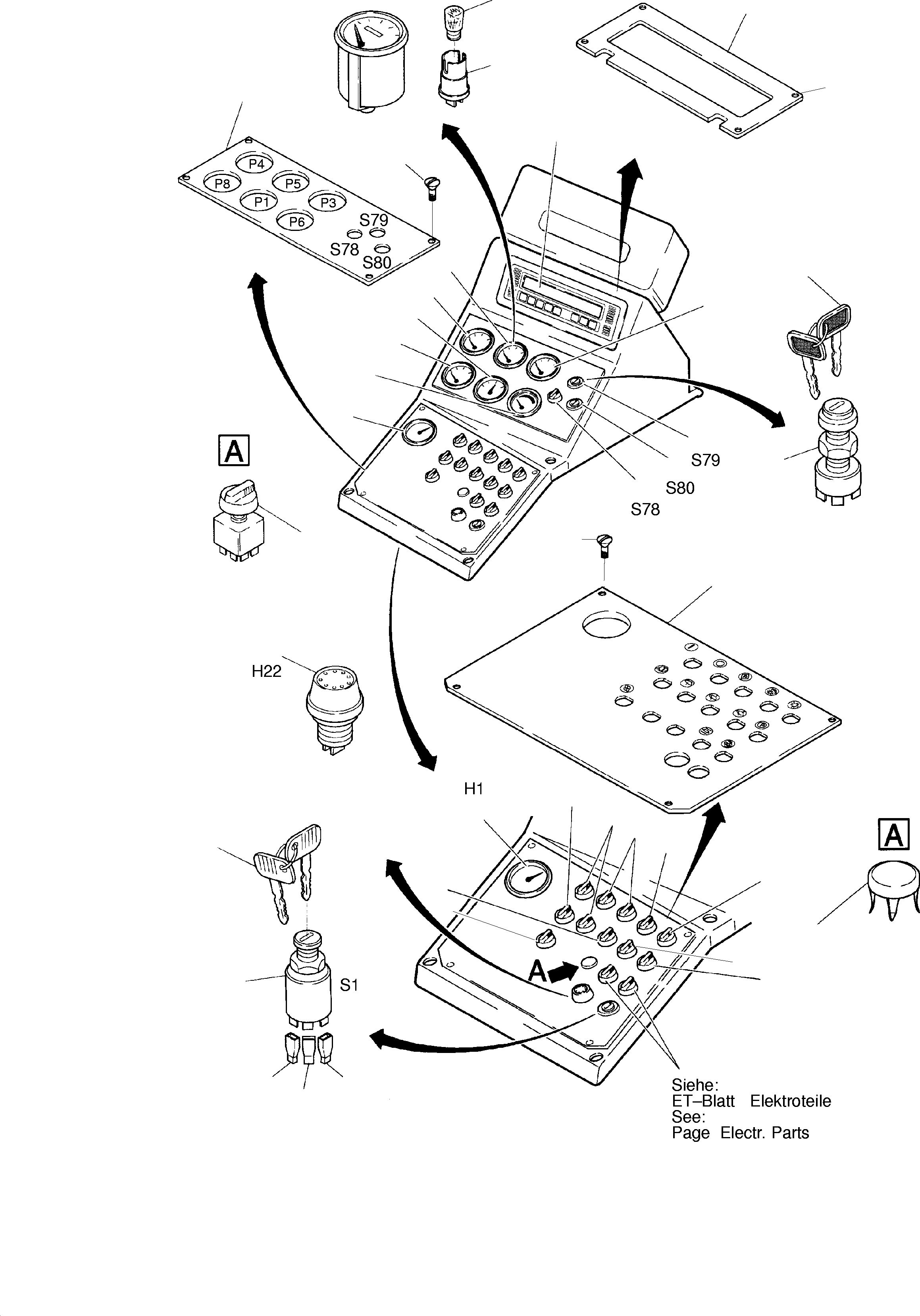

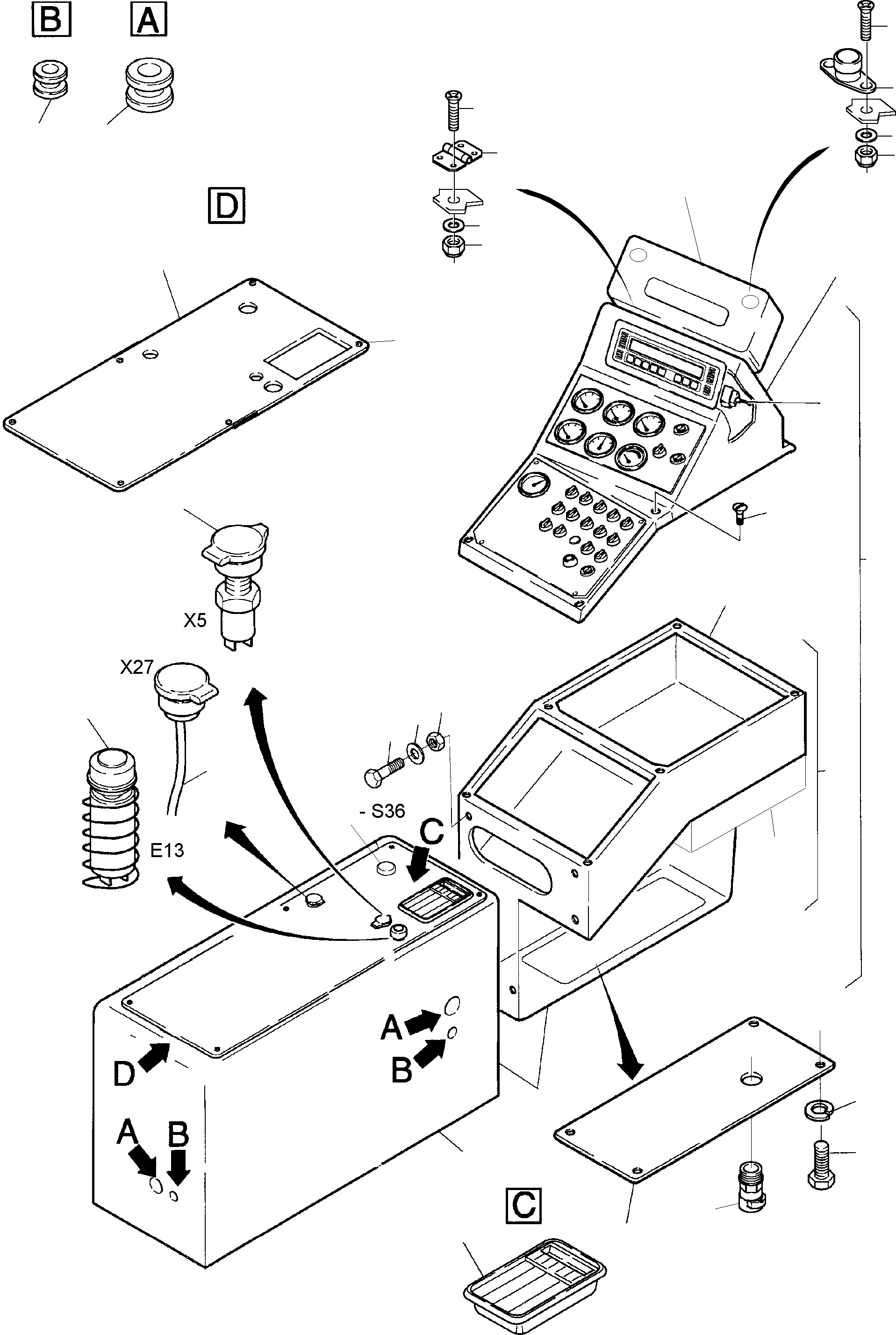

OPERATION PANEL - ETM | PC3000-1 S/N 06194 | Komatsu parts book catalogue

Search in All Books

Find books across the catalog from one place.

This page is prepared as the search workspace. The search behavior itself can be connected in the next step.

Search whole Komatsu part number in all books. Example: 6212611203.

#	Part Number	Partname	Quantity
01	659 878 40	Operation panel fig-nos. 02-70	1
02	646 055 40	Control box w/o mounting parts	1
03	646 056 40	Control box	1
04	898 363 40	Console	1
05	307 735 99	Bolt	6
06	340 463 99	Washer	6
07	332 110 99	Nut	6
08	659 807 40	Instrumental board	1
09	637 515 40	Instrument panel	1
10	640 417 40	Antiglare device	1
11	318 383 99	Bolt	6
12	646 057 40	Switch box	1
13	891 037 40	Plate	1
14	056 055 40	Grommet	1
15	056 054 40	Grommet	8
16	318 603 99	Screw	4
17	346 499 99	Lock washer	4
18	440 307 99	Socket	1
19	385 213 40	Cigarette lighter	1
20	655 331 40	Ashtray	1
21	494 097 40	Printer connection	1
22	324 401 40	Turn switch, 1-stage	3
23	324 400 40	Turn switch	4
24	324 402 40	Turn switch, 2-stage	2
25	414 866 40	Key operated switch (ignition)	1
26	698 239 73	Key	1
27	551 272 40	Ignition switch (service)	1
28	764 535 73	Key to fig-no. 27	1
29	894 066 40	Switch plate	1
30	318 575 99	Screw	16
31	399 702 40	Turn switch	1
32	440 151 99	Tab to fig-no: 25 1,5	2
33	055 115 40	Tab to fig-no: 25 1,5 - 2,5	2
34	697 269 73	Tab, yellow to fig-no: 25 4,0 - 6,0	2
35	440 369 40	Turn switch 3-stufig	1
36	646 970 40	Instrumental board	1
37	551 271 40	Ignition switch (service)	1
38	764 534 73	Key to fig-no. 37	1
39	324 602 40	Dummy plug	3
40	641 393 40	Visor - display	1
41	490 518 40	Warning bell	1
42	431 153 40	Remote thermometer	-2
43	431 162 40	Ammeter	1
44	431 154 40	Pressure gauge	1
45	431 159 40	Voltmeter	1
46	431 152 40	Remote thermometer (-30/+120 ?C)	1
47	431 160 40	Hour meter	1
48	431 156 40	Level gauge	1
49	507 382 99	Bulb 2W	2
50	507 384 99	Bulb 3W	1
51	966 740	Socket	1
52	966 975	Socket	2
53	891 142 40	Display german, Cu-engine	1
\|$$54	891 144 40	Display english, Cu-engine	1
\|$$55	891 146 40	Display french, Cu-engine	1
\|$$56	891 148 40	Display spain, Cu-engine	1
\|$$57	891 150 40	Display spain / english, Cu-engine	1
\|$$58	891 152 40	Display english / indonesian, Cu-engine	1
\|$$59	891 154 40	Display french / english, Cu-engine	1
\|$$60	891 156 40	Display greece / english, Cu-engine	1
\|$$61		Variant:	-1
\|$$62	891 087 40	Cable set with software assy.	1
\|$$63	659 820 40	Data cable X27-PC	1
54	461 564 40	Standard console (radio)	1
55	655 835 40	Cable union DN 36	1
56	891 033 40	Emergency push button	1
57	896 473 40	Toggle switch	1
58	655 686 40	Impact key	1
59	655 676 40	Spring element	1
60	635 115 40	Contact element	1
61	635 652 40	Contact element	1
62	896 613 40	Hinge	2
63	515 586 98	Screw	8
64	334 649 99	Nut	8
65	896 614 40	Magnet	2
66	515 587 98	Screw	2
67	515 588 98	Nut	2
68	515 589 98	Washer	2
69	340 459 99	Washer	8
