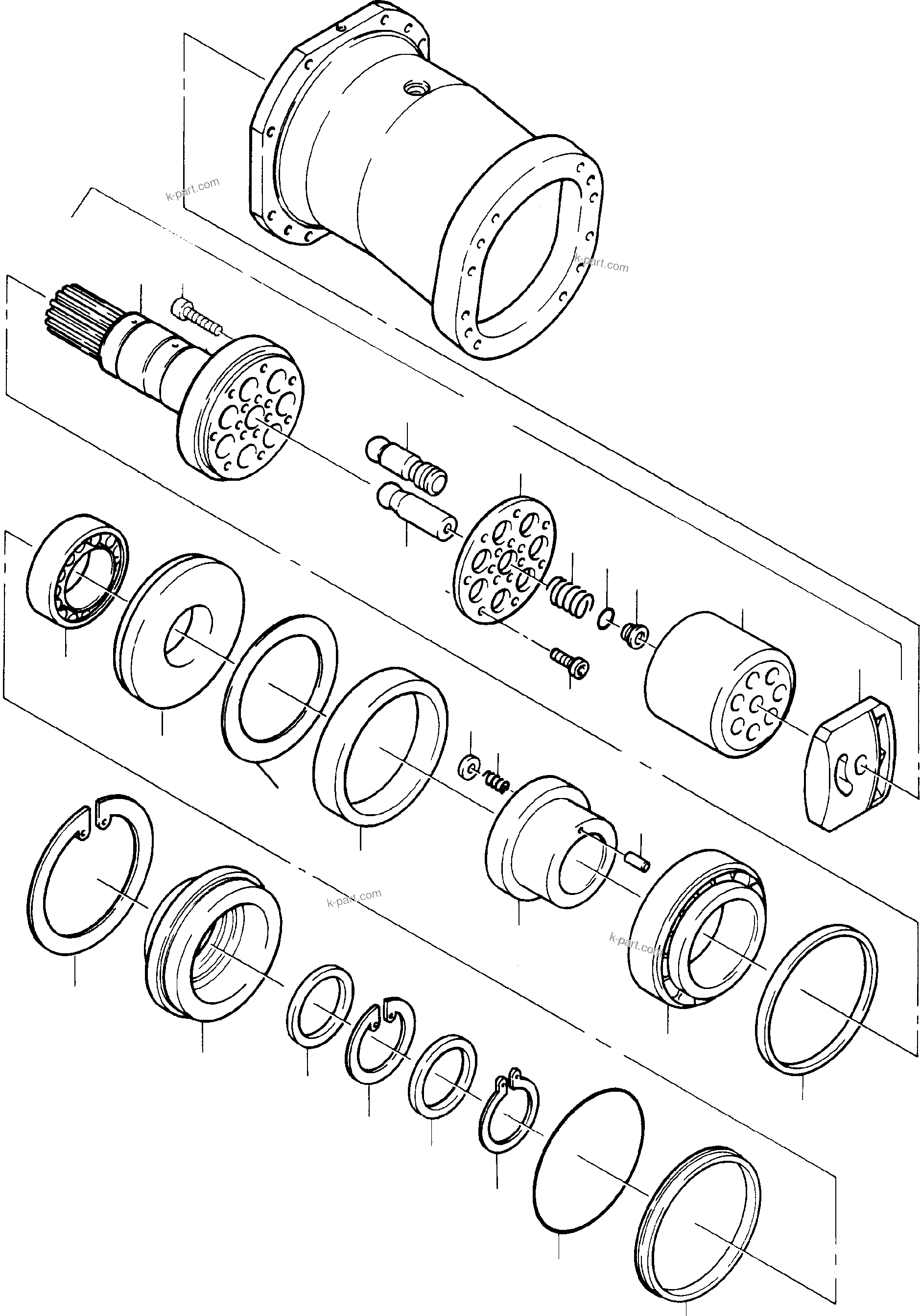

Diagram image 1 of 2

PC3000-1 S/N 06194

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

PC3000-1 S/N 06194

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity
?	903 391 40	Hydr.-pump, assy.	1
?		Housing	1
?	173 493 40	Plug	2
?	313 456 99	Plug	2
?	753 524	Displacement section, assy. consist. of fig-nos: 07-10	1
?	753 467	Displacement section, assy. consist. of fig-nos: 07-09,11	1
?	753 469	Nut	2
?	180 023 40	O-ring	2
?	971 020	O-ring	2
?	753 537	Detent	1
?	753 468	Detent	1
?	754 501	Adjustment, assy. consist. of fig-nos: 13-15,23,31-57	1
?	502 399 98	O-ring	1
?	344 888 99	Pin	2
?	753 527	Cover, assy. consist. of fig-nos: 16-22	1
?	319 305 99	Screw	6
?	343 859 99	Lock washer	6
?	325 350 99	Thread pin	1
?	964 767	Nut	1
?	753 498	Cover	1
?	958 231	O-ring	1
?	500 268 98	O-ring	1
?	757 119 73	Control part, assy. consist. of fig-nos: 24-31	1
?	753 495	Spring plate	1
?	754 781 73	Spring	1
?	753 496	Compression spring	1
?	753 494	Spring plate	1
?	753 493	Bush	1
?	753 492	Sleeve	1
?	757 120 73	Piston valve	1
?	754 503	Throttle screw	1
?	753 470	Thread pin	1
?	753 471	Piston	1
?	753 472	Regulation journal	1
?	502 883 98	Dowel pin	1
?	753 473	Spring plate	1
?	753 474	Guide rod	1
?	753 475	Compression spring	2
?	753 476	Spring guide	1
?	753 471	Spring plate	1
?	753 478	Ring	1
?	754 504	Cover plate	1
?	319 262 99	Screw	4
?	343 855 99	Lock washer	4
?	979 416 73	Sequence valve	1
?	767 996 73	Seal kit to fig-no: 45	1
?	210 955 40	O-ring	2
?	767 723 73	O-ring	2
?	319 339 99	Screw	12
?	343 861 99	Lock washer	12
?	255 985 40	Plug	2
?	753 480	Throttle screw	1
?	804 851 73	Plug	6
?	173 493 40	Plug	1
?	325 189 99	Thread pin	1
?	992 655	Plug	1
?	998 592	Plug	1
?	757 114 73	Cover, assy. consist. of fig-nos: 58-73,110-112	1
?	319 293 99	Screw	6
?	343 857 99	Lock washer	6
?	757 113 73	Cover	1
?	950 365	O-ring	1
?	502 400 98	O-ring	1
?	501 357 98	O-ring	2
?	753 482	Piston valve	1
?	992 745	Compression spring	1
?	753 483	Spring plate	1
?	502 403 98	Thread pin	1
?	998 603	Nut	1
?	964 736	Safety plug	1
?	173 448 40	Plug	2
?	753 489	Non-return valve	1
?	753 484	Non-return valve	1
?	255 679 40	Plug	2
?	769 664 73	Transmission, assy. consist. of fig-nos: 75-107	1
?	769 665 73	Control lense, l.h. execution	1
?	769 666 73	Bolt	7
?	753 500	Cylinder	1
?	754 507	Adjusting ring	1
?	754 508	Spacer screw	1
?	753 506	Spring	1
?	753 536	Pivot	1
?	769 667 73	Piston	7
?	319 271 99	Screw	14
?	762 733 73	Withdrawal plate	1
?	762 734 73	Driving flange	1
?	754 512	Ring	1
?	754 513	Roller bearing	1
?	504 911 98	Dowel sleeve	1
?	345 181 99	Dowel sleeve	1
?	754 514	Bracket	1
?	753 342	Spring	7
?	754 515	Guide shoe	7
?	754 516	Spacer	1
?	753 511	Shim ring 270x320x1.0	1
?	753 512	Shim ring 270x320x0.5	1
?	753 513	Shim ring 270x320x0.2	2
?	769 668 73	Spring plate	7
?	754 517	Slider	1
?	361 874 99	Roller bearing	1
?	342 574 99	Circlip	1
?	754 518	Ring	1
?	504 758 98	O-ring	1
?	504 756 98	Shaft seal	2
?	342 678 99	Circlip	1
?	757 059 73	Sealing flange	1
?	753 534	Circlip	1
?	959 989	Test union	1
?	757 112 73	Union	1
?	757 111 73	Seal ring	1
?	754 520	Seal kit, assy. consist. of fig-nos: 08,09,13,21,22, 46,47,61-63,103,104	-2
