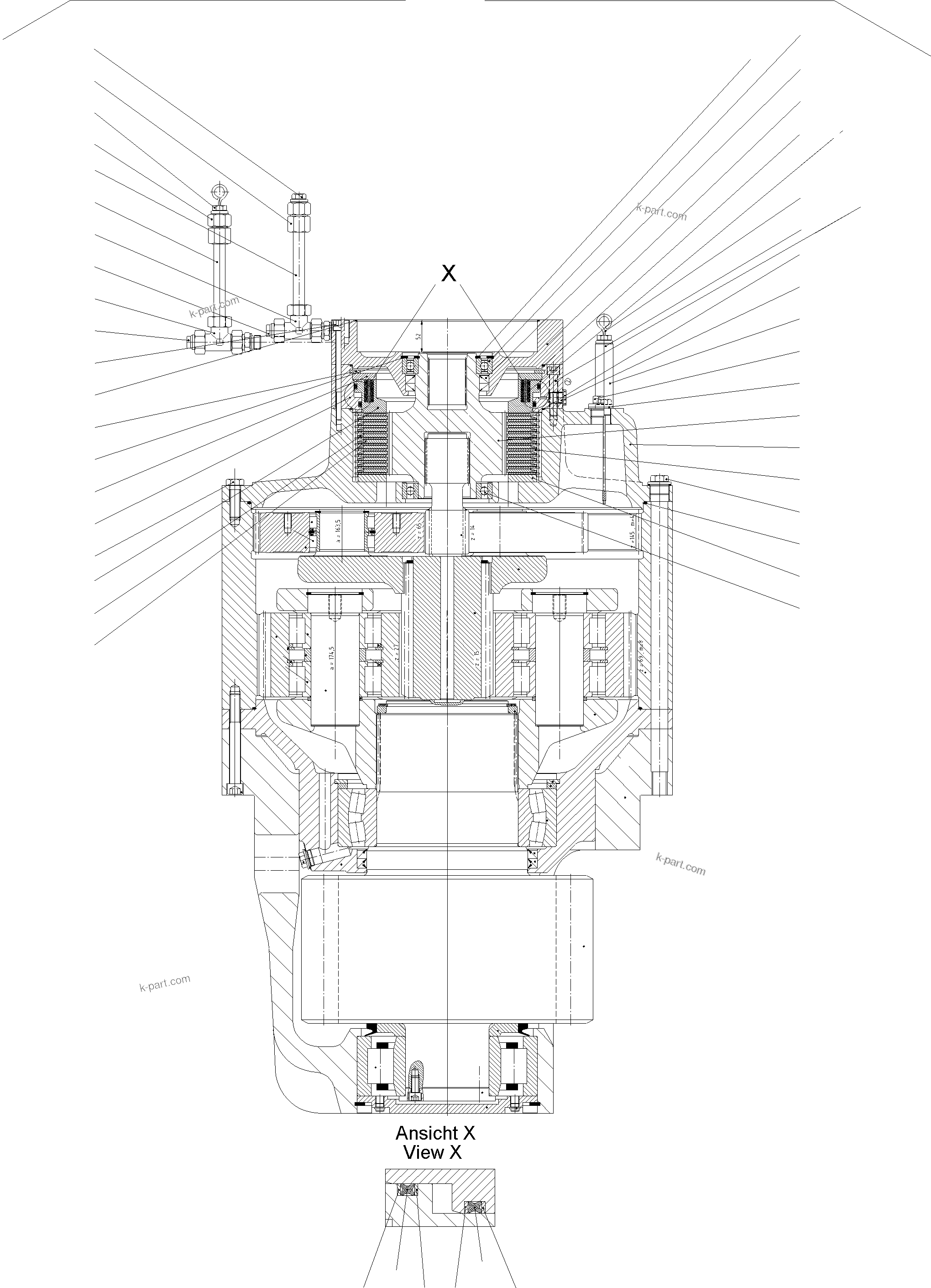

BRAKE | PC3000-1 S/N 06194 | Komatsu parts book catalogue

Search in All Books

Find books across the catalog from one place.

This page is prepared as the search workspace. The search behavior itself can be connected in the next step.

Search whole Komatsu part number in all books. Example: 6212611203.

PC3000-1 S/N 06194

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity
?	792 270 73	Brake assy.	1
?	513 532 98	Ball bearing	1
?	517 016 98	Ball bearing	1
?	509 834 98	Socket head cap screw	8
?	371 856 99	Union	2
?	763 841 73	Union	2
?	215 812 99	Precision tubing 18x1,5, lg 0,1 m Bulk ware, state length required	-2
?	372 824 99	Union	1
?	372 834 99	Union	1
?	792 244 73	Dipstick G1/2" x156	1
?	215 812 99	Precision tubing 18x1,5, lg 0,13 m	-2
?	507 748 98	O-ring	1
?	313 178 99	Screw plug	1
?	339 950 99	Seal ring	1
?	792 242 73	Drive Shaft	1
?	319 161 99	Socket head cap srew	2
?	313 314 99	Plug	1
?	792 245 73	Dipstick G1/2x250	1
?	340 294 99	Seal ring	1
?	339 998 99	Seal ring	2
?	313 367 99	Plug	4
?	339 932 99	Seal ring	4
?	376 666 99	Radial shaft seal ring	2
?	513 533 98	Extension	1
?	792 246 73	Disk housing	1
?	792 247 73	Piston	1
?	792 248 73	Bearing ring	1
?	792 249 73	Disk	1
?	792 250 73	Inner disk	10
?	792 251 73	Outer disk	11
?	963 624	Pressure spring	16
?	342 678 99	Snap ring	1
?	806 036 73	Pressure spring	14
?	972 122	O-ring	3
?	792 252 73	Piston seal	1
?	792 253 73	Support ring	2
?	792 254 73	Piston seal	1
?	792 256 73	Support ring	2
?	513 135 98	Socket head cap srew	8
?	342 708 99	Snap ring	1
?	792 257 73	Locating ring	1
?	340 294 99	Seal ring	5
?	313 314 99	Plug	1
?	342 568 99	Snap ring	1
?	792 258 73	Seal ring	1
?	792 259 73	Sinus ring	10
?	792 274 73	Unions of the brake consists of fig.nos 203, 204, 205, 206 ,211, 213, 215, 316, 334, 519, 522, 526	1
?	792 271 73	Repair Kit Brake consists of fig. nos. 505, 506, 507, 509, 512, 513, 514, 515	1
