COVERING - ENGINE HOUSING | PC3000-1 S/N 06194 | Komatsu parts book catalogue

Search in All Books

Find books across the catalog from one place.

This page is prepared as the search workspace. The search behavior itself can be connected in the next step.

Search whole Komatsu part number in all books. Example: 6212611203.

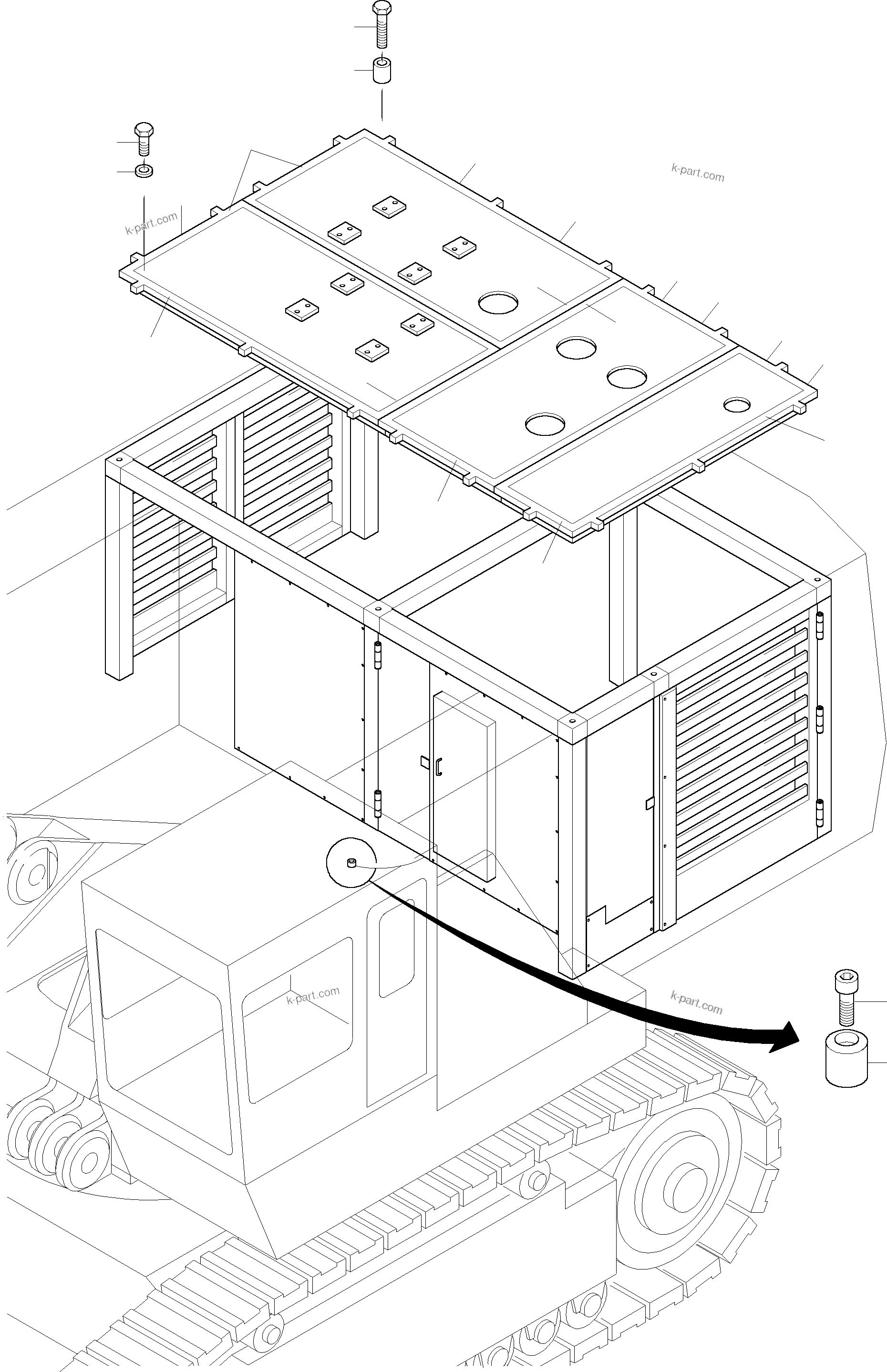

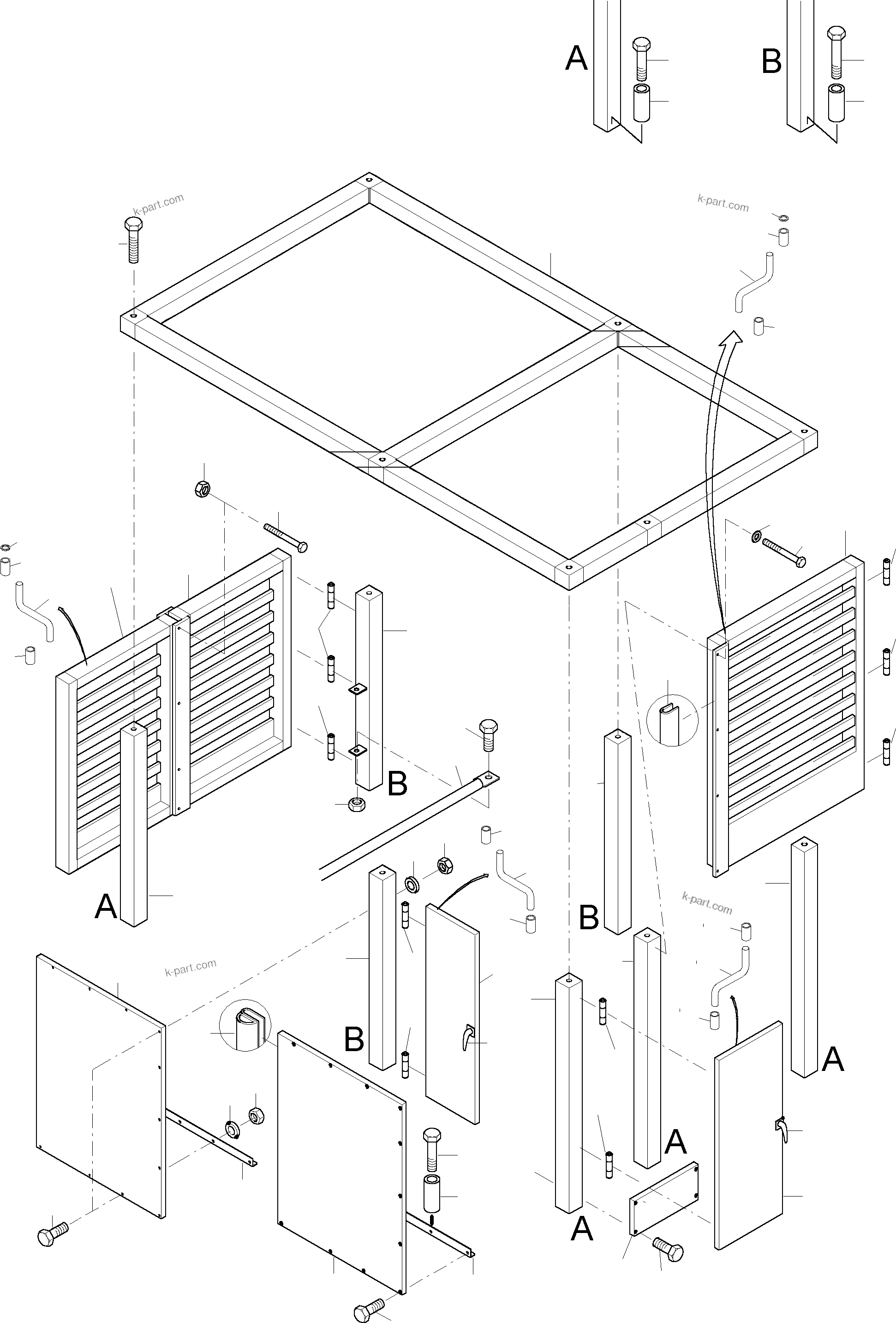

Diagram image 1 of 2

PC3000-1 S/N 06194

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

PC3000-1 S/N 06194

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity
?	873 479 40	Roof frame	1
?	890 758 40	Post	1
?	883 851 40	Post	1
?	623 547 40	Post	1
?	623 546 40	Post	1
?	897 409 40	Post	1
?	901 099 40	Post	1
?	891 714 40	Post	1
?	873 483 40	Wall	1
?	897 657 40	Door	1
?	906 709 40	Fastener with out lock pin	2
?	318 116 99	Bolt	4
?	332 442 99	Nut	4
?	873 465 40	Wall	1
?	897 520 40	Door, radiator	1
?	897 401 40	Wall	1
?	390 199 40	Hinge	9
?	621 983 40	Hinge	4
?	897 408 40	Door	1
?	898 532 40	Door part	1
?	898 530 40	Door part	1
?	887 919 40	Angle	1
?	623 549 40	Angle	1
?	167 693 40	Flex. Header Bulk ware, state length required	-2
?	510 741 98	Resilient sleeve	9
?	308 608 99	Bolt	9
?	510 732 98	Resilient sleeve	28
?	308 885 99	Bolt to fig-nos. 02, 06-08	16
?	308 414 99	Bolt to fig-nos. 03, 04 + 05	12
?	594 740 40	Pipe	2
?	307 804 99	Bolt	4
?	551 502 40	Profiled joint (state length required)	-2
?	308 356 99	Bolt	7
?	308 610 99	Bolt	31
?	334 600 99	Nut	39
?	340 467 99	Washer	31
?	319 127 99	Bolt	1
?	081 282 40	Silent block	1
?	302 553 99	Bolt	8
?	307 802 99	Bolt	4
?	346 498 99	Lock washer	4
?	898 534 40	Angle	1
?	332 336 99	Nut	8
?	872 905 40	Roof section	1
?	872 906 40	Roof section	1
?	897 451 40	Roof section	1
?	606 686 40	Roof section	1
?	510 741 98	Resilient sleeve	48
?	308 608 99	Bolt	48
?	307 949 99	Bolt	4
?	504 271 98	Lock washer	4
?	598 248 40	Threaded rail	2
?	598 250 40	Threaded rail	2
?	598 249 40	Threaded rail	2
?	598 240 40	Threaded rail	2
?	598 239 40	Threaded rail	4
?	887 960 40	Door catch	2
?	887 961 40	Door catch	1
?	887 963 40	Door catch	1
?	887 964 40	Pipe	2
?	887 965 40	Pipe	1
?	593 761 40	Pipe	6
?	512 545 98	Washer	2
?	897 656 40	Door catch	1
