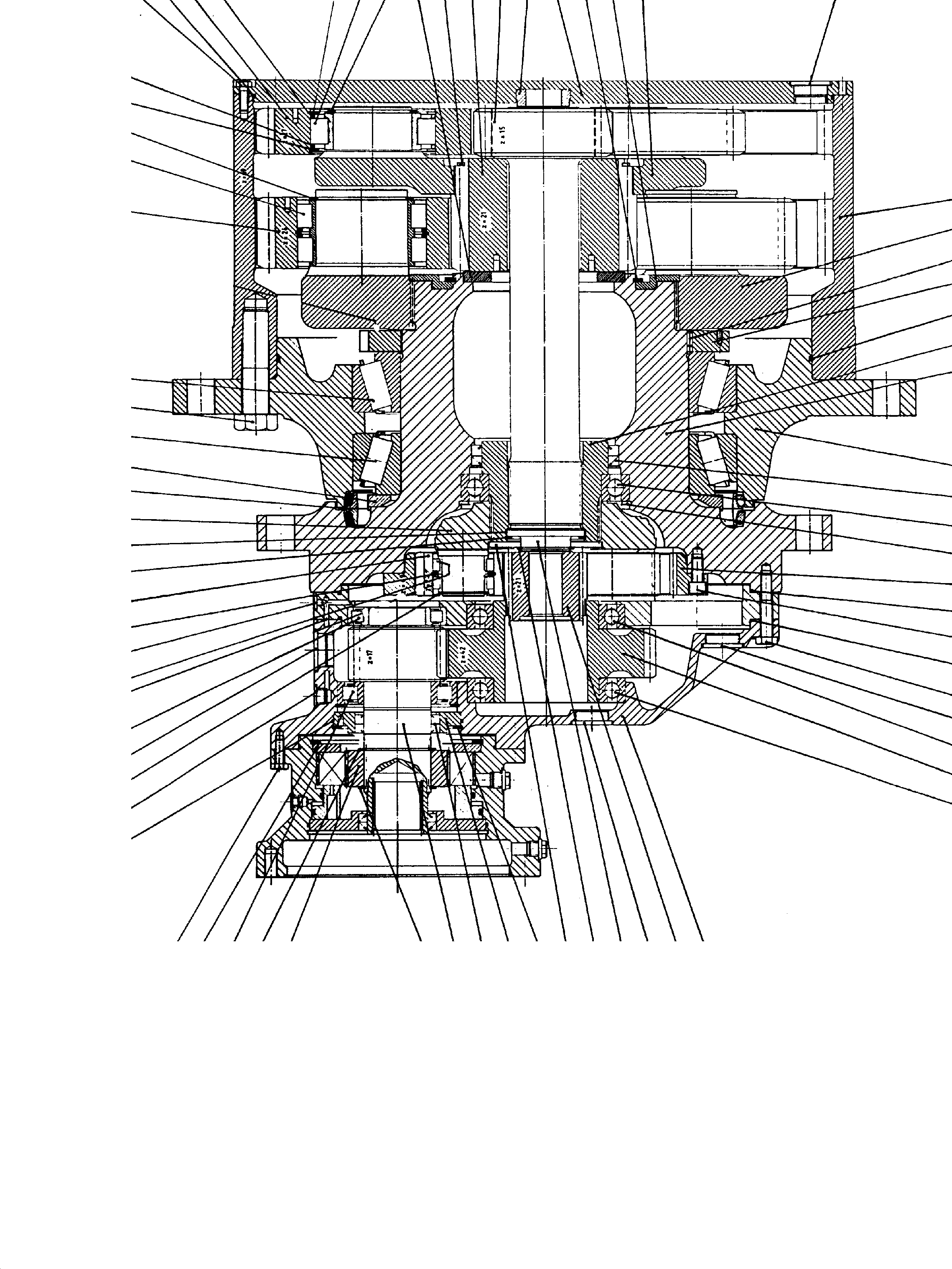

DRIVE GEAR BOX | PC3000-1 S/N 06184 | Komatsu parts book catalogue

Search in All Books

Find books across the catalog from one place.

This page is prepared as the search workspace. The search behavior itself can be connected in the next step.

Search whole Komatsu part number in all books. Example: 6212611203.

#	Part Number	Partname	Quantity	Reference
\|$$1	898 101 40	Drive gear box	1
\|$$2		Brake	1	991-0128
01	768 047 73	Spindle	1
02	768 048 73	Support ring	1
03	768 049 73	Ring gear	1
04	768 050 73	Ring gear	1
05	768 051 73	Cover	1
06	768 409 73	Planet carrier	1
07	768 053 73	Planet carrier	1
08	768 054 73	Planet carrier	1
09	768 410 73	Planet gear	5
10	768 056 73	Planet gear	3
12	768 058 73	Planet gear	5
13	768 059 73	Sun gear	1
14	768 060 73	Sun gear	1
15	768 061 73	Sun gear shaft	1
16	768 062 73	Input shaft	1
17	768 063 73	Spur wheel	1
18	768 064 73	Shaft nut	1
19	768 065 73	Coupler	1
20	768 066 73	Seal ring	1
21	768 067 73	Disc	1
22	768 068 73	Housing washer	1
23	768 069 73	Disc	1
24	768 070 73	Locating ring	1
25	768 071 73	Coupler	1
26	768 301 73	Housing assy. incl. fig nos. 41, 42	1
29	780 890 73	Ring	1
30	767 928 73	Tapered roller bearing	2
31	768 411 73	Cylindrical roller bearing	10
32	515 022 98	Cylindrical roller bearing	3
33	515 023 98	Cylindrical roller bearing	10
34	360 530 99	Ball bearing	2
35	515 024 98	Cylindrical roller bearing	1
36	515 025 98	Cylindrical roller bearing	1
37	360 532 99	Ball bearing	1
39	768 074 73	Locating ring	6
40	768 075 73	Locating ring	10
43	768 076 73	Face seal	1
44	958 065	Radial shaft seal ring	2
45	366 424 99	Radial shaft seal ring	2
47	515 027 98	Bolt	30
48	319 286 99	Bolt	24
49	319 157 99	Bolt	60
50	509 170 98	Hex head bolt 6kt	12
60	342 686 99	Circlip	1
61	342 684 99	Circlip	1
62	342 701 99	Circlip	1
63	342 672 99	Circlip	1
64	510 157 98	Circlip	5
65	342 685 99	Circlip	6
68	342 597 99	Circlip	1
69	342 560 99	Circlip	1
70	342 569 99	Circlip	2
71	342 572 99	Circlip	3
72	342 596 99	Circlip	1
73	342 555 99	Circlip	5
74	342 576 99	Circlip	5
75	504 251 98	O-ring	1
76	507 749 98	O-ring	2
77	006 707 98	O-ring	1
78	768 412 73	Chord ca. 2,6 m Bulk ware, state length required	-2
79	082 611	Chord ca. 2,36 m Bulk ware, state length required	-2
81	313 460 99	Plug	6
82	339 967 99	Seal ring	6
83	313 398 99	Plug	1
84	340 294 99	Seal ring	1
85	313 394 99	Plug	1
86	339 983 99	Seal ring	1
87	768 072 73		1
88	768 077 73	Disc	1
\|$$72		Planet carrier 1st stage consist. of 06,09,23,31,68,74	1	991-0128
\|$$73		Planet carrier 2nd stage consist. of 07,10,13,32,39,65, 71,72	1	991-0128
\|$$74		Planet carrier 3rd stage consist. of 08,12,21,33,40,64, 73	1	991-0128
