Diagram image 1 of 4

PC3000-1 S/N 06191

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

PC3000-1 S/N 06191

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

PC3000-1 S/N 06191

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

PC3000-1 S/N 06191

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity
?	899 399 40	Switch cabinet w/o. electr. parts	1
?	764 789 73	Key	2
?	764 947 73	Locking bar	10
?	764 949 73	Seal	1
?	765 892 73	Handle	2
?	057 278 40	Socket	1
?	320 975 99	Screw	2
?	323 378 40	Diode array	3
?	891 034 40	Protection cap assy.	2
?	490 929 40	Assembly rail	2
?	655 412 40	Sectional plate	10
?	323 237 40	Wiring terminal	8
?	500 106 98	Bolt	44
?	334 599 99	Nut	48
?	654 253 40	Breaker 1 A	1
?	655 500 40	Rail collector Bulk ware, state length required	-2
?	356 265 40	Clamp	-2
?	270 288 40	Cable channel ca. 1400 lg. Bulk ware, state length required	2
?	654 856 40	Breaker 25 A	2
?	654 298 40	Breaker 16 A	11
?	654 854 40	Breaker 6 A	6
?	655 184 40	Breaker 50 A	2
?	654 855 40	Breaker 10 A	2
?	655 486 40	Pickup module unit	1
?	655 487 40	Pickup module unit	1
?	356 184 40	Relay	10
?	323 910 40	Relay socket	10
?	323 911 40	Retainer	10
?	399 773 40	Relay	35
?	592 338 40	Relay socket	35
?	414 369 40	Spring retainer	35
?	896 580 40	Power breaker	2
?	323 590 40	Switch modul	1
?	490 372 40	Protective wire clip	-2
?	494 086 40	Line divider EFD	1
?	414 649 40	Fuel indication EFM	1
?	576 308 40	Switch unit	5
?	323 346 40	Touch contact	1
?	635 318 40	Connection cable to fig-nos. 24,25	1
?	894 594 40	Cable V 24	1
?	323 233 40	Wiring profile ca. 700mm Bulk ware, state length required	12
?	323 234 40	Cover 25 BN Bulk ware, state length required	-2
?	655 518 40	Cable channel ca. 800mm Bulk ware, state length required	1
?	655 517 40	Cover 40 BN Bulk ware, state length required	-2
?	490 889 40	Series terminal	1
?	891 073 40	Measuring transducer	1
?	621 735 40	Capacitor	1
?	621 506 40	Module	1
?	494 014 40	Amplifier	1
?	494 011 40	Main supply unit	1
?	894 012 40	PID-governor	1
?	603 383 40	Engine RPM transmitter	1
?	655 895 40	Time lag relay	4
?	896 546 40	Time lag relay	6
?	655 896 40	Wiper relay	3
?	356 264 40	Twin terminal	-2
?	356 266 40	Cover plate	-2
?	461 321 40	Terminal	-2
?	461 322 40	Cover plate	-2
?	356 272 40	Cover plate	-2
?	356 274 40	Clamp	-2
?	356 276 40	Separator	-2
?	323 943 40	Sleeve marker	50
?	323 942 40	Sleeve marker	50
?	270 318 40	Sleeve marker	50
?	323 944 40	Sleeve marker	50
?	997 892 73	Marking strip set	1
?	515 189 40	Cable 1mm2 Bulk ware, state length required	-2
?	471 731 99	Cable 6mm2 Bulk ware, state length required	-2
?	356 267 40	Cross connection QV 2	10
?	356 268 40	Cross connection QV 3	10
?	356 269 40	Cross connection QV 4	10
?	356 270 40	Cross connection QV 10	10
?	356 273 40	Cross connection QV 10	10
?	356 279 40	Cross connection QV 4	10
?	356 280 40	Cross connection QV 10	10
?	655 621 40	Cable union DN 10	4
?	655 622 40	Cable union DN 12	2
?	655 623 40	Cable union DN 17	3
?	655 624 40	Cable union DN 23	6
?	655 835 40	Cable union DN 36	1
?	655 685 40	Dust cap	1
?	551 867 40	Clasp	2
?	576 005 40	Clamp M35/16	-2
?	356 277 40	Clamp M16/12	-2
?	356 278 40	Cover plate	-2
?	515 218 40	Cable 16mm2 Bulk ware, state length required	-2
?	655 697 40	Cable union DN 29	1
?	490 542 40	Cross connection	-2
?	903 364 40	Harness assy. V24	1
?	058 190 40	Diode	4
?	308 436 99	Bolt	4
?	510 741 98	Resilient sleeve	4

Komatsu PC3000-1 S/N 06191 parts catalog PDF

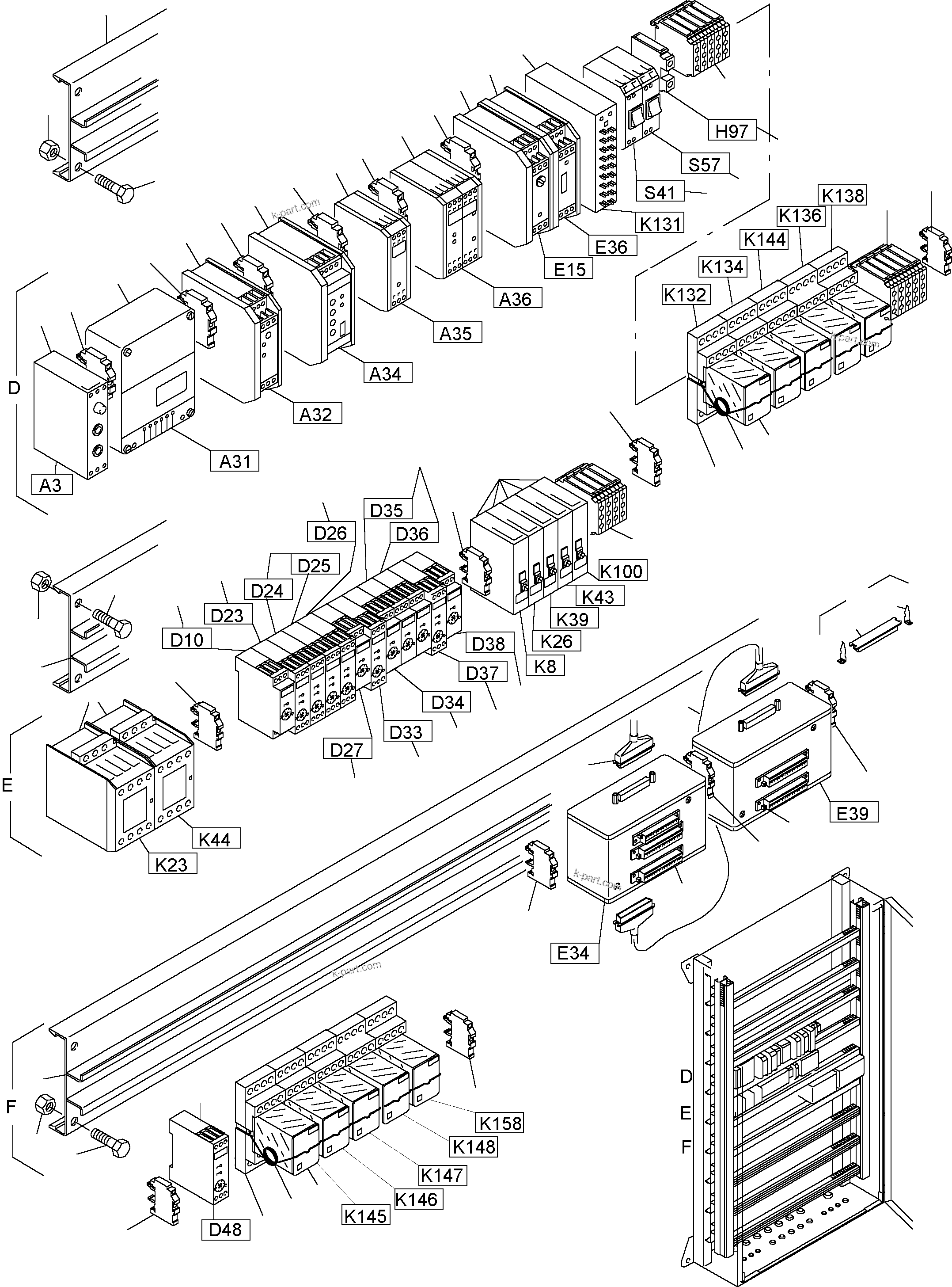

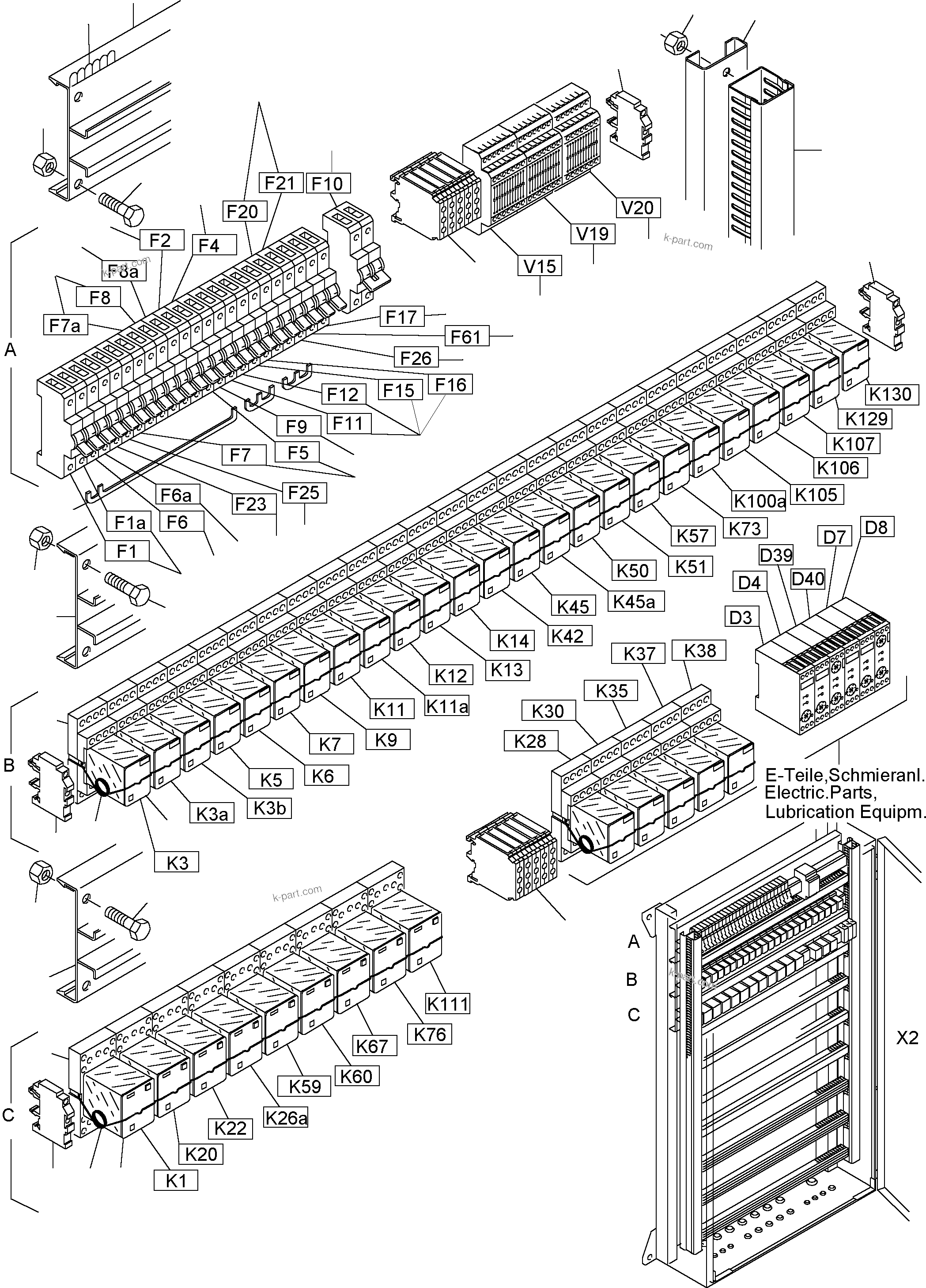

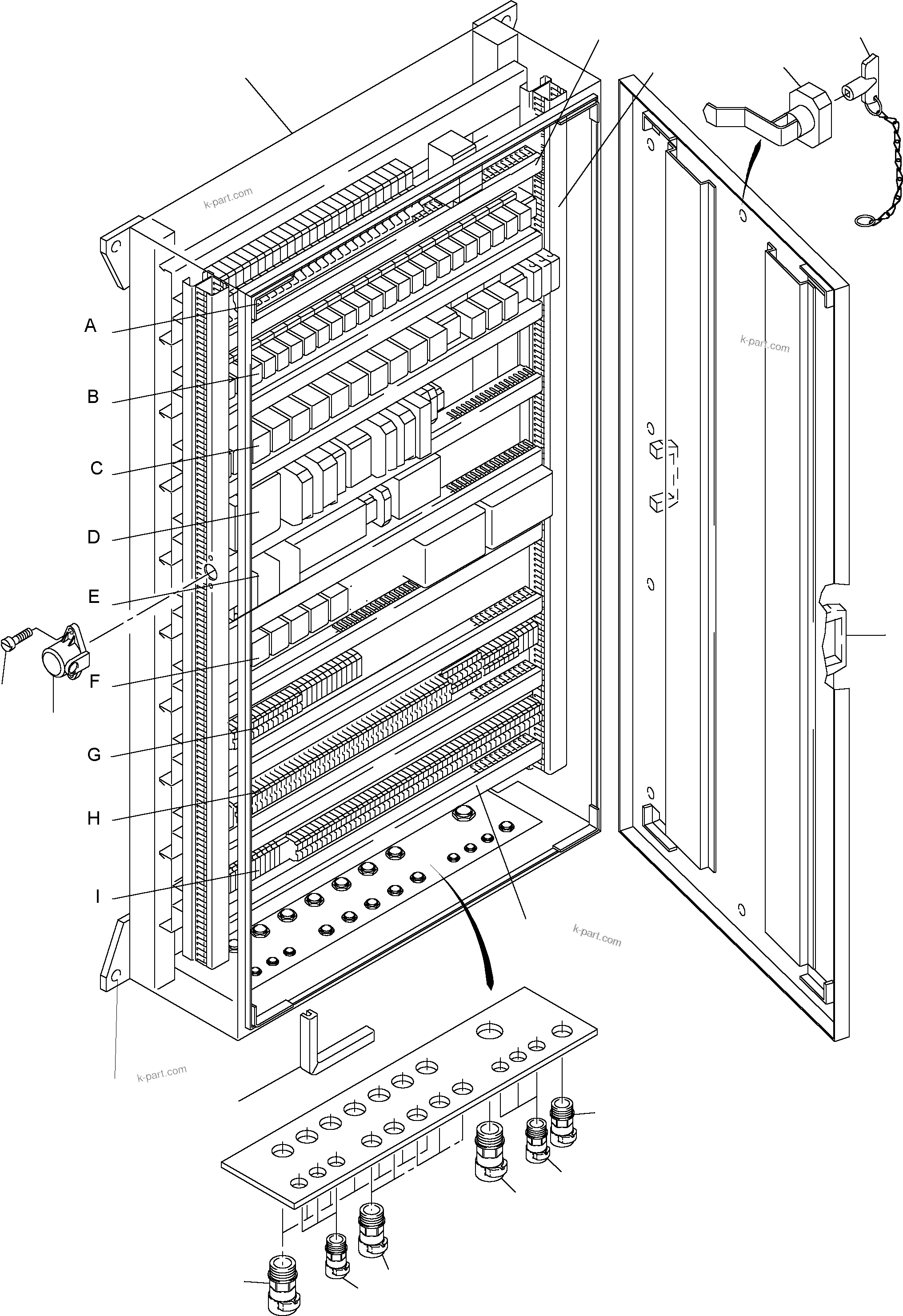

MAIN SWITCH BOX IN CAB SUPPORT (485-2165f) in PC3000-1 S/N 06191. Diagram image and parts list.
