OPERATOR'S CAB | PC3000-1 S/N 06191 | Komatsu parts book catalogue

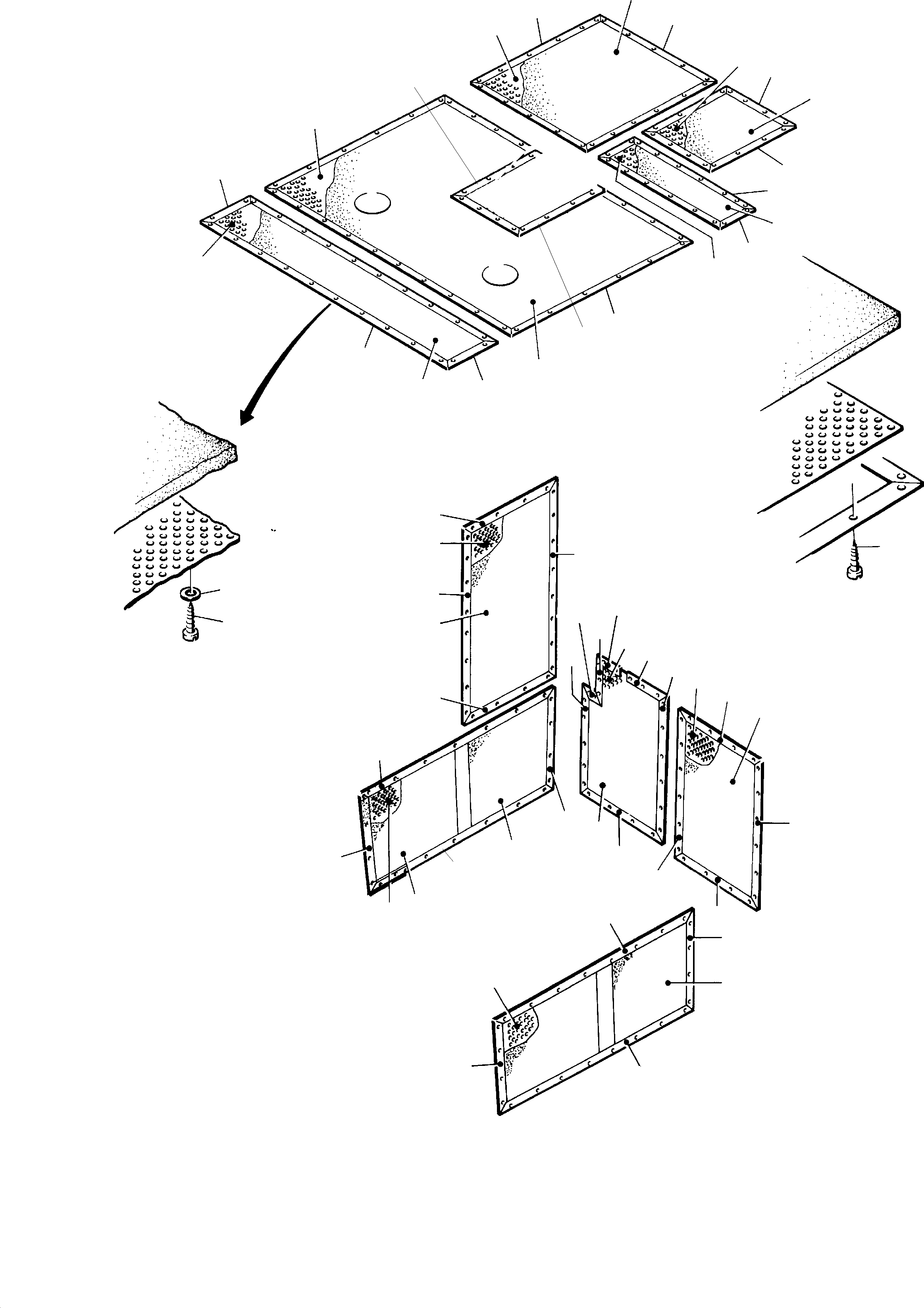

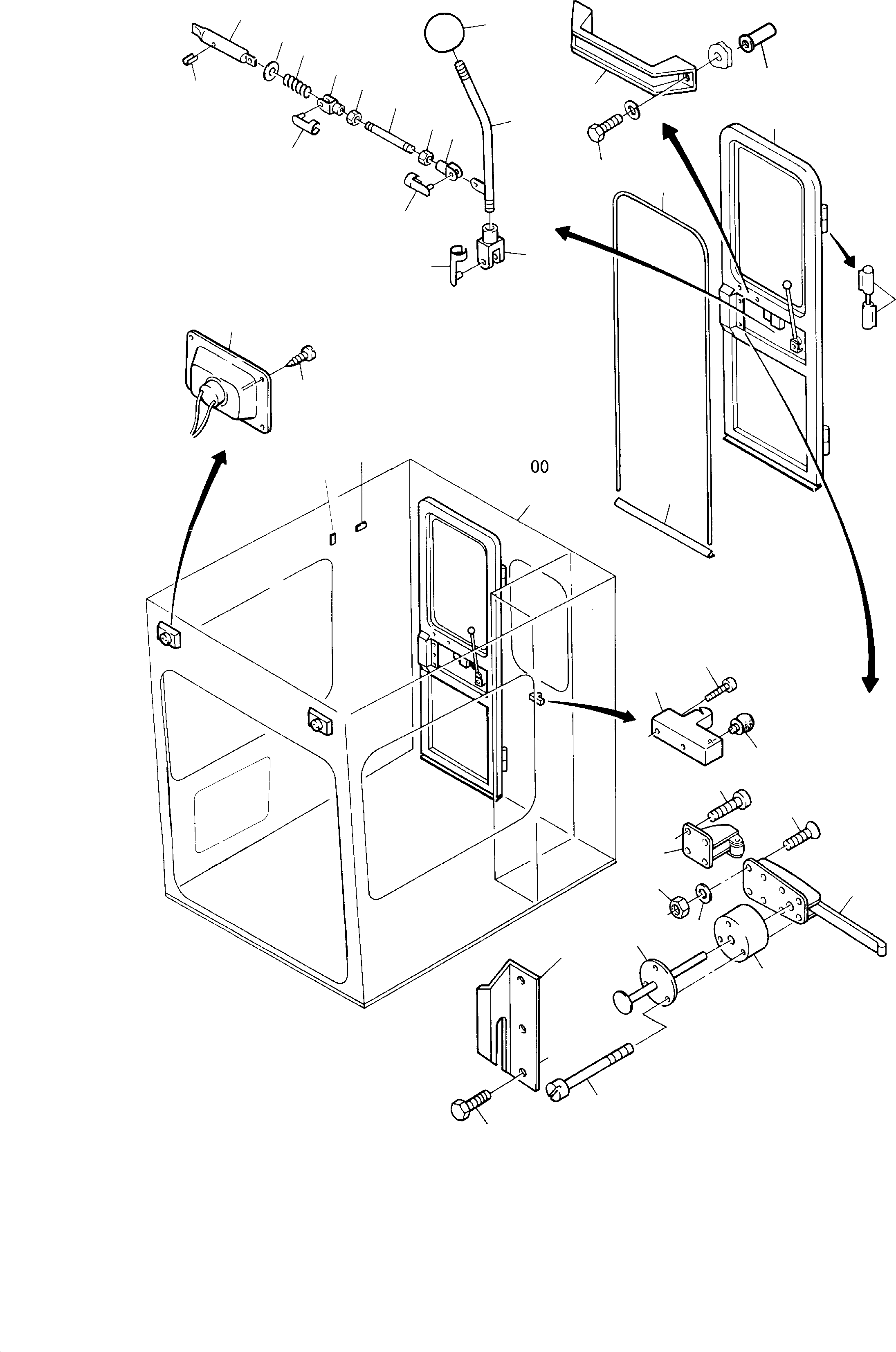

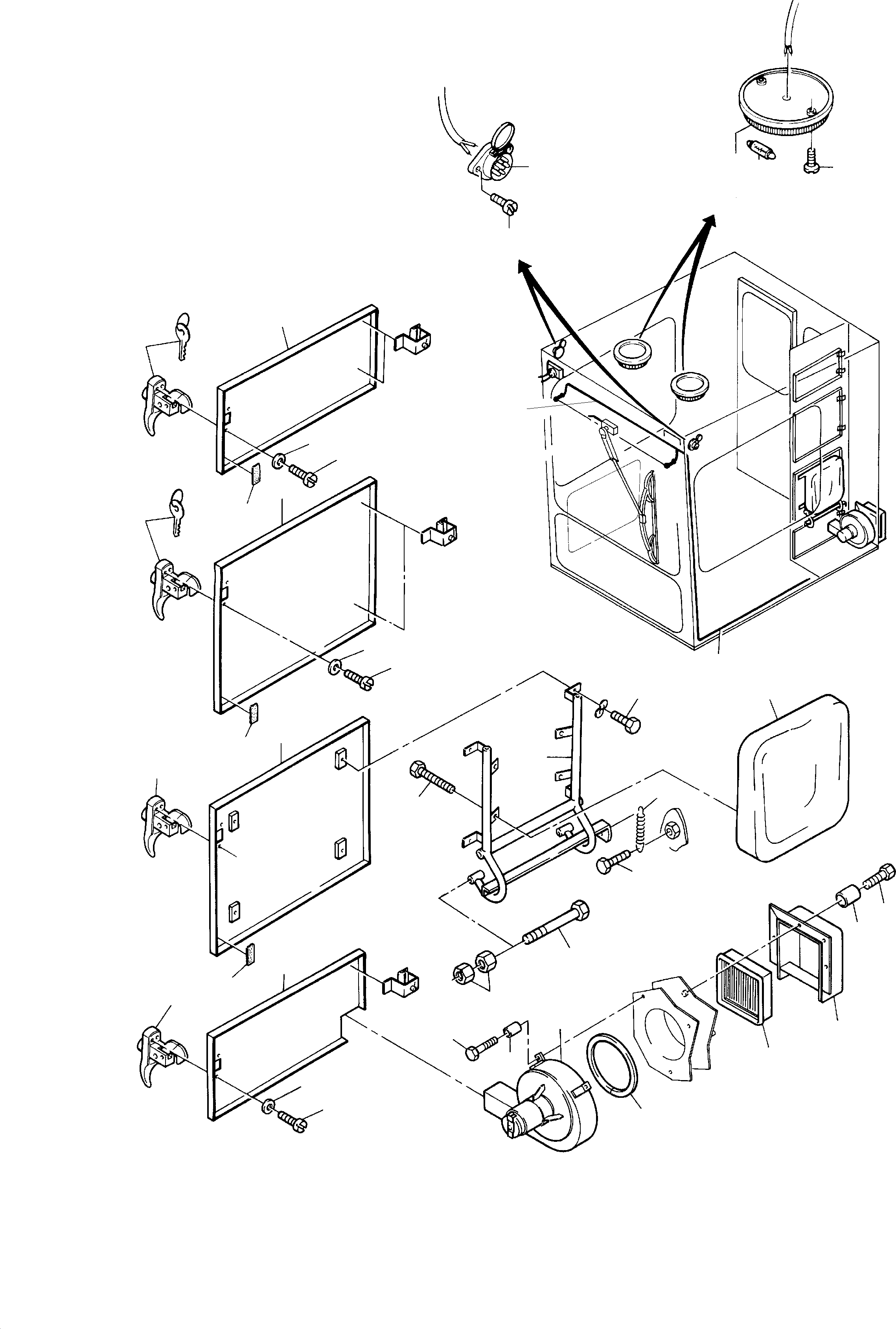

Diagram image 1 of 3

PC3000-1 S/N 06191

01 02 05 108 109 113 114 116 118 123 127 130 133 150 151 42 44 45 46 47 48 61 67 67 68 70 72 72 76 76 78 79 80 80 81 82 83 83 89 90 91 96 97

PC3000-1 S/N 06191

03 04 101 106 119 120 121 122 124 125 126 128 129 152 153 154 155 39 40 49 64 65 66 67 69 73 73 73 73 74 74 74 77 84 85 86 92 92 93 93 99 99

PC3000-1 S/N 06191

06 06 07 07 08 08 08 09 09 110 111 115 12 13 131 132 14 15 15 16 19 20 21 22 23 24 25 26 27 28 29 29 30 30 31 32 33 34 35 37 38 41 50 51 52 53 54 55 56 57 58 59 60 62 62 63 75 87 98

#	Part Number	Partname	Quantity
\|$$1	883 778 40	Operator's cab fig-nos. 01-133	1
01	883 777 40	Operator's cab w/o mounting parts	1
02	651 850 40	Door w/o mounting parts	1
03	882 210 40	Seat frame	1
04	489 160 40	Door	1
05	385 708 40	Lever assy.	1
06	385 709 40	Border cleat	2
07	489 165 40	Border cleat	2
08	489 166 40	Border cleat	3
09	898 544 40	Border cleat	2
12	489 170 40	Border cleat	1
13	489 171 40	Border cleat	1
14	489 172 40	Border cleat	1
15	627 601 40	Border cleat	2
16	489 174 40	Border cleat	4
19	627 602 40	Border cleat	2
20	623 999 40	Border cleat	2
21	489 176 40	Border cleat	2
22	627 603 40	Border cleat	2
23	491 022 40	Border cleat	1
24	491 023 40	Border cleat	1
25	491 024 40	Border cleat	1
26	385 729 40	Border cleat	1
27	385 730 40	Border cleat	1
28	385 731 40	Border cleat	1
29	489 178 40	Border cleat	2
30	489 179 40	Border cleat	2
31	898 541 40	Perforated plate	1
32	489 181 40	Covering	1
33	627 604 40	Perforated plate	1
34	627 605 40	Perforated plate	1
35	651 866 40	Covering	1
37	489 185 40	Insulation board	1
38	627 606 40	Insulation board	2
39	489 187 40	Door sheet	1
40	489 188 40	Door sheet	1
41	623 996 40	Border cleat	2
42	896 542 40	Dressing hook	1
44	356 533 40	Catch	1
45	374 222 40	Detent	1
46	368 431 40	Washer	1
47	356 535 40	Compression spring	1
48	356 536 40	Threaded rod	1
49	236 098 40	Draw spring	1
50	489 190 40	Perforated plate	1
51	489 191 40	Perforated plate	1
52	627 607 40	Perforated plate	1
53	489 193 40	Insulation board	1
54	489 194 40	Insulation board	1
55	489 195 40	Insulation board	1
56	489 196 40	Insulation board	2
57	627 608 40	Insulation board	1
58	489 198 40	Insulation board	1
59	627 609 40	Insulation board	1
60	386 444 40	Insulation board	1
61	345 178 99	Dowel pin	1
62	500 489 98	Tapping screw	265
63	385 203 40	Shim	13
64	507 037 98	Nut	2
65	308 581 99	Bolt	1
66	307 756 99	Bolt	1
67	307 728 99	Bolt	2
68	635 261 40	Handle with lock	1
69	308 536 99	Bolt	4
70	319 421 99	Screw	2
72	332 110 99	Nut	2
73	320 974 99	Screw	20
74	346 508 99	Lock washer	12
75	627 611 40	Perforated plate	1
76	500 937 98	Tapping screw	12
77	320 977 99	Screw	4
78	635 262 40	Stop	1
79	356 130 40	Silent bloc	1
80	350 748 99	Fork end	2
81	350 742 99	Fork end	1
82	002 827 98	Pin	1
83	002 823 98	Pin	2
84	551 289 40	Seat upholstery	1
85	058 380 40	Dome light	2
86	057 295 40	Socket	2
87	627 612 40	Perforated plate	1
89	635 495 40	Handle	1
90	651 865 40	Spacer block	1
91	490 060 40	Handle	1
92	385 232 40	Catch	2
93	385 233 40	Catch	2
96	167 694 40	Profiled joint 4400 lg. Bulk ware, state length required	-2
97	166 575 40	Profiled joint 620 lg. Bulk ware, state length required	-2
98	623 997 40	Border cleat	2
99	196 488 40	Connection hose Bulk ware, state length required	-2
101	057 278 40	Socket	1
106	636 395 40	Door	1
108	896 705 40	Speaker	1
109	655 112 40	Push switch	1
110	623 998 40	Border cleat	2
111	627 610 40	Insulation board	1
113	491 026 40	Sheet metal	1
114	318 383 99	Countersunk screw	6
115	385 727 40	Border cleat	1
116	340 506 99	Disc	4
118	507 025 98	Nut	4
119	575 042 40	Rubber cord	2
120	575 043 40	Rubber cord 460 Bulk ware, state length required	1
121	575 044 40	Rubber cord 500 Bulk ware, state length required	1
122	636 385 40	Filter box assy.	1
123	318 382 99	Screw	4
124	269 055 40	Air filter	1
125	510 747 98	Resilient sleeve	3
126	307 760 99	Bolt	3
127	319 127 99	Screw	3
128	307 735 99	Bolt	3
129	324 390 40	Rubber cord Bulk ware, state length required	-2
130	490 061 40	Rivet	2
131	457 241 40	Border cleat	1
132	457 242 40	Border cleat	1
133	896 543 40	Cap	1
150	506 825 98	Ball handle	1
151	440 556 40	Band roller	2
152	058 208 40	Bulb	4
153	501 026 40	Bulb	2
154	324 391 40	H.P. blower	1
155	511 262 98	Resilient sleeve	3
\|$$123	515 213 40	Cable 1,0 qmm for interior lighting and speaker Bulk ware, state length required	-2
\|$$124	515 214 40	Cable 2,5 qmm for wipers and electrical outlets Bulk ware, state length required	-2
\|$$125	655 675 40	Cable 6,0 qmm for air conditioning equipment Bulk ware, state length required	-2
\|$$126	270 873 40	Cable channel 1,8 m lenght Bulk ware, state length required	-2
