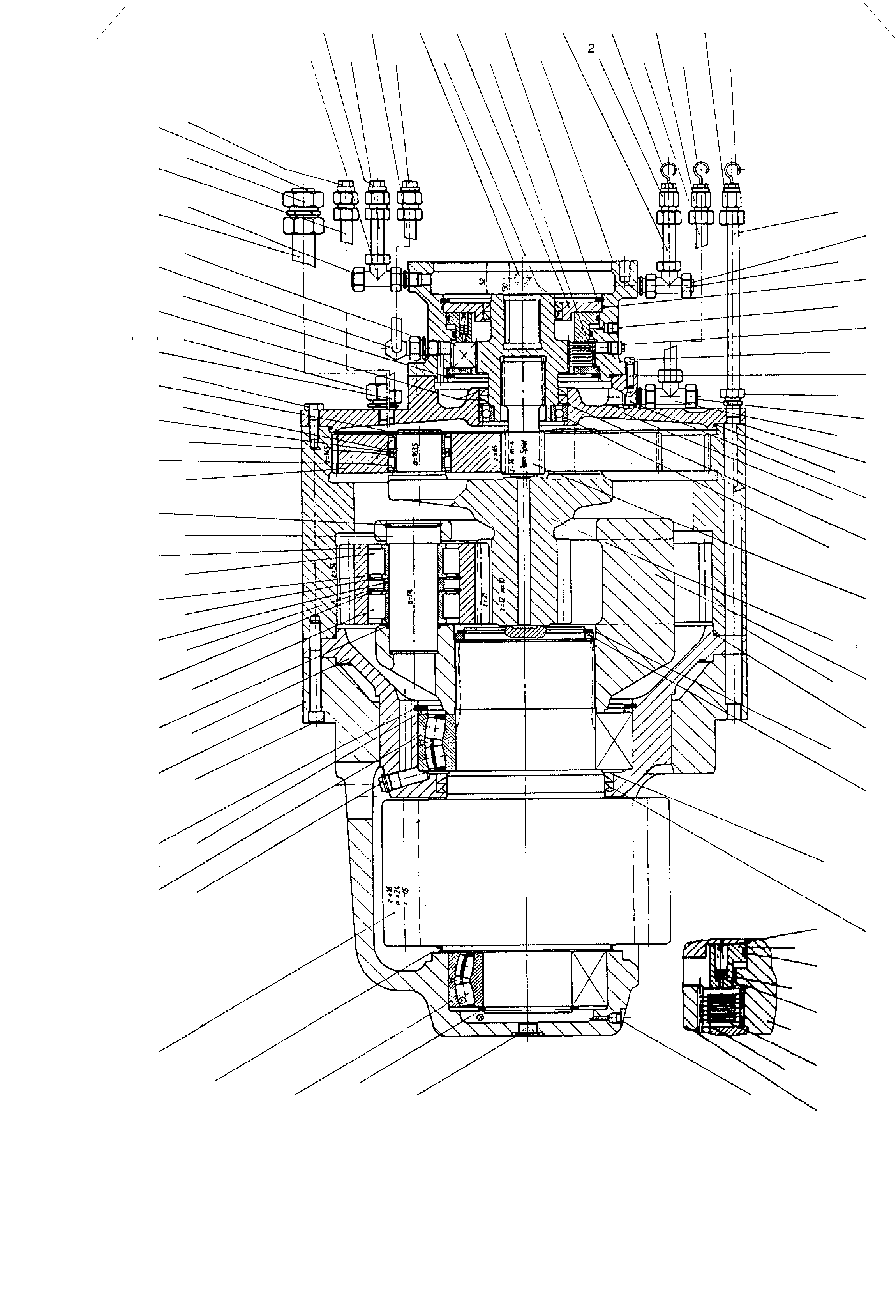

SLEW GEARBOX | PC3000-1 S/N 06191 | Komatsu parts book catalogue

Search in All Books

Find books across the catalog from one place.

This page is prepared as the search workspace. The search behavior itself can be connected in the next step.

Search whole Komatsu part number in all books. Example: 6212611203.

#	Part Number	Partname	Quantity	Reference
01	898 100 40	Slew gearbox assy.	1
\|$$2		Brake	1	991-0256
02	767 766 73	Ring gear	1
03	767 765 73	Cartridge	1
06	767 767 73	Output pinion	1
08	763 729 73	Planet carrier	1
09	757 238 73	Planet bolt	3
11	757 241 73	Planet gear	3
12	768 155 73	Planetary Carrier assy consist of fig. no. 08,09,11,17, 19,32,35,37,52,53	1
13	763 730 73	Disk	1
14	757 360 73	Sun gear shaft	1
17	768 454 73	Disk	1
19	507 751 98	Cylindrical roller bearing	6
20	507 746 98	Spherical roller bearing	1
21	513 531 98	Spherical roller bearing	1
23	501 933 98	Circlip	1
24	763 735 73	Clamp collar	1
25	504 544 98	Radial shaft seal ring	2
26	507 748 98	O-ring	2
30	342 666 99	Circlip	3
32	342 679 99	Circlip	6
35	342 497 99	Circlip	1
37	592 242 40	Locating ring	6
39	349 989 99	Screw plug	1
42	340 084 99	Seal ring	1
47	313 386 99	Screw plug	1
48	339 932 99	Seal ring	1
51	319 196 99	Socket head cap screw	4
52	757 240 73	Spacer ring	3
53	763 731 73	Spacer ring	3
59	342 578 99	Circlip	1
61	510 511 98	Radial shaft seal ring	2
62	360 518 99	Ball bearing	1
64	342 678 99	Circlip	1
89	767 763 73	Planet carrier	1
90	767 764 73	Planet gear	3
91	506 448 98	Cylindrical roller bearing	6
94	806 076 73	Locating ring	6
95	342 560 99	Circlip	3
96	342 670 99	Circlip	3
97	768 156 73	Planetary carrier assy consist of fig. no. 89,90,91 94,95,96	1
100	768 458 73	Adapter flange	1
116	319 288 99	Socket head cap screw	4
119	319 158 99	Hex head bolt	12
125	507 748 98	O-ring	1
126	313 178 99	Screw plug	1
127	339 950 99	Seal ring	1
128	313 314 99	Screw plug	3
129	340 294 99	Seal ring	3
130	763 843 73	Drive Shaft	1
131	768 464 73	Plug	1
132	768 843 73	Dipstick	1
133	512 004 98	O-ring	1
134	339 998 99	Seal ring	1
162	763 737 73	Bearing ring	1
201	215 812 99	Precision tubing 18x1,5 Bulk ware, state length required	-2
202	372 035 99	Union	1
203	371 856 99	Union	5
204	763 841 73	Union	2
205	215 812 99	Precision tubing 18x1,5 Bulk ware, state length required	-2
206	372 824 99	Union	2
207	215 812 99	Precision tubing 18x1,5 Bulk ware, state length required	-2
208	501 774 98	Union	1
209	763 786 73	Union	1
210	372 451 99	Union	1
211	372 834 99	Union	1
212	768 382 73	Dipstick	1
213	768 381 73	Dipstick	1
214	215 812 99	Precision tubing 18x1,5 Bulk ware, state length required	-2
215	215 812 99	Precision tubing 18x1,5 Bulk ware, state length required	-2
216	215 812 99	Precision tubing 18x1,5 Bulk ware, state length required	-2
217	372 454 99	Union	1
218	215 820 99	Precision tubing 35x2 Bulk ware, state length required	-2
219	768 462 73	Union	1
220	768 463 73	Union	1
326	509 992 98	Plug	1
327	399 998 99	Seal ring	1
521	313 267 99	Plug	5
522	340 294 99	Seal ring	5
\|$$80	768 461 73	Seal Kit Slew Gearbox consist of fig. no. 24,25,26 27,61,125	1
