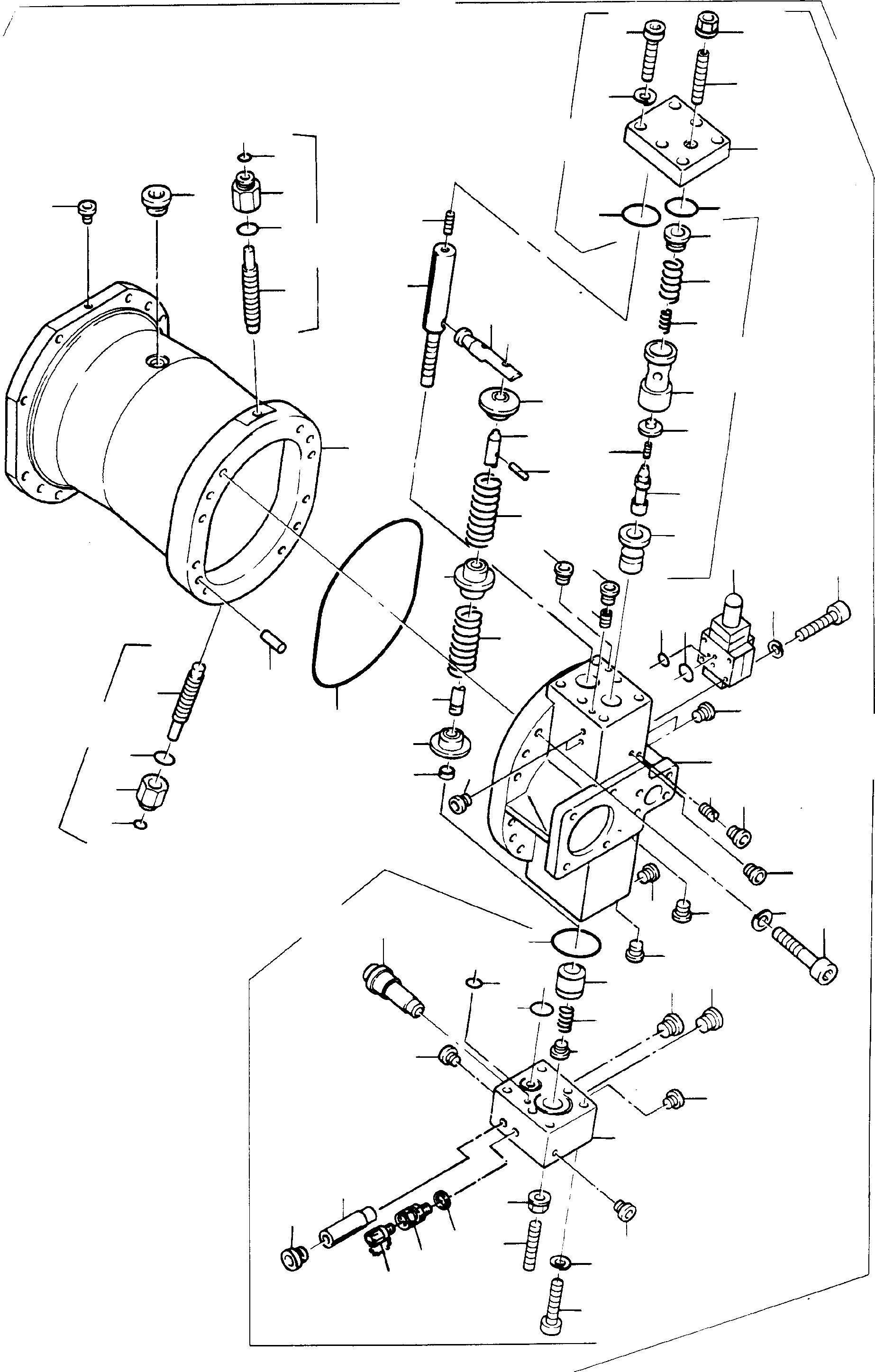

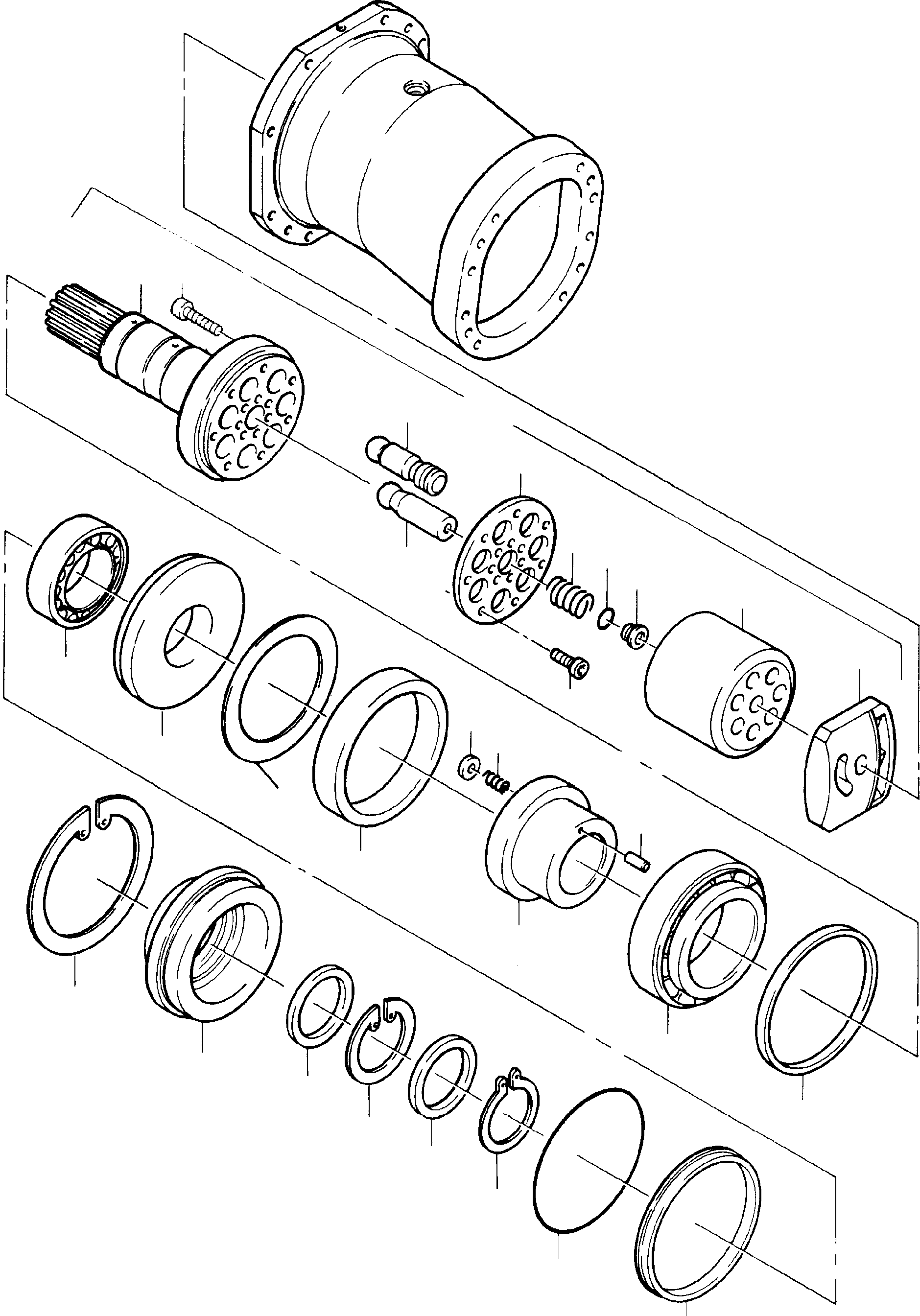

HYDR. PUMP | PC3000-1 S/N 06191 | Komatsu parts book catalogue

Search in All Books

Find books across the catalog from one place.

This page is prepared as the search workspace. The search behavior itself can be connected in the next step.

Search whole Komatsu part number in all books. Example: 6212611203.

#	Part Number	Partname	Quantity
01	903 391 40	Hydr.-pump, assy.	1
02		Housing	1
03	173 493 40	Plug	2
04	313 456 99	Plug	2
05	753 524	Displacement section, assy. consist. of fig-nos: 07-10	1
06	753 467	Displacement section, assy. consist. of fig-nos: 07-09,11	1
07	753 469	Nut	2
08	180 023 40	O-ring	2
09	971 020	O-ring	2
10	753 537	Detent	1
11	753 468	Detent	1
12	754 501	Adjustment, assy. consist. of fig-nos: 13-15,23,31-57	1
13	502 399 98	O-ring	1
14	344 888 99	Pin	2
15	753 527	Cover, assy. consist. of fig-nos: 16-22	1
16	319 305 99	Screw	6
17	343 859 99	Lock washer	6
18	325 350 99	Thread pin	1
19	964 767	Nut	1
20	753 498	Cover	1
21	958 231	O-ring	1
22	500 268 98	O-ring	1
23	757 119 73	Control part, assy. consist. of fig-nos: 24-31	1
24	753 495	Spring plate	1
25	754 781 73	Spring	1
26	753 496	Compression spring	1
27	753 494	Spring plate	1
28	753 493	Bush	1
29	753 492	Sleeve	1
30	757 120 73	Piston valve	1
31	754 503	Throttle screw	1
32	753 470	Thread pin	1
33	753 471	Piston	1
34	753 472	Regulation journal	1
35	502 883 98	Dowel pin	1
36	753 473	Spring plate	1
37	753 474	Guide rod	1
38	753 475	Compression spring	2
39	753 476	Spring guide	1
40	753 471	Spring plate	1
41	753 478	Ring	1
42	754 504	Cover plate	1
43	319 262 99	Screw	4
44	343 855 99	Lock washer	4
45	979 416 73	Sequence valve	1
\|$$46	767 996 73	Seal kit to fig-no: 45	1
46	210 955 40	O-ring	2
47	767 723 73	O-ring	2
48	319 339 99	Screw	12
49	343 861 99	Lock washer	12
50	255 985 40	Plug	2
51	753 480	Throttle screw	1
52	804 851 73	Plug	6
53	173 493 40	Plug	1
54	325 189 99	Thread pin	1
55	992 655	Plug	1
56	998 592	Plug	1
57	757 114 73	Cover, assy. consist. of fig-nos: 58-73,110-112	1
58	319 293 99	Screw	6
59	343 857 99	Lock washer	6
60	757 113 73	Cover	1
61	950 365	O-ring	1
62	502 400 98	O-ring	1
63	501 357 98	O-ring	2
64	753 482	Piston valve	1
65	992 745	Compression spring	1
66	753 483	Spring plate	1
67	502 403 98	Thread pin	1
68	998 603	Nut	1
69	964 736	Safety plug	1
70	173 448 40	Plug	2
71	753 489	Non-return valve	1
72	753 484	Non-return valve	1
73	255 679 40	Plug	2
74	769 664 73	Transmission, assy. consist. of fig-nos: 75-107	1
75	769 665 73	Control lense, l.h. execution	1
76	769 666 73	Bolt	7
77	753 500	Cylinder	1
78	754 507	Adjusting ring	1
79	754 508	Spacer screw	1
80	753 506	Spring	1
81	753 536	Pivot	1
82	769 667 73	Piston	7
83	319 271 99	Screw	14
84	762 733 73	Withdrawal plate	1
86	762 734 73	Driving flange	1
87	754 512	Ring	1
88	754 513	Roller bearing	1
89	504 911 98	Dowel sleeve	1
90	345 181 99	Dowel sleeve	1
91	754 514	Bracket	1
92	753 342	Spring	7
93	754 515	Guide shoe	7
94	754 516	Spacer	1
95	753 511	Shim ring 270x320x1.0	1
96	753 512	Shim ring 270x320x0.5	1
97	753 513	Shim ring 270x320x0.2	2
98	769 668 73	Spring plate	7
99	754 517	Slider	1
100	361 874 99	Roller bearing	1
101	342 574 99	Circlip	1
102	754 518	Ring	1
103	504 758 98	O-ring	1
104	504 756 98	Shaft seal	2
105	342 678 99	Circlip	1
106	757 059 73	Sealing flange	1
107	753 534	Circlip	1
110	959 989	Test union	1
111	757 112 73	Union	1
112	757 111 73	Seal ring	1
\|$$111	754 520	Seal kit, assy. consist. of fig-nos: 08,09,13,21,22, 46,47,61-63,103,104	-2
