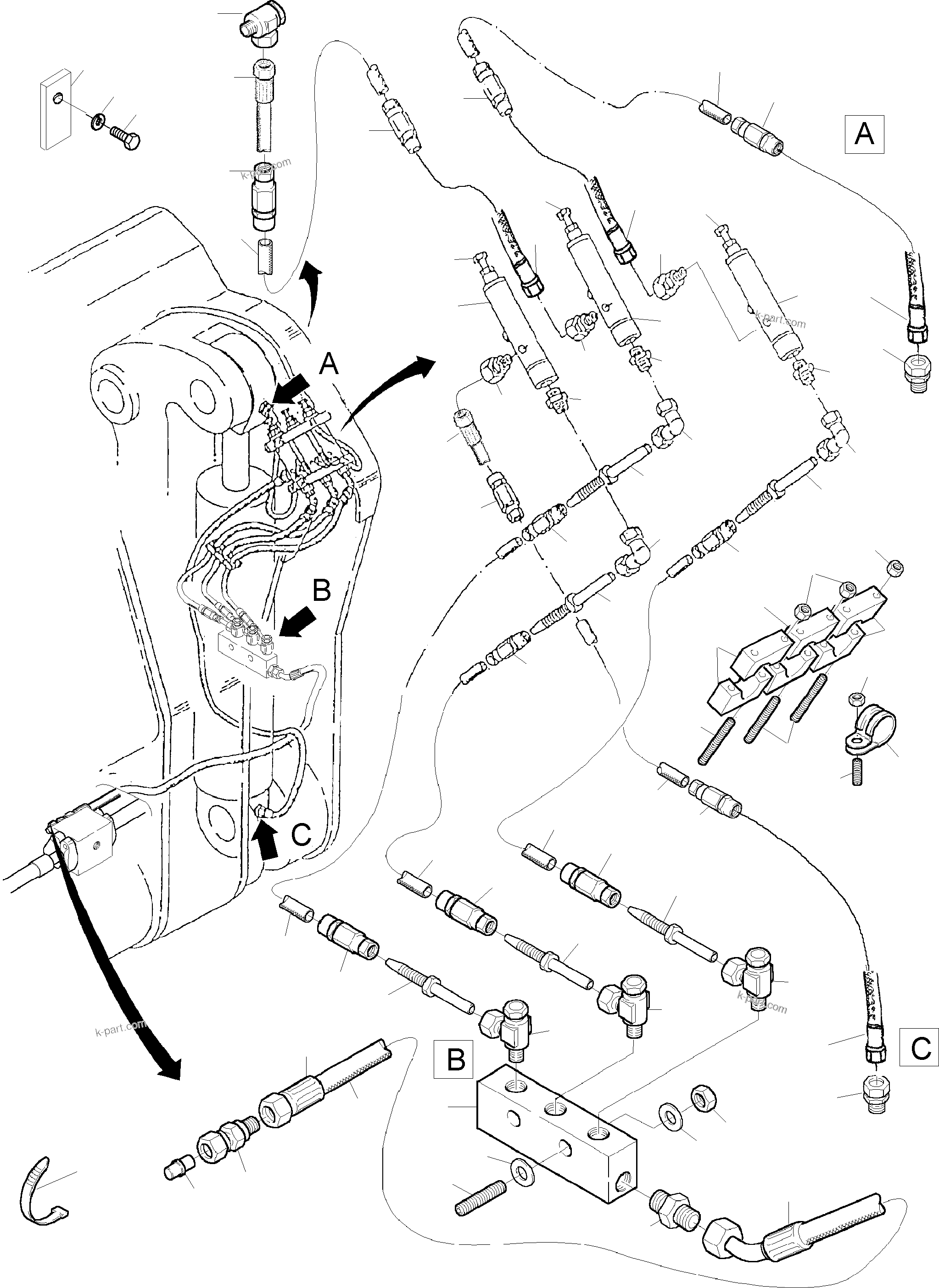

CENTRAL LUBRICATION - BULLCLAM, STANDARD | PC3000-1 S/N 06190

Search in All Books

Find books across the catalog from one place.

This page is prepared as the search workspace. The search behavior itself can be connected in the next step.

Search whole Komatsu part number in all books. Example: 6212611203.

PC3000-1 S/N 06190

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity
?		see page Metering valve	6
?	634 775 40	Clamp	12
?	511 885 98	Thread pin	24
?	654 063 40	Socket	6
?	372 170 99	Union	6
?	323 256 40	Hose DN 8 Bulk ware, state length required	-2
?	007 139 98	Union	6
?	635 584 40	Hose Bulk ware, state length required	-2
?	370 304 99	Union	2
?	373 003 99	Union	6
?	269 604 40	Hose DN 12 x 2500 Bulk ware, state length required	2
?	371 452 99	Union	4
?	635 588 40	Collet	12
?	635 586 40	Pipe socket	12
?	006 302 98	Clamp	10
?	145 831 40	Clamp	6
?	504 149 98	Washer	4
?	323 945 40	Thread pin	6
?	340 111 99	Washer	4
?	174 411 40	Cable strap	16
?	323 946 40	Thread pin	6
?	324 601 40	Collet	12
?	006 894 98	Union	2
?	895 507 40	Thread plate	8
?	372 426 99	Union	2
?	371 855 99	Seal plug	2
?	674 275 40	Distribution block	2
?	461 282 40	Nipple	8
?	307 727 99	Bolt	8
?	507 286 98	Thread pin	4
?	334 600 99	Nut	28
?	332 331 99	Nut	12
?	269 966 40	Socket	4
?	360 806 40	Nipple	2
?	324 709 40	Nipple	2
?	500 799 98	Lock washer	8
?	654 496 40	Protection cap	6
?	324 346 40	Nipple	2
