3D78AE-3C S/N 00101-UP

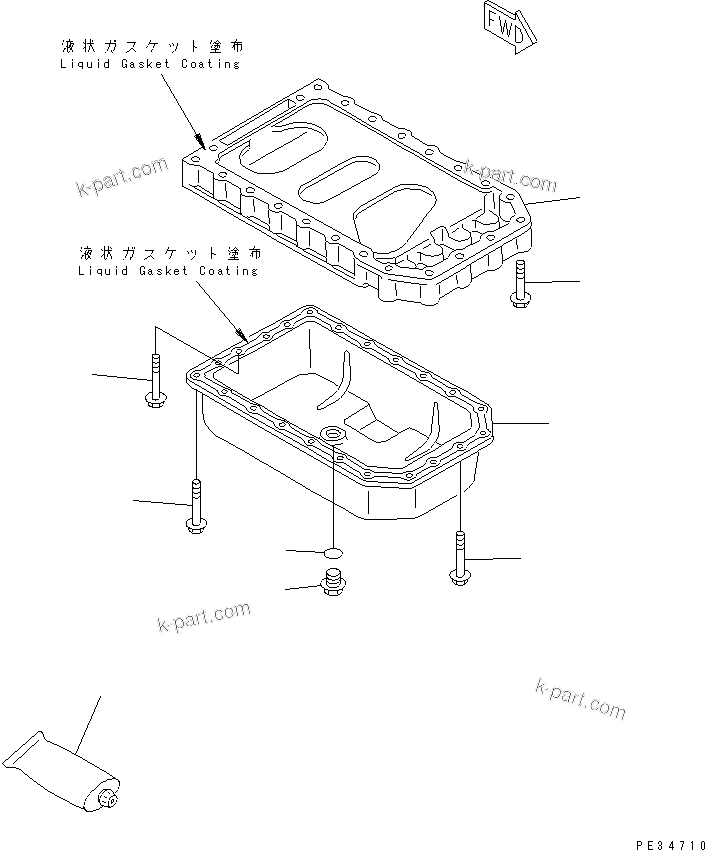

Komatsu parts book diagram for 3D78AE-3C S/N 00101-UP: OIL PAN(#00112-)

? ? ? ? ? ? ? ? ?

	#	Part Number	Partname	Quantity	Options	Reference
	?	YM119823-01770	OIL PAN ASS'Y	1	SN: 01267-UP
	?	YM119810-01790	OIL PAN ASS'Y	1	SN: 00112-01266
	?	YM119640-01640	PLUG,DRAIN	1	SN: 00112-UP
	?	YM22190-220002	SEAL,RING	1	SN: 00112-UP
	?	YM119810-01730	SPACER	1	SN: 00112-UP
	?	YM26106-080452	BOLT	22	SN: 00112-UP
	?	YM26106-080162	BOLT	6	SN: 00112-UP
	?	YM977770-01212	LIQUID GASKET	-2	SN: 00112-UP

Komatsu 3D78AE-3C S/N 00101-UP parts catalog PDF

OIL PAN(#00112-) (0212) in 3D78AE-3C S/N 00101-UP. Diagram image and parts list.
