3D78-1D S/N 01589-UP

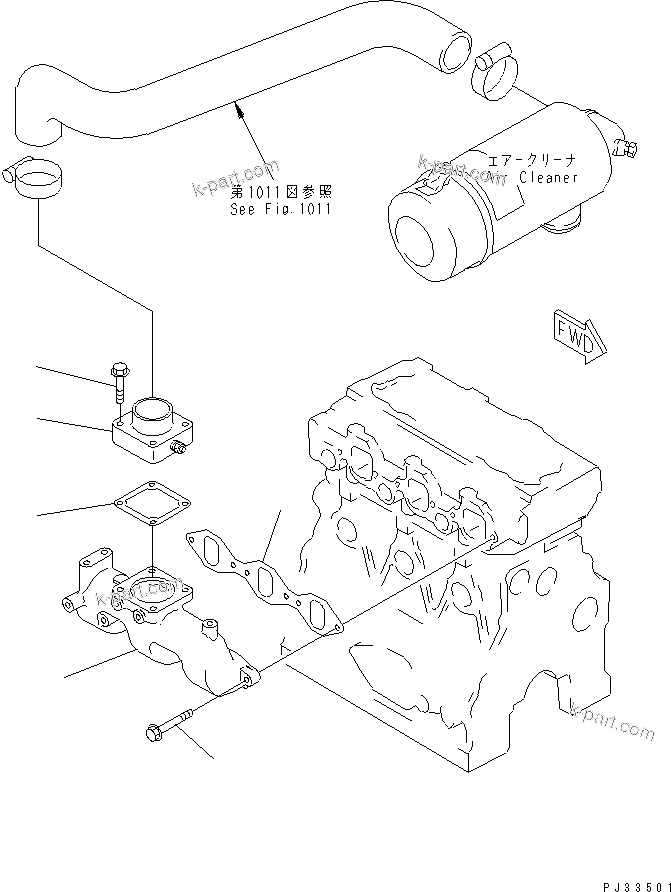

Komatsu parts book diagram for 3D78-1D S/N 01589-UP: AIR INTAKE MANIFOLD

? ? ? ? ? ?

	#	Part Number	Partname	Quantity	Options	Reference
	?	YM129150-12100	MANIFOLD,AIR INTAKE	1	SN: 01589-UP
	?	YM129150-12110	GASKET (KIT)	1	SN: 01589-UP
	?	YM26106-080252	BOLT	4	SN: 01589-UP
	?	YM129120-77501	HEATER,RIBBON	1	SN: 01589-UP
	?	YM129150-77510	GASKET	1	SN: 01589-UP
	?	YM26106-080352	BOLT	4	SN: 01589-UP

Komatsu 3D78-1D S/N 01589-UP parts catalog PDF

AIR INTAKE MANIFOLD (0131) in 3D78-1D S/N 01589-UP. Diagram image and parts list.
