3D84-2GA S/N 00292-UP

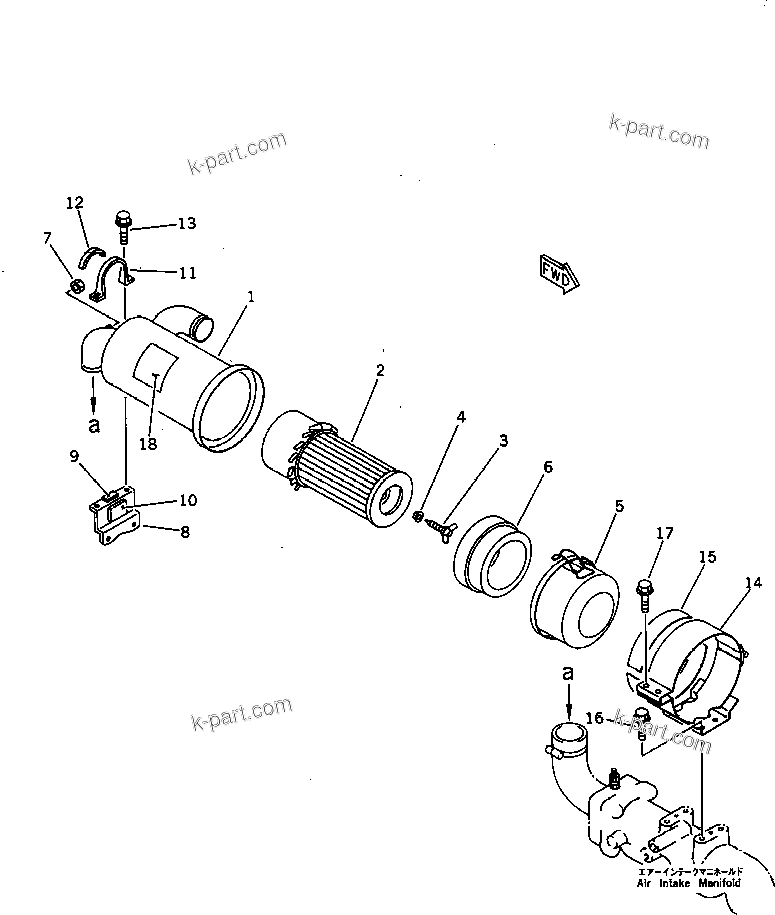

Komatsu parts book diagram for 3D84-2GA S/N 00292-UP: AIR CLEANER AND MOUNTING (SINGLE ELEMENT TYPE)(#18428-)

	#	Part Number	Partname	Quantity	Options	Reference
	?	YM129136-12510	AIR CLEANER ASS'Y	1	SN: 18428-UP
	?	YM121120-12901	ELEMENT	1	SN: 18428-UP
	?	YM121120-12561	BOLT,WING	1	SN: 18428-UP
	?	YM121120-12571	WASHER,SEAL	1	SN: 18428-UP
	?	YM129136-12530	PAN,DUST	1	SN: 18428-UP
	?	YM121120-12541	BUFFLE	1	SN: 18428-UP
	?	YM119640-12610	CAP	1	SN: 18428-UP
	?	YM129132-12810	SUPPORT	1	SN: 18428-UP
	?	YM129132-12890	SEAT	1	SN: 18428-UP
	?	YM129132-12900	DAMPER	1	SN: 18428-UP
	?	YM129132-12800	BAND ASS'Y	1	SN: 18428-UP
	?	YM129132-12860	SEAT	1	SN: 18428-UP
	?	YM26106-060142	BOLT	2	SN: 18428-UP
	?	YM129132-12581	SUPPORT ASS'Y	1	SN: 18428-UP
	?	YM129132-12561	SUPPORT	1	SN: 18428-UP
	?	YM119640-12580	SEAT	2	SN: 18428-UP
	?	YM26106-080142	BOLT	4	SN: 18428-UP
	?	YM26106-080252	BOLT	2	SN: 18428-UP
	?	YM129136-12610	PLATE ? CAUTION	1	SN: 18428-UP

Komatsu 3D84-2GA S/N 00292-UP parts catalog PDF

AIR CLEANER AND MOUNTING (SINGLE ELEMENT TYPE)(#18428-) (0144) in 3D84-2GA S/N 00292-UP. Diagram image and parts list.
