3D84-2D S/N 00292-UP

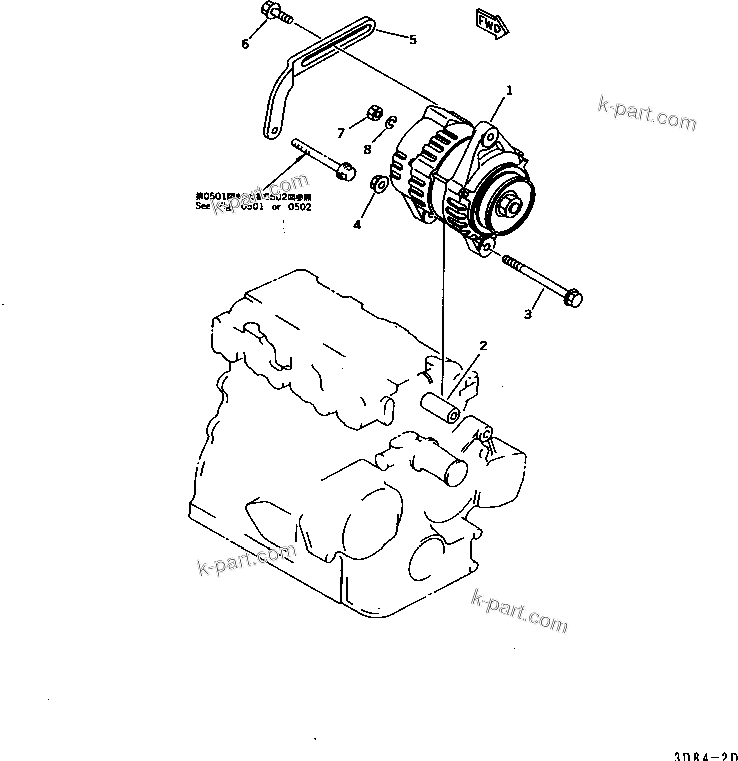

Komatsu parts book diagram for 3D84-2D S/N 00292-UP: ALTERNATOR AND MOUNTING (40A)(#03321-)

	#	Part Number	Partname	Quantity	Options	Reference
	?	YM119836-77200	ALTERNATOR A. (40A),(SEE FIG.0641)	1	SN: 03321-UP
	?	YM119820-77340	SPACER	1	SN: 03321-UP
	?	YM129136-77250	BOLT	1	SN: 03321-UP
	?	YM26366-080002	NUT	1	SN: 03321-UP
	?	YM129100-77330	PLATE,ADJUST	1	SN: 03321-UP
	?	YM26014-080252	BOLT	1	SN: 03321-UP
	?	YM26716-050002	NUT	1	SN: 04938-UP
	?	YM22117-050000	WASHER,SPRING	1	SN: 04938-UP

Komatsu 3D84-2D S/N 00292-UP parts catalog PDF

ALTERNATOR AND MOUNTING (40A)(#03321-) (0601) in 3D84-2D S/N 00292-UP. Diagram image and parts list.
