LUBE PUMP | PC3000-1 S/N 06209 | Komatsu parts book catalogue

Search in All Books

Find books across the catalog from one place.

This page is prepared as the search workspace. The search behavior itself can be connected in the next step.

Search whole Komatsu part number in all books. Example: 6212611203.

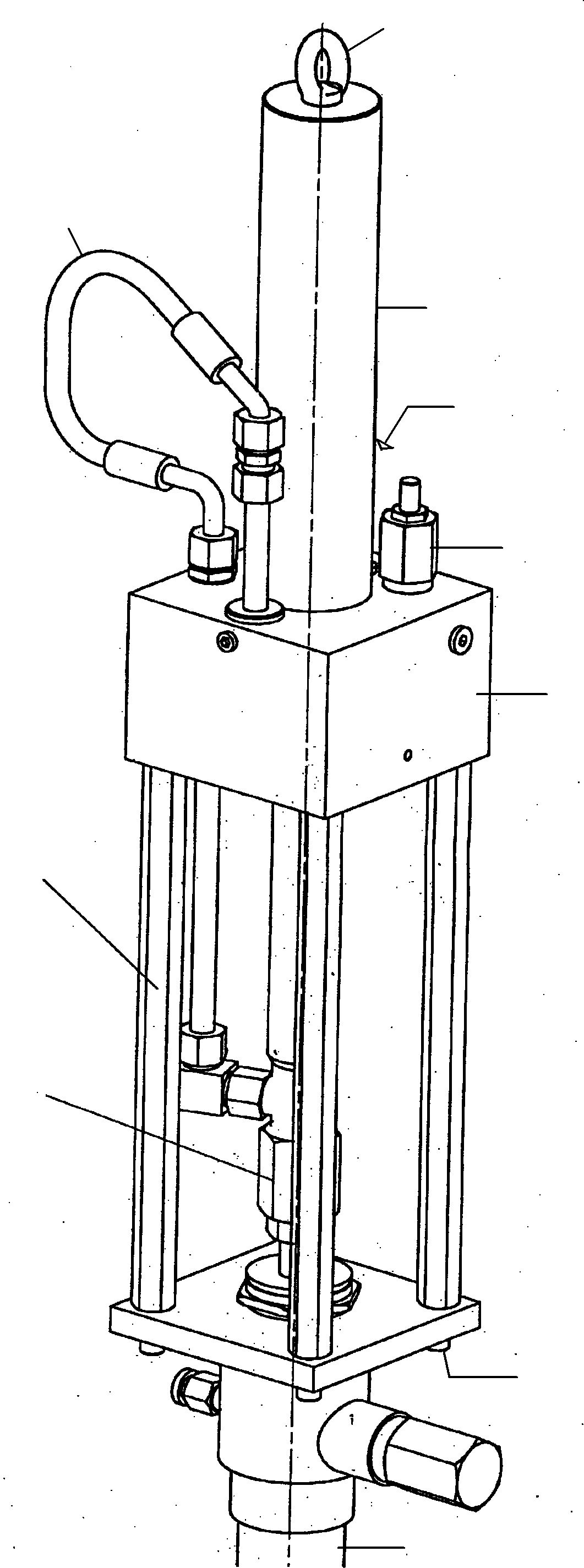

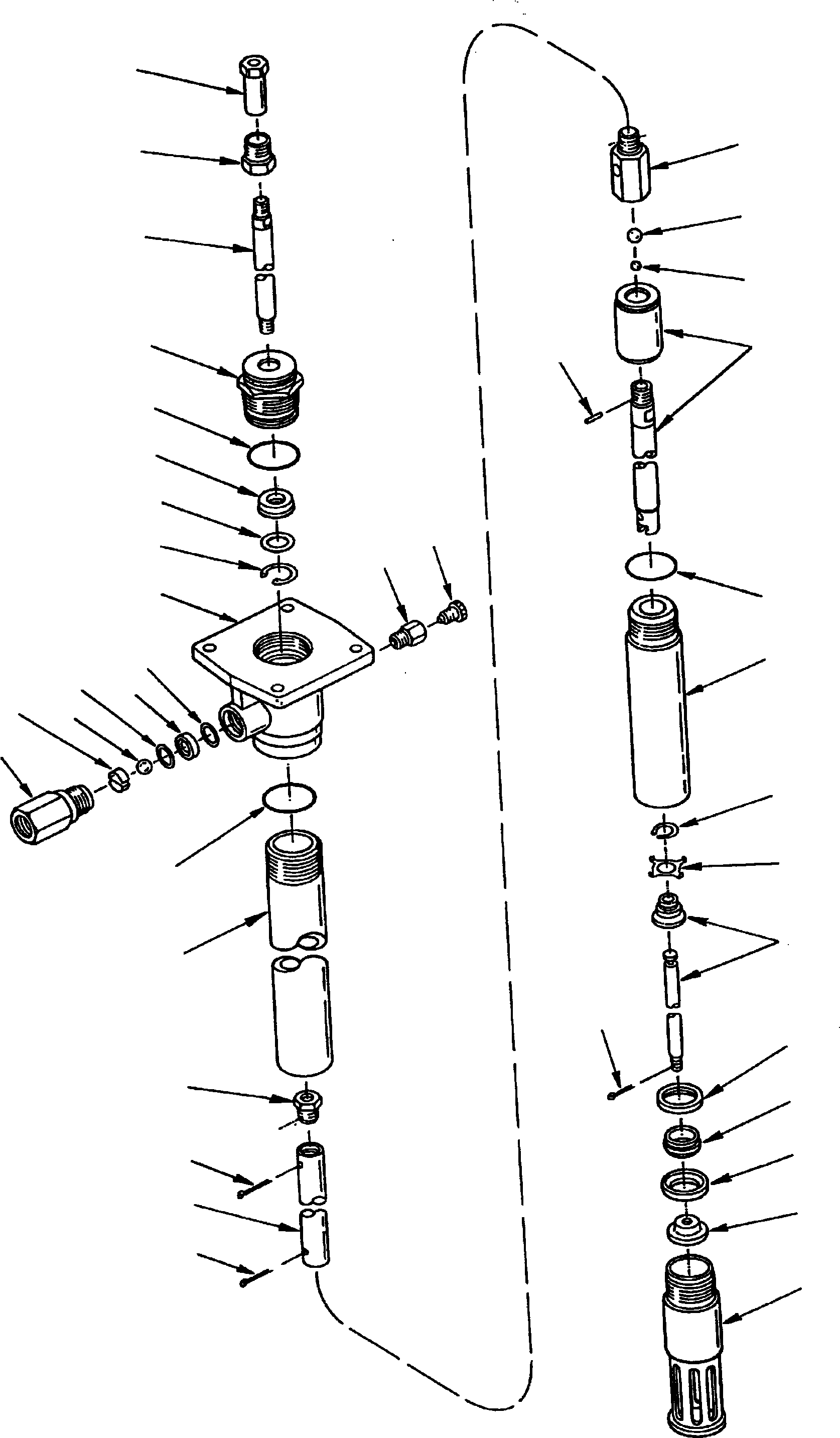

Diagram image 1 of 2

PC3000-1 S/N 06209

01 02 03 04 05 06 07 08 09 10 11 49 50

PC3000-1 S/N 06209

12 13 14 15 16 17 18 19 20 21 22 23 23 24 25 26 27 28 29 30 31 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48

#	Part Number	Partname	Quantity
01	769 397 73	Lube pump assy.	1
02	766 995 73	Cylinder assy. with control block	1
03	332 334 99	Nut	4
04	340 909 99	Washer	4
05	766 996 73	Suction tube assy.	1
06	766 997 73	Spacer rod	4
07	766 998 73	Adapter	1
08	766 999 73	Hydr.-cylinder	1
09	769 000 73	Flow control valve	1
10	769 001 73	Pressure reducing valve	1
11	769 027 73	H.P. Hose	1
12	769 002 73	Bolt	1
13	769 003 73	Adapter	1
14	769 004 73	Piston rod	1
15	769 005 73	Bushing	1
16		O-ring These parts are not sold separately	1
17		V-seal These parts are not sold separately	1
18		Supporting disc These parts are not sold separately	1
19		Circlip These parts are not sold separately	1
20	769 006 73	Housing	1
21	769 007 73	Plug	1
22	769 008 73	Adapter	1
23		Packing These parts are not sold separately	2
24	769 009 73	Valve seat	1
25	769 010 73	Ball	1
26	769 011 73	Ball retainer	1
27	764 137 73	Adapter	1
28		O-ring These parts are not sold separately	1
29	769 012 73	Pipe	1
30	769 013 73	Adapter	1
31		Cotter pin These parts are not sold separately	2
32	769 014 73	Rod	1
33	769 015 73	Adapter	1
34	769 010 73	Ball	1
35	769 016 73	Ball	1
36	769 017 73	Pin	1
37	769 018 73	Piston assy.	1
38		O-ring These parts are not sold separately	1
39	769 019 73	Cylinder barrel	1
40		Circlip These parts are not sold separately	1
41		Valve guide These parts are not sold separately	1
42	769 020 73	Piston rod, set	1
43		Cotter pin These parts are not sold separately	1
44	769 021 73	Retaining ring	1
45	769 022 73	Valve	1
46	769 023 73	Valve seat	1
47	769 024 73	Piston nut	1
48	769 025 73	End pipe	1
49	769 026 73	Repair kit to fig-no. 05 conist. of fig-nos. 16-19,23, 28,31,38,40,41,43	1
50	793 533 73	Seal kit to fig-no. 02	1
