Diagram image 1 of 3

PC3000-1 S/N 06206

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

PC3000-1 S/N 06206

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

PC3000-1 S/N 06206

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity
?	883 778 40	Operator's cab fig-nos. 01-133	1
?	883 777 40	Operator's cab w/o mounting parts	1
?	651 850 40	Door w/o mounting parts	1
?	882 210 40	Seat frame	1
?	489 160 40	Door	1
?	385 708 40	Lever assy.	1
?	385 709 40	Border cleat	2
?	489 165 40	Border cleat	2
?	489 166 40	Border cleat	3
?	898 544 40	Border cleat	2
?	489 170 40	Border cleat	1
?	489 171 40	Border cleat	1
?	489 172 40	Border cleat	1
?	627 601 40	Border cleat	2
?	489 174 40	Border cleat	4
?	627 602 40	Border cleat	2
?	623 999 40	Border cleat	2
?	489 176 40	Border cleat	2
?	627 603 40	Border cleat	2
?	491 022 40	Border cleat	1
?	491 023 40	Border cleat	1
?	491 024 40	Border cleat	1
?	385 729 40	Border cleat	1
?	385 730 40	Border cleat	1
?	385 731 40	Border cleat	1
?	489 178 40	Border cleat	2
?	489 179 40	Border cleat	2
?	898 541 40	Perforated plate	1
?	489 181 40	Covering	1
?	627 604 40	Perforated plate	1
?	627 605 40	Perforated plate	1
?	651 866 40	Covering	1
?	489 185 40	Insulation board	1
?	627 606 40	Insulation board	2
?	489 187 40	Door sheet	1
?	489 188 40	Door sheet	1
?	623 996 40	Border cleat	2
?	896 542 40	Dressing hook	1
?	356 533 40	Catch	1
?	374 222 40	Detent	1
?	368 431 40	Washer	1
?	356 535 40	Compression spring	1
?	356 536 40	Threaded rod	1
?	236 098 40	Draw spring	1
?	489 190 40	Perforated plate	1
?	489 191 40	Perforated plate	1
?	627 607 40	Perforated plate	1
?	489 193 40	Insulation board	1
?	489 194 40	Insulation board	1
?	489 195 40	Insulation board	1
?	489 196 40	Insulation board	2
?	627 608 40	Insulation board	1
?	489 198 40	Insulation board	1
?	627 609 40	Insulation board	1
?	386 444 40	Insulation board	1
?	345 178 99	Dowel pin	1
?	500 489 98	Tapping screw	265
?	385 203 40	Shim	13
?	507 037 98	Nut	2
?	308 581 99	Bolt	1
?	307 756 99	Bolt	1
?	307 728 99	Bolt	2
?	635 261 40	Handle with lock	1
?	308 536 99	Bolt	4
?	319 421 99	Screw	2
?	332 110 99	Nut	2
?	320 974 99	Screw	20
?	346 508 99	Lock washer	12
?	627 611 40	Perforated plate	1
?	500 937 98	Tapping screw	12
?	320 977 99	Screw	4
?	635 262 40	Stop	1
?	356 130 40	Silent bloc	1
?	350 748 99	Fork end	2
?	350 742 99	Fork end	1
?	002 827 98	Pin	1
?	002 823 98	Pin	2
?	551 289 40	Seat upholstery	1
?	058 380 40	Dome light	2
?	057 295 40	Socket	2
?	627 612 40	Perforated plate	1
?	635 495 40	Handle	1
?	651 865 40	Spacer block	1
?	490 060 40	Handle	1
?	385 232 40	Catch	2
?	385 233 40	Catch	2
?	167 694 40	Profiled joint 4400 lg. Bulk ware, state length required	-2
?	166 575 40	Profiled joint 620 lg. Bulk ware, state length required	-2
?	623 997 40	Border cleat	2
?	196 488 40	Connection hose Bulk ware, state length required	-2
?	057 278 40	Socket	1
?	636 395 40	Door	1
?	896 705 40	Speaker	1
?	655 112 40	Push switch	1
?	623 998 40	Border cleat	2
?	627 610 40	Insulation board	1
?	491 026 40	Sheet metal	1
?	318 383 99	Countersunk screw	6
?	385 727 40	Border cleat	1
?	340 506 99	Disc	4
?	507 025 98	Nut	4
?	575 042 40	Rubber cord	2
?	575 043 40	Rubber cord 460 Bulk ware, state length required	1
?	575 044 40	Rubber cord 500 Bulk ware, state length required	1
?	636 385 40	Filter box assy.	1
?	318 382 99	Screw	4
?	269 055 40	Air filter	1
?	510 747 98	Resilient sleeve	3
?	307 760 99	Bolt	3
?	319 127 99	Screw	3
?	307 735 99	Bolt	3
?	324 390 40	Rubber cord Bulk ware, state length required	-2
?	490 061 40	Rivet	2
?	457 241 40	Border cleat	1
?	457 242 40	Border cleat	1
?	896 543 40	Cap	1
?	506 825 98	Ball handle	1
?	440 556 40	Band roller	2
?	058 208 40	Bulb	4
?	501 026 40	Bulb	2
?	324 391 40	H.P. blower	1
?	511 262 98	Resilient sleeve	3
?	515 213 40	Cable 1,0 qmm for interior lighting and speaker Bulk ware, state length required	-2
?	515 214 40	Cable 2,5 qmm for wipers and electrical outlets Bulk ware, state length required	-2
?	655 675 40	Cable 6,0 qmm for air conditioning equipment Bulk ware, state length required	-2
?	270 873 40	Cable channel 1,8 m lenght Bulk ware, state length required	-2

Komatsu PC3000-1 S/N 06206 parts catalog PDF

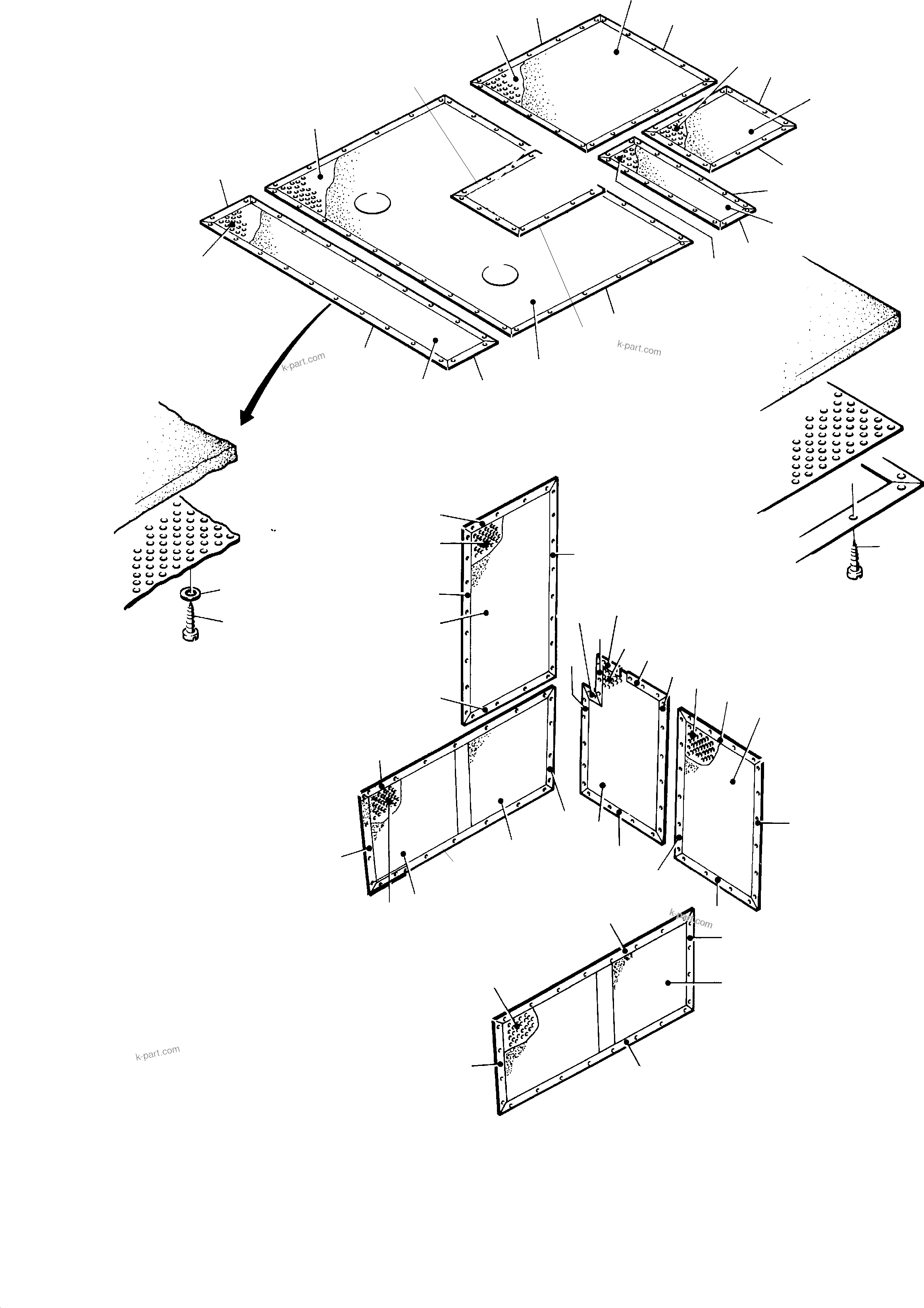

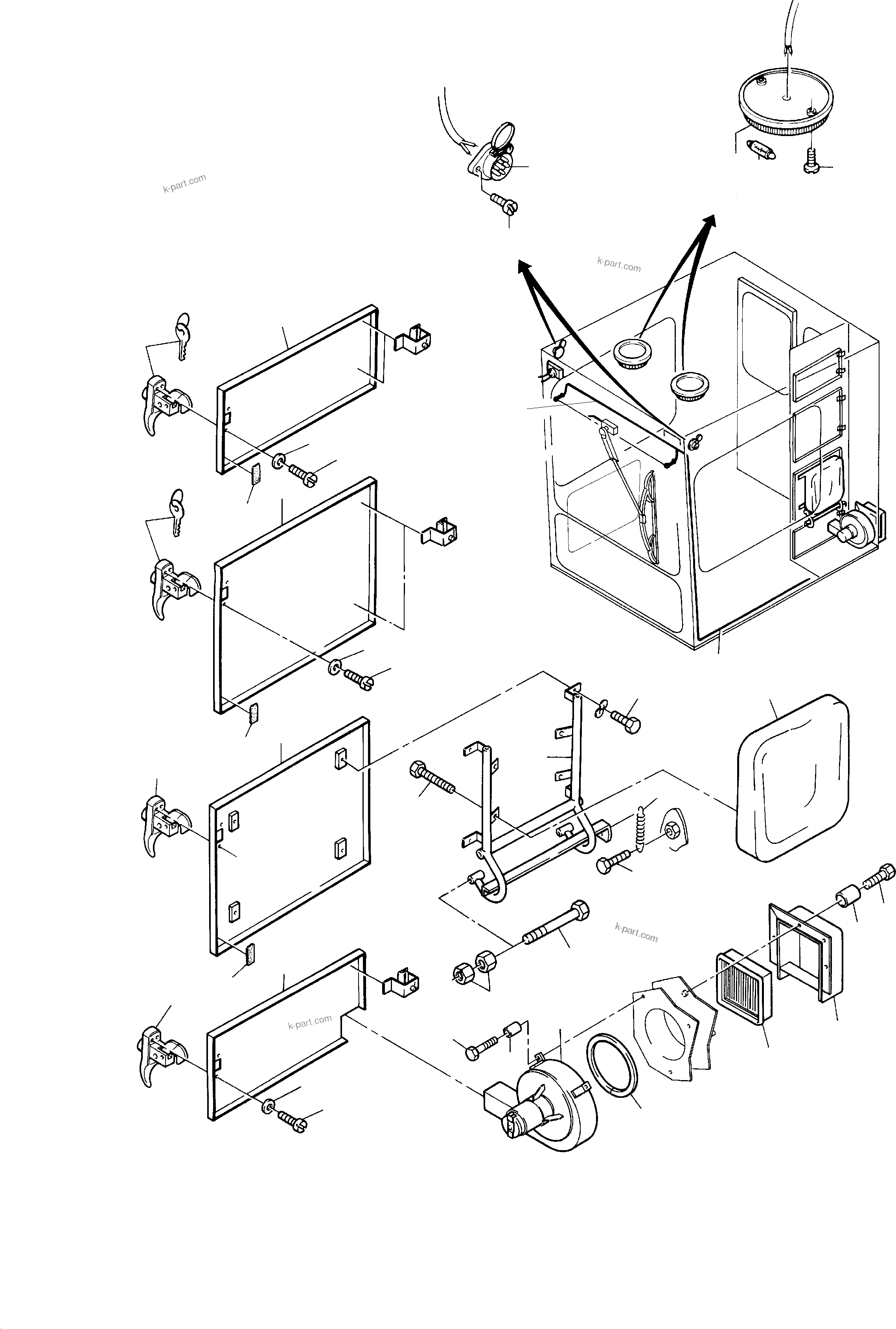

OPERATOR'S CAB (991-0163a) in PC3000-1 S/N 06206. Diagram image and parts list.
