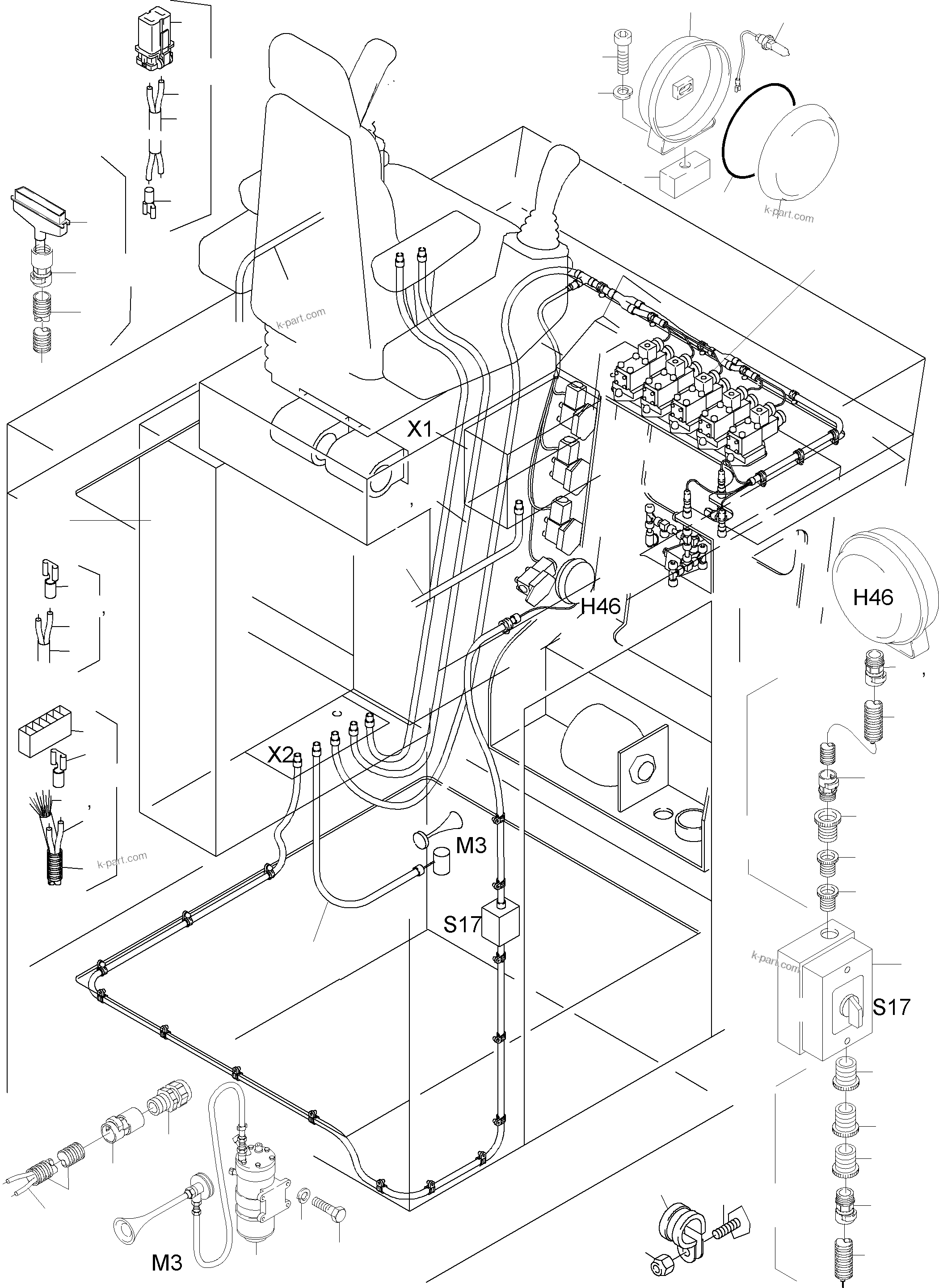

ELECTRIC - CAB SUPPORT | PC3000-1 S/N 06197 | Komatsu parts book catalogue

Search in All Books

Find books across the catalog from one place.

This page is prepared as the search workspace. The search behavior itself can be connected in the next step.

Search whole Komatsu part number in all books. Example: 6212611203.

PC3000-1 S/N 06197

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity	Reference
?		Cables - pilot control frame	1	485-2181
?	655 649 40	Protecting hose DN 10 Bulk ware, state length required	-2
?		Switch box	1	485-2165j
?	891 053 40	Harness - pedestal	1
?	515 189 40	Cable 1 qmm BL Bulk ware, state length required	-2
?	655 805 40	Fitting PG 9	2
?	655 798 40	Cable union PG 9	1
?	655 799 40	Cable union PG 9	1
?	440 373 40	Camswitch	1
?	006 302 98	Clamp	10
?	510 363 98	Clamp	10
?	323 946 40	Thread pin	20
?	507 025 98	Nut	20
?		Warning system	1	113-2150
?	302 030 99	Screw	4
?	346 499 99	Lock washer	4
?	634 009 40	Spotlight	1
?	507 383 99	Lamp	1
?	769 155 73	Seal	1
?	769 156 73	Washer, white	1
?	317 319 40	Threaded block	1
?	319 143 99	Screw	1
?	343 108 99	Lock washer	1
?	891 086 40	Harness - pedestal 2	1
?	600 790 99	Reducing 11-9	2
?	600 812 99	Reducing 13,5-11	2
?	600 813 99	Reducing 16-13,5	2
?	655 621 40	Cable union DN 10, straight	2
?	055 130 40	Tab 0,5 - 1,5	-2
?	455 757 99	Insulating tube B 7x0,7 Bulk ware, state length required	-2
?	655 834 40	Protecting hose DN 36 Bulk ware, state length required	-2
?	894 594 40	Connection cable	1
?	891 187 40	Harness X1 - horn	1
?	891 052 40	Harness X1 - X2	1
?	057 296 40	Connector	1
?	515 194 40	Cable 2,5 BL Bulk ware, state length required	-2
?	655 652 40	Cable protection hose DN 23 Bulk ware, state length required	-2
?	655 624 40	Cable union DN 23	1
?	896 520 40	Plug pin	1
?	056 071 40	Cable sleeve 2,5	26
?	891 179 40	Cable control panel - seat	1
?	891 188 40	Cable control panel - dumper counter	1
?	903 364 40	Harness assy. V24	1
?	056 070 40	Cable sleeve 1,0 - 1,5	-2
?	891 031 40	Plug with bush assy.	1
?	896 521 40	End pin	1
