COVERING - ENGINE HOUSING | PC3000-6 S/N 06217 | Komatsu parts book catalogue

Search in All Books

Find books across the catalog from one place.

This page is prepared as the search workspace. The search behavior itself can be connected in the next step.

Search whole Komatsu part number in all books. Example: 6212611203.

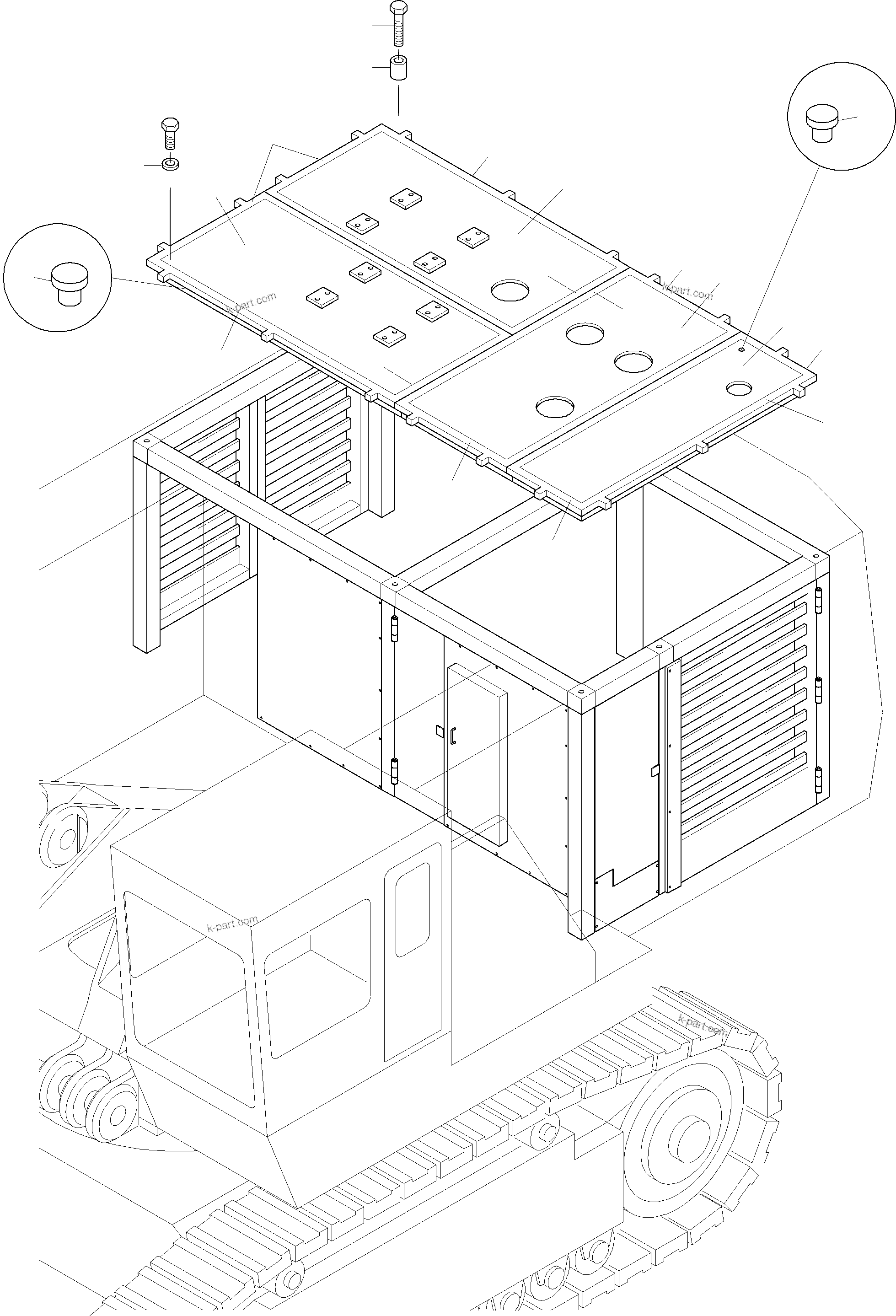

Diagram image 1 of 2

PC3000-6 S/N 06217

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

PC3000-6 S/N 06217

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity
?	927 227 40	Post 1	1
?	927 229 40	Post 2	1
?	930 571 40	Post 3	1
?	930 501 40	Post 4	1
?	929 114 40	Post 5	1
?	930 555 40	Post 6	1
?	891 714 40	Post 7	1
?	930 554 40	Wall	1
?	930 503 40	Door	1
?	906 709 40	Fastener with out lock pin	2
?	340 510 99	Washer	2
?	930 550 40	Wall	1
?	927 204 40	Door, radiator	1
?	927 264 40	Wall	1
?	390 199 40	Hinge	5
?	621 983 40	Hinge	4
?	930 540 40	Door	1
?	927 212 40	Door	1
?	887 919 40	Angle	1
?	930 560 40	Angle	1
?	167 693 40	Flex. Header Bulk ware, state length required	-2
?	510 741 98	Resilient sleeve	9
?	308 608 99	Bolt	9
?	510 732 98	Resilient sleeve	28
?	308 885 99	Bolt to fig-nos. 02, 06-08	16
?	308 414 99	Bolt to fig-nos. 03, 04 + 05	12
?	927 230 40	Pipe	2
?	307 805 99	Bolt	8
?	308 610 99	Bolt	28
?	334 600 99	Nut	36
?	340 467 99	Washer	28
?	308 617 99	Bolt	4
?	307 802 99	Bolt	4
?	346 498 99	Lock washer	4
?	332 334 99	Nut	4
?	887 961 40	Door catch	1
?	539 761 40	Pipe	6
?	512 545 98	Washer	2
?	897 656 40	Door catch	1
?	927 224 40	Plate	1
?	511 263 98	Thread pin	6
?	507 037 98	Nut	6
?	507 596 98	Washer	6
?	440 821 40	Rubber Bulk ware, state length required	-2
?	919 943 40	Roof section 1	1
?	925 753 40	Roof section 2	1
?	925 754 40	Roof section 3	1
?	925 755 40	Roof section 4	1
?	510 741 98	Resilient sleeve	45
?	308 608 99	Bolt	45
?	307 949 99	Bolt	7
?	517 118 98	Lock washer	7
?	598 248 40	Threaded rail	2
?	598 250 40	Threaded rail	2
?	598 249 40	Threaded rail	2
?	598 240 40	Threaded rail	2
?	598 239 40	Threaded rail	4
?	180 894 40	Plug	10
?	919 949 40	Roof frame	1
?	180 889 40	Plug	4
?	308 356 99	Bolt	14
