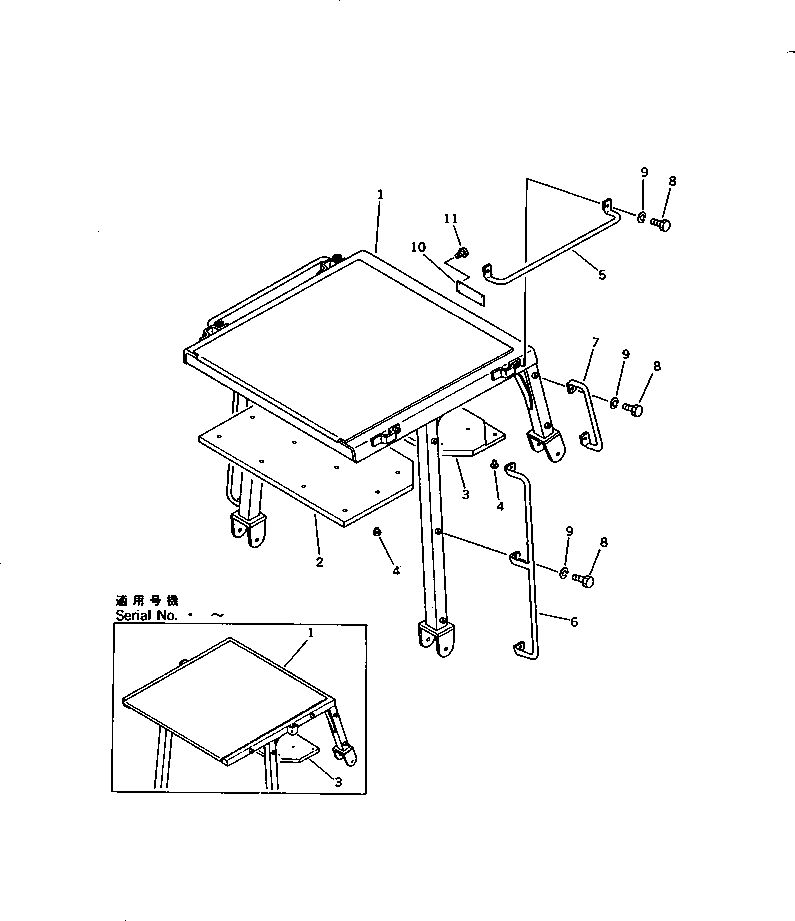

ROPS CANOPY | D58P-1 S/N 80588-UP (Straight Tilt Dozer)

Search in All Books

Find books across the catalog from one place.

This page is prepared as the search workspace. The search behavior itself can be connected in the next step.

Search whole Komatsu part number in all books. Example: 6212611203.

#	Part Number	Partname	Quantity	Options
1	120-Y78-4410	GUARD	1	SN: 80588-UP
2	144-978-8361	LINING,ROOF, FRONT	1	SN: 81472-UP
2	120-Y78-4471	LINING,ROOF, FRONT	1	SN: 80588-81471
3	144-978-8371	LINING,ROOF, REAR	1	SN: 81472-UP
3	120-Y78-4482	LINING,ROOF, REAR	1	SN: .-81471
3	120-Y78-4481	LINING,ROOF, REAR	1	SN: 80588-.
\|$$7		(120-Y78-4482,120-Y78-4411)	-1
4	144-978-8380	BUTTON	22	SN: 81472-UP
4	120-Y78-4550	BUTTON	22	SN: 80588-81471
5	120-Y78-4521	HANDLE,UPPER	2	SN: 80588-UP
6	120-Y78-4491	HANDLE,L.H.	1	SN: 80588-UP
6	120-Y78-4511	HANDLE,R.H.	1	SN: 80588-UP
7	120-Y78-4531	HANDLE,REAR	2	SN: 80588-UP
8	01010-51230	BOLT	14	SN: 80588-UP
9	01602-21236	WASHER,SPRING	14	SN: 80588-UP
10	09620-00200	PLATE, NAME,(LIMITED SUPPLY) (JAPANESE)	1	SN: 80588-UP
10	09620-30200	PLATE, NAME,(LIMITED SUPPLY) (ENGLISH)	1	SN: 80588-UP
10	09620-30201	PLATE, NAME,(LIMITED SUPPLY) (USA)	1	SN: 80588-UP
10	09620-50200	PLATE, NAME,(LIMITED SUPPLY) (FRENCH)	1	SN: 80588-UP
10	09620-20200	PLATE, NAME,(LIMITED SUPPLY) (GERMAN)	1	SN: 80588-UP
10	09620-10200	PLATE, NAME,(LIMITED SUPPLY) (SPANISH)	1	SN: 80588-UP
10	09620-02200	PLATE, NAME,(LIMITED SUPPLY) (ARABIC)	1	SN: 80588-UP
10	09620-70200	PLATE, NAME,(LIMITED SUPPLY) (PORTUGUESE)	1	SN: 80588-UP
10	09620-90200	PLATE, NAME,(LIMITED SUPPLY) (CHINESE)	1	SN: 80588-UP
10	09620-05200	PLATE, NAME,(LIMITED SUPPLY) (INDNESIAN)	1	SN: 80588-UP
11	04418-13060	SCREW	4	SN: 80588-UP
