Diagram image 1 of 5

PC3000-6 S/N 06232

01 02 03 04 05 06 07 10 14 18 18 41 42 42 42 43 5 9 90 91

PC3000-6 S/N 06232

1 1 1 1 1 1 11 11 11 11 12 13 13 13 13 14 14 14 14 15 16 17 17 17 19 19 19 19 19 19 20 20 20 20 20 20 20 20 21 21 22 22 22 23 23 23 26 27 28 29 29 30 30 31 31 32 32 35 36 37 37 37 46 47 48 49 50 50 50 50 51 51 51 51 52 52 53 84 9

PC3000-6 S/N 06232

08 09 11 11 11 111 112 13 13 13 14 14 14 17 17 17 17 17 24 25 33 33 34 38 39 40 45 54 55 56 64 67 68 69 70 71 72 80 81 81 85 88 92 93 93

PC3000-6 S/N 06232

1 11 11 11 13 13 13 14 14 14 17 17 17 17 17 17 17 17 17 17 17 17 17 17 17 17 17 17 17 17 41 41 42 42 43 54 54 54 54 54 54 54 54 54 54 54 54 54 54 54 54 54 55 55 55 55 55 55 55 55 55 55 55 55 55 55 55 55 55 57 58 58 58 58 58 59 59 59 59 59 60 60 61 61 62 62 63 63 65 66 72 72 72 72 72 72 72 72 72 72 73 74 82 87 89 89 89

PC3000-6 S/N 06232

100 100 101 101 102 102 103 103 104 104 105 105 106 107 108 109 110 75 75 75 75 75 76 77 77 77 77 77 77 77 77 79 83 83 83 94 94 94 95 95 95 95 96 96 96 97 97 97 97 97 97 98 98 99 99 99 99 99 99 99 99

#	Part Number	Partname	Quantity
01	929 864 40	Switch cabinet w/o. electr. parts	1
02	764 789 73	Key	2
03	764 947 73	Locking bar	10
04	764 949 73	Seal	1
05	765 892 73	Handle	2
06	057 278 40	Socket	1
07	320 975 99	Screw	2
08	322 378 40	Diode array	4
09	891 034 40	Protection cap assy.	2
10	490 929 40	Assembly rail	2
11	655 416 40	Sectional plate	10
12	323 237 40	Wiring terminal	5
13	500 106 98	Bolt	44
14	334 599 99	Nut	48
15	907 821 40	Breaker 1 A	1
16	907 951 40	Rail collector	-2
17	356 265 40	Clamp	21
18	270 288 40	Cable channel ca. 1400 lg.	-2
19	907 830 40	Breaker 25 A	3
20	907 827 40	Breaker 16 A	12
21	907 828 40	Breaker 6 A	3
22	907 839 40	Breaker 50 A	3
23	907 829 40	Breaker 10 A	7
24	655 486 40	Pickup module unit	1
25	655 487 40	Pickup module unit	1
26	940 021 40	Relay	14
27	323 910 40	Relay socket	14
28	323 911 40	Retainer	14
29	940 020 40	Relay	47
30	592 338 40	Relay socket	47
31	414 369 40	Spring retainer	47
32	896 581 40	Power breaker	2
33	323 590 40	Switch modul	4
34	795 135 73	Multimonitor	1
35	494 086 40	Line divider EFD	1
36	414 649 40	Fuel indication EFM	1
37	899 301 40	Converter	6
38	323 346 40	Touch contact	5
39	635 318 40	Connection cable to fig-nos. 24,25	1
40	894 594 40	Cable V 24	1
41	323 233 40	Wiring profile ca. 700mm	-2
42	323 234 40	Cover 25 BN	-2
43	896 747 40	Cable channel	-2
45	490 889 40	Series terminal	3
46	932 553 40	Breaker 63A	1
47	907 822 40	Breaker 6A	1
48	324 025 40	Resistor clamp	3
49	603 346 40	Voltage measuring clamp	1
50	907 481 40	Time lag relay	4
51	896 546 40	Time lag relay	5
52	907 482 40	Wiper relay	4
53	655 898 40	Cycle relay	1
54	906 613 40	Cover plate	25
55	906 612 40	Through clamp 2,5	453
56	906 774 40	Cover plate 10,0	1
57	906 773 40	Cover plate 16,0	2
58	906 772 40	Cover plate 6,0	5
59	906 768 40	Through clamp 6,0	5
60	323 943 40	Sleeve marker	50
61	323 942 40	Sleeve marker	50
62	270 318 40	Sleeve marker	50
63	323 944 40	Sleeve marker	50
64	906 770 40	Through clamp 10,0	5
65	515 213 40	Cable 1mm2	-2
66	655 675 40	Cable 6mm2	-2
67	906 614 40	Bridging comb 2-fold 2,5	30
68	906 615 40	Bridging comb 3-fold 2,5	20
69	906 616 40	Bridging comb 4-fold 2,5	20
70	906 617 40	Bridging comb 5-fold 2,5	10
71	906 618 40	Bridging comb 10-fold 2,5	1
72	906 630 40	Protective wire clip 2,5	68
73	906 769 40	Through clamp 16,0	1
74	461 703 40	Terminal M150/35	4
75	795 140 73	Socket	4
76	907 477 40	Cable union DN 12	3
77	795 141 73	Socket	11
79	907 691 40	Cable union DN 36	1
80	655 685 40	Dust cap	1
81	551 867 40	Clasp	2
82	515 218 40	Cable 16mm2	-2
83	907 479 40	Cable union DN 29	3
84	058 190 40	Diode	1
85	906 007 40	Pulse relay	1
87	896 747 40	Cable channel 100x100	-2
88	792 806 73	Marker set	1
89	906 623 40	Marking strip	8
90	308 436 99	Bolt	4
91	510 741 98	Resilient sleeve	4
92	896 716 40	Hour meter	1
93	896 488 40	Camswitch	2
94	795 142 73	Socket	2
95	795 143 73	Socket	3
96	795 144 73	Socket	3
97	795 145 73	Socket	9
98	931 333 40	Mounting plate	1
99	795 122 73	Sealing plate	100
100	795 146 73	Busching	530
101	795 147 73	Bushing	76
102	795 148 73	Nut	15
103	795 149 73	Lock washer	15
104	795 150 73	Nut	16
105	795 151 73	Lock washer	16
106	319 059 99	Bolt	32
107	507 025 98	Nut	32
108	517 335 98	Plug	1
109	517 333 98	Plug	1
110	517 332 98	Plug	3
111	319 013 99	Bolt	10
112	343 103 99	Lock washer	10
\|$$110			-2

Komatsu PC3000-6 S/N 06232 parts catalog PDF

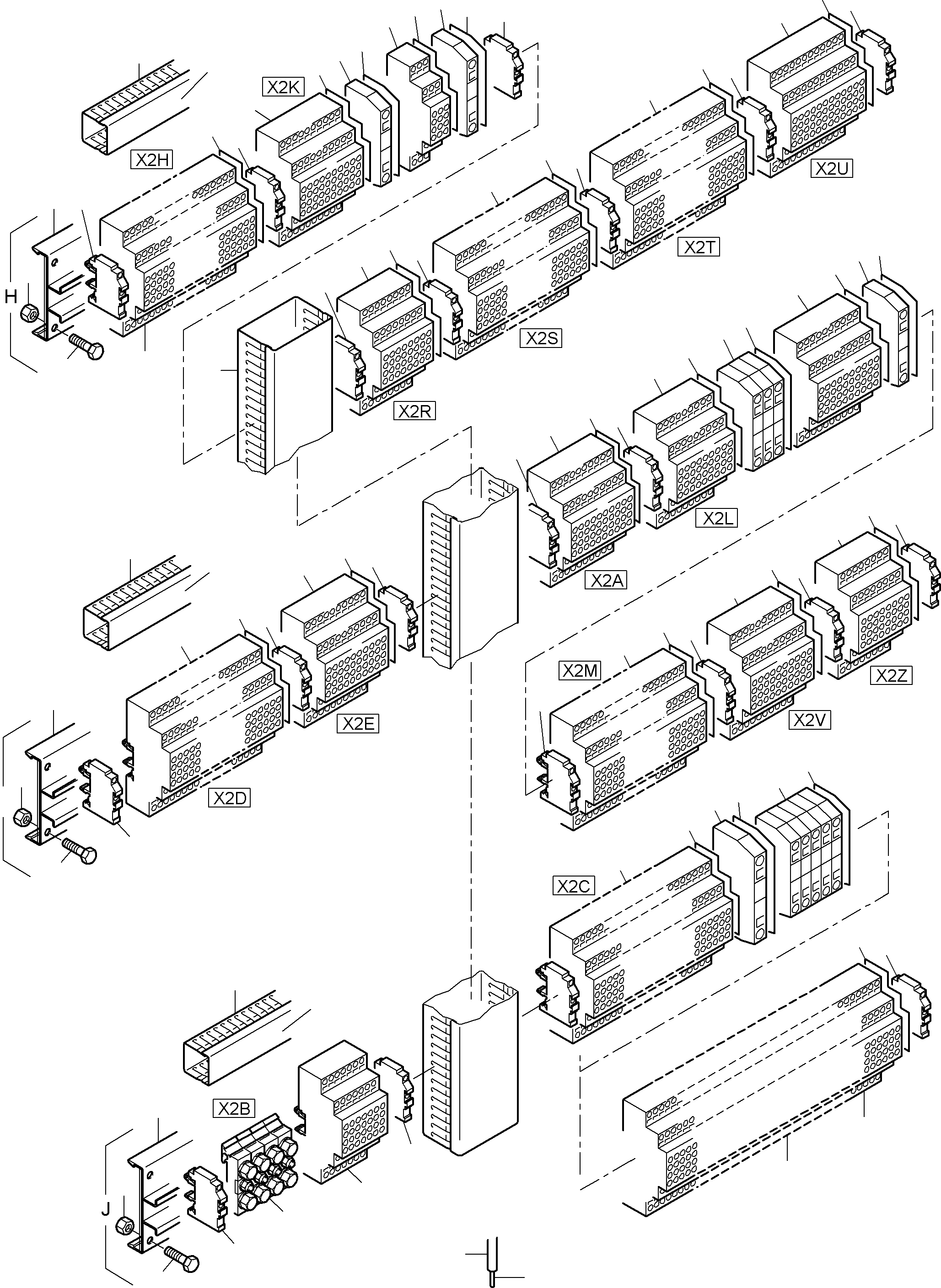

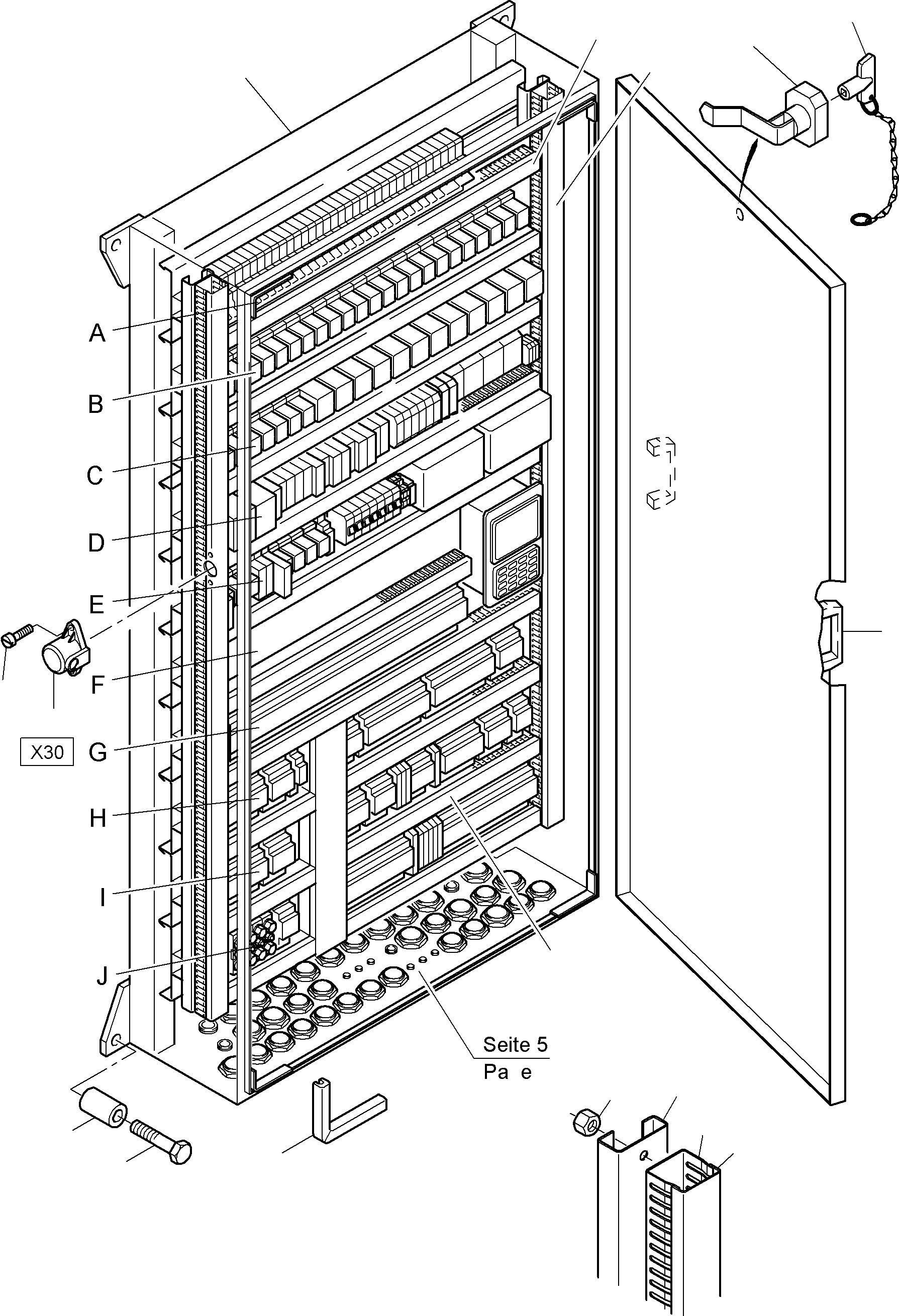

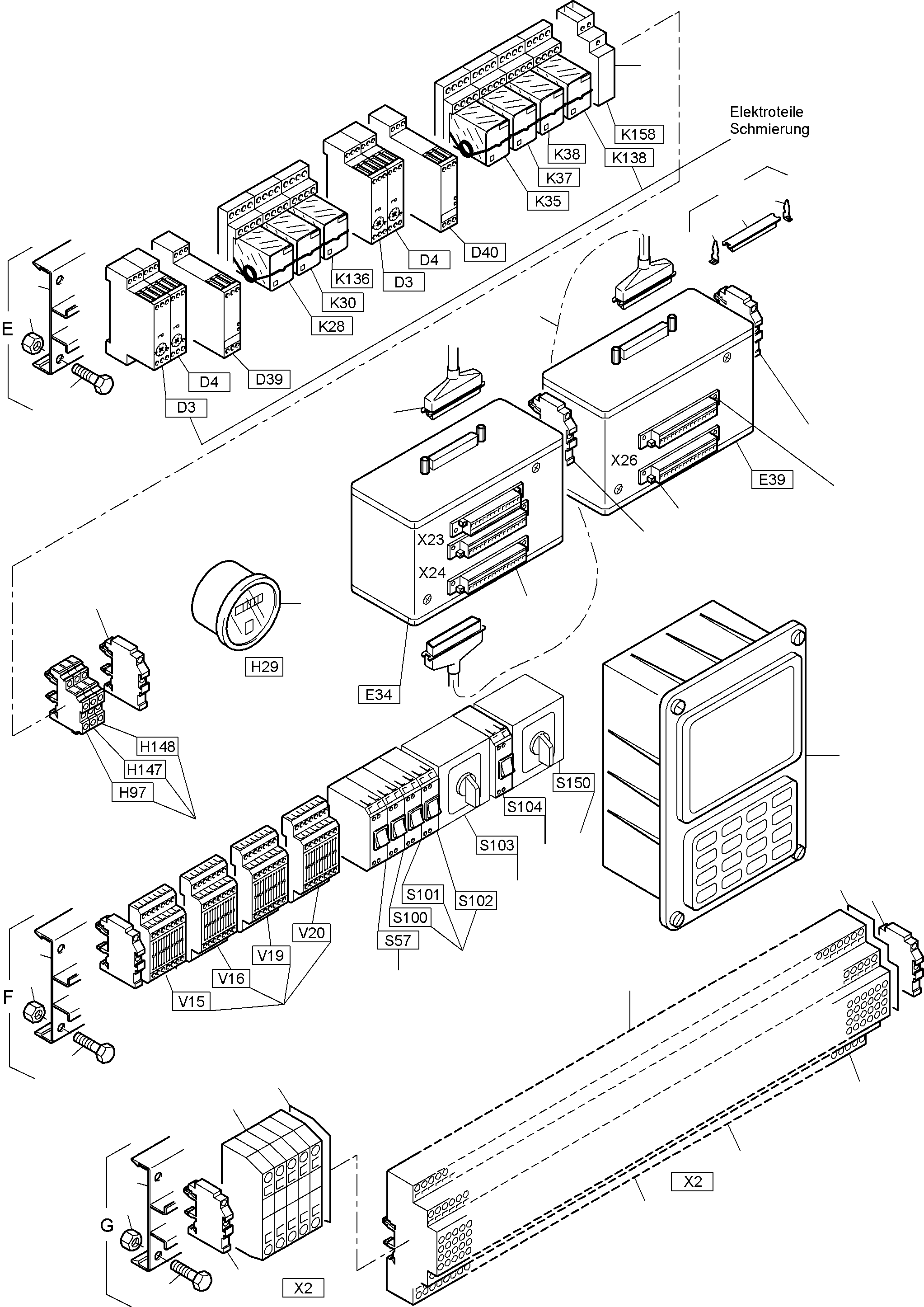

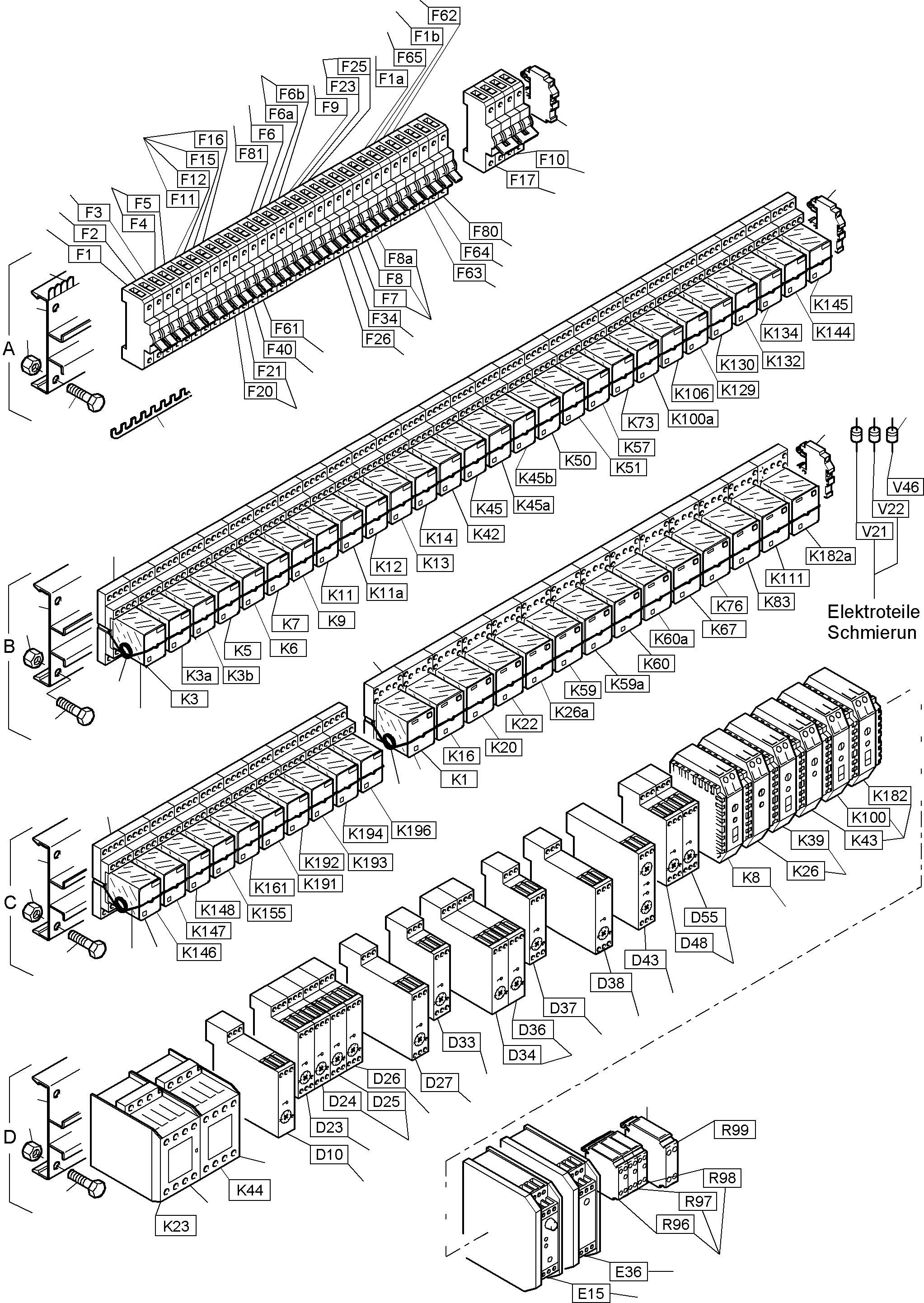

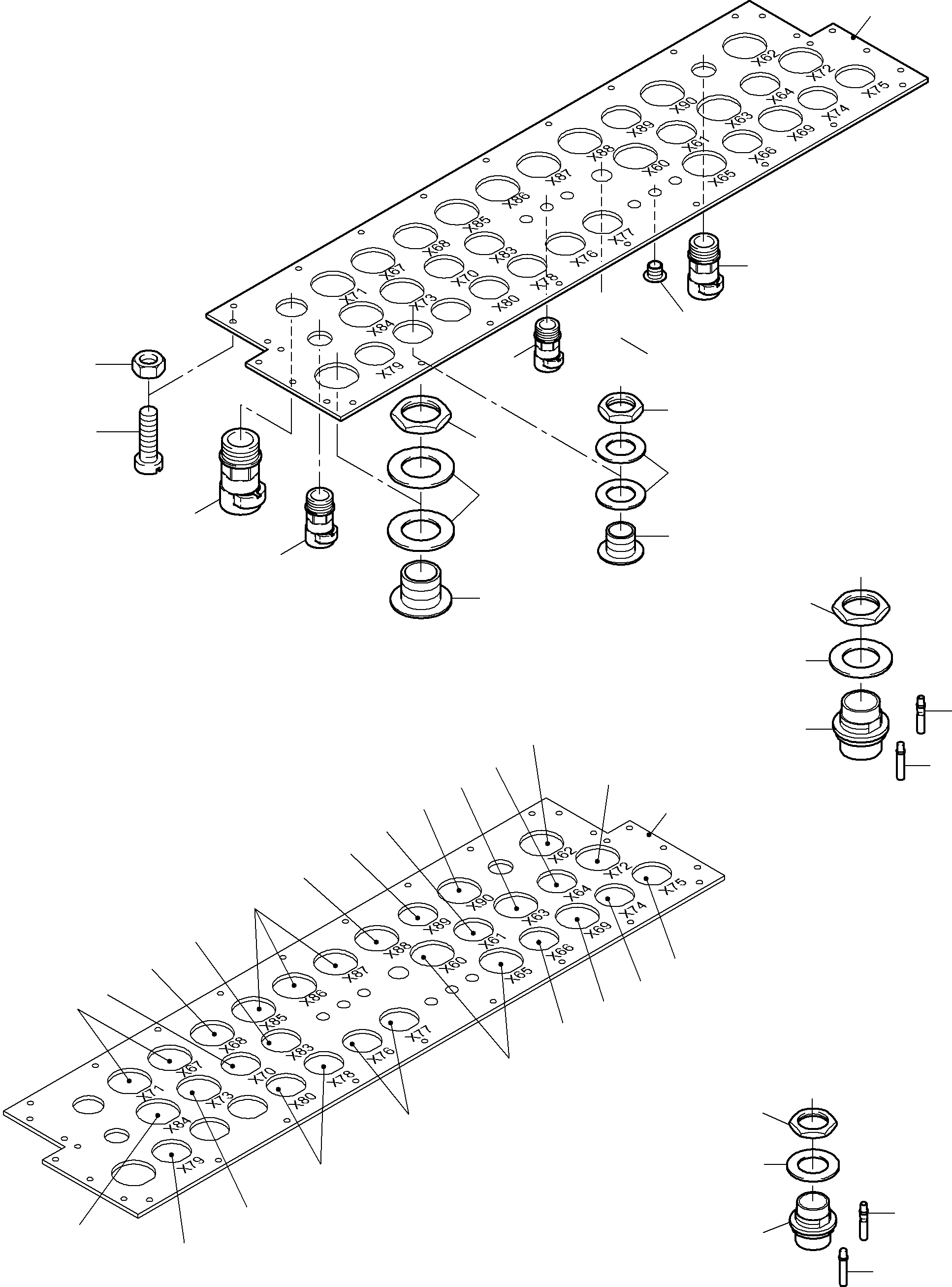

MAIN SWITCH BOX IN CAB SUPPORT (485-2167d) in PC3000-6 S/N 06232. Diagram image and parts list.
