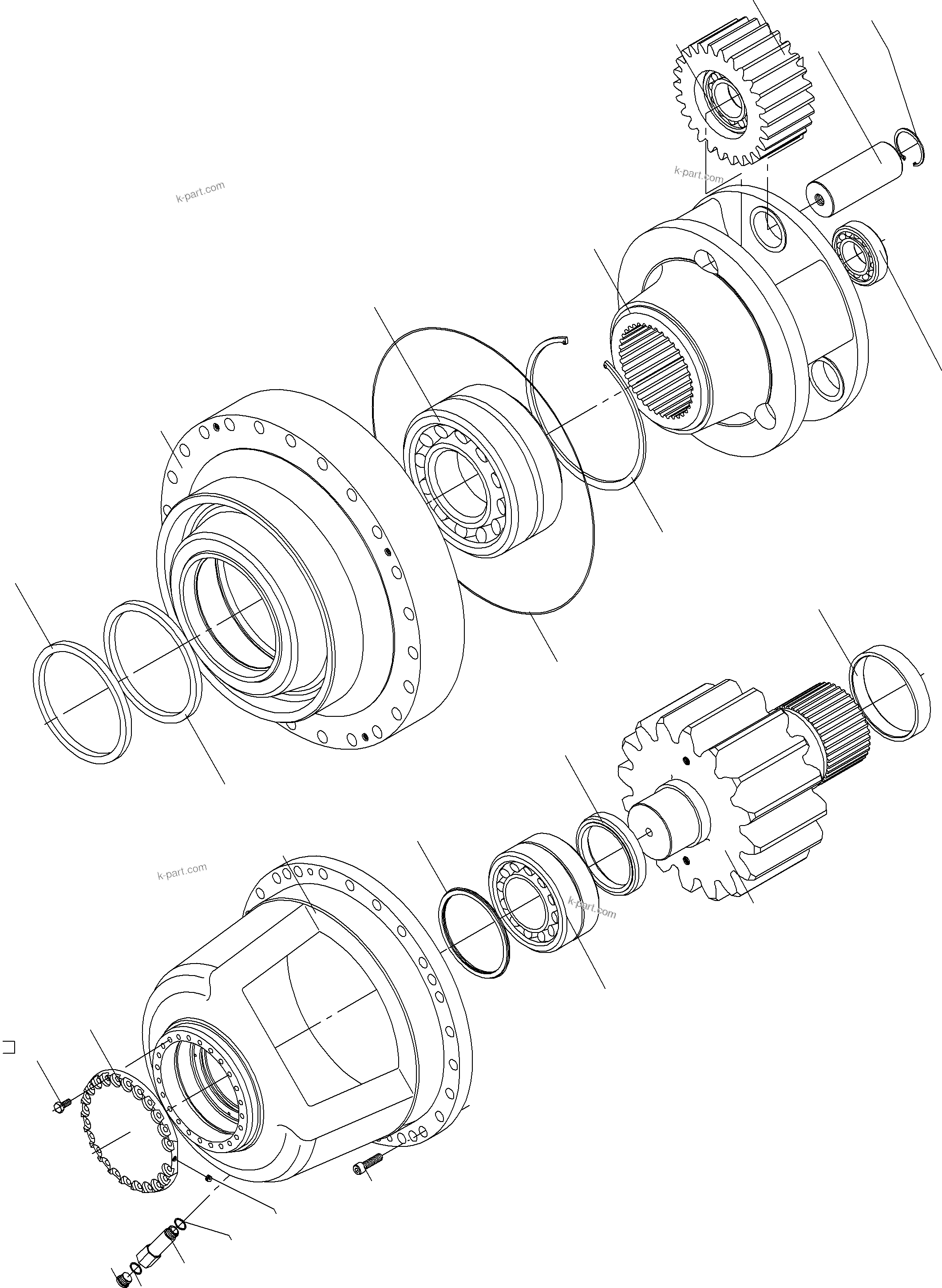

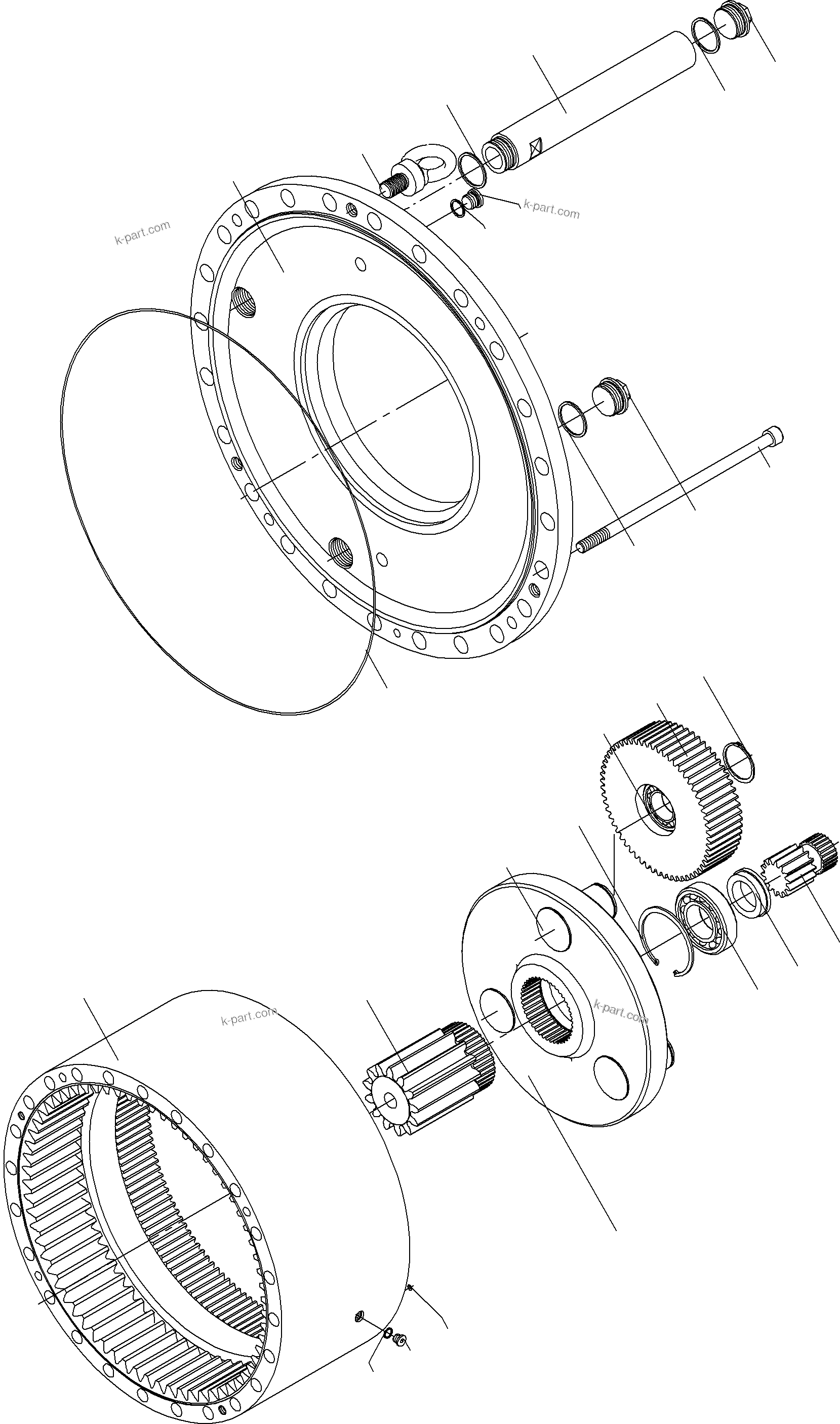

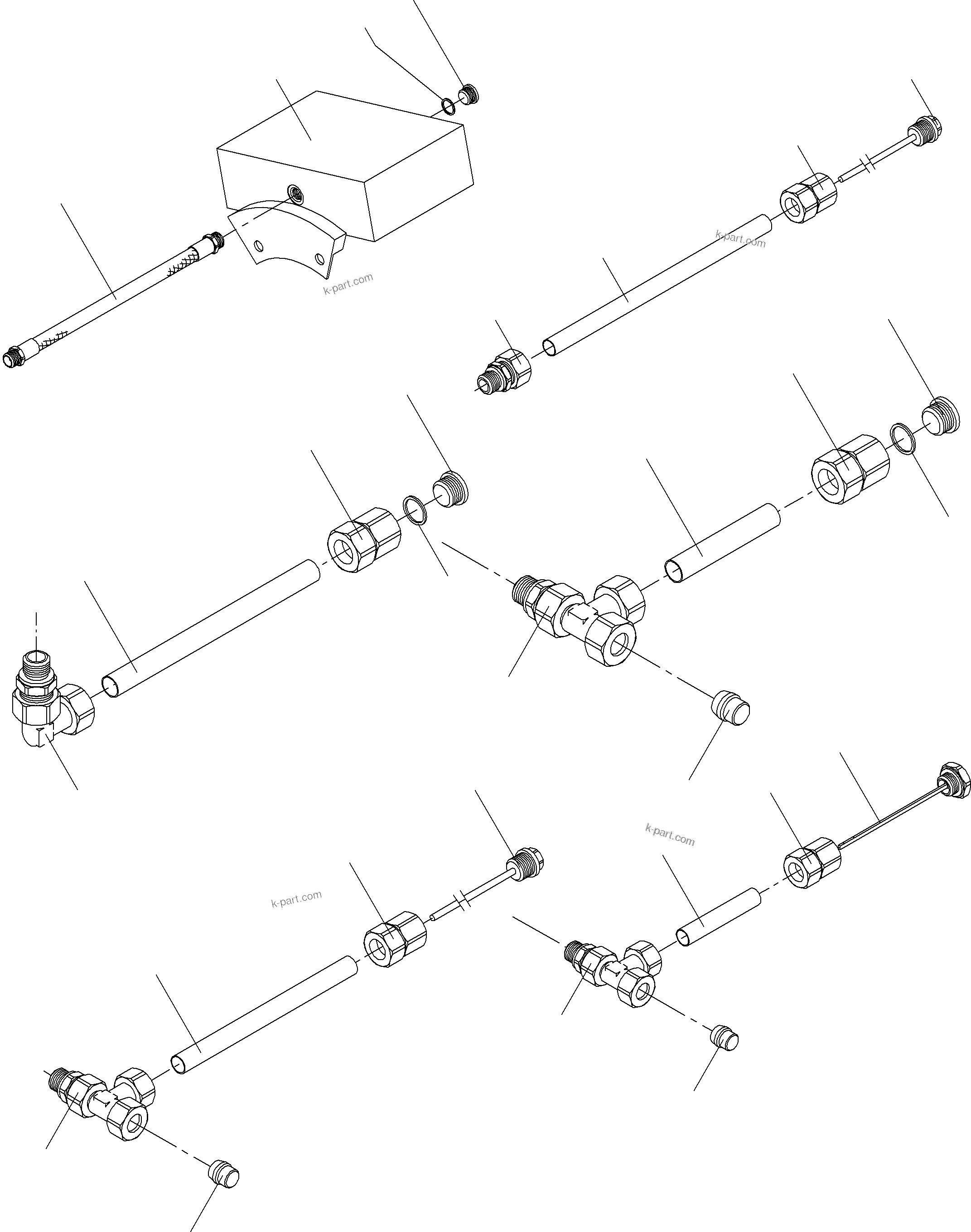

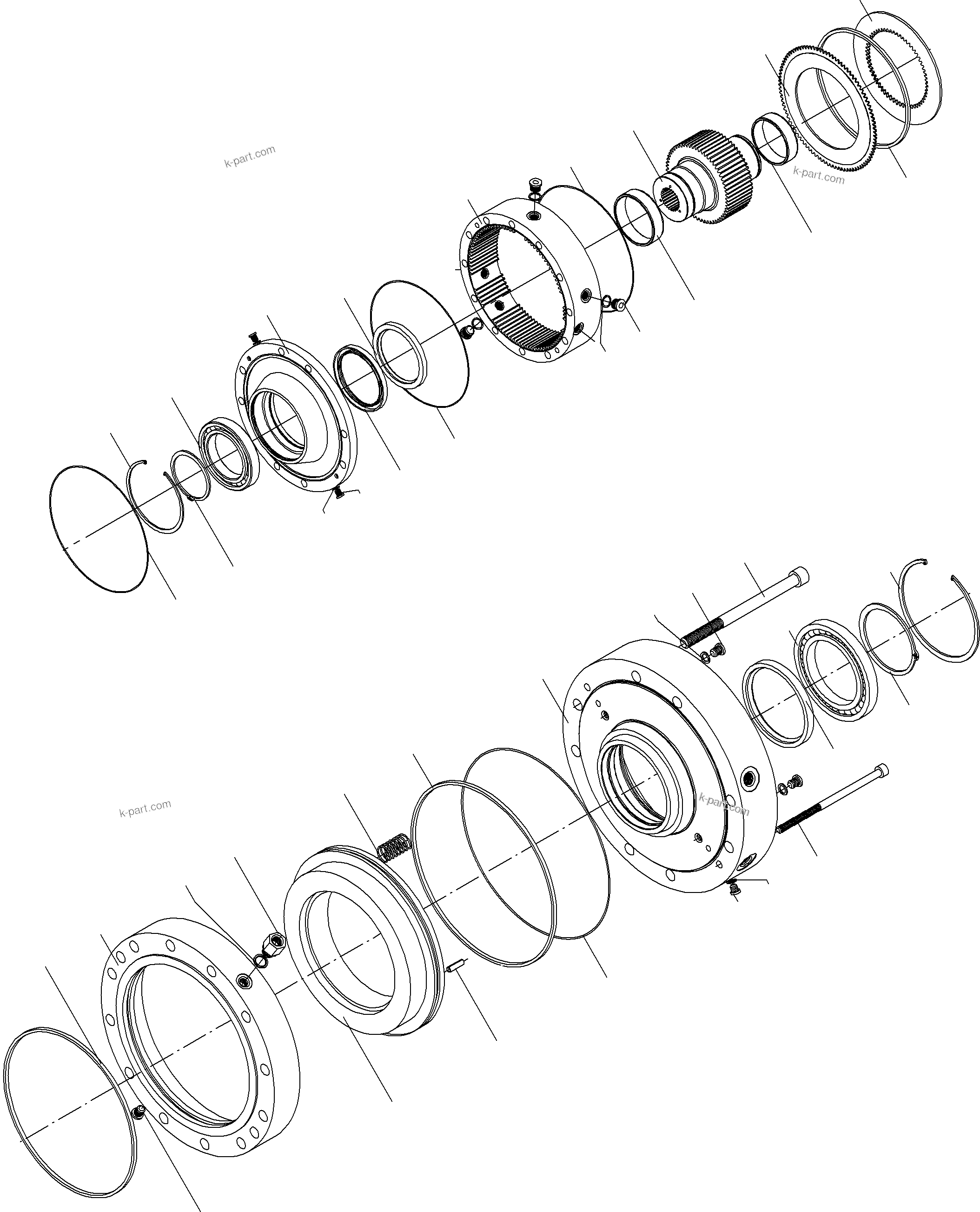

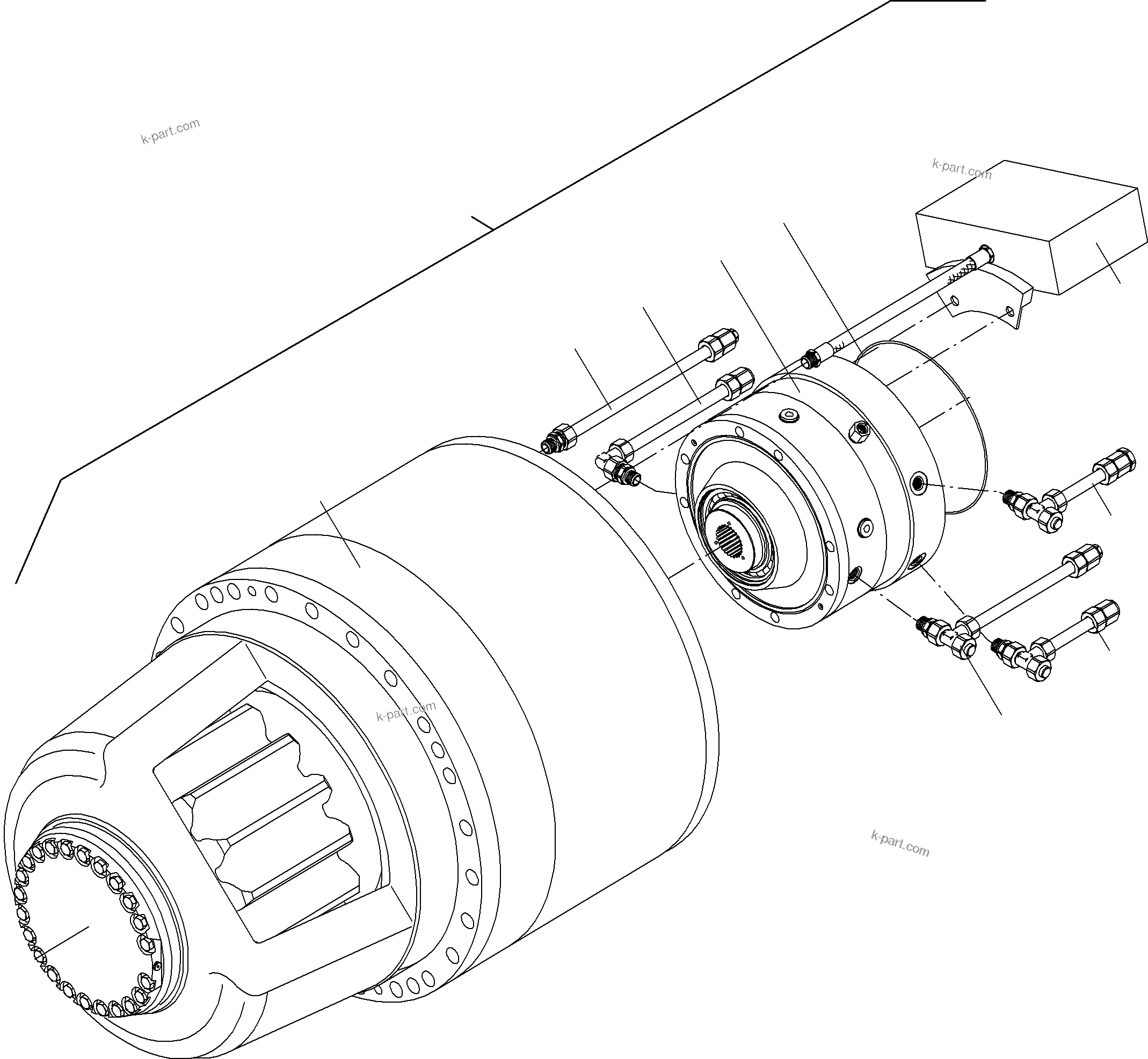

Diagram image 1 of 5

PC3000-6 S/N 06232

? ? ? ? ? ? ? ? ? ?

PC3000-6 S/N 06232

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

PC3000-6 S/N 06232

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

PC3000-6 S/N 06232

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

PC3000-6 S/N 06232

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity
?	936 560 40	Slew gear	1
?	795 835 73	Slew gear w/o brake consist. of fig nos. 12-59	1
?	795 836 73	Disc brake assy. consist. of fig nos. 60-93	1
?	769 688 73	Expansion tank consist. of fig nos. 94-97	1
?	769 689 73	Dipstick - gearbox consist. of fig nos. 98-101	1
?	769 690 73	Oil drain - engine room consist. of fig nos. 102-107	1
?	769 691 73	Dipstick - engine room consist. of fig nos 108-112	1
?	769 692 73	Breather consist. of fig nos. 113-117	1
?	769 693 73	Dipstick - brake housing consist. of fig nos. 118-122	1
?	972 122	O-ring	1
?	769 695 73	Sun gear	1
?	769 696 73	Planetary with support	3
?	795 838 73	Sun gear	1
?	769 698 73	Planetary with support	3
?	793 288 73	Ring gear	1
?	795 839 73	Trunnion support	1
?	769 701 73	Pin	3
?	769 702 73	Race	1
?	769 703 73	Planetary carrier	1
?	769 704 73	Pin	3
?	795 840 73	Adapter	1
?	793 290 73	Bearing bush	1
?	795 841 73	Bearing hub	1
?	795 842 73	Cover	1
?	769 709 73	Spacer	1
?	769 710 73	Spacer	1
?	769 711 73	Pinion shaft	1
?	769 712 73	Extension	1
?	769 713 73	Extension	1
?	360 457 99	Roller bearing	1
?	360 456 99	Roller bearing	1
?	516 349 98	Self-aligning bearing	1
?	507 746 99	Self-aligning bearing	1
?	795 843 73	Planet wheel bearing	3
?	795 844 73	Planet wheel bearing	3
?	502 522 98	Shaft seal	2
?	769 714 73	V-seal	1
?	342 560 99	Circlip	3
?	342 662 99	Circlip	3
?	342 676 99	Circlip	1
?	342 709 99	Circlip	1
?	515 722 98	Bolt	4
?	516 352 98	Bolt	4
?	307 803 99	Bolt	24
?	516 354 98	O-ring	2
?	500 305 98	O-ring	1
?	313 396 99	Plug	1
?	339 890 99	Seal ring	1
?	502 801 98	Plug	1
?	339 918 99	Seal ring	2
?	501 532 98	Plug	2
?	339 796 99	Seal ring	3
?	313 429 99	Plug	1
?	407 823 99	Plug	3
?	339 902 99	Seal ring	3
?	795 845 73	Bolt	3
?	795 846 73	Flange-mount	1
?	795 847 73	Disc carrier	1
?	795 848 73	Housing	1
?	795 849 73	Limit flange	1
?	793 294 73	Control linkage assy., incl. 92+93	1
?	793 295 73	Compression spring	6
?	769 720 73	Compression spring	12
?	769 721 73	Outer disc	8
?	769 722 73	Internal disc	7
?	769 723 73	Sine ring	7
?	500 049 98	Bolt	12
?	501 046 98	Hexagon socket head cap screw	2
?	795 850 73	Inner ring	1
?	769 724 73	Inner race	1
?	763 292 73	Shaft seal	1
?	795 851 73	Rotary shaft seal	2
?	313 394 98	Valve	1
?	795 852 73	Seal ring	1
?	795 853 73	Union	1
?	795 854 73	Seal	1
?	795 855 73	O-ring	4
?	795 720 73	Hexagon head socket pipe plug	1
?	795 721 73	Grooved ball bearing	1
?	795 722 73	Grooved ball bearing	1
?	342 570 99	Circlip	1
?	342 571 99	Circlip	1
?	342 680 99	Circlip	1
?	342 682 99	Circlip	1
?	407 823 99	Hexagon head socket pipe plug	3
?	795 723 73	Seal ring	3
?	313 395 99	Hexagon head socket pipe plug	4
?	339 711 99	Seal ring	4
?	793 296 73	Seal ring	2
?	345 062 99	Dowel sleeve	1
?	795 724 73	Equalizing reservoir	1
?	313 998 99	Hexagon head socket pipe plug	1
?	340 294 99	Sealing ring	1
?	795 725 73	Hose	1
?	795 726 73	Union piece	1
?	795 727 73	Union piece	1
?	215 754 99	Pipe l=305mm	1
?	793 297 73	Dipstick	1
?	795 728 73	Union piece	1
?	795 727 73	Union piece	1
?	795 729 73	Union piece	1
?	215 754 99	Pipe l= 100mm	1
?	313 398 99	Hexagon head socket pipe plug	1
?	340 294 99	Sealing ring	1
?	795 728 73	Union piece	1
?	795 727 73	Union piece	1
?	795 729 73	Union piece	1
?	215 754 99	Pipe l= 100mm	1
?	793 298 73	Screw plug w. fuel dip stick	1
?	795 727 73	Union piece	1
?	215 754 99	Pipe l= 220mm	1
?	795 730 73	Union piece	1
?	313 398 99	Hexagon head socket pipe plug	1
?	340 294 99	Sealing ring	1
?	795 728 73	Union piece	1
?	795 727 73	Union piece	1
?	793 299 73	Screw plug w. fuel dip stick	1
?	795 729 73	Union piece	1
?	215 754 99	Pipe l= 243mm	1
