Diagram image 1 of 3

PC3000-6 S/N 06271

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

PC3000-6 S/N 06271

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

PC3000-6 S/N 06271

? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity	Reference
?	925 716 40	Control- filter plate	1
?		Valve block	1	612-1837
?		Cartridge block	1	991-0493b
?		Pressure filter	1	991-0499a
?		Inline filter	1	991-0424a
?		Inline filter	1	991-0498a
?	907 438 40	Diaphragm-type accumulator	1
?	940 730 40	4/2 way directional spool valve	1
?	180 325 40	Base plate	2
?	440 083 40	Pressure relief valve	1
?	517 698 98	Hose assy. DN 12x1260	2
?	517 631 98	Hose assy. DN 12x500	1
?	928 849 40	Cover	1
?	940 732 40	4/3-Directional spool valve	1
?	356 140 40	Pressure relief valve	1
?	516 182 98	Socket	3
?	374 427 99	Socket	3
?	374 430 99	Socket	4
?	371 459 99	Socket	5
?	374 420 99	Socket	1
?	374 438 99	Socket	1
?	374 431 99	Socket	3
?	374 439 99	Socket	2
?	374 419 99	Socket	1
?	517 225 98	Socket	1
?	516 173 98	Socket	1
?	517 226 98	Socket	1
?	516 157 98	Socket	3
?	516 174 98	Socket	2
?	516 742 98	Socket	1
?	517 240 98	Union	1
?	906 930 40	Union	2
?	907 149 40	Union	3
?	372 885 99	Reducing socket	5
?	576 405 40	Reducing union	1
?	551 379 40	Reducing union	1
?	517 242 98	Socket	1
?	517 444 98	Union	1
?	592 069 40	Union	2
?	516 740 98	Socket	1
?	512 371 98	Coupling	1
?	004 684 98	Coupling	1
?	255 694 40	Plug	2
?	180 113 40	Plug	1
?	255 171 40	Plug	1
?	202 970 40	Plug	2
?	906 346 40	Olive	12
?	371 258 99	Union nut	3
?	371 273 99	Union nut	9
?	374 471 99	Union	1
?	514 340 98	Screw	8
?	308 538 99	Bolt	4
?	308 560 99	Bolt	2
?	304 322 99	Bolt	4
?	307 734 99	Bolt	4
?	308 579 99	Bolt	12
?	514 532 98	Nut	1
?	507 025 98	Nut	4
?	334 599 99	Nut	2
?	334 682 99	Nut	4
?	340 506 99	Washer	4
?	340 510 99	Washer	4
?	607 492 40	Resilient sleeve	12
?	214 768 99	Pipe Ш10	-2
?	308 657 99	Bolt	4
?	513 141 98	Hose assy. DN 25x450	1
?	513 692 98	Hose assy. DN 25x800	1
?	517 699 98	Hose assy. DN 20x610	1
?	517 073 98	Union	4
?	517 090 98	Union	1
?	604 762 40	Union	1
?	655 426 40	Union	2
?	510 537 98	Socket	2
?	374 409 99	Socket	1
?	514 311 98	Union	1
?	507 037 98	Nut	6
?	340 465 99	Washer	6
?	167 693 40	Header ca. 1400mm	-2
?	510 741 98	Resilient sleeve	2
?	0443451510	Clip	6
?	502 006 98	Bolt	10
?	510 741 98	Resilient sleeve	10
?	332 353 99	Nut	10
?	517 736 98	Hose assy. DN 10x2800	1
?	517 035 98	Socket	1
?	636 374 40	Hose assy. DN 25x2800	1
?	516 161 98	Socket	1
?	374 431 99	Union	1

Komatsu PC3000-6 S/N 06271 parts catalog PDF

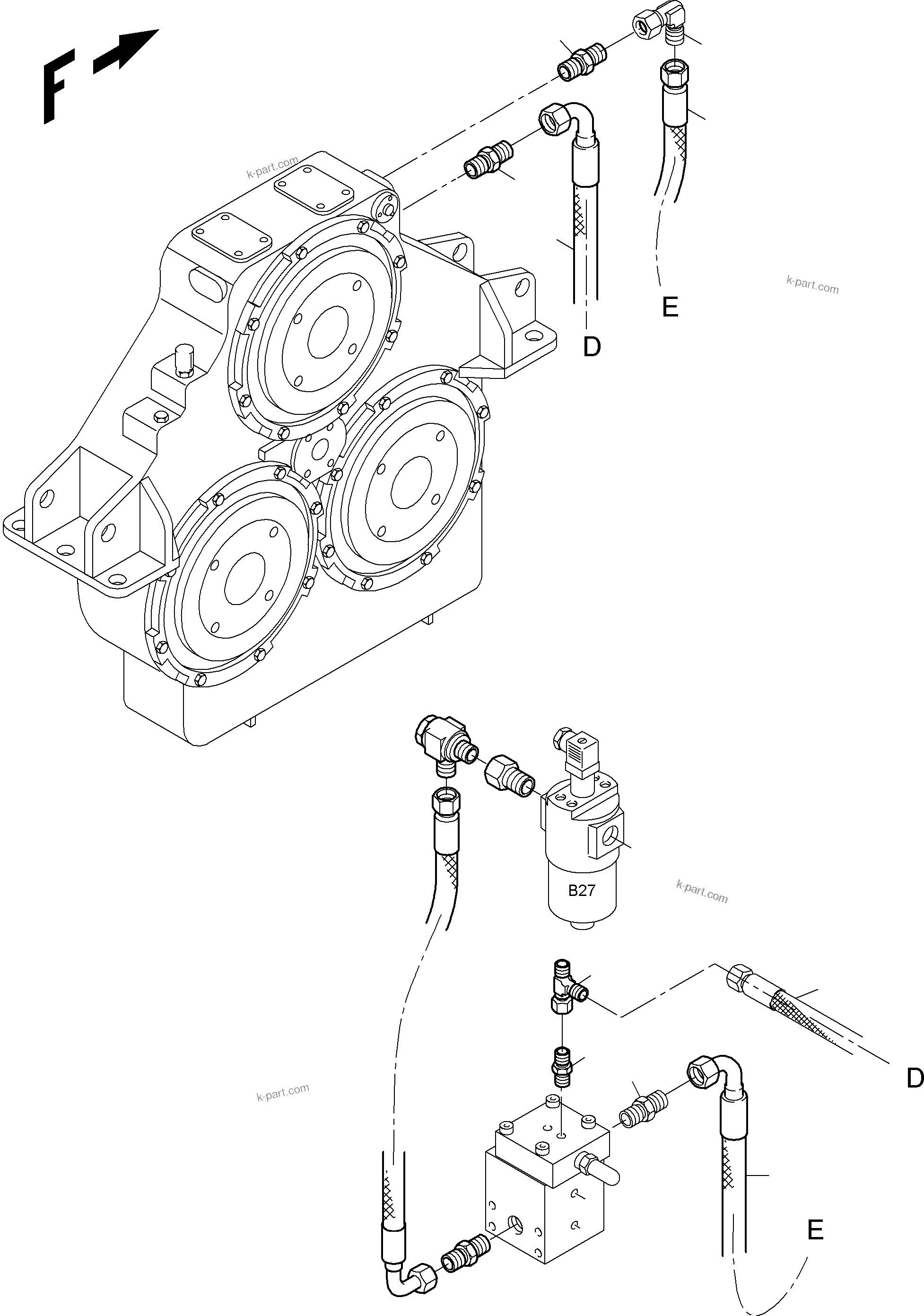

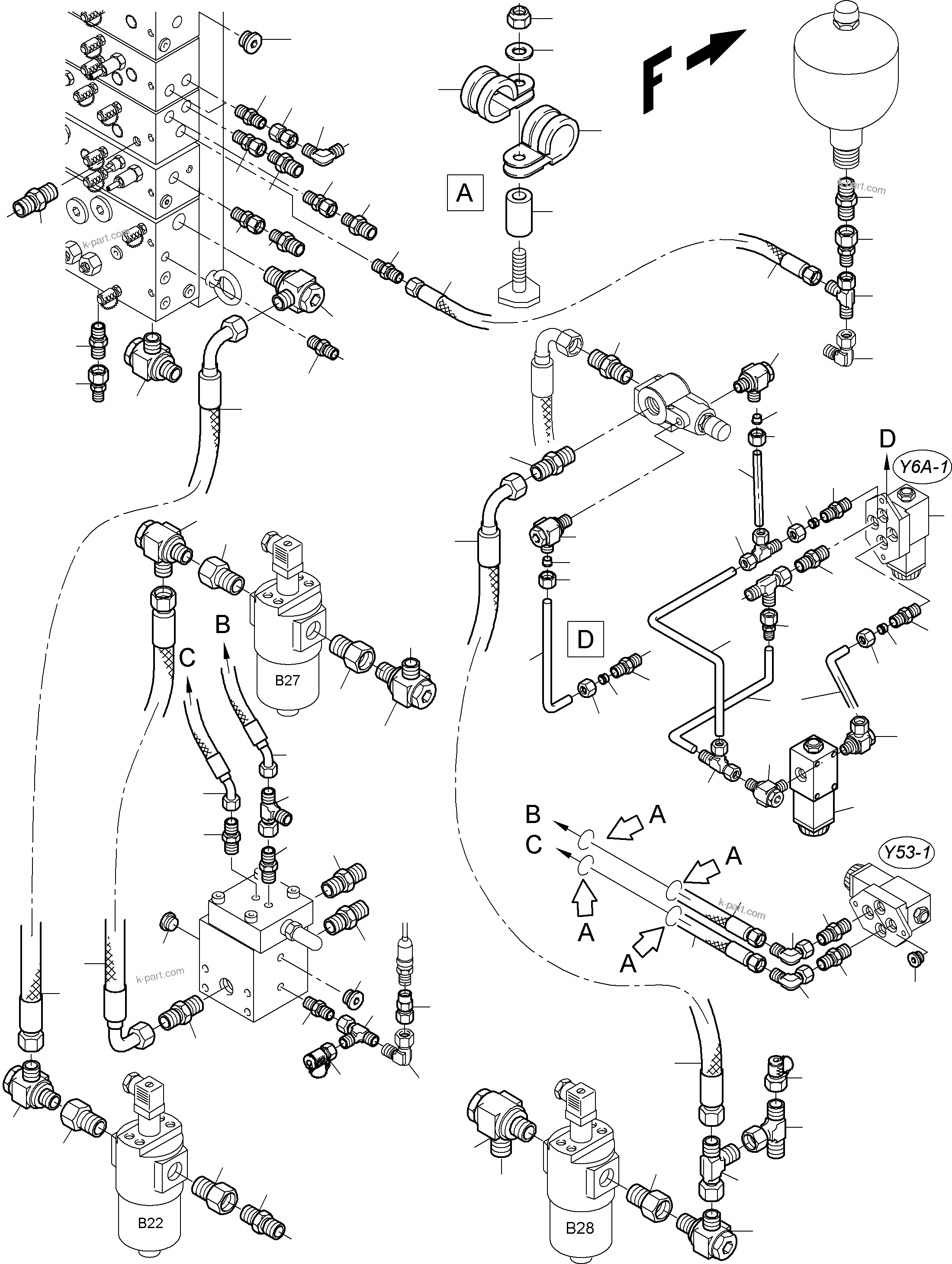

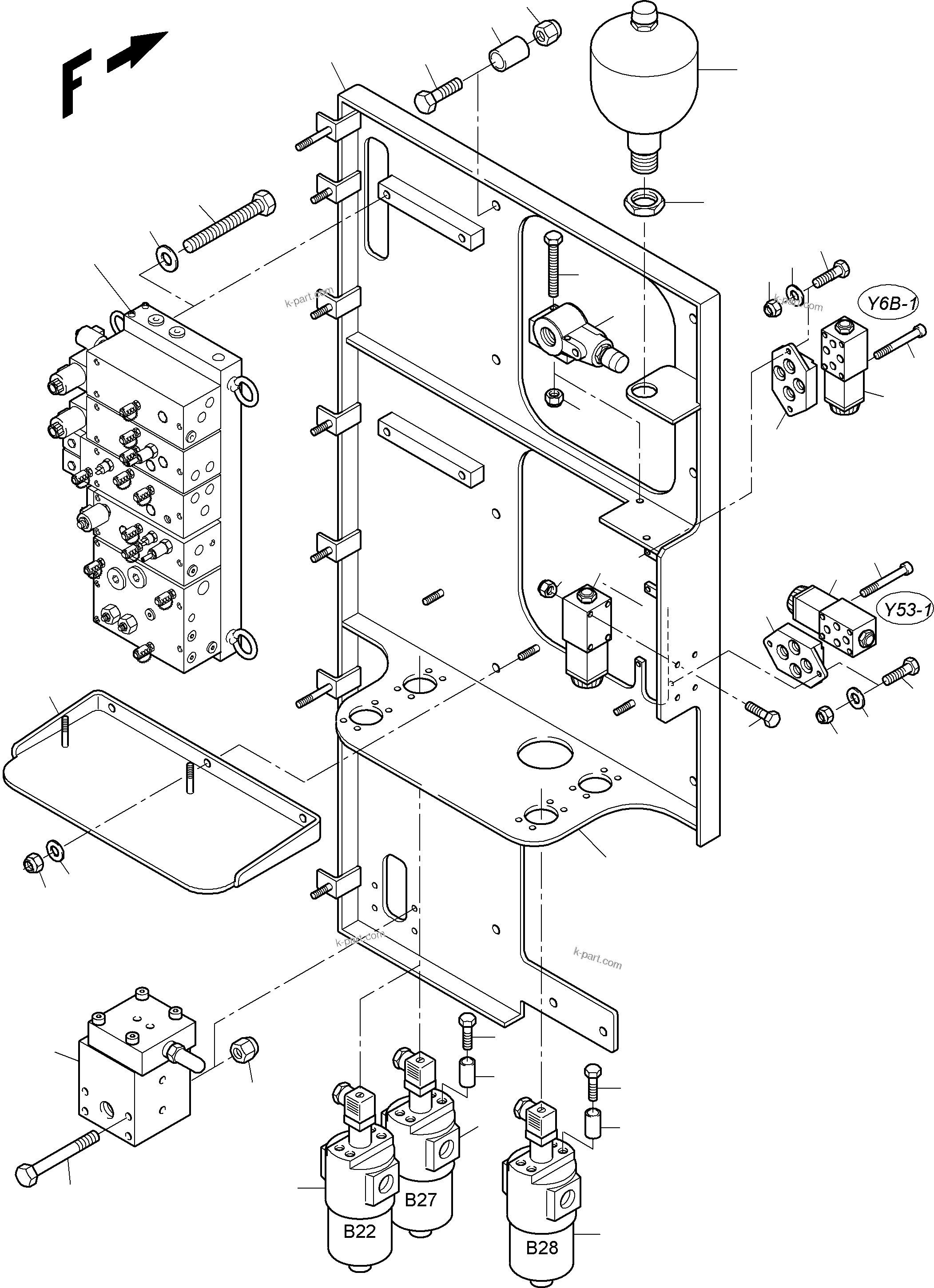

CONTROL- AND FILTER PLATE (485-1841b1) in PC3000-6 S/N 06271. Diagram image and parts list.
