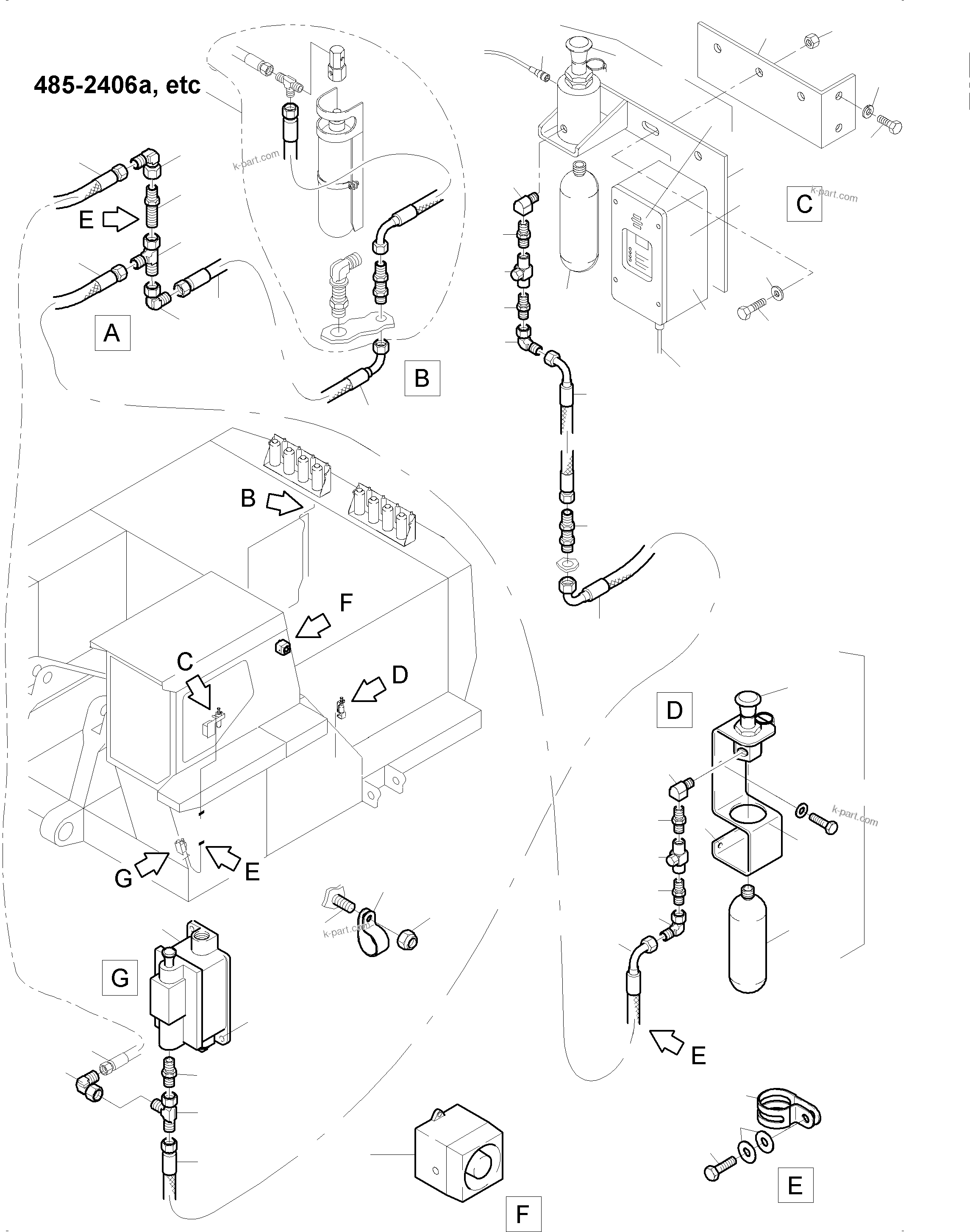

ACTUATING SYSTEM, HANDOPERATED | PC3000-6E S/N 06262

Search in All Books

Find books across the catalog from one place.

This page is prepared as the search workspace. The search behavior itself can be connected in the next step.

Search whole Komatsu part number in all books. Example: 6212611203.

PC3000-6E S/N 06262

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity	Options
?	793 536 73	Actuating arrangement	1	InternBDB: 423 538 \| InternKon: 895 895 40 / 7
?	698 388 73	Actuating arrangement	1	InternBDB: 57 484 \| InternKon: 895 895 40 / 11
?	770 181 73	Control unit	1	InternBDB: 423 504
?	942 026 40	Retainer	1	InternBDB: 423 525
?	796 012 73	Cartridge	2	InternBDB: 428 449 \| InternKon: 895 895 40 / 7
?	697 116 73	Actuating line ca. 30 000	1	InternBDB: 71230 Wormald 71 230 \| InternKon: 895 895 40 / 18
?		Hose assy.	1	InternBDB: DOL 8 / DOL 8-90
?		Hose assy.	1	InternBDB: DOL 8 / DOL 8-90
?	696 256 73	Igniter	1	InternBDB: 54919 \| InternKon: 895 895 40 / 9
?	764 068 73	Elbow union	2	InternBDB: 53409
?	370 754 99	Twin nipple	6	InternBDB: 1/4 /2990
?	694 034	Return valve	1	InternBDB: 25 627
?	794 586 73	Battery element	1	InternBDB: 427 308 \| InternKon: 895 895 40 / 8
?	765 042 73	Cable for igniter	1	InternBDB: 79062
?	697 425 73	Actuator	1	InternBDB: 24479
?	517 226 98	Union	1	InternBDB: L 08 / 3944 \| InternKon: 939 200 40 / 22
?	765 688 73	Pressure switch	1	InternBDB: 46250 \| InternKon: 895 895 40 / 13
?	795 580 73	Buzzer signal with flashlight	1	InternBDB: K00455456 \| InternKon: 895 895 40 / 12
?	765 328 73	Cover	1	InternBDB: 79559
?	796 057 73	Resistor	1	InternBDB: 423 542
?	698 389 73	Actuator head	1	InternBDB: 57452
?	698 387 73	Retainer	1	InternBDB: 57661
?	323 945 40	Thread pin	30	InternBDB: M6 / 32501
?	006 302 98	Clamp	30	InternBDB: RS 64 1100 15/15
?	507 025 98	Nut	30	InternBDB: M6 / 985
?	372 587 99	Union	1	InternBDB: RL 8 / 2353
?	796 058 73	Testing module	1	InternBDB: 423 531 \| InternKon: 895 895 40 / 10
?	696 256 73	Propellent release	1	InternBDB: 54919 \| InternKon: 895 895 40 / 9
?	372 170 99	Union	1	InternBDB: DDL 8 / 2353
?	942 026 40	Retainer	1	InternBDB: 5X60X240 \| InternKon: 942 027 40 / 1
?	307 728 99	Screw	2	InternBDB: M 6 X 16 8.8 DIN 00933 \| InternKon: 942 027 40 / 2
?	517 120 98	Lock washer	2	InternBDB: 6 STZN WN 65593840 \| InternKon: 942 027 40 / 3
?	307 752 99	Bolt	3	InternBDB: M 8 X 20 8.8 DIN 00933 \| InternKon: 942 027 40 / 4
?	334 599 99	Nut	3	InternBDB: M 8 8 DIN 00985 \| InternKon: 942 027 40 / 5
?	340 507 99	Washer	3	InternBDB: A 8,4 140HV DIN 00125 \| InternKon: 942 027 40 / 6
?		Hose assy.	1	InternBDB: DN 6x5000DOL 8 / DOL 8
?		Hose assy.	1	InternBDB: DN 6x8000DOL 8 / DOL 8-90
?		Hose assy.	1	InternBDB: DN 6x2700DOL 8 / DOL 8-45
?	307 773 99	Screw	7	InternBDB: M 10x16 / 933 8.8 \| InternKon: 939 200 40 / 9
?	0443451610	Clip NW 16	3	InternBDB: KES 04434 \| InternKon: 939 200 40 / 11
?	340 465 99	Washer	4	InternBDB: B10,5 / 125 \| InternKon: 939 200 40 / 12
?	319 131 99	Screw	2	InternBDB: M6x20 / 912 8.8 \| InternKon: 939 200 40 / 18
?	517 120 98	Lock washer	2	InternBDB: 6 / WN 655 938 40 \| InternKon: 939 200 40 / 19
?	906 980 40	Union	2	InternBDB: GE 8-L 1/4 NPT / OMD WN 655 933 40 \| InternKon: 939 200 40 / 21
?	517 225 98	Socket	1	InternBDB: L 08 / 3942 \| InternKon: 939 200 40 / 23
?	517 122 98	Lock washer	7	InternBDB: 10 WN 655 938 40 \| InternKon: 939 200 40 / 32
