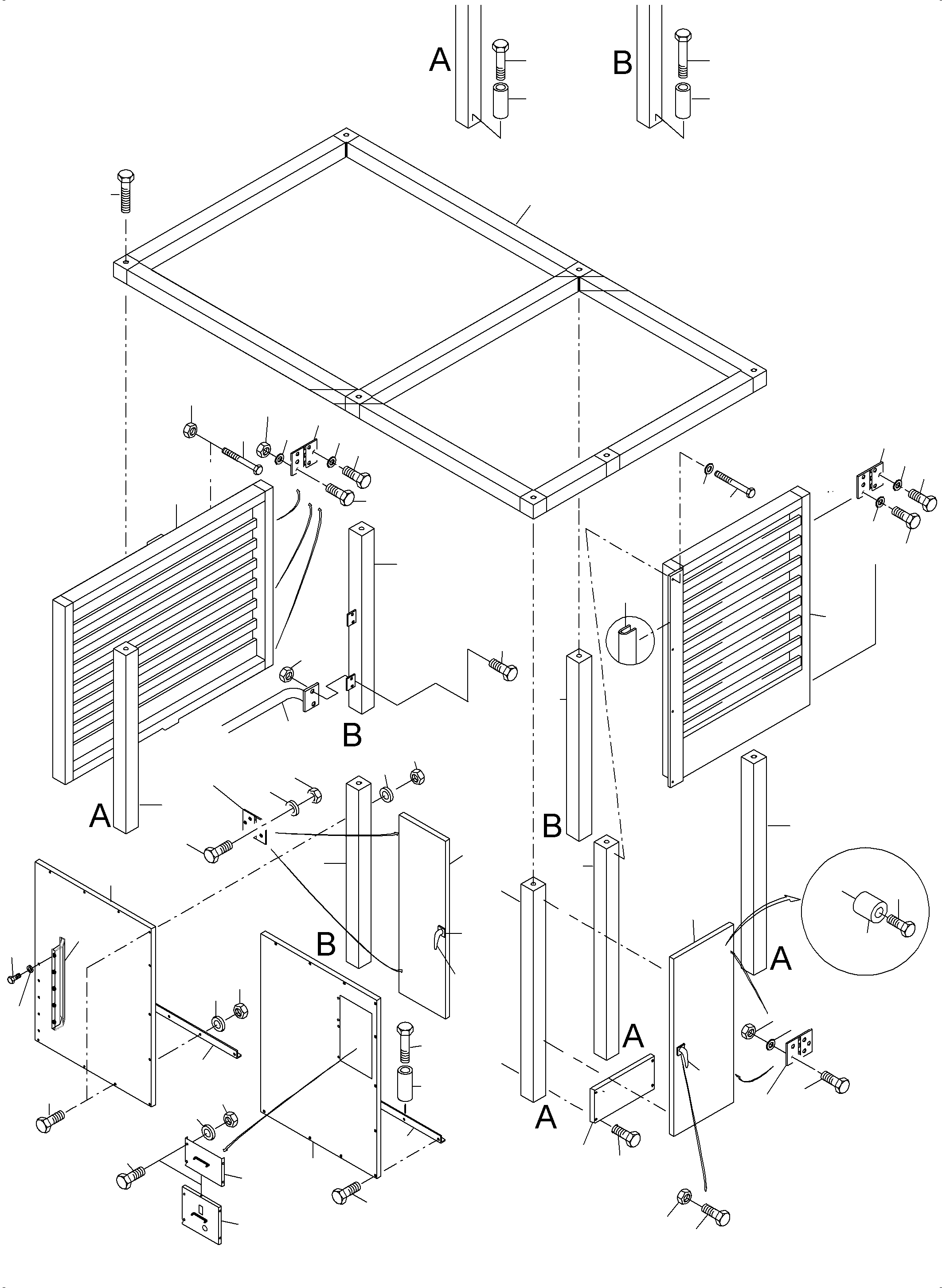

02 |
939 251 40
|
Post 1 |
1 |
InternKon: 946 343 40 / 1
|
|
|
|
03 |
939 252 40
|
Post 2 |
1 |
InternKon: 946 343 40 / 2
|
|
|
|
04 |
939 253 40
|
Post 3 |
1 |
InternKon: 946 343 40 / 3
|
|
|
|
05 |
939 257 40
|
Post 7 |
1 |
InternKon: 946 343 40 / 7
|
|
|
|
06 |
939 259 40
|
Post 5 |
1 |
InternKon: 946 343 40 / 5
|
|
|
|
07 |
939 256 40
|
Post 6 |
1 |
InternKon: 946 343 40 / 6
|
|
|
|
08 |
939 258 40
|
Post 4 |
1 |
InternKon: 946 343 40 / 4
|
|
|
|
09 |
946 340 40
|
Wall |
1 |
InternKon: 946 343 40 / 9
|
|
|
|
10 |
946 158 40
|
Door |
1 |
InternKon: 946 343 40 / 50
|
|
|
|
11 |
906 709 40
|
Fastener with out lock pin |
2 |
InternKon: 946 343 40 / 40
|
|
|
|
12 |
340 510 99
|
Washer |
2 |
InternBDB: A17,0 140HV / DIN 125 | InternKon: 946 343 40 / 41
|
|
|
|
13 |
930 625 40
|
Cover assy. |
1 |
InternKon: 946 343 40 / 30
|
|
|
|
14 |
930 550 40
|
Wall |
1 |
InternKon: 946 343 40 / 10
|
|
|
|
15 |
946 338 40
|
Door, radiator |
1 |
InternKon: 946 343 40 / 8
|
|
|
|
16 |
927 264 40
|
Wall |
1 |
InternKon: 946 343 40 / 11
|
|
|
|
17 |
946 165 40
|
Hinge |
5 |
InternKon: 946 343 40 / 14
|
|
|
|
18 |
946 151 40
|
Hinge |
2 |
InternKon: 946 343 40 / 39
|
|
|
|
19 |
946 152 40
|
Door |
1 |
InternKon: 946 343 40 / 15
|
|
|
|
20 |
946 170 40
|
Door |
1 |
InternKon: 946 343 40 / 12
|
|
|
|
22 |
934 342 40
|
Angle |
1 |
InternKon: 946 343 40 / 23
|
|
|
|
23 |
934 343 40
|
Angle |
1 |
InternKon: 946 343 40 / 24
|
|
|
|
24 |
167 693 40
|
Flex. Header |
-2 |
InternBDB: Happich 461 0031 schwarz | InternKon: 946 343 40 / 20.4
|
|
|
|
26 |
510 741 98
|
Resilient sleeve |
9 |
InternKon: 946 343 40 / 16
|
|
|
|
27 |
308 608 99
|
Bolt |
9 |
InternBDB: M 12x70 /931 | InternKon: 946 343 40 / 28
|
|
|
|
28 |
510 732 98
|
Resilient sleeve |
28 |
InternKon: 946 343 40 / 18
|
|
|
|
29 |
308 885 99
|
Bolt to fig-nos. 02, 06-08 |
16 |
InternKon: 946 343 40 / 26
|
|
|
|
30 |
308 414 99
|
Bolt to fig-nos. 03, 04 + 05 |
12 |
InternKon: 946 343 40 / 19
|
|
|
|
31 |
927 230 40
|
Pipe |
2 |
InternKon: 946 343 40 / 48
|
|
|
|
32 |
307 805 99
|
Bolt |
8 |
InternBDB: M 12x35 /933 | InternKon: 946 343 40 / 47
|
|
|
|
33 |
081 282 40
|
Round buffer |
1 |
InternKon: 946 343 40 / 54
|
|
|
|
34 |
513 252 98
|
Screw |
1 |
InternBDB: M5x40 10.9 DIN00912 | InternKon: 946 343 40 / 55
|
|
|
|
36 |
308 610 99
|
Bolt |
28 |
InternBDB: M 12x80 /931 | InternKon: 946 343 40 / 29
|
|
|
|
37 |
334 600 99
|
Nut |
45 |
InternBDB: M 12 /985 | InternKon: 946 343 40 / 31
|
|
|
|
38 |
340 467 99
|
Washer |
46 |
InternBDB: B 13 /125 | InternKon: 946 343 40 / 38
|
|
|
|
41 |
307 802 99
|
Bolt |
23 |
InternBDB: M12x25 8.8 DIN00933 | InternKon: 946 343 40 / 46
|
|
|
|
43 |
346 498 99
|
Lock washer |
4 |
InternKon: 946 343 40 / 52
|
|
|
|
45 |
517 118 98
|
Nut |
4 |
InternBDB: M 12 / 934 | InternKon: 946 343 40 / 53
|
|
|
|
46 |
946 164 40
|
Hinge |
2 |
InternKon: 946 343 40 / 57
|
|
|
|
47 |
307 779 99
|
Bolt |
8 |
InternBDB: M10x30 8.8 DIN00933 | InternKon: 946 343 40 / 58
|
|
|
|
48 |
340 007 99
|
Washer |
16 |
InternBDB: 11 DIN00126 | InternKon: 946 343 40 / 59
|
|
|
|
49 |
507 037 98
|
Nut |
17 |
InternBDB: M10 8 DIN00985 | InternKon: 946 343 40 / 60
|
|
|
|
51 |
518 200 98
|
Lock washer |
21 |
InternBDB: 12 WN65593740 | InternKon: 946 343 40 / 61
|
|
|
|
52 |
517 122 98
|
Lock washer |
17 |
InternBDB: 10 WN65593840 | InternKon: 946 343 40 / 42
|
|
|
|
53 |
307 775 99
|
Bolt |
26 |
InternBDB: M10x20 8.8 DIN00933 | InternKon: 946 343 40 / 43
|
|
|
|
55 |
307 804 99
|
Bolt |
15 |
InternBDB: M12x30 8.8 DIN00933 | InternKon: 946 343 40 / 62
|
|
|
|

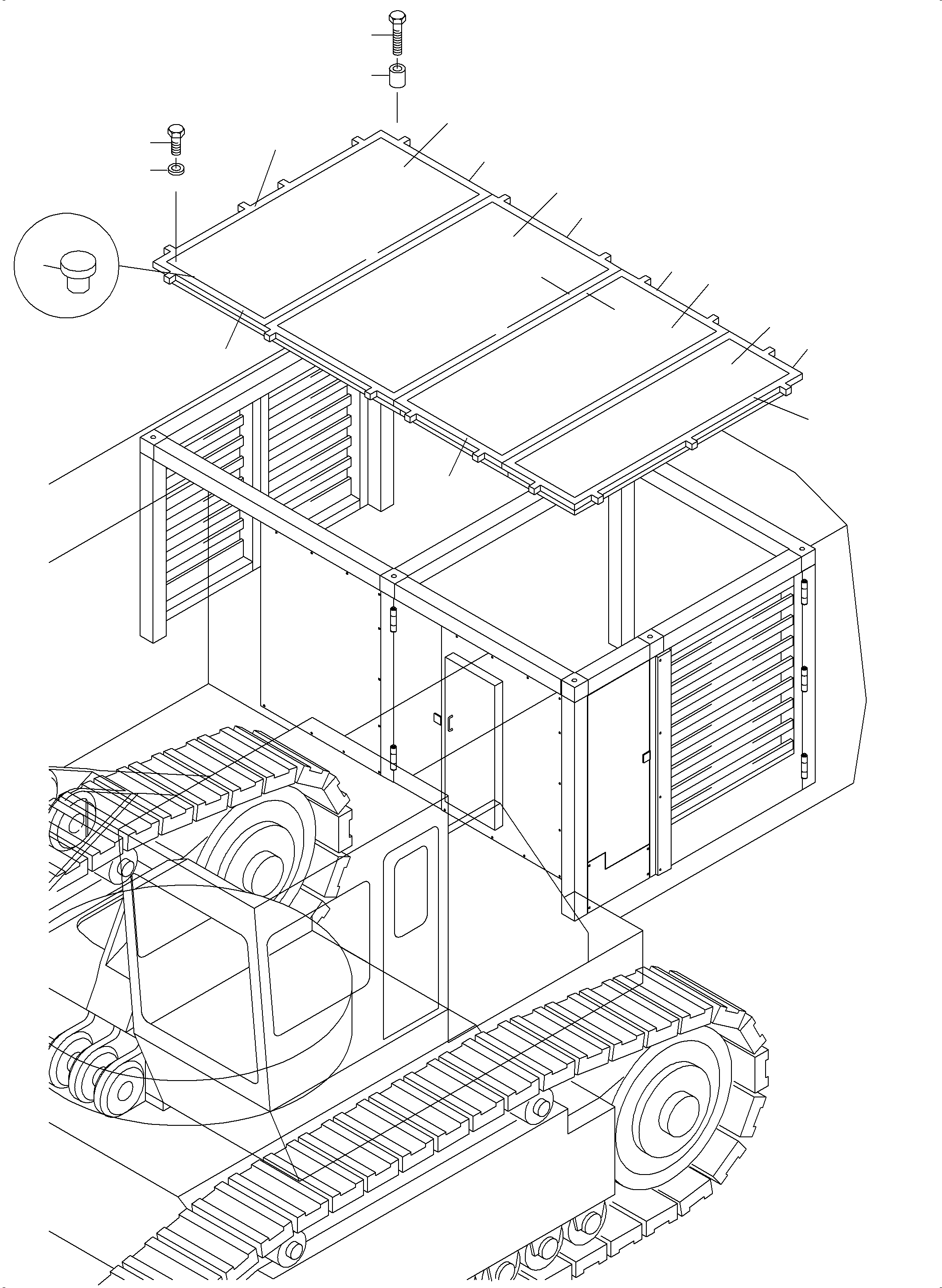

60 |
939 207 40
|
Roof selection |
1 |
InternKon: 946 334 40 / 1
|
|
|
|
61 |
946 333 40
|
Roof selection |
1 |
InternKon: 946 334 40 / 2
|
|
|
|
62 |
939 208 40
|
Roof selection |
1 |
InternKon: 946 334 40 / 3
|
|
|
|
63 |
598 248 40
|
Threaded rail |
4 |
InternBDB: 2576 | InternKon: 946 334 40 / 4
|
|
|
|
64 |
598 250 40
|
Threaded rail |
2 |
InternBDB: 555 | InternKon: 946 334 40 / 5
|
|
|
|
65 |
598 249 40
|
Threaded rail |
2 |
InternBDB: 1405 | InternKon: 946 334 40 / 6
|
|
|
|
66 |
946 329 40
|
Threaded rail |
2 |
InternBDB: 1480 | InternKon: 946 334 40 / 7
|
|
|
|
67 |
946 330 40
|
Threaded rail |
2 |
InternBDB: 1178 | InternKon: 946 334 40 / 8
|
|
|
|
68 |
307 949 99
|
Bolt |
6 |
InternBDB: M12 X 25 10.9 DIN 00933 | InternKon: 946 334 40 / 9
|
|
|
|
69 |
504 271 98
|
Lock washer |
6 |
InternBDB: B 12 FST A2E DIN 00127 | InternKon: 946 334 40 / 10
|
|
|
|
70 |
308 608 99
|
Bolt |
48 |
InternBDB: M12X 70 8.8 DIN 00931 | InternKon: 946 334 40 / 11
|
|
|
|
71 |
510 741 98
|
Resilient sleeve |
48 |
InternBDB: 13 /25X 50 42CRMO4-TQ+T WN 34194840 | InternKon: 946 334 40 / 12
|
|
|
|
72 |
946 024 40
|
Roof selection |
1 |
InternKon: 946 334 40 / 13
|
|
|
|
75 |
939 239 40
|
Cover up |
1 |
InternKon: 946 343 40 / 67
|
|
|
|
76 |
939 240 40
|
Cover down |
1 |
InternKon: 946 343 40 / 68
|
|
|
|
77 |
340 465 99
|
Disc |
11 |
InternBDB: B10,5 / 125 | InternKon: 946 343 40 / 69
|
|
|
|
78 |
308 516 99
|
Bolt |
4 |
InternBDB: M5x55 / 931 | InternKon: 946 343 40 / 70
|
|
|
|
79 |
332 109 99
|
Nut |
4 |
InternBDB: M5 / 934 | InternKon: 946 343 40 / 71
|
|
|
|
80 |
946 336 40
|
Roof frame |
1 |
InternKon: 946 337 40 / 2
|
|
|
|
81 |
180 889 40
|
Plug |
4 |
InternBDB: F 211 PE Weich | InternKon: 946 337 40 / 4
|
|
|
|
85 |
308 356 99
|
Bolt |
7 |
InternBDB: M 36x200 / 931 | InternKon: 946 050 40 / 11
|
|
