Diagram image 1 of 2

PC3000-6 S/N 06280

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

PC3000-6 S/N 06280

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity
?	955 473 40	Harness - engine	1
?	0443451510	Clip NW 15	29
?	0819320010	Clip	2
?	507 596 98	Washer	6
?	507 037 98	Nut	26
?	340 465 99	Washer	26
?	517 853 98	Resilent sleeve 10,5/25x80	3
?	504 281 98	Bolt	3
?	0443452110	Clip NW 21,5	5
?	0443452711	Clip NW 27	56
?	931 317 40	Plate 6X40X233	1
?	307 661 99	Bolt	2
?	340 459 99	Washer	2
?	343 104 99	Lock washer	2
?	307 779 99	Bolt	5
?	517 122 98	Lock washer	12
?	510 741 98	Resilient sleeve	8
?	931 316 40	Plate 8X40X130	1
?	0443451210	Clip NW 12	2
?	940 473 40	Resistance Thermometer	1
?	431 169 40	Temperature transmitter	1
?	941 885 40	Pressure switch (cooling water)	1
?	941 886 40	Pressure switch - engine-oil pressure	1
?	941 887 40	Pressure switch - engine-oil pressure	1
?	515 562 40	Pressure transmitter 10 bar	1
?	414 899 40	Rpm-sensor	1
?	931 387 40	Harness - Generator-Ground	1
?	950 454 40	Seal	1
?	931 388 40	Harness Enginefeet-Ground	1
?	516 092 98	Resilient sleeve	1
?	307 775 99	Bolt	11
?	0443450510	Clip NW 4,8	2
?	0443453211	Clip NW 32	3
?	0443451910	Clip NW 19	4
?	0443452712	Clip NW 27	1
?	655 650 40	Cable protection hose DN 12	-2
?	655 651 40	Cable protection hose DN 17	-2
?	655 652 40	Cable protection hose DN 23	-2
?	906 420 40	T-Distributor DN 12	2
?	655 629 40	T-Distributor DN 17	2
?	907 733 40	T-Distributor DN 23	1
?	655 630 40	T-Distributor DN 29/23	2
?	655 626 40	Distributor DN 17/12	1
?	655 633 40	Pipe adapter DN 17/12	5
?	655 634 40	Pipe adapter DN 23/17	2
?	655 810 40	Pipe adapter DN 29/12	2
?	907 692 40	Fitting PG 9	7
?	907 703 40	Cable union	4
?	907 704 40	Cable union	3
?	621 548 40	Plug	1
?	621 547 40	Socket	1
?	0819105420	Socket	5
?	655 848 40	Fitting PG 17	2
?	323 961 40	Sleeve 6,3x0,8	1
?	255 745 40	Rubber grommet	3
?	055 100 40	Cable shoe	1
?	896 520 40	End pin	3
?	896 521 40	End pin	5
?	0819212920	Plug, assy.	6
?	256 721 40	Protection cap	1
?	896 558 40	Pipe adapter DN 29/23	1
?	907 947 40	Connector distributor DN 29/23	1
?	907 971 40	Pipe adapter DN 23/12	1
?	256 514 40	Plate	16
?	056 292 40	Cable strap	16
?	515 213 40	Cable 1,0mm2 blue	-2
?	515 214 40	Cable 2,5mm2 blue	-2
?	907 877 40	Cable 2x0,75mm2 grey	-2
?	055 104 40	Cable lug 1,5	1
?	940 461 40	Insulating tube B5x0,6	2
?	055 108 40	Cable lug	1
?	0819191206	Plug	1
?	0819111206	Plug	1
?	907 980 40	Fitting DN 23	1
?	0819105320	Pin	32
?	0819100770	Sealing plug	10
?	907 974 40	Fitting DN 12	1
?	0819105340	Pin	4
?	906 696 40	Protection cap	1
?	896 769 40	Protection cap	1
?	940 852 40	Plug	3
?	940 913 40	Warmth shrink hose	-2
?	940 909 40	Warmth shrink hose	-2
?	940 460 40	Insulating tube B4x0,5	-2
?	940 459 40	Insulating tube 3x0,4	-2
?	940 463 40	Insulating tube	-2
?	933 385 40	Plug with bushings assy.	2
?	940 629 40	Warmth shrink hose	-2
?	933 399 40	Relay plate	1
?	933 397 40	Plate	1
?	0443451610	Clip NW 16	2
?	307 779 99	Bolt	1
?	507 037 98	Nut	1
?	340 465 99	Washer	2
?	511 869 98	Resilent sleeve	2
?	307 761 99	Screw	2
?	517 121 98	Lock washer	2
?	655 642 40	Circular bearing	4
?	507 025 98	Nut	8
?	350 762 99	Washer	8
?	931 381 40	Harness starter relay plate	1
?	933 389 40	Harness Engine relay	1
?	056 076 40	Protection cap	3
?	932 727 40	Cable shoe	1
?	055 089 40	Cable shoe	3
?	932 557 40	Heat Protection hose	-2
?	907 891 40	Cable 70,0mm2 black	-2
?	933 388 40	Plug assy. 4-pole	1
?	940 465 40	Insulating tube 10x0,7	-2
?	907 511 40	Cable lug 2,5	1
?	933 387 40	Plug assy.	1
?	907 132 40	Cable lug 2.5	4
?	932 518 40	Cable lug	1
?	933 384 40	Receptacle assembly	1
?	793 258 73	Fuse with cable	1
?	766 379 73	RPM - Sensor	1
?	659 892 40	Starter relay assy.	2
?	792 585 73	Time lag relay	1
?	635 965 40	Relay	2
?			-2
?			-2
?			-2
?			-2
?			-2
?			-2
?			-2
?			-2
?			-2
?			-2
?			-2
?			-2
?			-2
?			-2
?			-2
?			-2
?			-2
?			-2
?			-2
?			-2
?			-2
?			-2
?			-2
?			-2
?			-2
?			-2
?			-2
?			-2
?			-2
?			-2
?			-2
?			-2
?			-2
?			-2
?			-2
?			-2
?			-2
?			-2

Komatsu PC3000-6 S/N 06280 parts catalog PDF

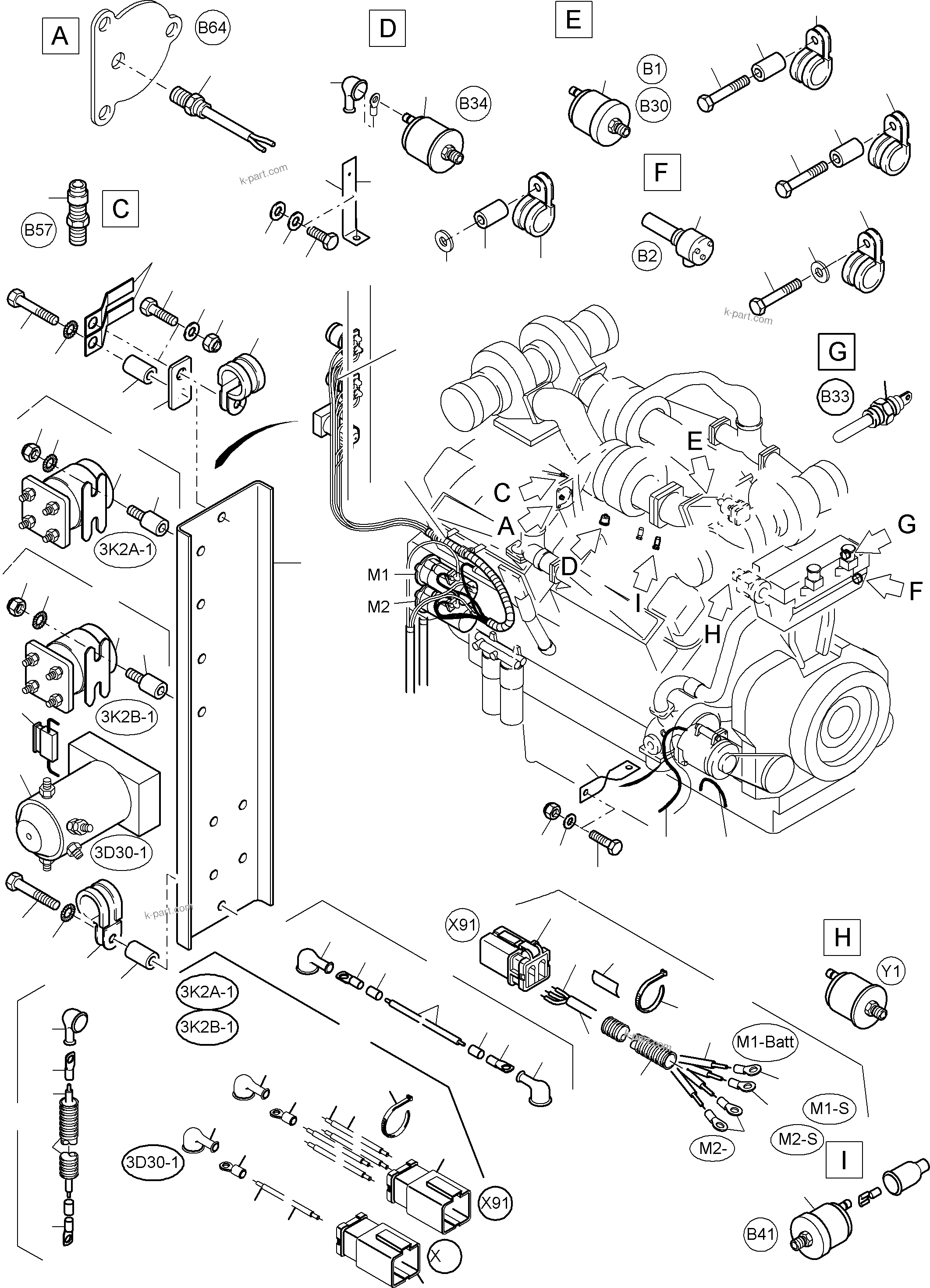

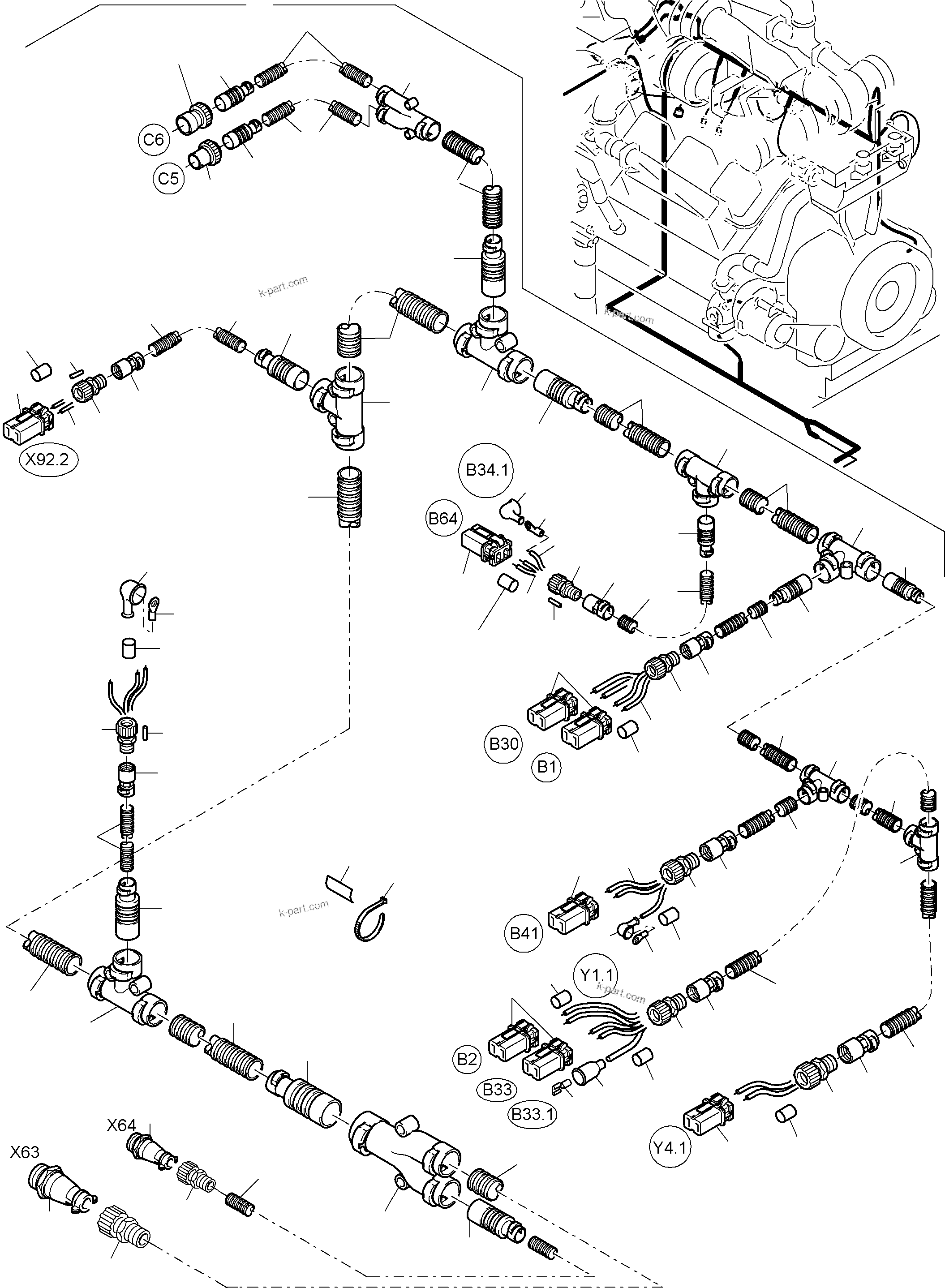

CABLES - ENGINE AND TRANSMITTER (485-2185e) in PC3000-6 S/N 06280. Diagram image and parts list.
