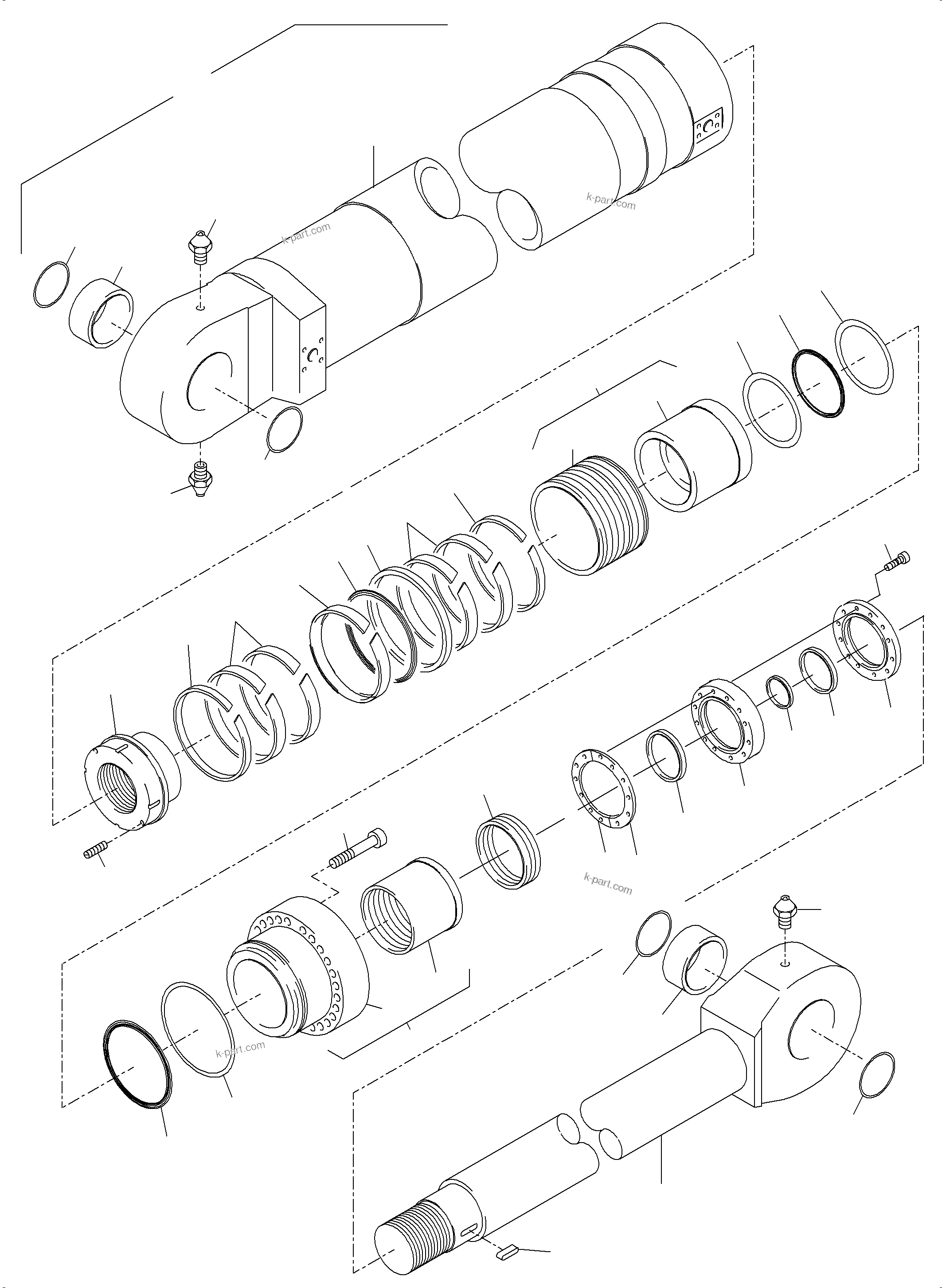

HYDR.-CYLINDER | PC3000-6 S/N 06280 | Komatsu parts book catalogue

Search in All Books

Find books across the catalog from one place.

This page is prepared as the search workspace. The search behavior itself can be connected in the next step.

Search whole Komatsu part number in all books. Example: 6212611203.

PC3000-6 S/N 06280

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity
?	957 600 40	Hydraulic cylinder (Cold weather design)	1
?	797 951 73	Cylinder barrel incl. fig-nos. 03,05,06,09	1
?		Cylinder barrel	1
?	907 022 40	Seal ring	4
?	004 860 98	Grease nipple	3
?	792 429 73	Piston rod assy. incl. fig-nos. 05,06,08,09	1
?		Piston rod	1
?	627 572 40	Freeze-in bushing	2
?	909 309 40	Sealing flange incl. fig-nos. 11+12	1
?		Flanged bush	1
?	909 311 40	Bearing bush (no field repair item)	1
?	659 097 40	Piston assy. incl. fig-nos. 14+15	1
?		Piston	1
?	445 393 40	Liner (no field repair item)	1
?	947 190 40	Groove nut	1
?	909 389 40	Cover	1
?	906 587 40	Support ring	1
?	896 587 40	Sealing element	1
?	256 248 40	O-ring	1
?	256 245 40	Piston guide ring	5
?	269 785 40	Piston guide strap	2
?	440 675 40	O-ring	1
?	655 589 40	Support ring	2
?	906 531 40	Scraper	1
?	500 990 98	O-ring	1
?	256 561 40	Support ring	1
?	226 421 40	Seal kit	1
?	511 722 98	Bolt (Cold weather design)	18
?	514 957 98	Bolt (Cold weather design)	12
?	354 389 99	Feather key	1
?	947 188 40	Threaded pin	1
?	906 726 40	Support ring	1
?	891 822 40	Half shim 0,8mm	12
?	909 388 40	Cover ring	1
?	767 498 73	Seal kit piston consist. of fig nos: 19-24	1
?	792 140 73	Seal kit piston rod consist. of fig.-nos: 18, 25-28, 33	1
