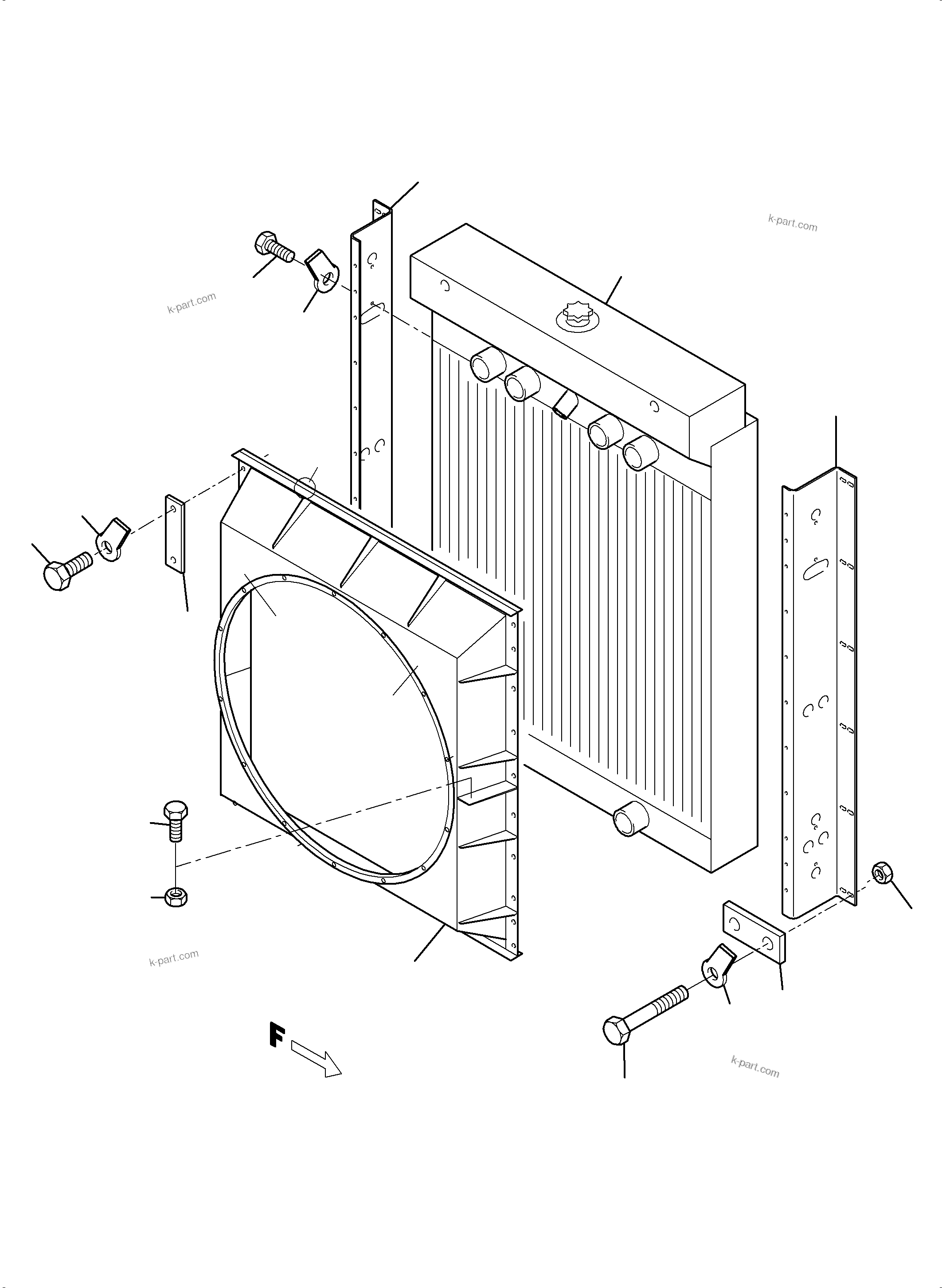

Komatsu parts book diagram for PC3000-6 S/N 06280: RADIATOR ARRANGEMENT

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

	#	Part Number	Partname	Quantity	Options	Reference
	?		Radiator	1		991-0079a
	?	307 600 99	Bolt	40
	?	440 821 40	Profiled joint	-2
	?	372 394 40	Plate	12
	?	332 353 99	Nut	32
	?	959 004 40	Sheet metal assy.	1
	?	954 619 40	Sheet metal assy.	1
	?	883 895 40	Cowl	1
	?	883 896 40	Cowl	1
	?	883 897 40	Cowl	1
	?	491 056 40	Connector plate	12
	?	517 118 98	Lock washer	40
	?	307 802 99	Bolt	38
	?	334 600 99	Nut	14
	?			-2
	?			-2
	?			-2
	?			-2
	?			-2
	?			-2
	?			-2
	?			-2
	?			-2
	?			-2
	?			-2

Komatsu PC3000-6 S/N 06280 parts catalog PDF

RADIATOR ARRANGEMENT (485-1236c) in PC3000-6 S/N 06280. Diagram image and parts list.
