HEATER SYSTEM CAB | PC3000-6 S/N 06280 | Komatsu parts book catalogue

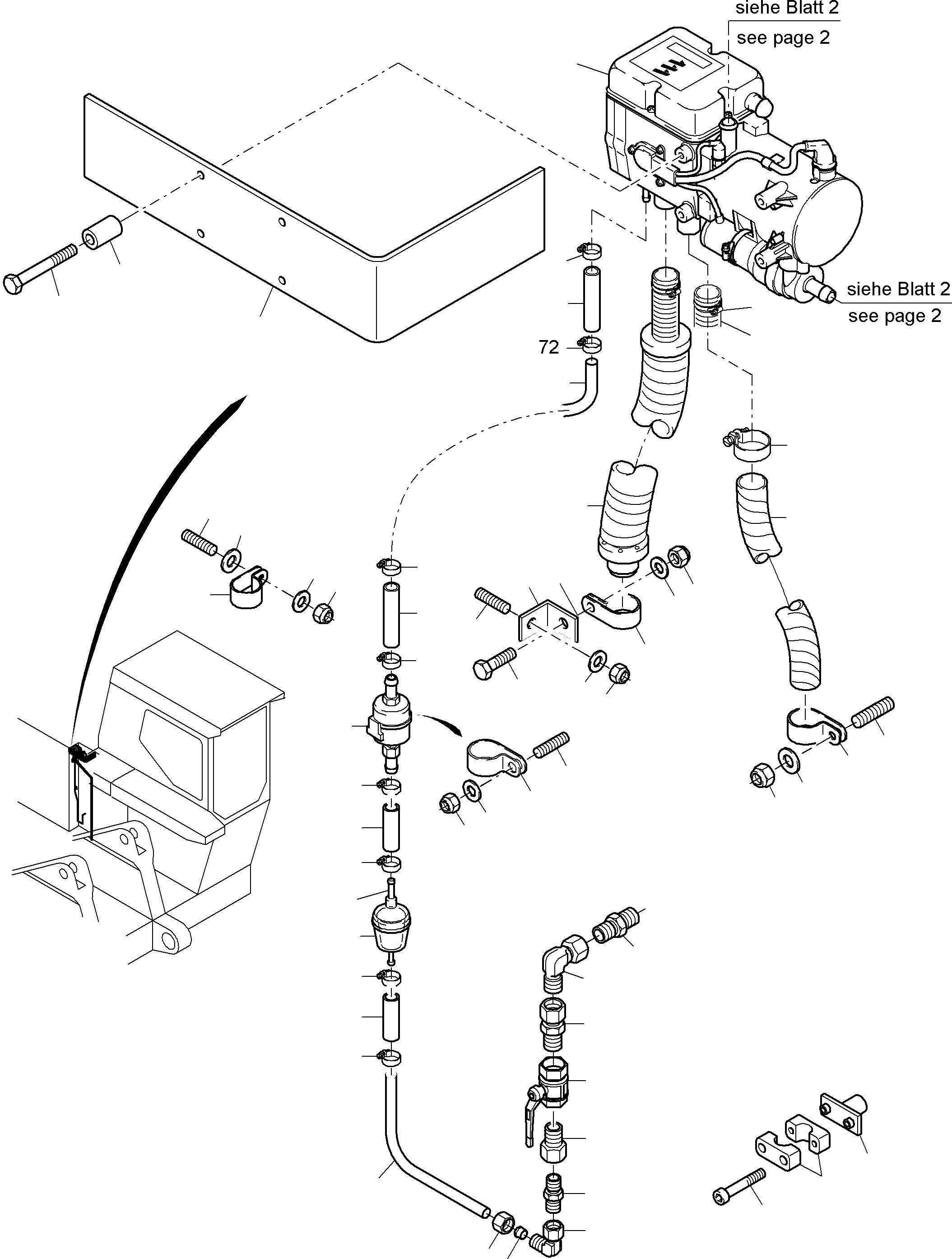

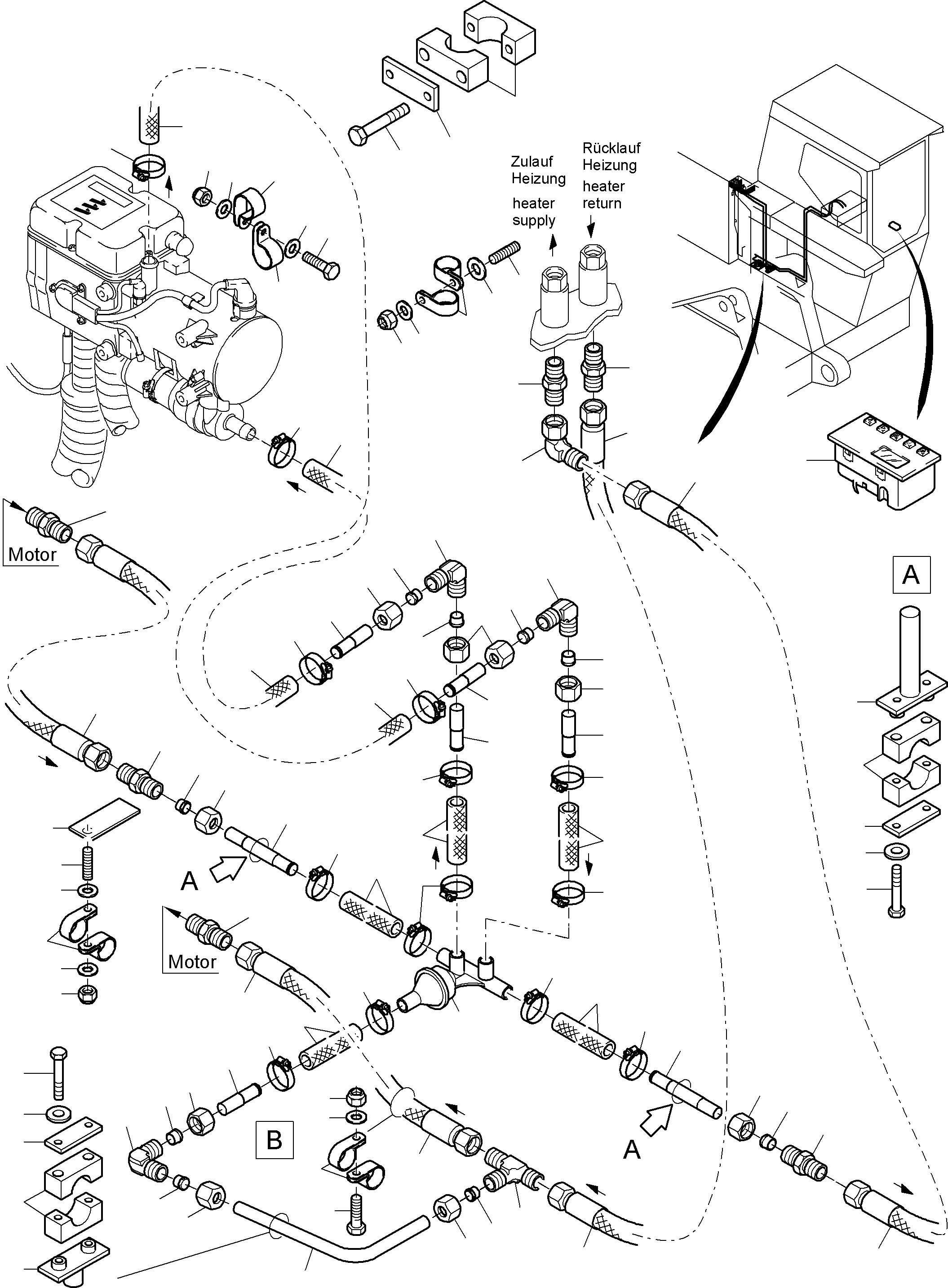

Diagram image 1 of 2

PC3000-6 S/N 06280

01 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 26 26 26 27 27 27 27 28 28 28 29 34 45 46 47 63 64 65 66 67 67 68 72 73 74 75 76 77 78 79 79 80 81 81 82 82 84 85 86 88 90

PC3000-6 S/N 06280

02 02 02 02 02 02 02 02 03 03 03 03 03 03 03 03 03 04 04 04 05 05 06 08 09 24 24 24 24 25 25 25 25 29 29 30 31 31 32 32 33 33 34 34 34 37 38 39 41 42 42 43 44 48 48 49 49 50 50 50 51 52 53 54 55 55 56 57 58 59 59 60 60 60 61 62 62 62 62 62 62 62 69 69 70 70 71 71 72 72 72 72 72 72 72 72 72 72 72 72 72 91 92 93

#	Part Number	Partname	Quantity	Reference
01		Water heater	1	991-0717
02	371 276 99	Union nut	9
03	906 349 40	Olive	9
04	935 437 40	Reducing socket	5
05	935 438 40	Socket	2
06	511 135 98	Socket	1
08	935 295 40	Retainer	2
09	935 296 40	Retainer	1
10	935 407 40	Plate	1
11	374 436 99	Socket	1
12	516 158 98	Socket	1
13	516 271 98	Socket	1
14	461 806 40	Ball cock	1
15	504 901 98	Pair of clamps	1
16	319 417 99	Screw	2
17	515 012 98	Socket	1
18	374 421 99	Socket	1
19	215 622 99	Tube	-2
20	914 468 40	Pipe mounting	1
21	0443451010	Clip	5
22	510 747 98	Resilient sleeve	4
23	308 907 99	Bolt	4
24	507 037 98	Nut	18
25	340 465 99	Washer	18
26	507 025 98	Nut	7
27	340 506 99	Washer	7
28	510 210 98	Thread pin	7
29	907 854 40	Threaded pin	25
30	940 073 40	Hose assy.	1
31	940 074 40	Hose assy.	1
32	940 075 40	Hose assy.	1
33	940 076 40	Hose assy.	1
34	340 467 99	Washer	15
37	509 058 98	Pair of clamps	2
38	511 856 98	Cover plate	1
39	307 736 99	Bolt	4
41	943 699 40	Tube	1
42	501 796 98	Socket	2
43	516 159 98	Socket	1
44	935 446 40	Mounting manifold	3
45	518 021 98	Socket	1
46	371 271 99	Union nut	1
47	517 108 98	Olive	1
48	654 892 40	Union	2
49	374 437 99	Socket	2
50	0443452310	Clip	10
51	534 017 99	Cover plate	5
52	518 158 98	Pair of clamps	5
53	308 555 99	Bolt	5
54	0443453411	Clip NW 34	2
55	307 777 99	Bolt	2
56	510 390 98	Pair of clamps	1
57	511 855 98	Cover plate	1
58	307 735 99	Bolt	2
59	343 003 99	Washer	6
60	516 614 98	Union	3
61	0443452711	Clip NW 27	14
62	795 386 73	Water hose	-2
63	778 757 73	Clamp	10
64	766 164 73	Clamp	3
65	795 387 73	Hose	-2
66	415 585 40	Fuel filter	1
67	778 286 73	Clamp	4
68	778 822 73	Hose	-2
69	450 334 40	Hose	1
70	450 333 40	Hose	1
71	795 388 73	transition piece	3
72	975 430 73	Clamp	12
73	776 163 73	Intake muffler	1
74	795 389 73	Exhaust hose	1
75	761 845 73	Clamp	3
76	766 164 73	Clamp	2
77	770 042 73	Muffler	1
78	778 822 73	Hose	-2
79	778 810 73	Clamp	4
80	778 793 73	Pipe 4x1	-2
81	769 978 73	Hose	-2
82	778 811 73	Clamp	4
84	778 798 73	Clamp	1
85	778 269 73	Rubber block support	1
86	778 270 73	Retainer	1
88	307 646 99	Screw	-2
90	769 977 73	Metering pump	1
91	769 956 73	Timer	1
92	769 957 73	Mounting parts - timer	1
93	797 631 73	Valve	1
