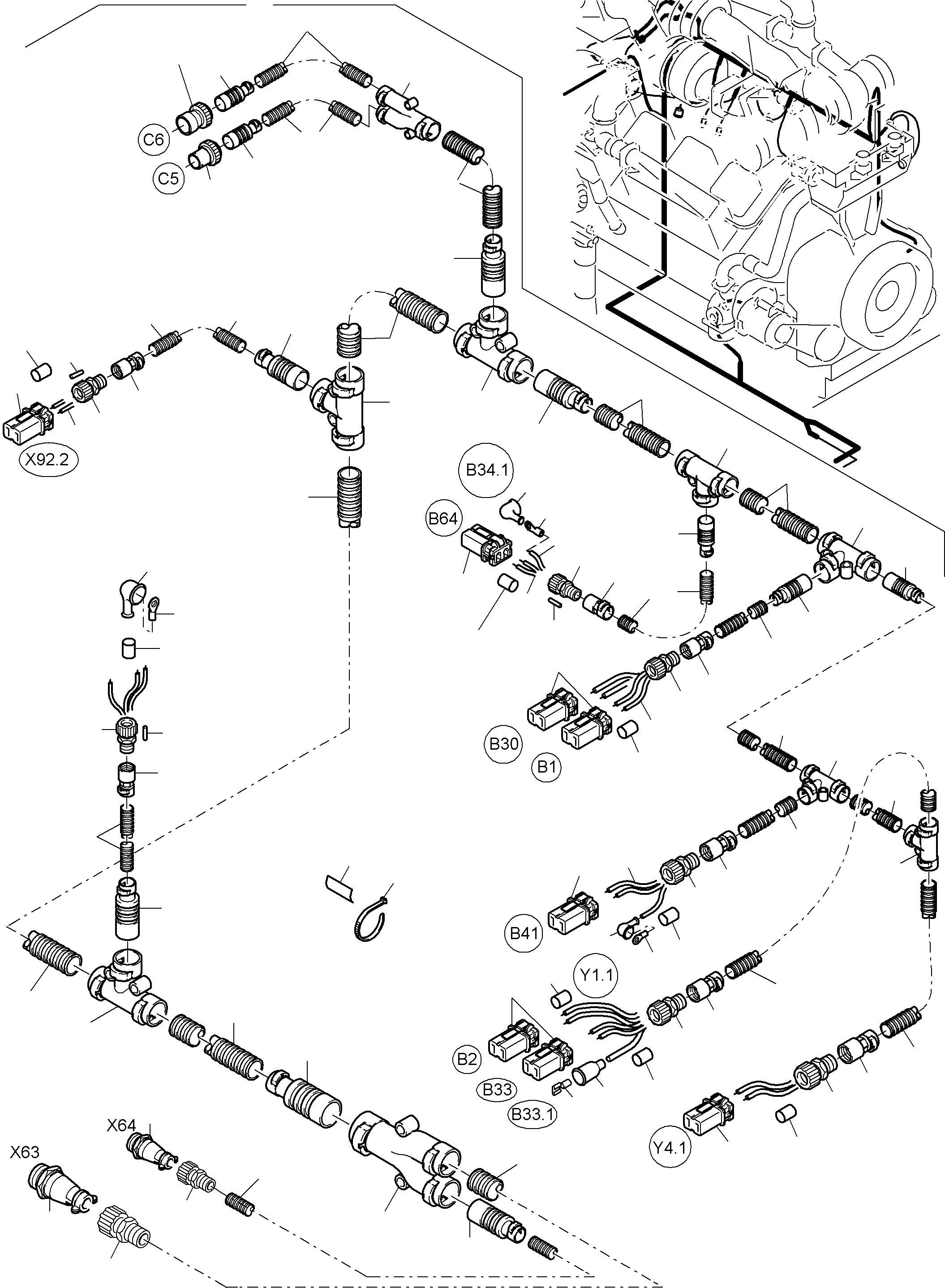

Diagram image 1 of 2

PC3000-6 S/N 06278

02 03 03 04 05 06 07 08 09 10 10 100 100 101 101 102 102 103 103 104 104 104 105 106 106 106 107 107 107 108 108 109 11 110 111 112 113 114 115 12 121 122 123 123 124 125 125 13 14 15 15 16 16 17 18 19 20 21 22 23 24 25 26 27 27 28 29 29 30 31 31 32 33 34 35 36 38 56 56 56 65 66 66 68 68 68 68 72 72 72 85 85 90 91 92 92 92 93 94 95 96 96 97 97 98 98 99 99

PC3000-6 S/N 06278

01 36 36 36 36 36 36 36 36 36 36 36 36 36 37 37 37 38 38 38 38 38 39 39 40 40 41 42 42 43 44 44 44 44 44 45 45 46 46 47 47 47 47 47 47 47 48 48 48 48 49 49 49 50 51 52 53 53 55 56 56 56 57 58 58 59 59 59 60 60 60 60 61 62 63 64 65 66 67 67 67 68 69 70 71 71 71 72 73 74 75 76 76 77 77 77 77 78 79 80 81 82 83 83 84 85 85 86 86 86 87 88 88 89 89

#	Part Number	Partname	Quantity
01	955 473 40	Harness - engine	1
02	0443451510	Clip NW 15	29
03	0819320010	Clip	2
04	507 596 98	Washer	6
05	507 037 98	Nut	26
06	340 465 99	Washer	26
07	517 853 98	Resilent sleeve 10,5/25x80	3
08	504 281 98	Bolt	3
09	0443452110	Clip NW 21,5	5
10	0443452711	Clip NW 27	56
11	931 317 40	Plate 6X40X233	1
12	307 661 99	Bolt	2
13	340 459 99	Washer	2
14	343 104 99	Lock washer	2
15	307 779 99	Bolt	5
16	517 122 98	Lock washer	12
17	510 741 98	Resilient sleeve	8
18	931 316 40	Plate 8X40X130	1
19	0443451210	Clip NW 12	2
20	940 473 40	Resistance Thermometer	1
21	431 169 40	Temperature transmitter	1
22	941 885 40	Pressure switch (cooling water)	1
23	941 886 40	Pressure switch - engine-oil pressure	1
24	941 887 40	Pressure switch - engine-oil pressure	1
25	515 562 40	Pressure transmitter 10 bar	1
26	414 899 40	Rpm-sensor	1
27	931 387 40	Harness - Generator-Ground	1
28	950 454 40	Seal	1
29	931 388 40	Harness Enginefeet-Ground	1
30	516 092 98	Resilient sleeve	1
31	307 775 99	Bolt	11
32	0443450510	Clip NW 4,8	2
33	0443453211	Clip NW 32	3
34	0443451910	Clip NW 19	4
35	0443452712	Clip NW 27	1
36	655 650 40	Cable protection hose DN 12	-2
37	655 651 40	Cable protection hose DN 17	-2
38	655 652 40	Cable protection hose DN 23	-2
39	906 420 40	T-Distributor DN 12	2
40	655 629 40	T-Distributor DN 17	2
41	907 733 40	T-Distributor DN 23	1
42	655 630 40	T-Distributor DN 29/23	2
43	655 626 40	Distributor DN 17/12	1
44	655 633 40	Pipe adapter DN 17/12	5
45	655 634 40	Pipe adapter DN 23/17	2
46	655 810 40	Pipe adapter DN 29/12	2
47	907 692 40	Fitting PG 9	7
48	907 703 40	Cable union	4
49	907 704 40	Cable union	3
50	621 548 40	Plug	1
51	621 547 40	Socket	1
52	0819105420	Socket	5
53	655 848 40	Fitting PG 17	2
55	323 961 40	Sleeve 6,3x0,8	1
56	255 745 40	Rubber grommet	3
57	055 100 40	Cable shoe	1
58	896 520 40	End pin	3
59	896 521 40	End pin	5
60	0819212920	Plug, assy.	6
61	256 721 40	Protection cap	1
62	896 558 40	Pipe adapter DN 29/23	1
63	907 947 40	Connector distributor DN 29/23	1
64	907 971 40	Pipe adapter DN 23/12	1
65	256 514 40	Plate	16
66	056 292 40	Cable strap	16
67	515 213 40	Cable 1,0mm2 blue	-2
68	515 214 40	Cable 2,5mm2 blue	-2
69	907 877 40	Cable 2x0,75mm2 grey	-2
70	055 104 40	Cable lug 1,5	1
71	940 461 40	Insulating tube B5x0,6	2
72	055 108 40	Cable lug	1
73	0819191206	Plug	1
74	0819111206	Plug	1
75	907 980 40	Fitting DN 23	1
76	0819105320	Pin	32
77	0819100770	Sealing plug	10
78	907 974 40	Fitting DN 12	1
79	0819105340	Pin	4
80	906 696 40	Protection cap	1
81	896 769 40	Protection cap	1
82	940 852 40	Plug	3
83	940 913 40	Warmth shrink hose	-2
84	940 909 40	Warmth shrink hose	-2
85	940 460 40	Insulating tube B4x0,5	-2
86	940 459 40	Insulating tube 3x0,4	-2
87	940 463 40	Insulating tube	-2
88	933 385 40	Plug with bushings assy.	2
89	940 629 40	Warmth shrink hose	-2
90	933 399 40	Relay plate	1
91	933 397 40	Plate	1
92	0443451610	Clip NW 16	2
93	307 779 99	Bolt	1
94	507 037 98	Nut	1
95	340 465 99	Washer	2
96	511 869 98	Resilent sleeve	2
97	307 761 99	Screw	2
98	517 121 98	Lock washer	2
99	655 642 40	Circular bearing	4
100	507 025 98	Nut	8
101	350 762 99	Washer	8
102	931 381 40	Harness starter relay plate	1
103	933 389 40	Harness Engine relay	1
104	056 076 40	Protection cap	3
105	932 727 40	Cable shoe	1
106	055 089 40	Cable shoe	3
107	932 557 40	Heat Protection hose	-2
108	907 891 40	Cable 70,0mm2 black	-2
109	933 388 40	Plug assy. 4-pole	1
110	940 465 40	Insulating tube 10x0,7	-2
111	907 511 40	Cable lug 2,5	1
112	933 387 40	Plug assy.	1
113	907 132 40	Cable lug 2.5	4
114	932 518 40	Cable lug	1
115	933 384 40	Receptacle assembly	1
121	793 258 73	Fuse with cable	1
122	766 379 73	RPM - Sensor	1
123	659 892 40	Starter relay assy.	2
124	792 585 73	Time lag relay	1
125	635 965 40	Relay	2
\|$$120			-2
\|$$121			-2
\|$$122			-2
\|$$123			-2
\|$$124			-2
\|$$125			-2
\|$$126			-2
\|$$127			-2
\|$$128			-2
\|$$129			-2
\|$$130			-2
\|$$131			-2
\|$$132			-2
\|$$133			-2
\|$$134			-2
\|$$135			-2
\|$$136			-2
\|$$137			-2
\|$$138			-2
\|$$139			-2
\|$$140			-2
\|$$141			-2
\|$$142			-2
\|$$143			-2
\|$$144			-2
\|$$145			-2
\|$$146			-2
\|$$147			-2
\|$$148			-2
\|$$149			-2
\|$$150			-2
\|$$151			-2
\|$$152			-2
\|$$153			-2
\|$$154			-2
\|$$155			-2
\|$$156			-2
\|$$157			-2

Komatsu PC3000-6 S/N 06278 parts catalog PDF

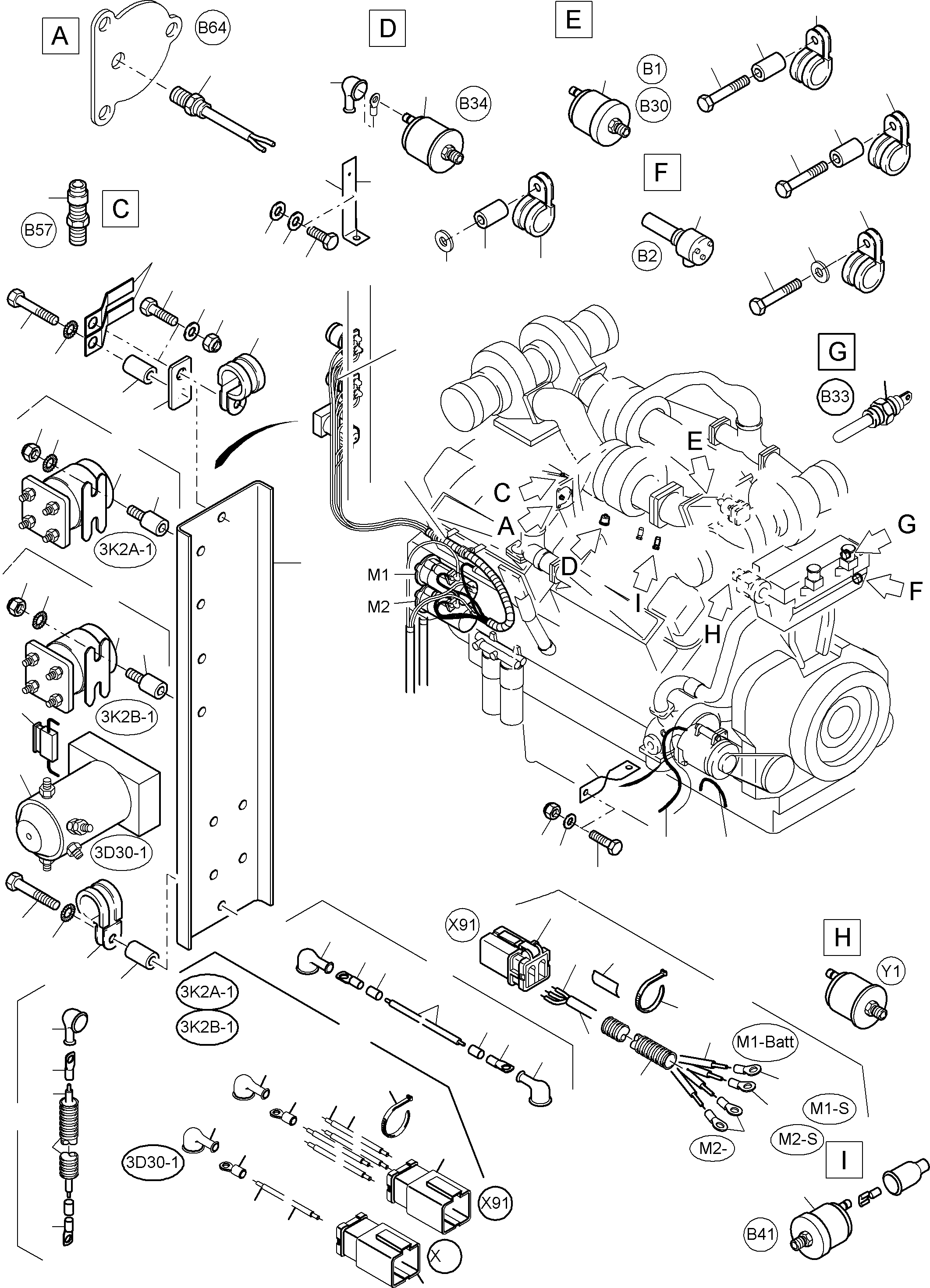

CABLES - ENGINE AND TRANSMITTER (485-2185e) in PC3000-6 S/N 06278. Diagram image and parts list.
