Diagram image 1 of 6

PC3000-6 S/N 06278

01 03 04 05 06 07 08 09 10

PC3000-6 S/N 06278

12 13 14 16 17 18 19 22 30 31 40 42 45 47 48 49 50 53 53 54 54 54 57 58 59

PC3000-6 S/N 06278

123 124 15 20 21 23 29 32 33 41 43 47 51 52 52

PC3000-6 S/N 06278

125 24 25 26 27 28 34 37 38 39 44 46 55 56

PC3000-6 S/N 06278

60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 75 76 77 78 79 80 80 80 80 81 82 83 84 85 86 87 88 89 90 90 91 91 92 92 93

PC3000-6 S/N 06278

100 101 102 103 104 105 106 107 108 109 110 111 112 113 114 115 116 117 118 119 120 121 122 94 95 96 97 98 99

#	Part Number	Partname	Quantity
01	944 872 40	Slew gear	1
03	795 836 73	Disc brake assy. consist. of fig nos. 60-93	1
03	795 995 73	Repair kit brake (fig nos.65-68,74,75,77,80,89,91)	1
04	769 688 73	Expansion tank consist. of fig nos. 94-97	1
05	769 689 73	Dipstick - gearbox consist. of fig nos. 98-101	1
06	769 690 73	Oil drain - engine room consist. of fig nos. 102-107	1
07	769 691 73	Dipstick - engine room consist. of fig nos 108-112	1
08	769 692 73	Breather consist. of fig nos. 113-117	1
09	769 693 73	Dipstick - brake housing consist. of fig nos. 118-122	1
10	972 122	O-ring	1
12	769 695 73	Sun gear	1
13	797 689 73	Planetary assy.	3
14	795 838 73	Sun gear	1
15	797 644 73	Planetary assy.	3
16	793 288 73	Ring gear	1
17	795 839 73	Trunnion support	1
18	769 701 73	Pin	3
19	769 702 73	Race	1
20	797 329 73	Planetary carrier	1
21	769 704 73	Pin	3
22	795 840 73	Adapter	1
23	797 330 73	Bearing bush	1
24	797 331 73	Bearing hub	1
25	797 332 73	Cover	1
26	797 333 73	Spacer	1
27	797 334 73	Inner ring	1
28	797 335 73	Pinion shaft	1
29	797 336 73	Extension	1
30	769 713 73	Extension	1
31	360 457 99	Roller bearing	1
32	360 456 99	Roller bearing	1
33	362 039 99	Self-aligning bearing	1
34	797 337 73	Self-aligning bearing	1
37	797 339 73	Shaft seal	1
38	797 340 73	Shaft seal	1
39	797 341 73	V-seal	1
40	342 560 99	Circlip	3
41	342 662 99	Circlip	3
42	342 676 99	Circlip	1
43	501 933 98	Circlip	1
44	515 722 98	Bolt	4
45	516 352 98	Bolt	4
46	512 963 98	Bolt	6
47	516 354 98	O-ring	2
48	500 305 98	O-ring	2
49	313 396 99	Plug	2
50	339 890 99	Seal ring	1
51	502 801 98	Plug	1
52	339 918 99	Seal ring	2
53	501 532 98	Plug	3
54	339 796 99	Seal ring	4
55	509 525 98	Grease nipple	2
56	797 342 73	Final disc	1
57	407 823 99	Plug	2
58	339 902 99	Seal ring	2
59	795 845 73	Bolt	3
60	795 846 73	Flange-mount	1
61	795 847 73	Disc carrier	1
62	795 848 73	Housing	1
63	795 849 73	Limit flange	1
64	793 294 73	Control linkage assy., incl. 92+93	1
65	793 295 73	Compression spring	6
66	769 720 73	Compression spring	12
67	769 721 73	Outer disc	8
68	769 722 73	Internal disc	7
69	769 723 73	Sine ring	7
70	500 049 98	Bolt	12
71	501 046 98	Hexagon socket head cap screw	2
72	795 850 73	Inner ring	1
73	796 052 73	Distance ring	1
74	763 292 73	Shaft seal	1
75	795 851 73	Rotary shaft seal	2
76	313 394 99	Plug	1
77	795 852 73	Seal ring	1
78	795 853 73	Union	1
79	795 854 73	Seal	1
80	795 855 73	O-ring	4
81	795 720 73	Hexagon head socket pipe plug	1
82	795 721 73	Grooved ball bearing	1
83	795 722 73	Grooved ball bearing	1
84	342 570 99	Circlip	1
85	342 571 99	Circlip	1
86	342 680 99	Circlip	1
87	342 682 99	Circlip	1
88	407 823 99	Hexagon head socket pipe plug	3
89	795 723 73	Seal ring	3
90	313 395 99	Hexagon head socket pipe plug	4
91	339 711 99	Seal ring	4
92	793 296 73	Seal kit (inner, outer)	1
93	345 062 99	Dowel sleeve	1
94	795 724 73	Equalizing reservoir	1
95	313 998 99	Hexagon head socket pipe plug	1
96	340 294 99	Sealing ring	1
97	795 725 73	Hose	1
98	795 726 73	Union piece	1
99	795 727 73	Union piece	1
100	215 754 99	Pipe l=305mm	1
101	793 297 73	Dipstick	1
102	795 728 73	Union piece	1
103	795 727 73	Union piece	1
104	795 729 73	Union piece	1
105	215 754 99	Pipe l= 100mm	1
106	313 398 99	Hexagon head socket pipe plug	1
107	340 294 99	Sealing ring	1
108	795 728 73	Union piece	1
109	795 727 73	Union piece	1
110	795 729 73	Union piece	1
111	215 754 99	Pipe l= 100mm	1
112	793 298 73	Screw plug w. fuel dip stick	1
113	795 727 73	Union piece	1
114	215 754 99	Pipe l= 220mm	1
115	795 730 73	Union piece	1
116	313 398 99	Hexagon head socket pipe plug	1
117	340 294 99	Sealing ring	1
118	795 728 73	Union piece	1
119	795 727 73	Union piece	1
120	793 299 73	Screw plug w. fuel dip stick	1
121	795 729 73	Union piece	1
122	215 754 99	Pipe l= 243mm	1
123	797 343 73	Pressure disc	1
124	509 005 98	Bolt	1
125	342 707 99	Circlip	1

Komatsu PC3000-6 S/N 06278 parts catalog PDF

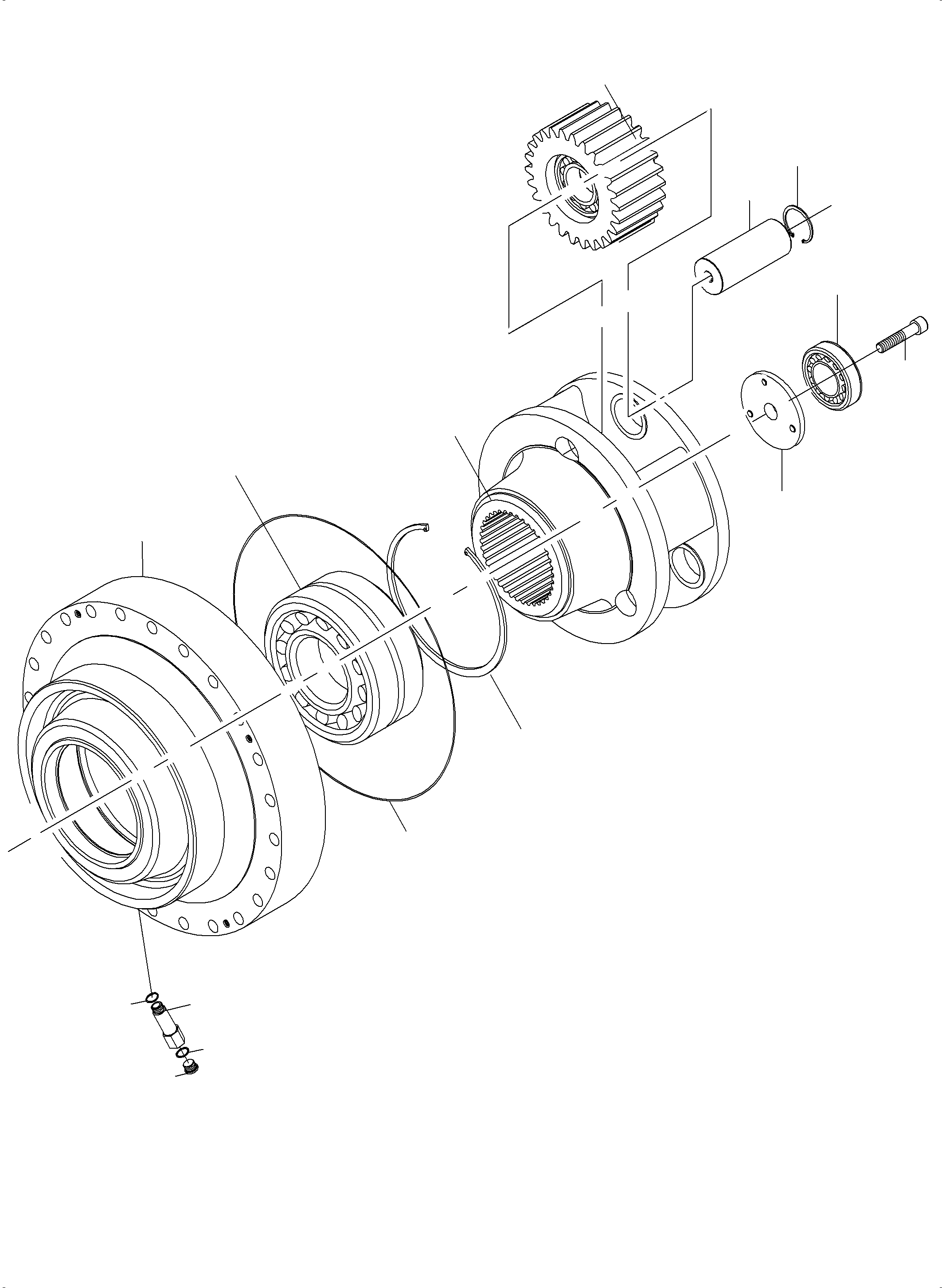

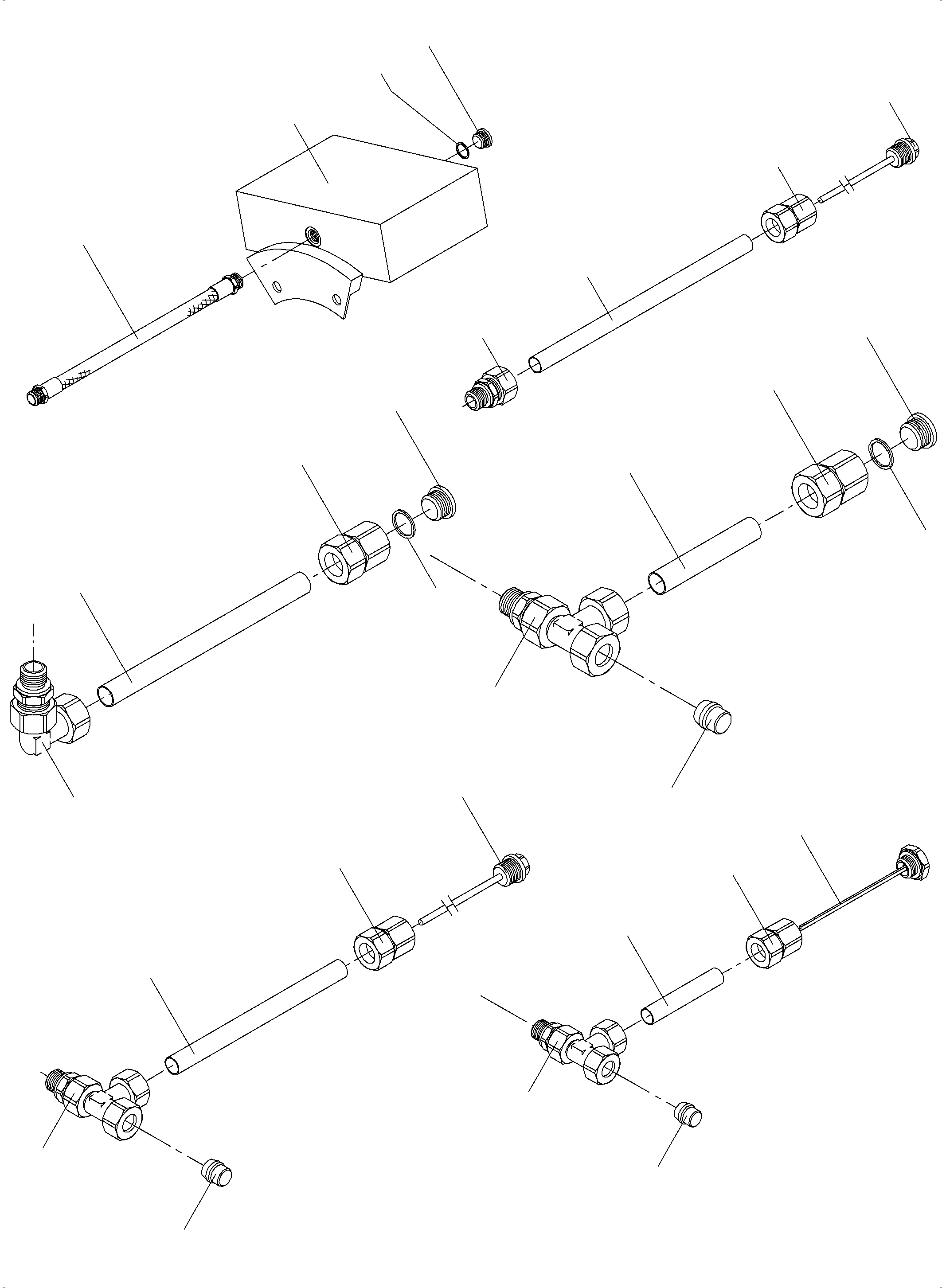

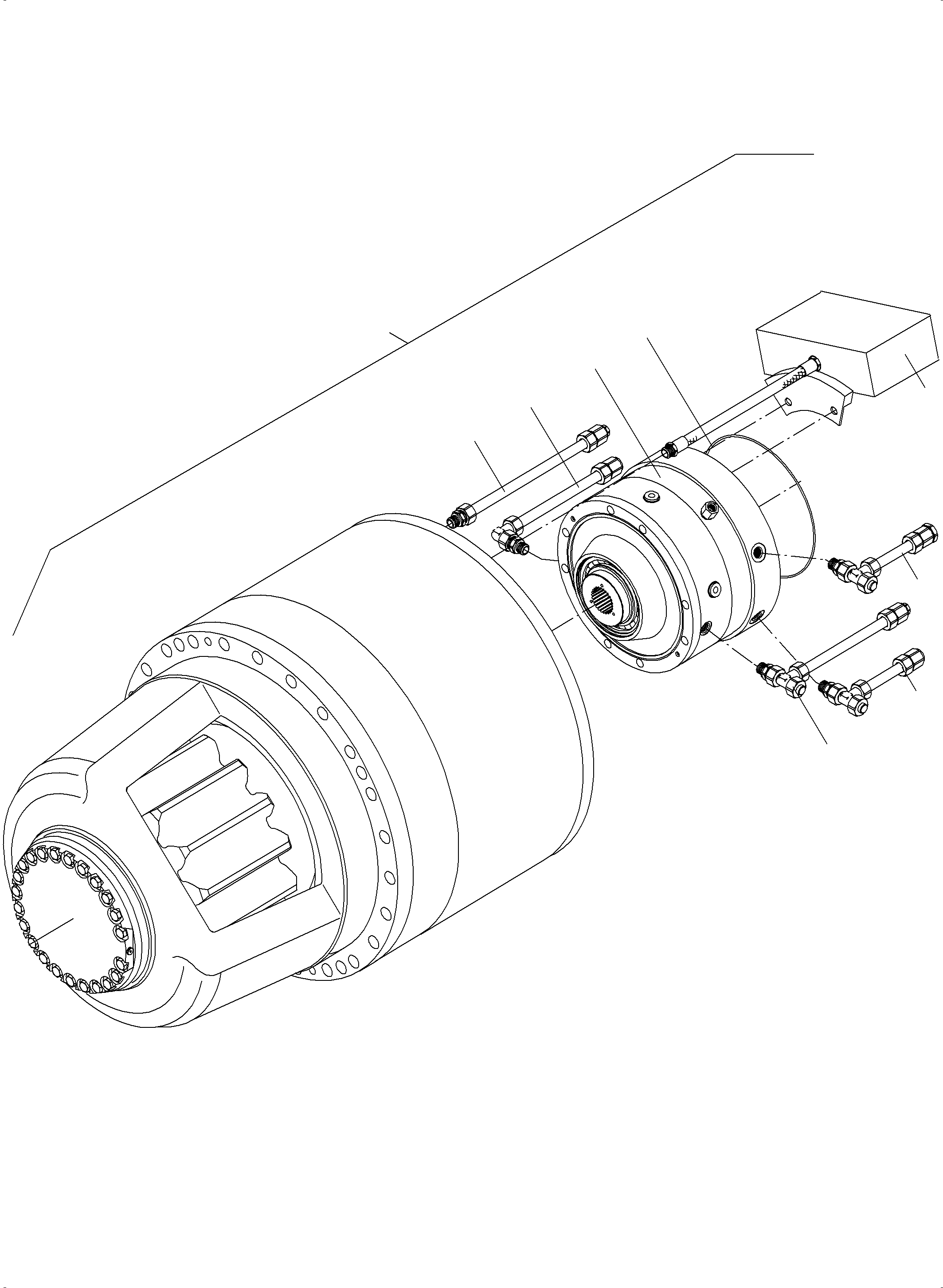

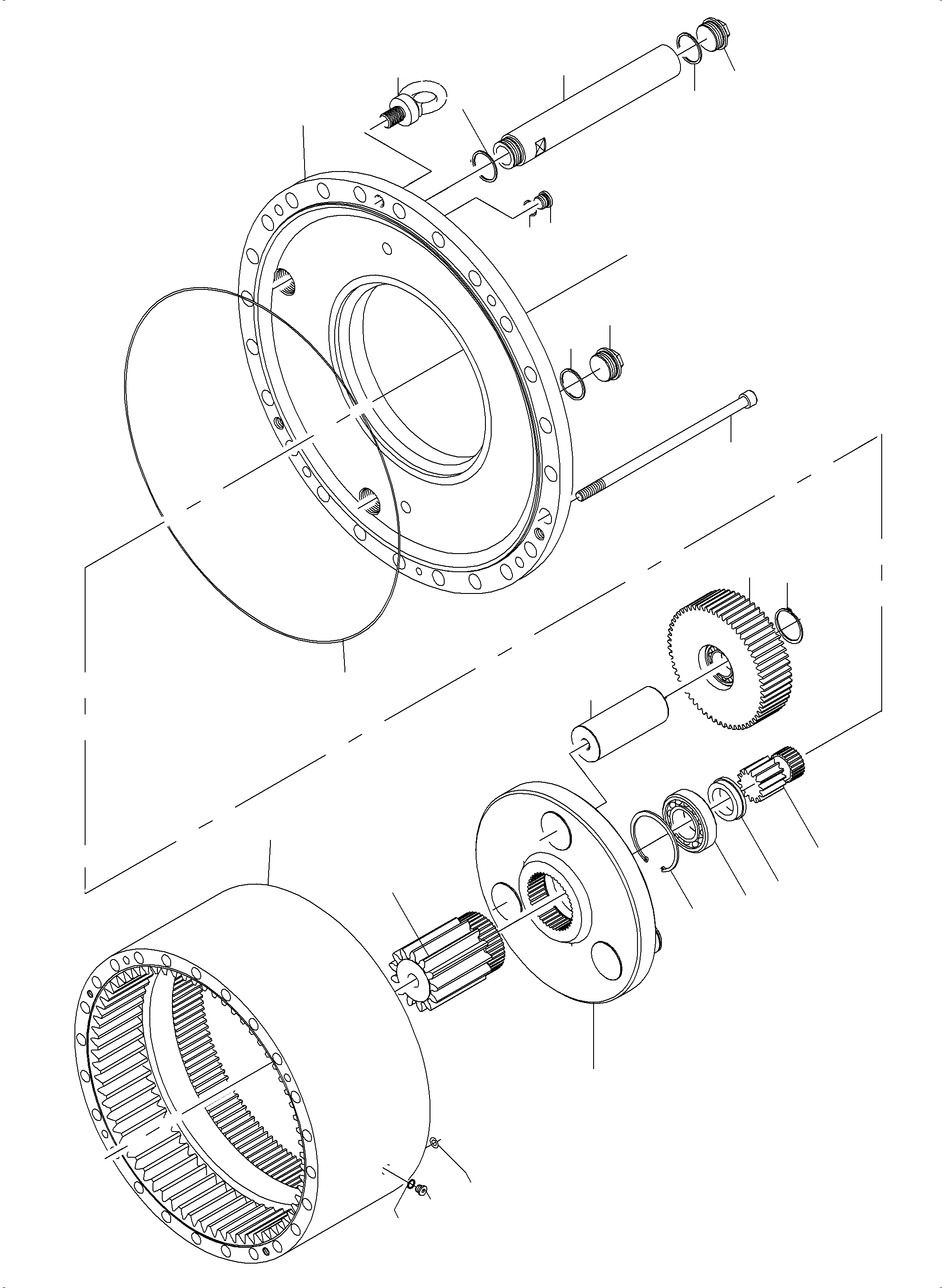

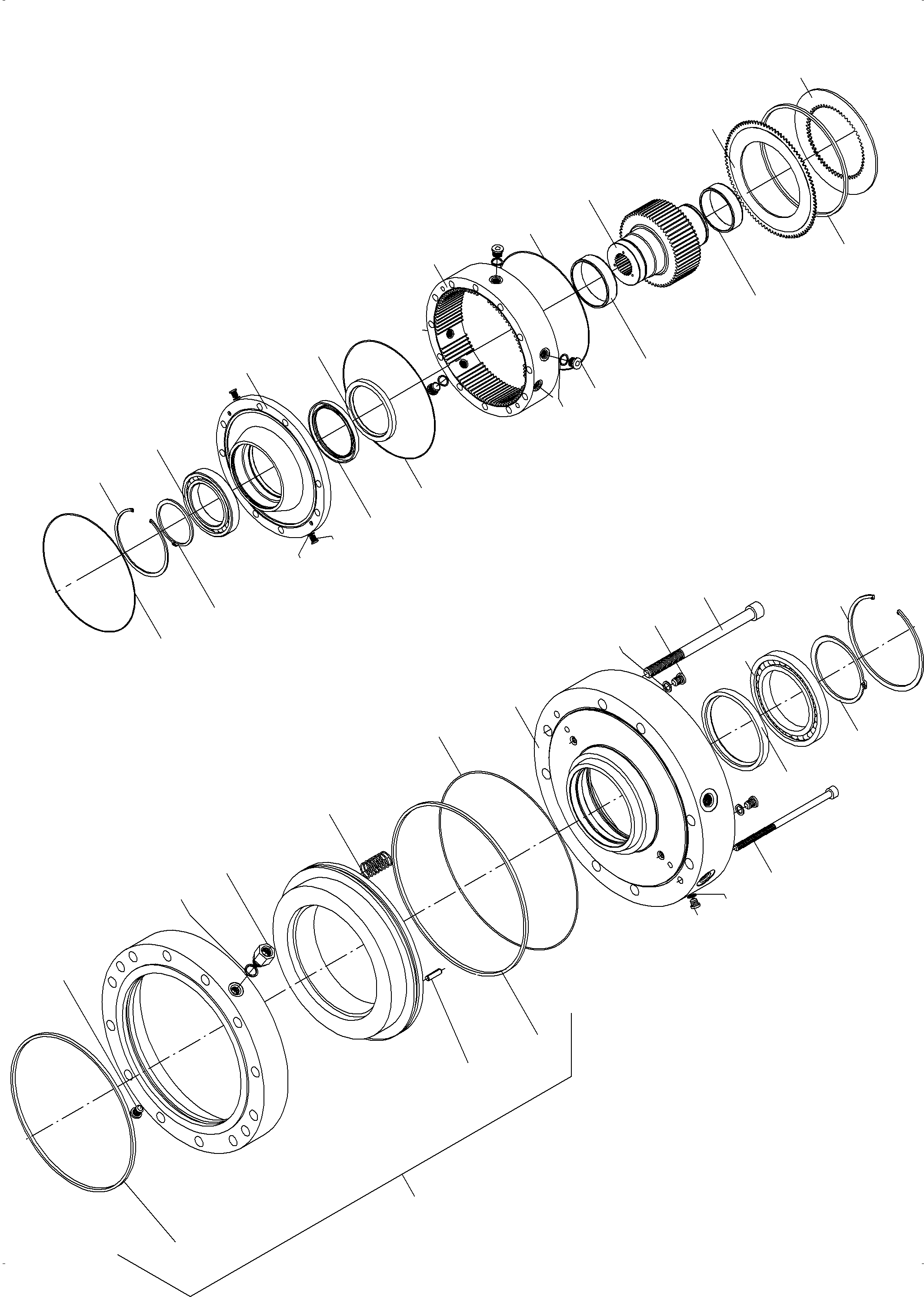

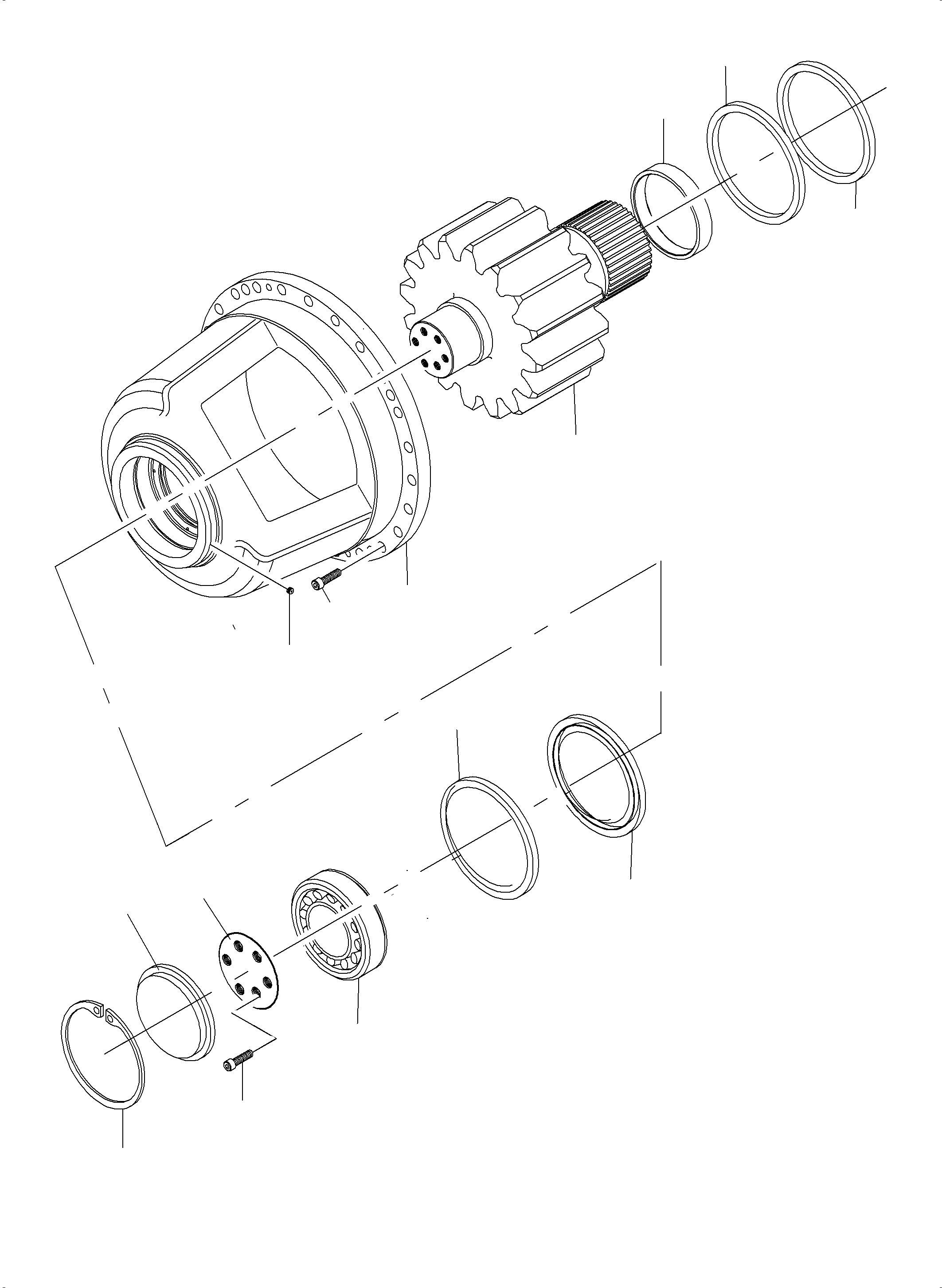

SLEW GEAR (991-0870a) in PC3000-6 S/N 06278. Diagram image and parts list.
