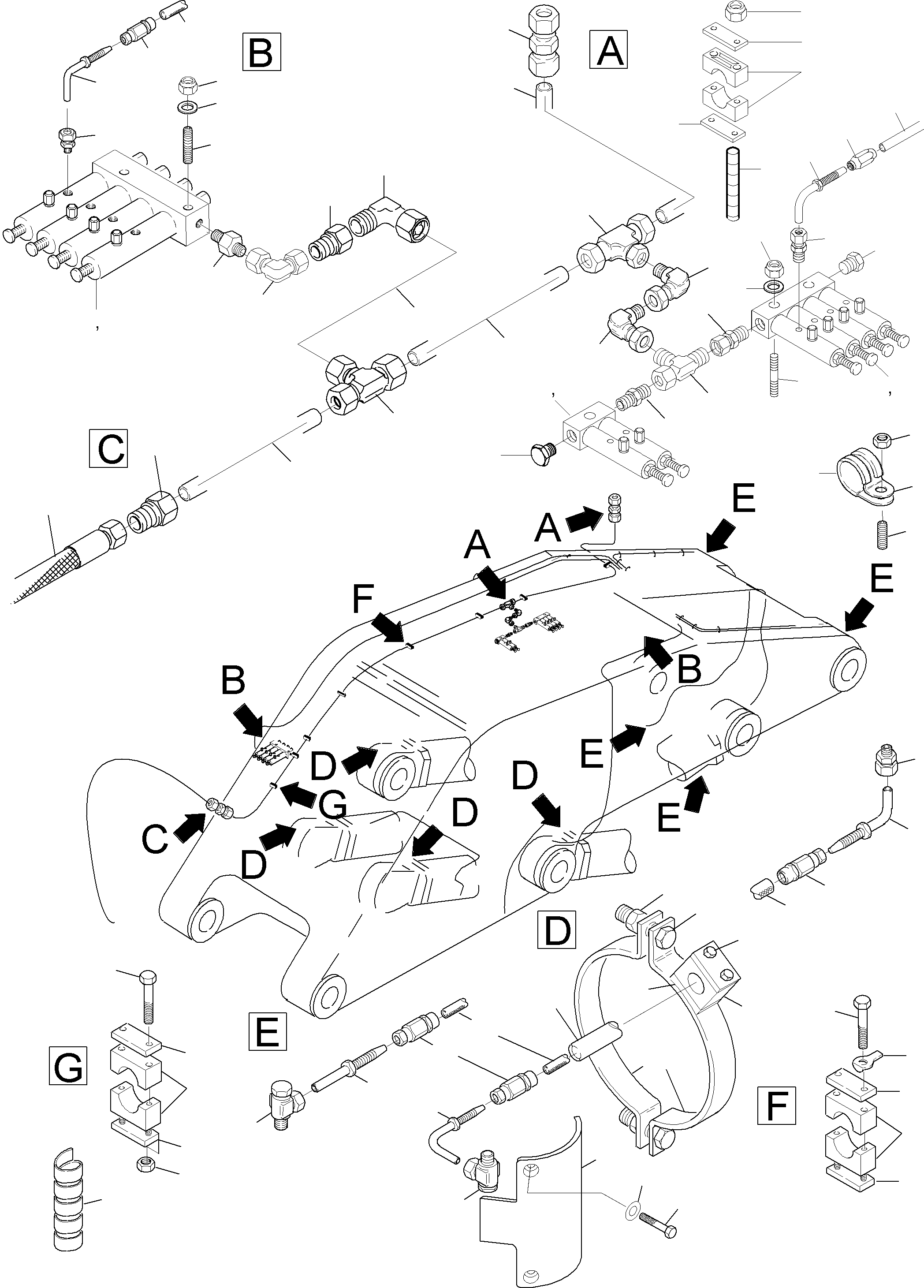

BOOM - CENTRAL LUBRICATION (BBE) | PC4000-6 S/N 08168

Search in All Books

Find books across the catalog from one place.

This page is prepared as the search workspace. The search behavior itself can be connected in the next step.

Search whole Komatsu part number in all books. Example: 6212611203.

#	Part Number	Partname	Quantity	Reference
01		Metering valve	2	991-0091
02	654 130 40	Protection cap with o-ring	10
03	372 182 99	Union	3
04	308 579 99	Bolt	6
06	373 772 99	Union	1
07	372 415 99	Union	2
08	516 642 98	Hose assy. DN 20x2850 lg.	1
09	918 213 40	Pipe assy. Ш 25	1
10	918 214 40	Pipe assy. Ш 25	1
11	635 896 40	Tube protection 12x9x1.5	-2
12		Metering valve	1	991-0091
13	511 565 98	Thread pin	5
14	340 112 99	Washer	5
15	324 672 40	Plug	3
16	334 599 99	Nut	5
17	512 273 98	Socket	3
18	372 130 99	Union	1
19	534 001 99	Cover plate	5
20	323 945 40	Thread pin	58
21	373 588 99	Union	10
22	534 002 99	Weld on plate	3
23	372 456 99	Union	4
24	006 912 98	Union	10
25	006 302 98	Clamp	29
26	534 092 99	Clamp	10
27	507 025 98	Nut	58
28	534 000 99	Half clamp	5
29	515 029 40	Hose connection 90	16
30	515 028 40	Collet	24
31	515 027 40	Hose connection	6
32	509 308 98	Locking plate	3
33	576 160 40	Plastic hose	-2
34	651 255 40	Clamp	4
35	634 978 40	Cover plate	8
36	512 055 98	Thread pin	8
37	307 789 99	Bolt	4
38	332 114 99	Nut	4
39	918 209 40	Angle	1
40	929 238 40	Half clamp	8
41	929 256 40	Pipe Ш 28	1
43	509 059 98	Half clamp	8
44	501 584 98	Weld-on plate	4
45	319 417 99	Screw	8
46	307 810 99	Bolt	4
47	334 600 99	Nut	4
48	332 334 99	Nut	8
49	635 853 40	Hose connection 45	2
50	372 724 99	Union	1
51	515 951 98	Union	1
52	372 627 99	Union	1
53	918 216 40	Pipe assy. Ш 25	1
54	918 217 40	Pipe assy. Ш 25	1
55	334 600 99	Nut	8
56	006 301 98	Clamp	6
57	006 339 98	Clamp	9
58	006 303 98	Clamp	2
59	502 855 98	Clamp	2
60	929 255 40	Cover	1
61	307 806 99	Bolt	4
62	517 118 98	Lock washer	4
