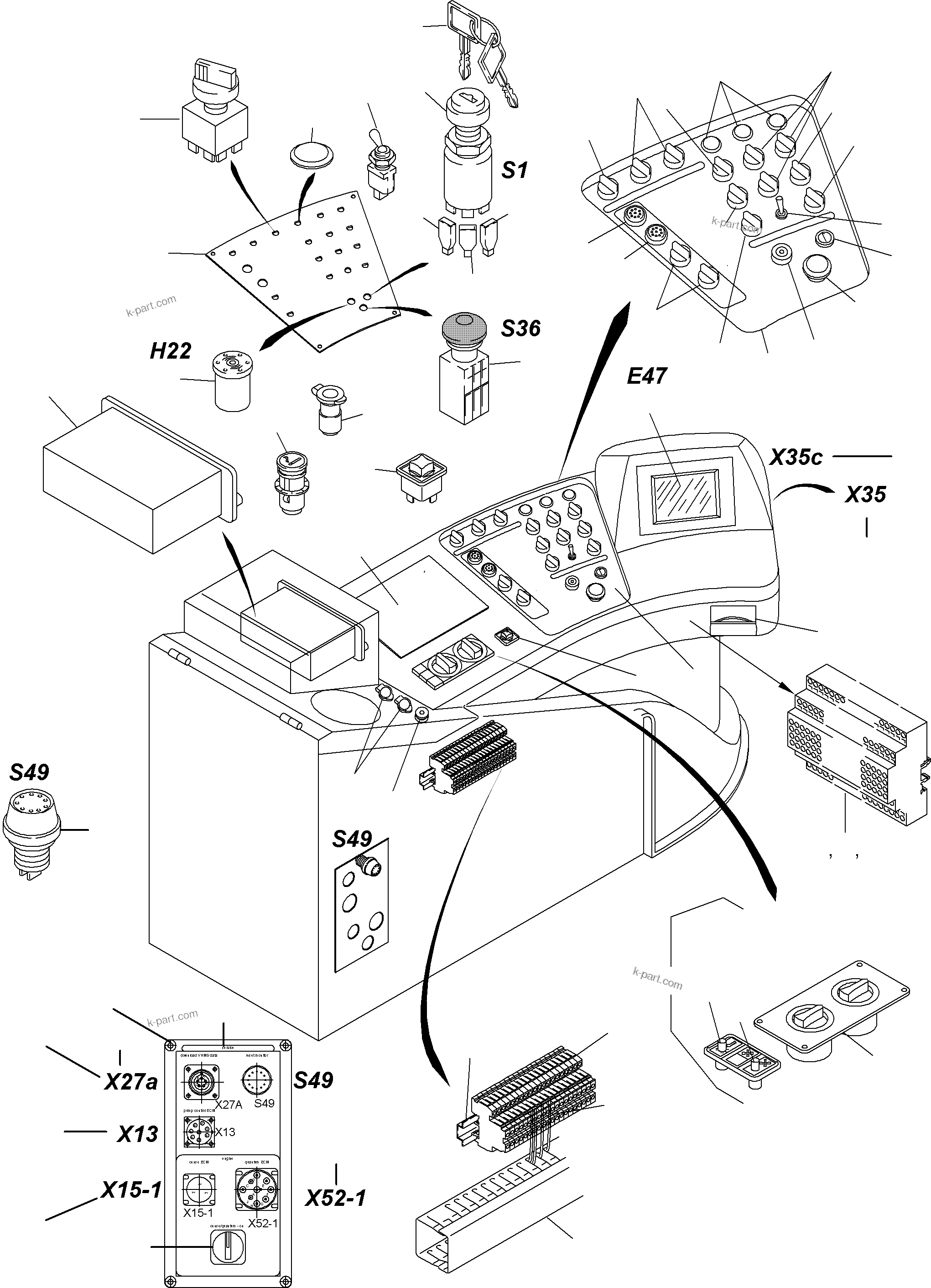

OPERATION PANEL | PC4000-6 S/N 08168 | Komatsu parts book catalogue

Search in All Books

Find books across the catalog from one place.

This page is prepared as the search workspace. The search behavior itself can be connected in the next step.

Search whole Komatsu part number in all books. Example: 6212611203.

PC4000-6 S/N 08168

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity
?	913 227 40	Switch plate assy.	1
?	323 675 40	Indicator light, red	1
?	913 259 40	Shift plate, printed	1
?	256 230 40	Indicator light, yellow	1
?	913 237 40	Graphical symbol, warning light	1
?	770 326 73	Plate	1
?	915 274 40	Cable CGC-X22-X35 assy.	1
?	906 715 40	Plug 10-pole	1
?	324 400 40	Turn switch	7
?	324 401 40	Turn switch 1-stage	2
?	324 402 40	Turn switch 2-stage	1
?	399 702 40	Turn switch	2
?	440 369 40	Turn switch 3-stage	1
?	896 473 40	Toggle switch	1
?	440 307 99	Socket	2
?	385 213 40	Cigarette lighter	1
?	414 866 40	Ignition switch	1
?	698 239 73	Key	1
?	490 518 40	Alarm transmitter	1
?	929 603 40	Display-monitor	1
?	891 033 40	Emergency switch off assy.	1
?	655 686 40	Impact key	1
?	655 676 40	Spring element	1
?	635 115 40	Contact element	1
?	635 652 40	Contact element	1
?	896 732 40	Ashtray	1
?	769 589 73	Switch	1
?	932 608 40	Radio	1
?	769 654 73	Switch (heater)	1
?	769 591 73	Potentiometer assy.	2
?	769 592 73	Control knob	2
?	505 940 99	Assembly rail Bulk ware, state length required	-2
?	356 264 40	Twin terminal	-2
?	356 266 40	Cover plate	-2
?	515 213 40	Cable 1.0 Bulk ware, state length required	-2
?	515 214 40	Cable 2.5 Bulk ware, state length required	-2
?	655 675 40	Cable 6.0 Bulk ware, state length required	-2
?	906 022 40	Cable 4.0 Bulk ware, state length required	-2
?	270 873 40	Cable channel Bulk ware, state length required	-2
?	769 593 73	Switch cover fan	1
?	769 594 73	Switch cover temperature	1
?	769 595 73	Indicator light	2
?	769 596 73	Control unit assy.	1
?	440 151 99	Tab 1.5	-2
?	055 115 40	Tab 1.5 - 2.5	-2
?	697 269 73	Tab 4.0 - 6.0 yellow	-2
?	324 602 40	Dummy plug	3
?	894 571 40	Plate	1
?	324 591 40	Push button	1
?	894 578 40	Cable - Download X27A	1
?	915 273 40	Cable - Trident X13-1	1
?	915 271 40	Cable - Cense X15-1	1
?	915 272 40	Cable - Select X52-1	1
?	318 448 99	Bolt	4
?	513 357 98	Nut	4
?	913 246 40	Bushing assy.	5
?	906 577 40	Cable - UIC Bulk ware, state length required	-2
?	894 577 40	Socket assy. 5-pole	1
?	635 677 40	Cable 4x1 Bulk ware, state length required	-2
?	898 668 40	Socket assy.	1
?	913 255 40	Plug RS 232 assy.	1
?	898 669 40	Socket assy.	1
?	056 070 40	Cable sleeve 1-1.5	20
?	915 276 40	Cable Cam-Bus	1
?	906 647 40	T-Distributor	3
?	906 612 40	Through clamp 2,5	60
?	906 613 40	Cover plate	2
?	906 630 40	Protective wire	10
?	894 580 40	Download-Kabel to X27A-PC	1
