01 |
924 920 40
|

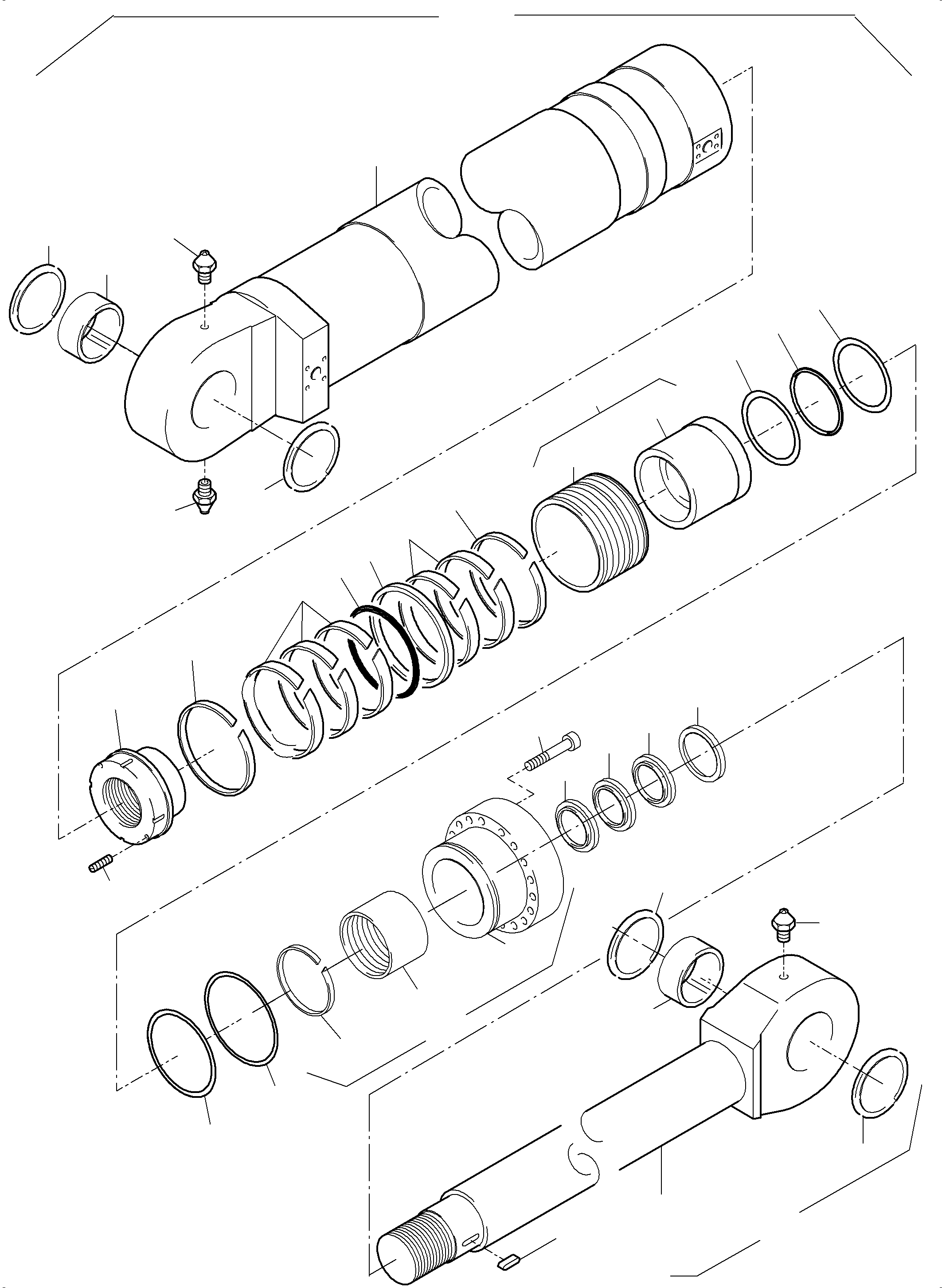

Hydraulic cylinder (Standard) |
1 |
|
|
|
|
01 |
938 830 40
|
Hydraulic cylinder (Cold weather design) |
1 |
|
|
|
|
03 |
|
Cylinder barrel |
1 |
|
|
|
|
04 |
627 572 40
|
Freeze-in bushing |
2 |
|
|
|
|
05 |
907 022 40
|
Gasket |
4 |
|
|
|
|
06 |
004 860 98
|
Grease nipple |
3 |
|
|
|
|
07 |
347 449 99
|
Threaded pin |
1 |
|
|
|
|
08 |
659 099 40
|
Groove nut |
1 |
|
|
|
|
09 |
430 964 40
|
Piston consist. of fig no. 30,31 |
1 |
|
|
|
|
10 |
269 785 40
|
Piston guide strap |
2 |
|
|
|
|
11 |
256 245 40
|
Piston guide ring |
5 |
|
|
|
|
12 |
256 248 40
|
O-ring |
1 |
|
|
|
|
13 |
896 587 40
|
Sealing element |
1 |
|
|
|
|
14 |
896 400 40
|
Support ring |
2 |
|
|
|
|
15 |
269 217 40
|
O-ring |
1 |
|
|
|
|
16 |
500 990 98
|
O-ring |
1 |
|
|
|
|
17 |
256 561 40
|
Support ring |
1 |
|
|
|
|
18 |
907 720 40
|
Support ring |
1 |
|
|
|
|
19 |
926 860 40
|
Sealing flange consist. of fig-no: 20, 21 and 29 |
1 |
|
|
|
|
20 |
926 862 40
|
Bearing bush (No field repair item) |
1 |
|
|
|
|
21 |
|
Flanged bush |
1 |
|
|
|
|
22 |
514 626 98
|
Bolt (Standard) |
18 |
|
|
|
|
22 |
514 625 98
|
Bolt (Cold weather design) |
18 |
|
|
|
|
23 |
907 722 40
|
Gasket (Standard) |
1 |
|
|
|
|
23 |
940 071 40
|
Gasket (Cold weather design) |
1 |
|
|
|
|
24 |
907 724 40
|
Gasket |
1 |
|
|
|
|
25 |
501 352 98
|
Feather key |
1 |
|
|
|
|
26 |
793 190 73
|
Piston rod incl. fig-nos: 04-06, 27 |
1 |
|
|
|
|
27 |
|
Piston rod |
1 |
|
|
|
|
28 |
517 596 98
|
Snap ring |
1 |
|
|
|
|
29 |
515 858 98
|
Retainning ring |
1 |
|
|
|
|
30 |
|
Piston |
1 |
|
|
|
|
31 |
445 393 40
|
Piston bush (No field repair item) |
1 |
|
|
|
|
|$$34 |
768 261 73
|
Seal kit - piston consist. of fig-nos: 10-15 |
1 |
|
|
|
|
|$$35 |
794 538 73
|
Seal kit - piston rod (Standard) consist. of fig-nos: 16,17,18,23, 24 |
1 |
|
|
|
|
|$$36 |
795 455 73
|
Seal kit - piston rod (cold weather design) consist. of fig-nos: 16,17,18,23, 24 |
1 |
|
|
