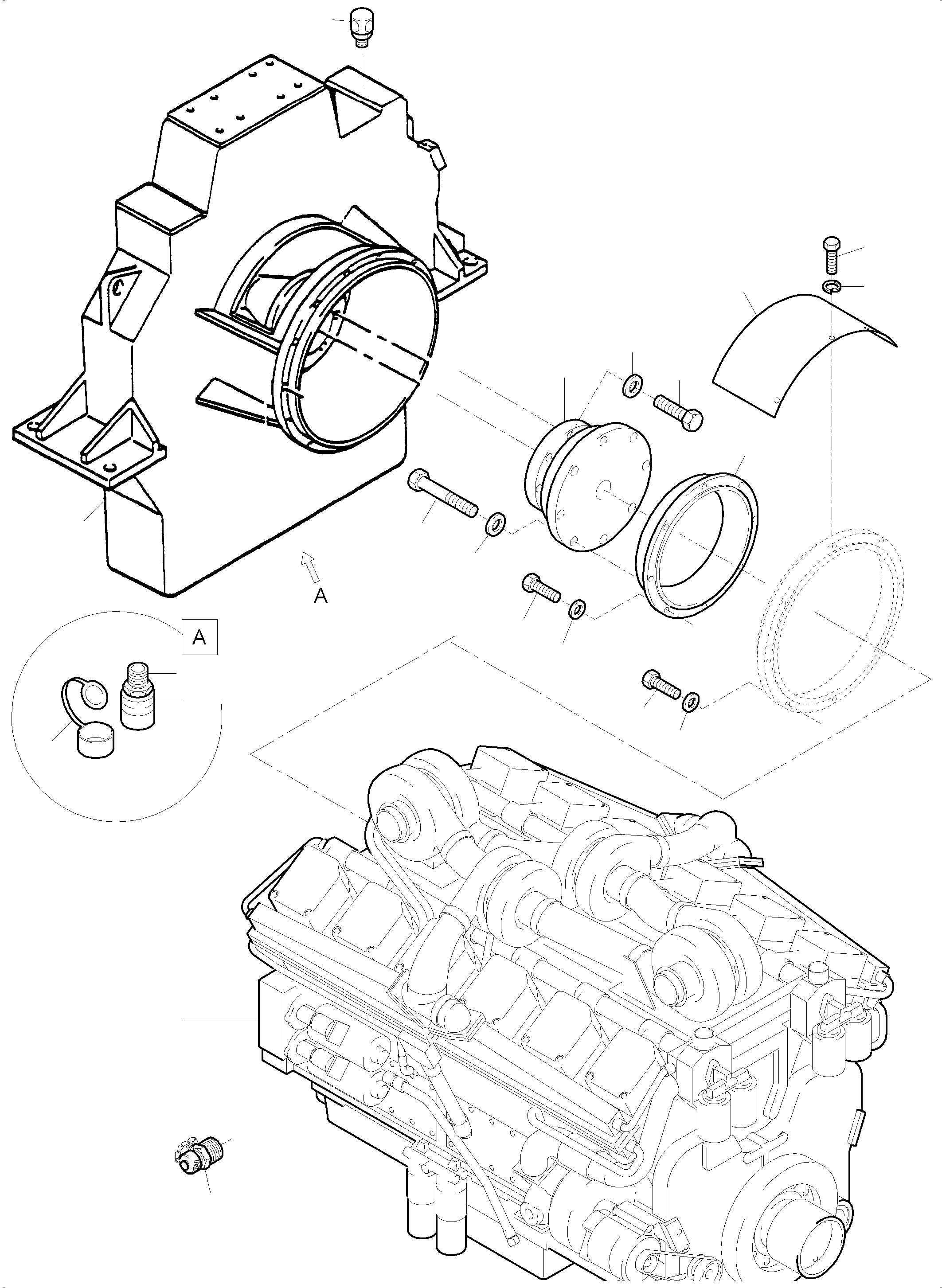

Komatsu parts book diagram for PC3000-6 S/N 46191: DRIVE ASSEMBLY

01 05 06 07 08 10 13 14 15 16 17 18 19 20 20 21 25 26 27 48 49

	#	Part Number	Partname	Quantity	Options	Reference
	01	898 132 40	Diesel engine	1
	05	081 496 40	Protection cap	1
	06	081 495 40	Quick disconnect coupling	1
	07	516 235 98	Socket	1
	08	323 460 40	Bleeder valve	1
	10		Pump distributor gear	1		991-0600
	13		Coupling	1		991-0160
	14	487 634 40	Spacer block	1
	15	316 211 99	Washer	12
	16	534 062 99	Bolt (standard)	12
	16	501 108 98	Bolt (cold weather)	12
	17	316 216 99	Washer	16
	18	512 960 98	Bolt (standard)	16
	18	517 879 98	Bolt (cold weather)	16
	19	501 154 98	Bolt (standard)	8
	19	506 851 98	Bolt (cold weather)	8
	20	507 012 98	Washer	18
	21	534 059 99	Bolt (standard)	10
	21	501 106 98	Bolt (cold weather)	10
	25	346 510 99	Lock washer	3
	26	901 135 40	Cover	1
	27	377 750 99	Bolt	3
	48	514 694 40	Cover	1
	49	461 390 40	Oil drain valve	1
	\|$$25	490 586 40	Oil drain hose	1
	\|$$26			-2
	\|$$27			-2
	\|$$28			-2
	\|$$29			-2
	\|$$30			-2
	\|$$31			-2
	\|$$32			-2
	\|$$33			-2
	\|$$34			-2
	\|$$35			-2
	\|$$36			-2
	\|$$37			-2
	\|$$38			-2
	\|$$39			-2
	\|$$40			-2
	\|$$41			-2
	\|$$42			-2
	\|$$43			-2
	\|$$44			-2
	\|$$45			-2
	\|$$46			-2
	\|$$47			-2
	\|$$48			-2
	\|$$49			-2
	\|$$50			-2
	\|$$51			-2

Komatsu PC3000-6 S/N 46191 parts catalog PDF

DRIVE ASSEMBLY (485-1218a1) in PC3000-6 S/N 46191. Diagram image and parts list.
