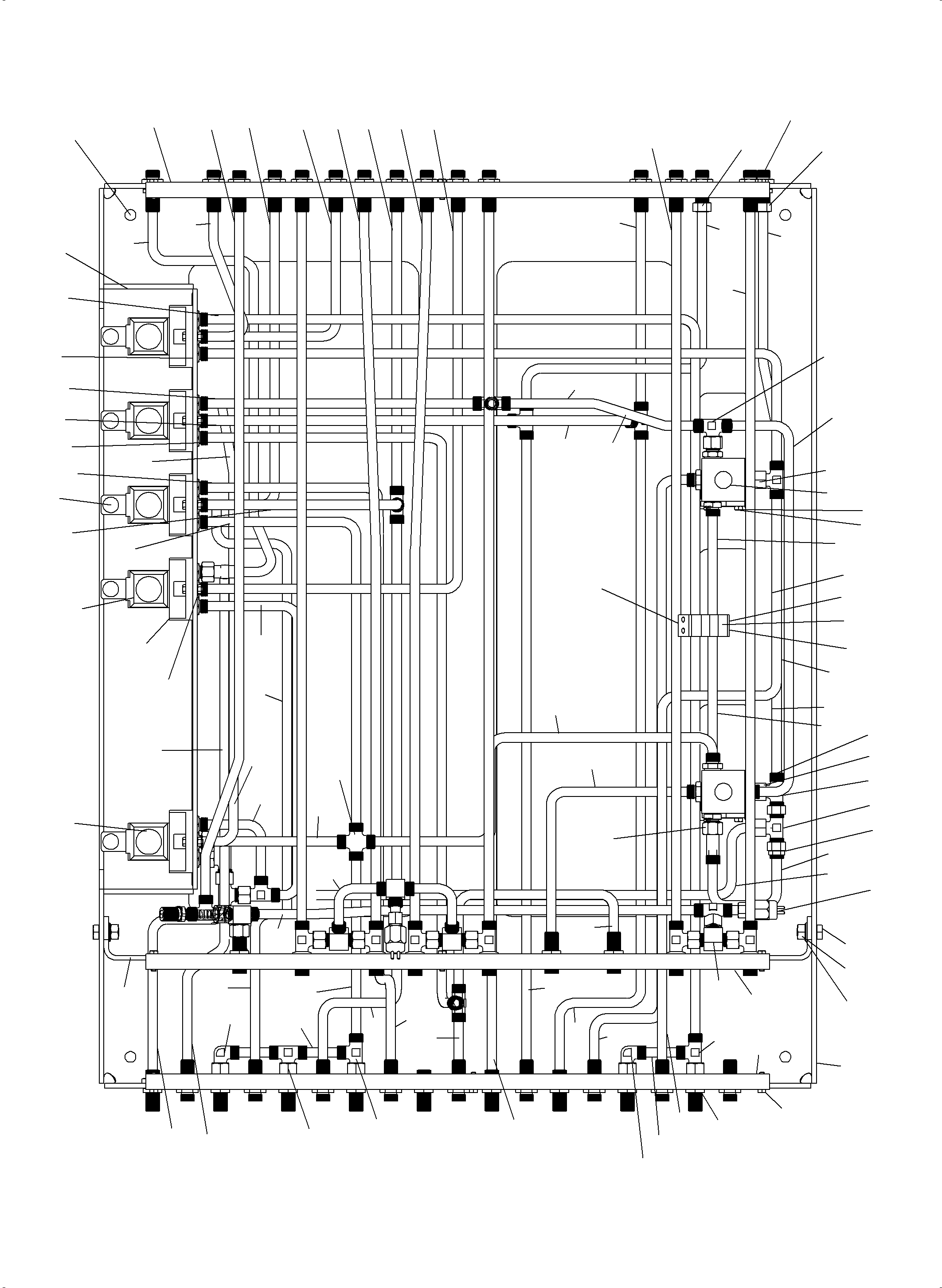

PIPES - PILOT CONTROL PLATE (BE) | PC3000-6 S/N 46191

Diagram image 1 of 2

PC3000-6 S/N 46191

01 02 03 04 05 07 11 111 111 112 114 115 12 131 131 132 132 132 133 133 134 136 137 138 14 14 15 150 151 152 153 153 154 155 161 162 163 164 165 18 185 186 187 189 19 19 190 191 194 195 196 197 198 199 20 200 201 202 204 205 206 207 208 209 21 23 26 26 33 34 35 43 46 50 50 52 54 55 59 61 62 63 64 64 65 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 82 83 83 84 85 86 87

PC3000-6 S/N 46191

02 03 112 112 113 114 114 115 115 130 132 135 139 140 151 156 157 158 160 160 161 161 187 191 192 193 50 50 50 50 52 54 55

#	Part Number	Partname	Quantity
01	933 818 40	Base plate	1
02	928 058 40	Pipe assy.	1
03	928 057 40	Pipe assy.	1
04	308 436 99	Bolt	4
05	510 741 98	Resilient sleeve	4
07	928 007 40	Pipe assy.	1
11	933 812 40	Pipe assy.	1
12	928 012 40	Pipe assy.	1
14	933 815 40	Pipe assy.	1
15	933 819 40	Pipe assy.	1
18	928 018 40	Pipe assy.	1
19	928 019 40	Pipe assy.	3
20	928 020 40	Pipe assy.	1
21	928 021 40	Pipe assy.	1
23	928 023 40	Pipe assy.	1
26	928 026 40	Pipe assy.	1
33	928 033 40	Pipe assy.	1
34	928 034 40	Pipe assy.	1
35	928 035 40	Pipe assy.	1
43	933 801 40	Pipe assy.	1
46	928 046 40	Pipe assy.	1
50	928 050 40	Pipe assy.	4
52	928 052 40	Pipe assy.	1
54	928 054 40	Pipe assy.	1
55	928 055 40	Pipe assy.	1
59	933 814 40	Pipe assy.	1
61	933 813 40	Pipe assy.	1
62	933 816 40	Pipe assy.	1
63	933 820 40	Pipe assy.	1
64	928 064 40	Pipe assy.	1
65	933 807 40	Pipe assy.	1
66	928 066 40	Pipe assy.	1
67	933 806 40	Pipe assy.	1
68	928 068 40	Pipe assy.	1
69	928 069 40	Pipe assy.	1
70	928 070 40	Pipe assy.	1
71	928 071 40	Pipe assy.	1
72	928 072 40	Pipe assy.	1
73	933 810 40	Pipe assy.	1
74	933 817 40	Pipe assy.	1
75	928 075 40	Pipe assy.	1
76	928 076 40	Pipe assy.	1
77	928 077 40	Pipe assy.	1
78	928 078 40	Pipe assy.	1
79	928 079 40	Pipe assy.	1
80	928 080 40	Pipe assy.	1
82	928 082 40	Pipe assy.	1
83	933 802 40	Pipe assy.	1
84	928 084 40	Pipe assy.	1
85	928 085 40	Pipe assy.	1
86	928 086 40	Pipe assy.	1
87	928 087 40	Pipe assy.	1
111	933 811 40	Pipe assy.	1
112	934 928 40	Pressure switch assy. consist. of fig-nos. 114+115	2
113	371 949 99	Union	2
114	932 609 40	Diaphragm type pressure switch	1
115	515 460 40	Bonded seal	1
130	907 819 40	Union	6
131	516 167 98	Socket	8
132	516 174 98	Socket	12
133	516 157 98	Socket	3
134	374 430 99	Union	15
135	371 459 99	Union	19
136	509 267 98	Nut	43
137	634 499 40	Union	1
138	511 015 98	Union	5
139	516 962 98	Union	37
140	502 752 98	Coupling	1
150	513 854 98	Bolt	4
151	307 732 99	Bolt	19
152	514 340 98	Screw	20
153	507 025 98	Nut	25
154	509 488 98	Nut	4
155	340 467 99	Washer	4
156	343 106 99	Lock washer	20
157	255 694 40	Plug	1
158	308 534 99	Bolt	20
160	907 820 40	Shuttle valve	1
161	343 873 40	Shuttle valve	4
162	414 370 40	Valve	3
163	940 731 40	4/2 way directional spool valve	4
164	940 730 40	4/2 way directional spool valve	1
165	308 544 99	Bolt	6
185	928 099 40	Marking strips, top	1
186	928 097 40	Marking strips, lower	1
187	928 098 40	Marking strips, center	1
189	180 325 40	Base plate	5
190	928 004 40	Rib	2
191	928 003 40	Bridge	1
192	928 091 40	Strip	1
193	928 092 40	Cable strip	1
194	533 986 99	Plate	11
195	533 985 99	Clamp	12
196	510 681 98	Plate	1
197	308 540 99	Screw	2
198	516 159 98	Socket	2
199	511 135 98	Socket	3
200	517 913 98	Socket	2
201	634 303 40	Union	1
202	516 174 98	Socket	1
204	515 865 98	Socket	3
205	371 274 99	Union nut	90
206	906 347 40	Olive	90
207	371 276 99	Union nut	8
208	906 349 40	Olive	8
209	509 271 98	Nut	2
