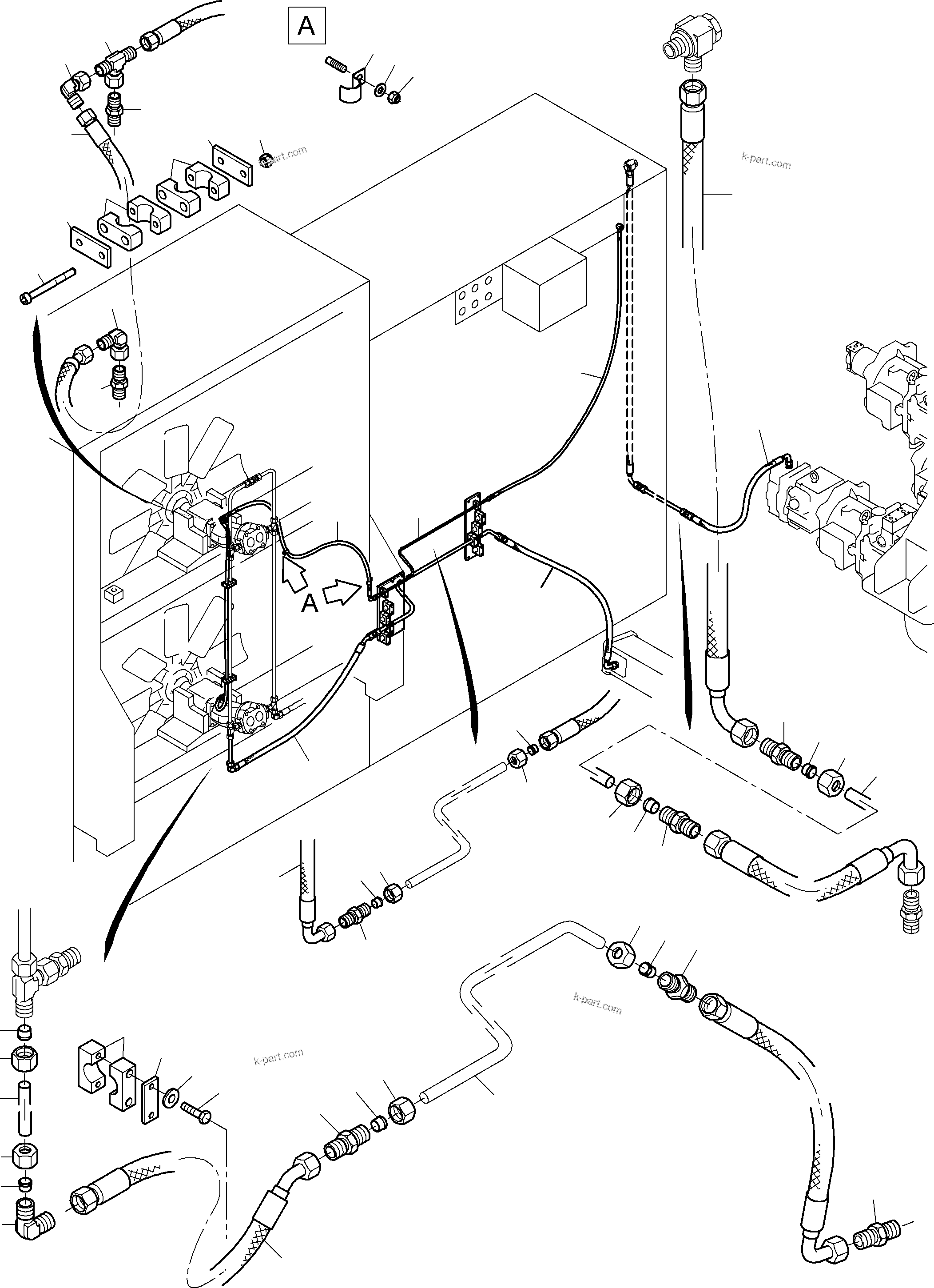

RETURN LINES - FAN MOTORS, FAN PUMP | PC3000-6 S/N 46188

Search in All Books

Find books across the catalog from one place.

This page is prepared as the search workspace. The search behavior itself can be connected in the next step.

Search whole Komatsu part number in all books. Example: 6212611203.

PC3000-6 S/N 46188

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity
?	641 557 40	Hose assy. DN 12x1600	1
?	516 158 98	Union	2
?	516 168 98	Socket	1
?	374 407 99	Socket	2
?	511 069 98	Hose assy. DN 12x1800	1
?	517 765 98	Hose assy. DN 25x1100	1
?	906 868 40	Olive	4
?	371 264 99	Nut	4
?	368 344 40	Pipe	1
?	516 837 98	Socket	1
?	0443452110	Clip	3
?	507 596 98	Washer	7
?	514 921 98	Nut	8
?	308 581 99	Bolt	2
?	534 004 99	Cover plate	1
?	507 025 98	Nut	4
?	511 856 98	Cover plate	6
?	500 980 98	Pair of clamps	2
?	509 057 98	Pair of clamps	2
?	502 206 98	Bolt	4
?	502 656 98	Pair of clamps	1
?	343 005 99	Washer	2
?	374 410 99	Socket	1
?	374 443 99	Socket	1
?	517 733 98	Hose assy. DN 25x500	1
?	517 787 98	Hose assy. DN 25x900	1
?	517 734 98	Hose assy. DN 12x1650	1
?	551 781 40	Hose assy. DN 25x2500	1
?	374 440 99	Socket	2
?	906 348 40	Olive	2
?	371 275 99	Union Nut	2
?	930 900 40	Pipe	1
?	371 278 99	Union Nut	2
?	906 350 40	Olive	2
?	516 750 98	Socket	2
?	928 873 40	Pipe	1
?	930 064 40	Pipe	1
