Diagram image 1 of 4

PC3000-6 S/N 46165

01 01 02 02 03 04 05 07 07 07 07 07 07 08 09 10 11 12 13 14 15 16 17 18 19 20 21 22 22 22 23 23 24 24 25 25 26 27 28 29 30 31 32 33 34 35 36 36 37 37 38 39 40 41 50 51 52 01 01 01 01 01 02 02 03 03 04 05 06 07 08 09 10 11 12 13 14 15 15 16 17 18 18 19 19 30 30 30 30 30 30 38 39 39 41 41 41 42 42 42 43 43 43 43 43 47 48 49 50 51 52 53 63 63 64 65 66 67 75 76

PC3000-6 S/N 46165

22 42 43 44 45 46 47 48 49 20 20 20 20 20 20 21 21 21 21 21 22 22 22 22 22 22 22 22 23 24 24 25 25 25 25 25 26 27 27 27 28 28 29 30 31 31 31 32 32 33 33 34 34 34 34 34 35 35 35 35 35 36 36 37 40 43 43 43 44 45 45 46 46 54 55 56 56 56 57 58 59 60 61 62 68 68 68 69 70 70 71 71 72 73

PC3000-6 S/N 46165

#	Part Number	Partname	Quantity
01	907 952 40	Camera	3
02	907 954 40	Monitor	3
03	907 955 40	Frame	3
04	907 957 40	Adapter cable	3
05	946 216 40	Cable protection for Camera System	-2
07	907 970 40	Cable 5 m	4
08	907 986 40	Retainer	3
09	931 335 40	Cover	1
10	907 989 40	Threaded pin	4
11	340 465 99	Washer	4
12	507 037 98	Nut	6
13	931 336 40	Retainer	1
14	931 337 40	Cover	2
15	307 754 99	Bolt	8
16	340 507 99	Washer	8
17	334 599 99	Nut	8
18	931 338 40	Angle	2
19	934 439 40	Retainer	1
20	934 449 40	Retainer	1
21	319 148 99	Bolt	2
22	517 122 98	Lock washer	7
23	319 147 99	Bolt	5
24	506 307 98	Clamp Set	6
25	341 419 99	Bolt	12
26	942 789 40	Adapter plate	3
27	320 005 99	Bolt	12
28	334 649 99	Nut	12
29	340 459 99	Washer	12
30	931 377 40	Plate	1
31	931 378 40	Plate	1
32	931 379 40	Plate	1
33	507 037 98	Nut	2
34	942 785 40	Monitor Retrainer	3
35	319 131 99	Bolt	12
36	534 020 99	Weld on plate	6
37	511 858 98	Cover plate	6
38	507 025 98	Nut	12
39	942 784 40	Monitor Retrainer	3
40	942 782 40	Monitor Retrainer	3
41	942 757 40	Monitor Retrainer	3
42	946 292 40	Cable Channel Retainer	1
43	896 747 40	Duct for wiring	-2
44	307 445 99	Bolt	4
45	307 727 99	Bolt	4
46	340 463 99	Washer	4
47	0443451210	Clip	3
48	0443450810	Clip	1
49	0443450510	Clip	1
50	0443451710	Clip	10
51	0443452310	Clip	10
52	507 596 98	Washer	3
01	931 357 40	Harness - hydraulic tank	1
02	896 579 40	Sensor	2
03	938 318 40	Level probe assy.	2
04	604 732 40	Pressure switch 0,5 bar	1
05	907 536 40	Gasket	1
06	621 338 40	Pressure switch 2,0 bar	1
07	907 538 40	Gasket	1
08	654 652 40	Maintenance switch	1
09	431 168 40	Temperature transmitter	1
10	898 146 40	Floatswitch (Bull clam equipment)	1
11	898 147 40	Floatswitch (Backhoe equipment)	1
11	898 148 40	Floatswitch (Backhoe equipment) cold weather -50°	1
12	320 817 99	Bolt	4
13	343 852 99	Lock washer	4
14	0443452711	Clip	17
15	0443452110	Clip	2
16	0443451610	Clip	8
17	308 581 99	Bolt	7
18	517 122 98	Lock washer	15
19	507 037 98	Nut	15
20	655 650 40	Protecting hose DN 12	-2
21	655 651 40	Protecting hose DN 17	-2
22	655 652 40	Protecting hose DN 23	-2
23	655 634 40	Pipe adapter DN 23/17	1
24	655 633 40	Pipe adapter DN 17/12	2
25	655 630 40	T-Distributor DN 29/23	5
26	655 626 40	Connector distributor DN 17/12	1
27	655 629 40	T-Distributor DN 17	3
28	907 971 40	Pipe adapter DN 23/12	2
29	655 635 40	Pipe adapter DN 29/17	1
30	515 213 40	Cable 1 qmm	-2
31	515 214 40	Cable 2,5 qmm	-2
32	655 810 40	Pipe adapter DN 29/12	2
33	907 693 40	Fitting M20/DN 17	2
34	907 692 40	Fitting M16/DN 12	5
35	907 703 40	Cable union	5
36	655 809 40	Pipe adapter DN 29/10	2
37	910 029 40	Plug assy.	1
38	795 134 73	Plug assy.	2
39	795 130 73	Plug assy. 2-pole	3
40	903 422 40	Plug assy.	2
41	906 922 40	Protection cap	3
42	323 961 40	Sleeve 6,3x0,8	5
43	455 756 99	Insulating tube B 6x0,6	-2
44	907 476 40	Cable union DN 10	1
45	907 708 40	Cable union	2
46	907 480 40	Cable union DN 10-90	2
47	256 514 40	Name plate	15
48	056 292 40	Cable strap	15
49	651 461 40	Housing assy.	1
50	655 547 40	Housing	1
51	655 548 40	Contact seal	2
52	655 549 40	Single seal	2
53	655 550 40	Rubber grommet	1
54	795 127 73	Plug	1
55	795 129 73	Plug	1
56	896 520 40	Plug pin	6
57	896 521 40	Plug pin	2
58	440 109 40	Sleeve	4
59	907 947 40	Connector distributor DN 29/23	1
60	896 558 40	Pipe adapter DN 29/23	1
61	634 009 40	Spotlight	2
62	507 383 99	Halogen lamp 24V70W	2
63	340 611 99	Washer	15
64	510 741 98	Resilent sleeve 13/25x50	7
65	0819320010	Clip	4
66	934 329 40	Cover	1
67	512 750 98	Nut	4
68	655 649 40	Protecting hose DN 10	-2
69	655 631 40	Pipe adapter DN 12/10	1
70	907 980 40	Fitting DN 23	2
71	795 122 73	Sealing plug	20
72	795 123 73	Pin	30
73	795 124 73	Pin	2
75	896 669 40	Level probe	1
76	795 461 73	Receptacle assy.	1
\|$$77			-2
\|$$78			-2

Komatsu PC3000-6 S/N 46165 parts catalog PDF

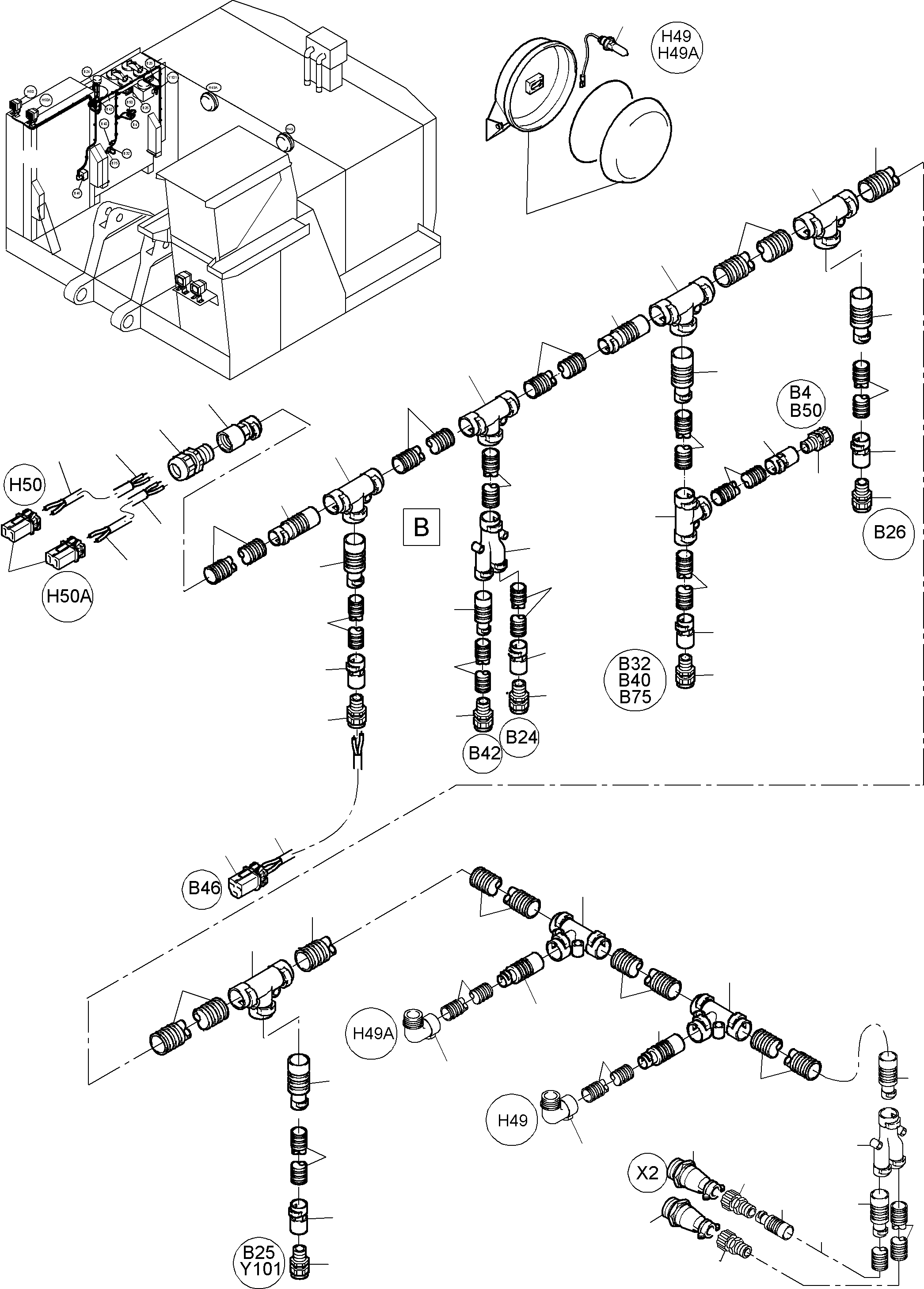

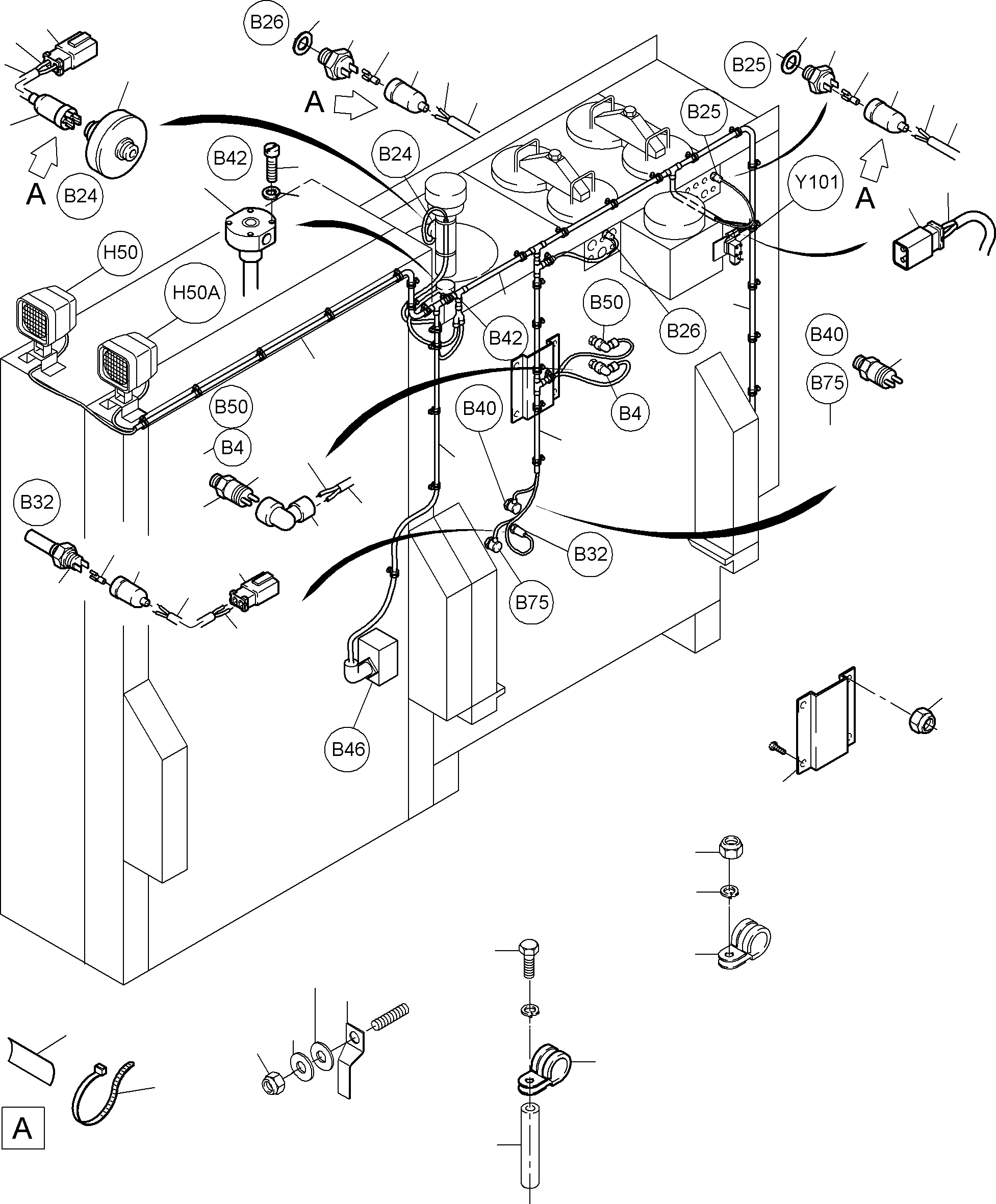

CABLES - OIL TANK AND SWITCH (485-2138d) in PC3000-6 S/N 46165. Diagram image and parts list.
