#	Part Number	Partname	Quantity
01	923 548 40	Harness-starter-relay 1	1
02	923 549 40	Harness-starter-relay 2	1
03	910 055 40	Protection cap assy. 2-pole	4
04	795 501 73	Receptacle assy.	1
05	939 337 40	Harness-motor 1	1
06	939 336 40	Harness-motor 2	1
07	906 922 40	Protection cap	4
08	323 961 40	Sleeve 6,3x0,8	2
09	940 462 40	Insulating tube B 6x0,6	-2
11	461 350 40	Revolution sensor	2
12	414 899 40	Rpm-sensor	2
13	941 398 40	Sensor assy.	2
14	515 562 40	Pressure transmitter	2
15	006 302 98	Clamp	10
16	534 092 99	Clamp	6
17	006 303 98	Clamp	8
18	006 339 98	Clamp	4
19	145 831 40	Clamp	4
20	916 640 40	Angle	10
21	916 641 40	Angle	10
22	916 642 40	Angle	2
23	916 643 40	Plate	2
24	916 644 40	Plate	4
25	916 645 40	Plate	2
26	307 671 99	Bolt	8
27	332 442 99	Nut	8
28	307 736 99	Bolt	32
29	332 331 99	Nut	32
30	431 169 40	Temperature transmitter(standard)	2
31	942 790 40	Plate	2
32	940 684 40	Twin nipple	3
33	518 225 98	Cable union	2
34	551 474 40	Rail	-2
35	358 273 40	Series clamping	-2
36	358 274 40	Series clamping	-2
40	896 579 40	Temperature sensor (Cold weather)	2
41	659 892 40	Starter relay assy.	4
42	792 585 73	Time lag relay	2
43	635 965 40	Relay	2
44	891 140 40	Plate	1
45	655 642 40	Circular bearing	12
46	377 750 99	Bolt	4
47	507 025 98	Nut	12
48	317 319 40	Threaded block	4
51	655 834 40	Cable protection hose DN 36	-2
52	655 696 40	Cable protection hose DN 29	-2
53	655 652 40	Cable protection hose DN 23	-2
54	655 651 40	Cable protection hose DN 17	-2
55	655 650 40	Cable protection hose DN 12	-2
56	655 649 40	Cable protection hose DN 10	-2
57	907 500 40	T-Distributor DN 36	1
58	906 079 40	T-Distributor DN 29	3
59	907 733 40	T-Distributor DN 23	1
60	655 629 40	T-Distributor DN 17	3
61	655 628 40	T-Distributor DN 10	1
62	907 999 40	Pipe adapter DN 36/29	2
63	896 558 40	Pipe adapter DN 29/23	2
64	655 810 40	Pipe adapter DN 29/12	2
65	655 809 40	Pipe adapter DN 29/10	1
66	907 971 40	Pipe adapter DN 23/12	1
67	655 633 40	Pipe adapter DN 17/12	4
68	655 632 40	Pipe adapter DN 17/10	3
69	655 627 40	Distributor DN 23/17	2
70	655 626 40	Distributor DN 17/12	1
71	940 520 40	Fitting	4
72	907 693 40	Fitting PG 16	1
73	940 471 40	Fitting M16/NW10	5
74	655 848 40	Fitting PG 17	2
75	907 708 40	Cable union	3
76	907 705 40	Cable union	1
77	907 703 40	Cable union	5
78	621 547 40	Socket	1
79	621 548 40	Plug	1
80	795 495 73	Plug MALE	1
81	651 461 40	Housing assy.	2
82	952 651 40	Plug assy. MALE	6
83	795 132 73	Plug assy. MALE	2
84	941 791 40	Rubber grommet	-2
87	255 745 40	Rubber grommet	2
88	055 107 40	Cable lug	1
89	055 108 40	Cable lug	9
90	896 520 40	End pin	11
91	941 777 40	Name plate	21
92	056 292 40	Cable strap	21
93	515 213 40	Cable 1,0	-2
95	907 877 40	Cable 2x0,75	-2
96	515 214 40	Cable 2,5	-2
97	056 071 40	Cable sleeve 2,5	2
98	056 070 40	Cable sleeve 1,0-1,5	53
99	500 090 98	Wire end ferrule 0,75-6	2
100	940 461 40	Insulating tube B5x0,6	-2
101	907 704 40	Cable union	2
102	907 692 40	Fitting PG 9	1
103	655 630 40	T-Distributor DN 29/23	2
104	055 104 40	Cable lug 1,5	2
105	795 157 73	Pin	5
106	795 154 73	Bushing	8
107	0819100770	Sealing plug	2
110	917 320 40	Cable - starter 3M2-1-GND	1
111	917 321 40	Cable - starter 3M2-2-GND	1
116	923 550 40	Cable generator G5-1 ground 3G5-1-GND	1
117	923 552 40	Cable generator G5-2 ground 3G5-2-GND	1
118	654 421 40	Cable lug 35	2
119	655 690 40	Cable lug 35	2
120	907 556 40	Cable 35 qmm	-2
123	055 108 40	Cable lug blue 2,5	18
124	055 109 40	Cable lug yellow 4-6	12
125	940 460 40	Insulating tube B4x0,5	-2
127	933 385 40	Plug assy. female, 2,5MM2, 2pol	1
128	933 384 40	Plug with pins assy. male, 2,5MM2, 2pol	1
129	933 387 40	Plug male, 2,5MM2, 4pol	1
133	933 388 40	Plug female, 2,5MM2, 4pol	1
135	055 112 40	Cable lug, yellow	1
136	907 511 40	Cable lug 2,5	1
138	906 756 40	Pressure switch (cooling water)	2
139	907 462 40	Pressure switch - engine-oil pressure	2
143	795 131 73	Plug with bushings assy.	10
145	795 495 73	Plug , male	1
151	906 754 40	Pressure switch - engine-oil pressure	2
152	515 460 40	Seal	6
153	056 076 40	Protection cap	4
154	600 212 99	Cable lug 12-95	4
155	906 658 40	Cable 1x120	-2
\|$$124			-2
\|$$125			-2
\|$$126			-2
\|$$127			-2

Komatsu PC5500-6 S/N 15081 parts catalog PDF

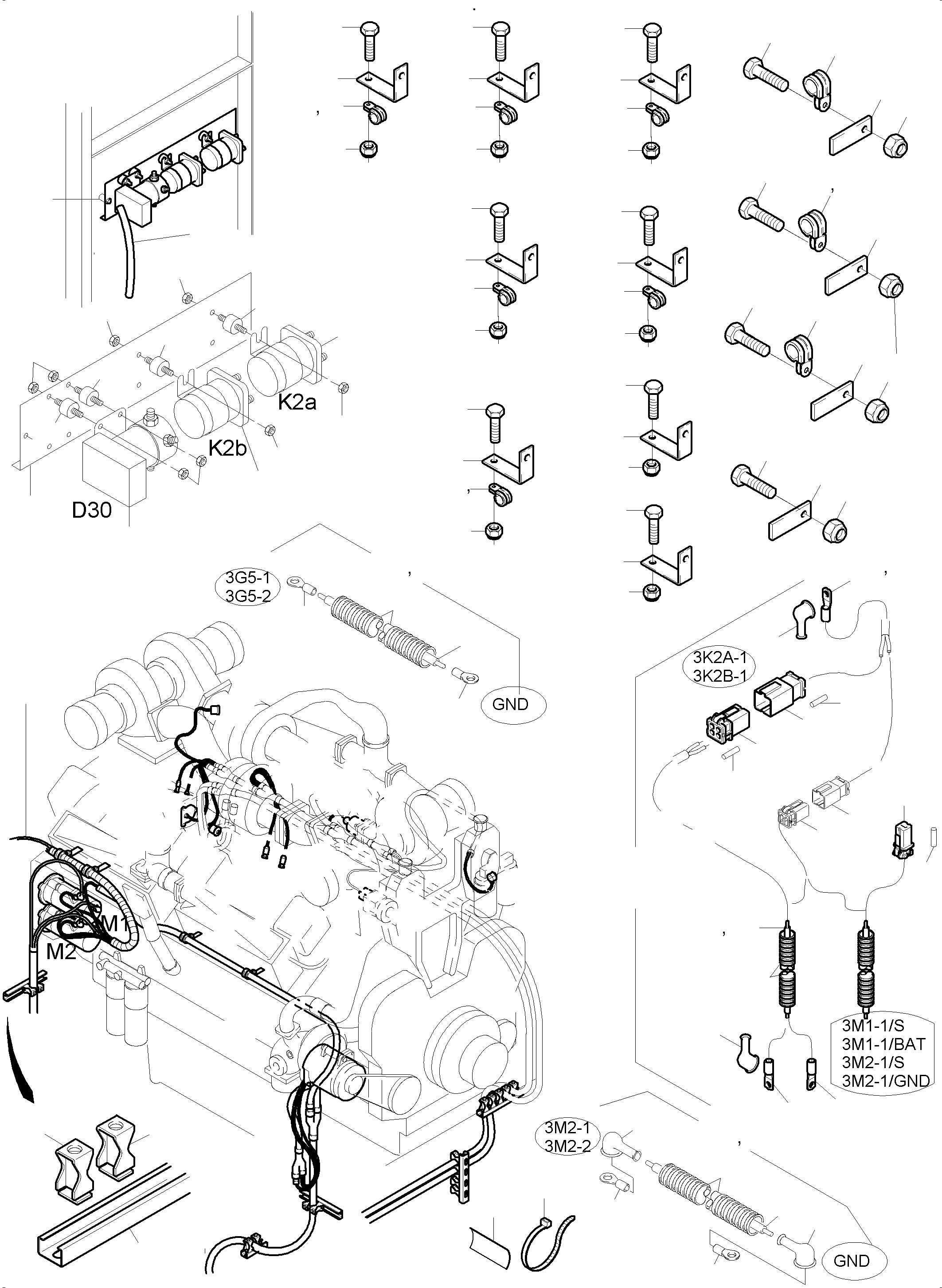

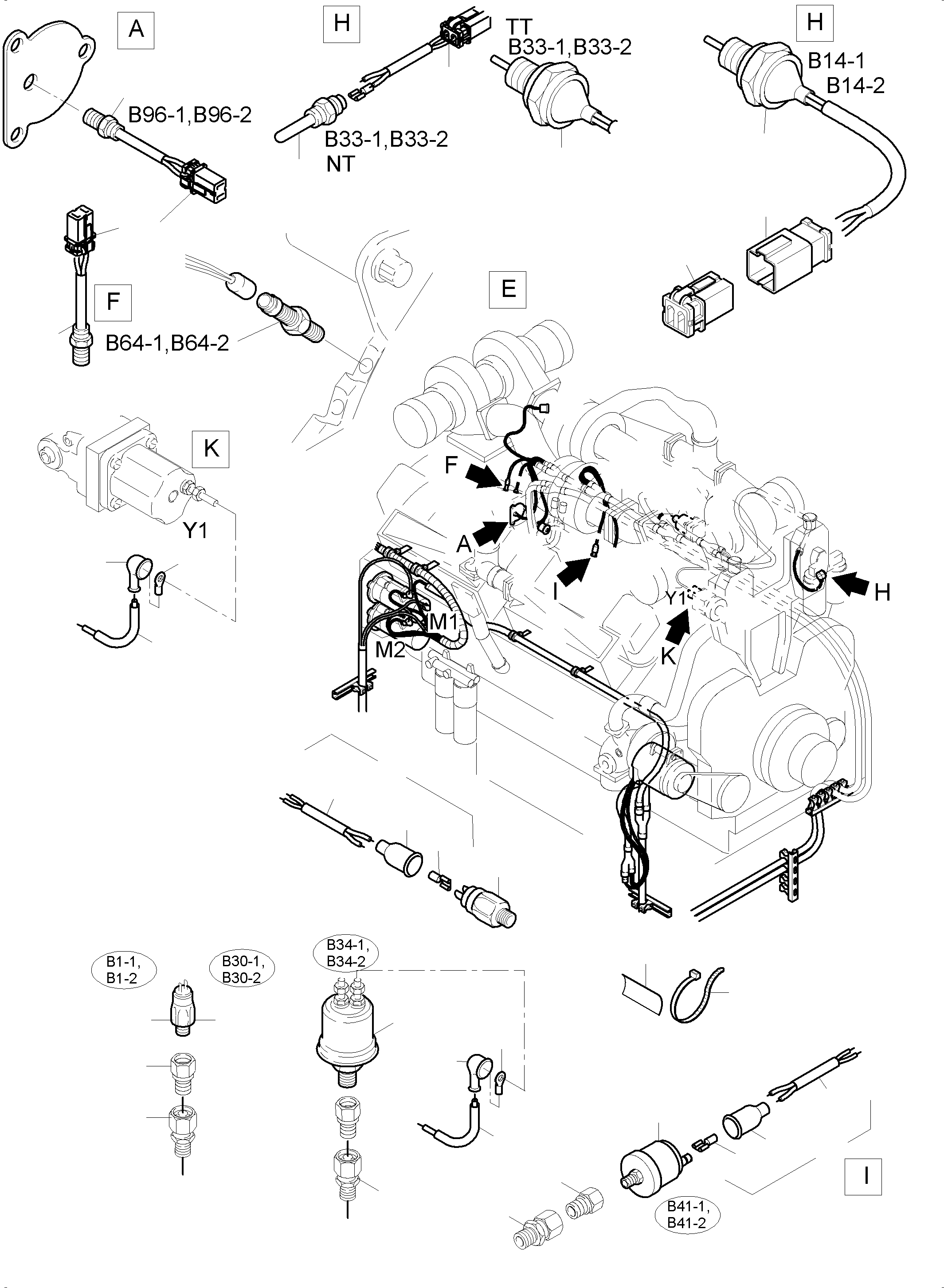

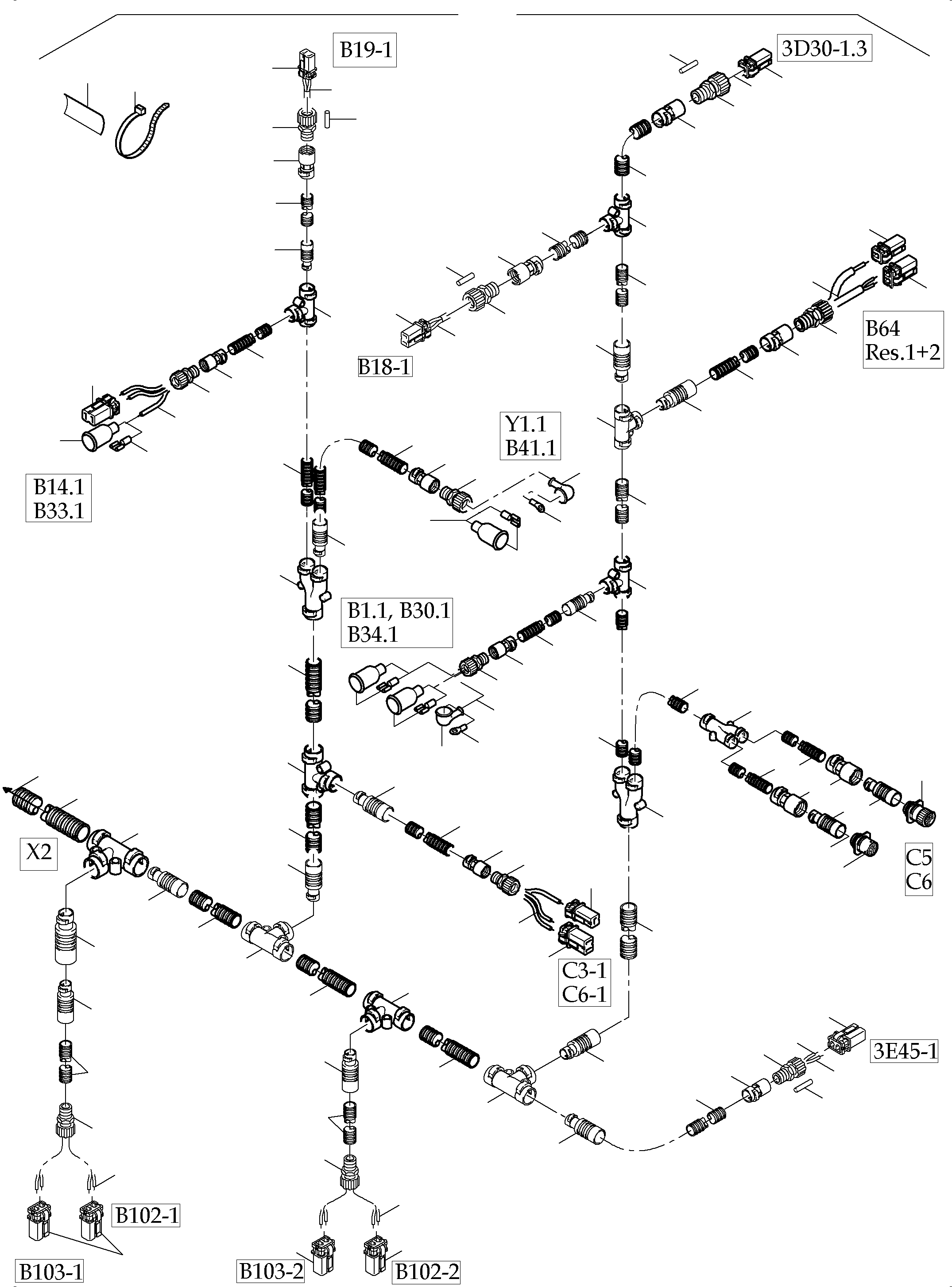

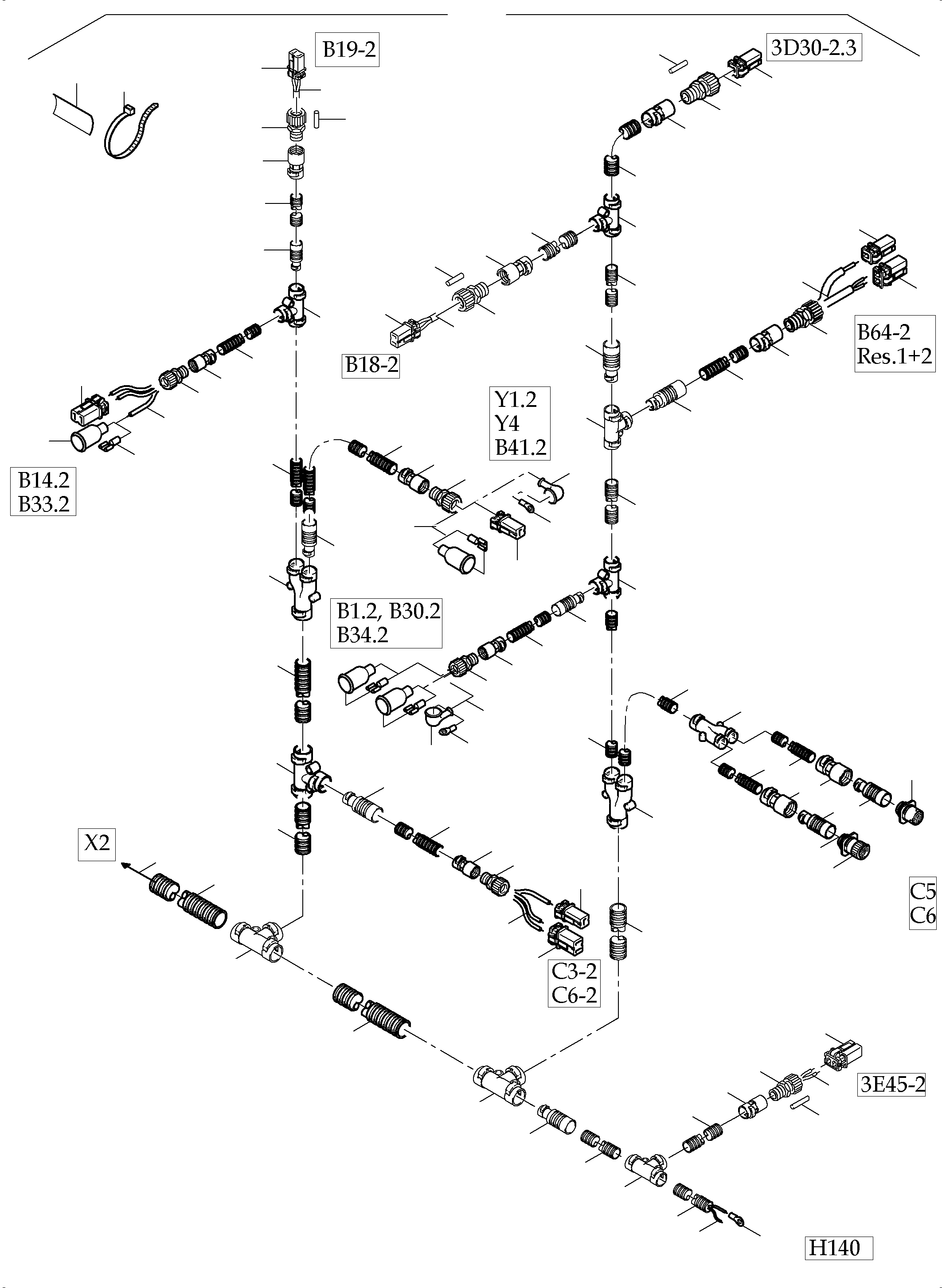

CABLES - ENGINE AND TRANSMITTER (515-2148r2) in PC5500-6 S/N 15081. Diagram image and parts list.
