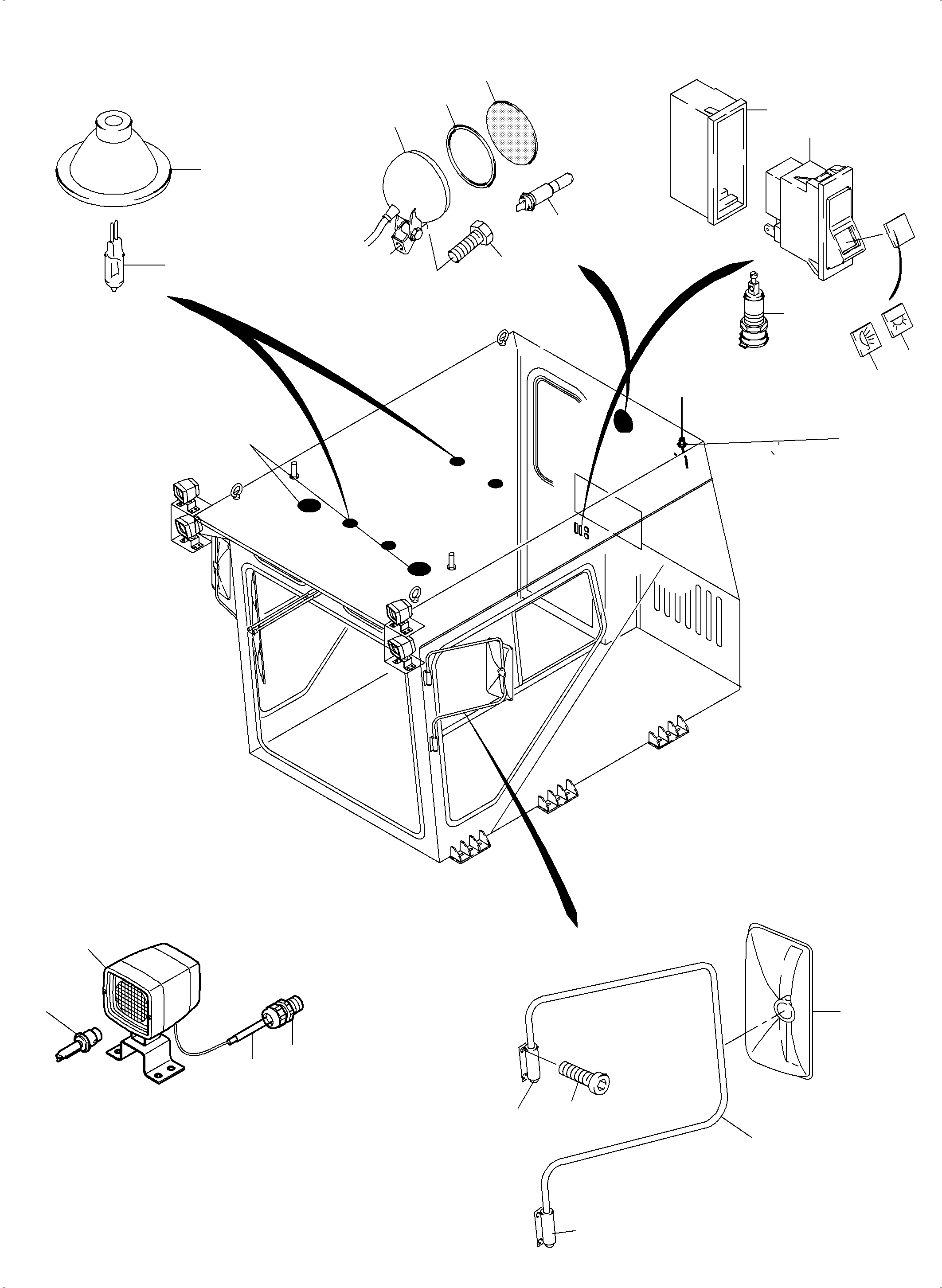

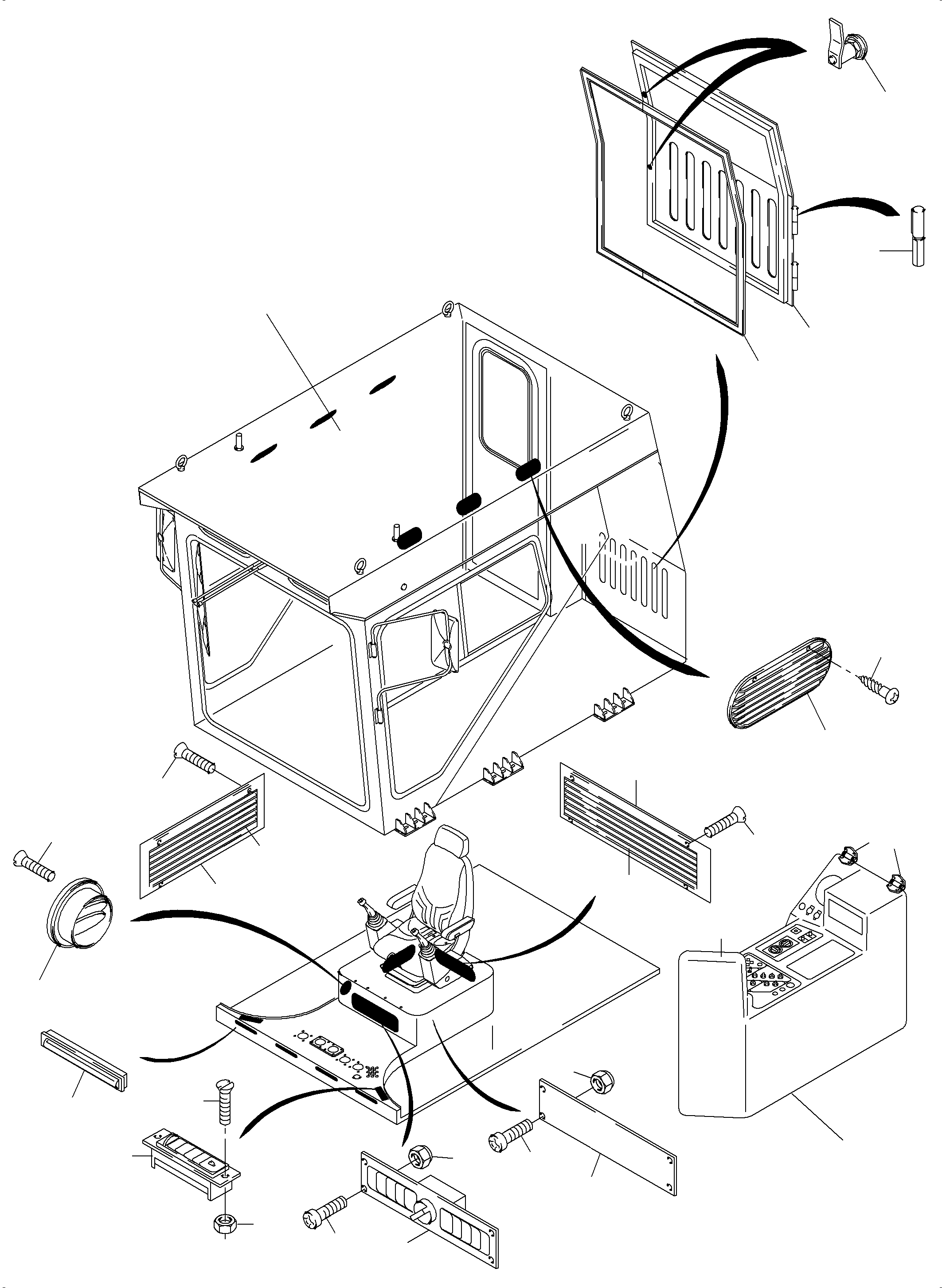

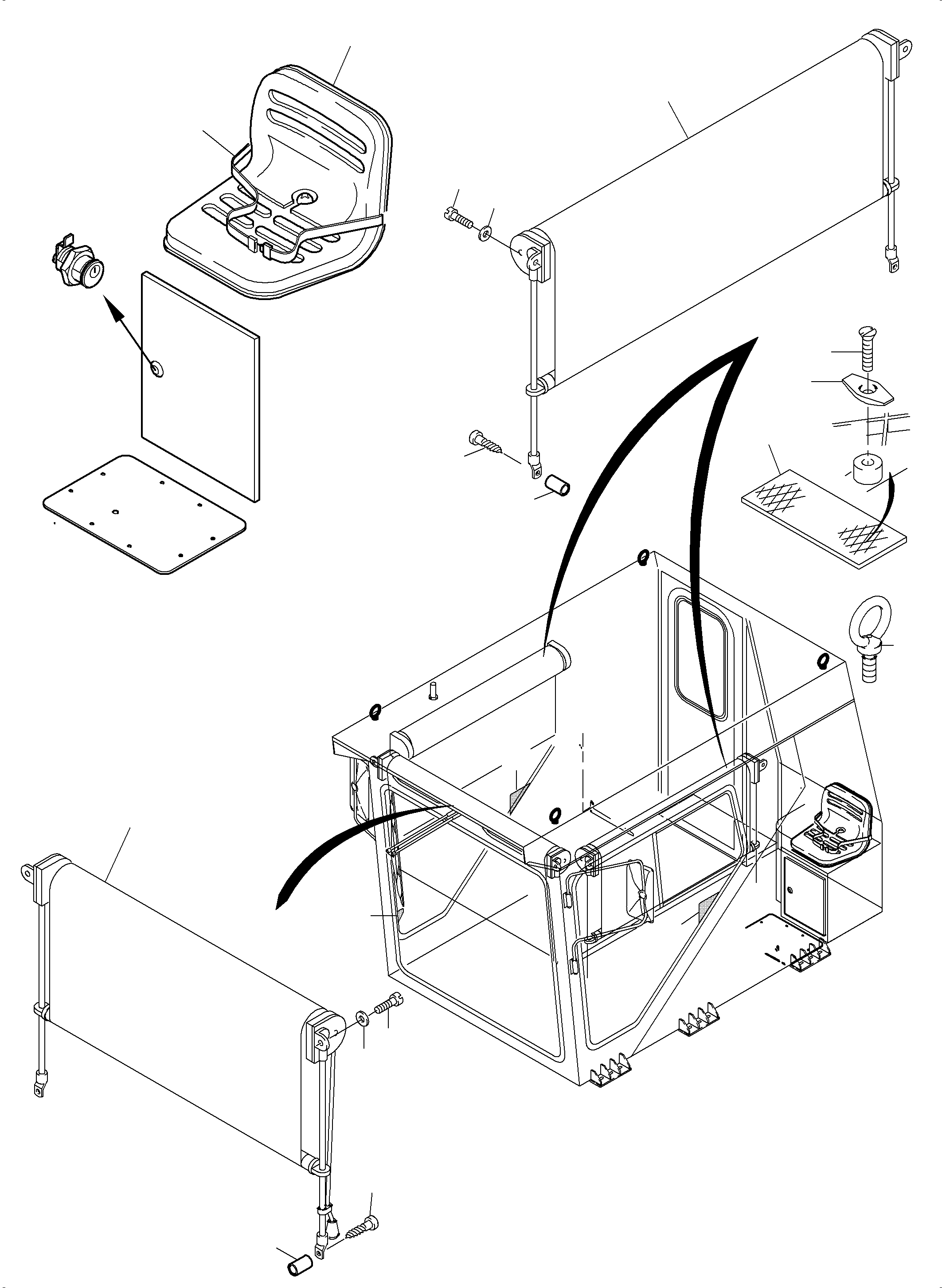

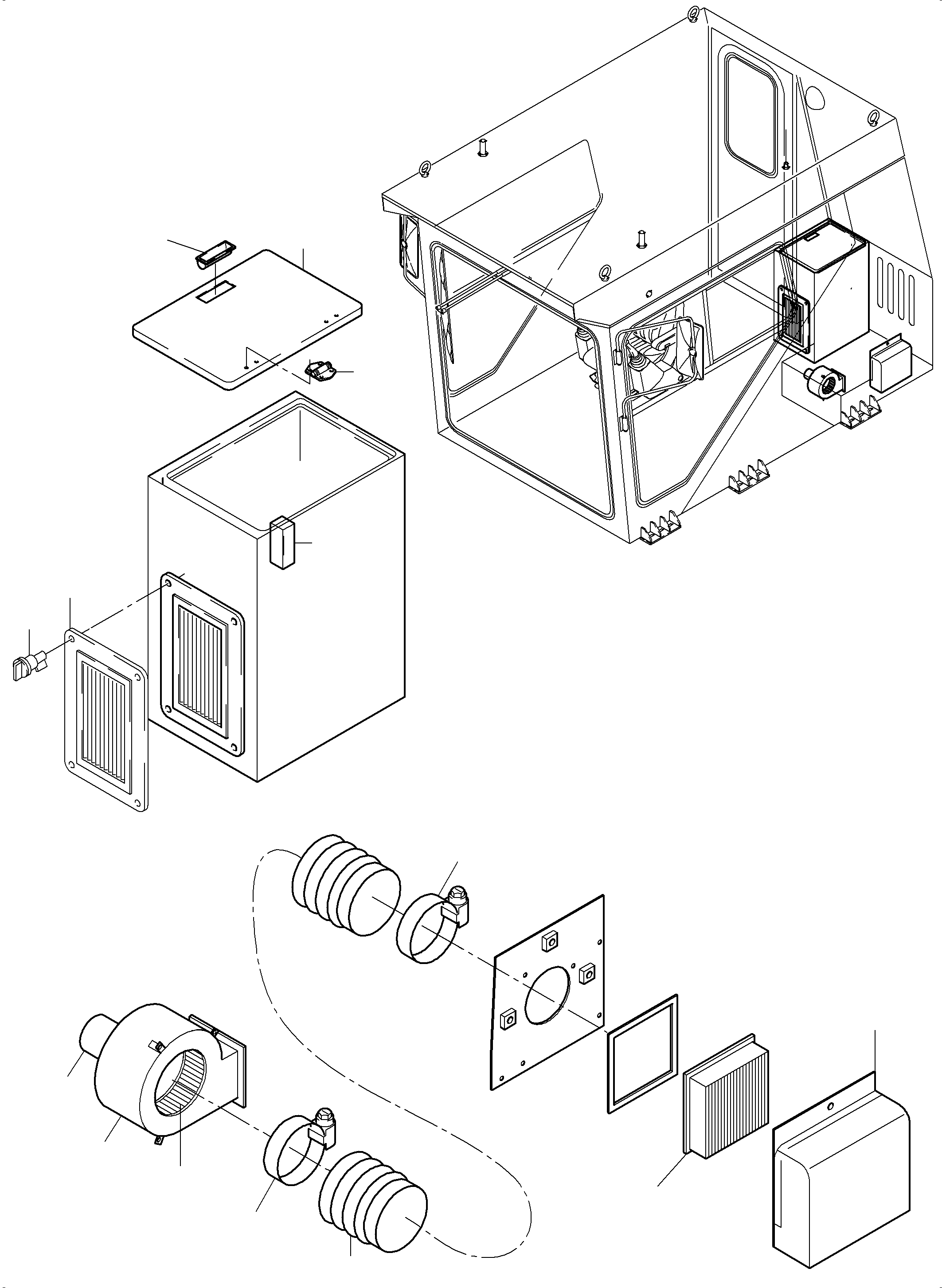

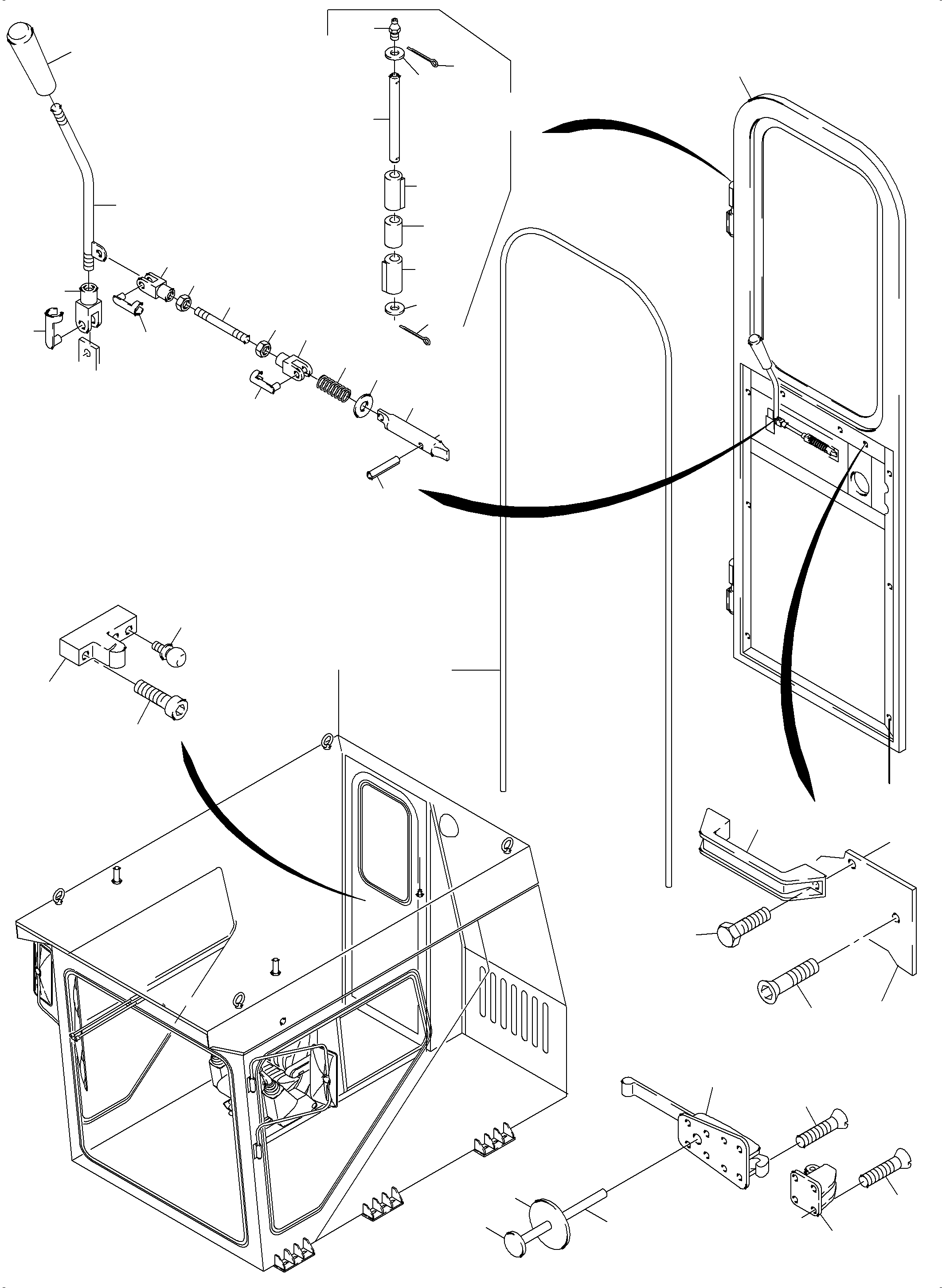

Diagram image 1 of 5

PC5500-6 S/N 15081

01 02 03 04 05 06 07 08 09 10 11 11 12 12 13 14 15 15 16 17 18 19 20 21 22 23 24 25 29 30 31 32 46 47 49 77 78 79 79 80 81 81 82 82

PC5500-6 S/N 15081

120 121 34 35 36 37 38 39 40 41 42 43 44 45 50 52 53 54 55 58 59 60 61 62

PC5500-6 S/N 15081

126 126 127 127 128 128 129 130 131 132 133 63 64 70 71 72 74 75 76 83

PC5500-6 S/N 15081

100 101 102 105 106 106 107 116 117 118 119 134 135 136 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 98 99 99

PC5500-6 S/N 15081

109 110 111 112 113 122 123 124 125 65 66 67 67 68 69

#	Part Number	Partname	Quantity	Reference
01	942 085 40	Operator's cab assy. Electro LT PC 4000-6E	1
01	942 096 40	Operator's cab assy. Electro NT PC 4000-6E	1
01	942 093 40	Operator's cab assy. PC 5500-6	1
01	942 094 40	Operator's cab assy. PC 8000-6	1
01	942 099 40	Operator's cab assy. Electro LT PC 8000-6E	1
01	942 097 40	Operator's cab assy. Electro NT PC 8000-6E	1
01	942 095 40	Operator's cab assy. VHMS PC 4000-6,5500-6	1
01	942 098 40	Operator's cab assy. VHMS PC 8000-6	1
01	954 305 40	Operator's cab assy. Electro NT VHMS PC 5500-6E	1
01	954 304 40	Operator's cab assy. Bulletproof PC 8000-6	1
01	954 301 40	Operator's cab assy. Electro NT-Kysor PC 8000-6E	1
01	954 302 40	Operator's cab assy. Electro NT Bulletproof PC 8000-6E	1
02	796 431 73	Door assy.	1
03	390 199 40	Hinge	2
04	356 533 40	Catch	1
05	374 222 40	Detent	1
06	368 431 40	Pane	1
07	356 535 40	Compression spring	1
08	356 536 40	Threaded rod	1
09	796 430 73	Lever	1
10	345 178 99	Dowel pin	1
11	332 110 99	Nut	2
12	350 748 99	Fork end	2
13	350 742 99	Fork end	1
14	002 827 98	Pin	1
15	002 823 98	Pin	2
16	769 602 73	Handle	1
17	516 643 98	Bolt	2
18	769 603 73	Cylinder button	1
19	769 652 73	Profiled joint ca. 4300 1,5-2	-2
20	319 238 99	Screw	2
21	356 130 40	Silent bloc	2
22	635 262 40	Stop	1
23	318 297 99	Bolt	4
24	635 261 40	Handle with lock	1
25	318 308 99	Bolt	4
29	796 429 73	Handle	1
30	796 428 73	Tappet	1
31	769 607 73	Door moulding	1
32	321 187 99	Fillister-head screw	11
34	769 609 73	Rod for mirror	2
35	769 610 73	Mirror	2
36	516 246 98	Screw	16
37	769 611 73	Push-toggle switch	2
38	769 612 73	Graphical symbol - spotlight	1
39	769 613 73	Graphical symbol - indoor lighting	1
40	769 614 73	Tail piece	2
41	769 615 73	Antenna	1
42	461 562 40	Extension cable	1
43	896 705 40	Pair of speakers	1
44	769 188 73	Dome lamp	4
45	769 189 73	Bulb 28V 20W	4
46	770 079 73	Door, steel construction	1
47	770 080 73	Washer	1
49	770 081 73	Blind rivet-nut	15
50	769 617 73	Socket installation	3
52	795 989 73	Harness-Spread beam headlamp	1
53	795 990 73	Cable Union	4
54	941 143 40	Head light assy. with lamp	4
55	797 352 73	Lamp	4
58	634 009 40	Spotlight	1
59	507 383 99	Halogen lamp	1
60	769 155 73	Seal	1
61	769 156 73	Pane, white	1
62	307 752 99	Bolt	1
63	797 510 73	Co-Driver's seat	1	991-0907
64	797 511 73	Safety belt - seat shell	1
65	324 391 40	Blower	1
66	269 055 40	Air filter	1
67		Clamp	2
68		Hose	-2
69		Hood	1
70	793 798 73	Window shade, front window standard	1
71	793 799 73	Window shade, front window standard	1
72	793 799 73	Window shade	2
74	414 327 40	Grating	1
75	317 318 40	Wing nut, plastic	4
76	318 391 99	Bolt	4
77	350 562 99	Grease nipple	1
78	621 108 40	Pin	1
79	390 600 40	Bushing	2
80	390 601 40	Bushing	1
81	340 612 99	Washer	2
82	342 061 99	Cotter pin	2
83	906 783 40	Eyebolt	4
84	795 996 73	Door	1
85	769 631 73	Band roller	2
86	769 632 73	Sash lock	2
87	769 651 73	Profiled joint	-2
88	769 633 73	Air intake	6
89	793 800 73	Filter box	1
90	769 635 73	Hot air jet	4
91	769 636 73	Adjustment	1
92	769 637 73	Hot air jet, long	4
93	793 801 73	Filter box	1
94	516 247 98	Tapping screw	24
95	516 243 98	Bolt	8
96	332 201 99	Nut	4
97	318 293 99	Bolt	4
98	516 244 98	Screw	6
99	334 649 99	Nut	10
100	770 070 73	Cap	4
101	770 071 73	Hinge for Panel	2
102	793 806 73	Filter mat	1
105	793 802 73	Round nozzle	1
106	508 900 98	Bolt	8
107	793 803 73	Filter mat	1
109	769 645 73	Ventilation	1
110	770 074 73	Spagnolet for ventilation	4
111	769 646 73	Ice box door	1
112	770 075 73	Handle - ice-box door	1
113	770 071 73	Hinge - ice-box door	2
116		Operation panel - base	1
117		Operation panel - upper ECS-ETM	1
117		Operation panel - upper VHMS	1
118	796 831 73	Cover plate, if only one heater is mounted	1
119	797 419 73	Key to fig.-no.86	1
120	770 378 73	Retainer top with cable	2
121	770 377 73	Retainer lower	2
122	770 089 73	Thermostat	1
123	698 375 73	Electric motor	1
124	698 376 73	Impeller	1
125	698 377 73	Resistor	1
126	307 693 99	Bolt	6
127	340 500 99	Washer	6
128	318 574 99	Screw	6
129	796 988 73	Distance bushing	4
130	796 989 73	Distance bushing	2
131	796 353 73	Shade retainer, in front on sides	2
132	796 354 73	Shade retainer, in rear, l.h. side	1
133	796 355 73	Shade retainer, in rear, r.h. side	1
134	797 588 73	Hammer	1
135	797 589 73	Retainer	1
136	504 784 98	Screw	2

Komatsu PC5500-6 S/N 15081 parts catalog PDF

OPERATOR'S CAB (991-0901) in PC5500-6 S/N 15081. Diagram image and parts list.
