Diagram image 1 of 4

PC5500-6 S/N 15083

01 02 03 04 05 06 06 07 07 08 08 19 20 23 24 27 27 28 29 29 29 30 30 30 30 31 31 32 33 34 35 36 37 38 39 42 43 52 52 61 61 61 61 62 62 62 62

PC5500-6 S/N 15083

09 09 09 09 10 10 11 11 11 11 12 13 13 13 14 14 14 15 15 15 16 16 16 17 18 44 44 44 45 45 45 46 47 48 49 50 51 53 54 55 56 57 57 58 58 58 59 59 60

PC5500-6 S/N 15083

100 59 80 80 81 82 83 84 84 85 85 86 86 86 87 88 88 88 88 89 90 91 92 92 93 94 95 96 97 98 99

PC5500-6 S/N 15083

101 102 102 102 102 102 103 103 103 103 104 104 104 104 104 105 105 105 106 106 106 106 106 107 107 107 107 107 108 109 110 111 112 112 113 113 114 114 115 116 117 118 119 120 121 122

#	Part Number	Partname	Quantity	Reference
01	913 486 40	Grease barrel	1
02		Lube pump station	3	991-0553g
03	308 321 99	Bolt	8
04	510 729 98	Resilient sleeve	8
05	332 355 99	Nut	8
06	516 616 98	Socket	2
07	513 495 98	Hose assy.	2
08	907 051 40	Union	2
09	255 400 40	Hose assy. DN 20x1500	2
10	641 482 40	Hose assy. DN 20x2230	1
11	513 495 98	Hose assy. DN 20x1630	2
12	515 570 98	Hose assy. DN 10x2500	1
13	516 322 98	Valve	2
14	516 618 98	Union	3
15	506 954 98	Nut	3
16	516 962 98	Socket	1
17	509 267 98	Nut	1
18	516 615 98	Union	3
19	509 272 98	Nut	3
20	374 410 99	Union	3
23	307 757 99	Bolt	12
24	340 464 99	Washer	12
27	518 321 98	Hose assy.	2
28	518 263 98	Hose assy.	1
29	907 798 40	Union	3
30	516 181 98	Socket	4
31	374 412 99	Socket	2
32	928 711 40	Pipe Ш 30	1
33	308 578 99	Bolt	8
34	510 746 98	Resilient sleeve	8
35	517 434 98	Info plate	1
36	308 582 99	Bolt	2
37	534 001 99	Cover plate	1
38	504 677 98	Clamp set	2
39	507 037 98	Nut	2
42	915 741 40	Pipe Ш 30	1
43	928 712 40	Pipe Ш 30	1
44	512 715 98	Hose assy.	2
45	512 938 98	Hose assy.	2
46	516 173 98	Socket	2
47	515 765 98	Socket	1
48	510 537 98	Socket	1
49	516 175 98	Socket	2
50	515 862 98	Socket	1
51	516 824 98	Socket	1
52		Pressure filter	2	991-0839
53	374 431 99	Socket	1
54	516 161 98	Socket	1
55	551 345 40	Union	1
56	518 206 98	Hose assy., with fire protection coating DN 20x13300	1
57	518 239 98	Hose assy., with fire protection coating DN 10x 9000	1
58	512 962 98	Hose assy.	2
59	516 820 98	Hose assy.	1
60	168 491 40	Hose assy. DN 20x1500	1
61	906 352 40	Olive	9
62	371 265 99	Union nut	9
80	511 003 98	Hose assy. 20X 5750	1
81	512 672 98	Hose assy. 20X 4400	1
82	939 177 40	Pipe	1
83	374 443 99	Union	1
84	906 868 40	Olive	2
85	371 264 99	Union nut	2
86	504 923 98	Clamp set	11
87	534 005 99	Weld on plate	5
88	534 004 99	Cover plate	14
89	308 581 99	Bolt	10
90	308 269 99	Bolt	6
91	507 037 98	Nut	6
92	534 000 99	Clamp set	2
93	534 001 99	Plate	2
94	308 579 99	Bolt	4
95	516 615 98	Socket	1
96	516 248 98	Socket	1
97	509 272 98	Nut	1
98	516 837 98	Union	1
99	504 585 98	Screw	4
100	504 586 98	Locking plate	2
101	936 869 40	Retainer	1
102	509 060 98	Clamp set	5
103	319 136 99	Screw	6
104	515 669 98	Clamp set	7
105	319 417 99	Screw	10
106	502 631 98	Clamp set	5
107	319 132 99	Screw	10
108	936 871 40	Retainer	1
109	509 057 98	Clamp set	1
110	319 133 99	Screw	2
111	936 874 40	Retainer	1
112	504 201 98	Clamp	2
113	308 581 99	Bolt	4
114	534 004 99	Cover plate	2
115	936 875 40	Retainer	1
116	511 858 98	Cover plate	1
117	320 025 99	Screw	2
118	511 857 98	Cover plate	2
119	502 206 98	Bolt	2
120	936 862 40	Retainer	1
121	936 895 40	Retainer	1
122	533 989 99	Weld on plate	1

Komatsu PC5500-6 S/N 15083 parts catalog PDF

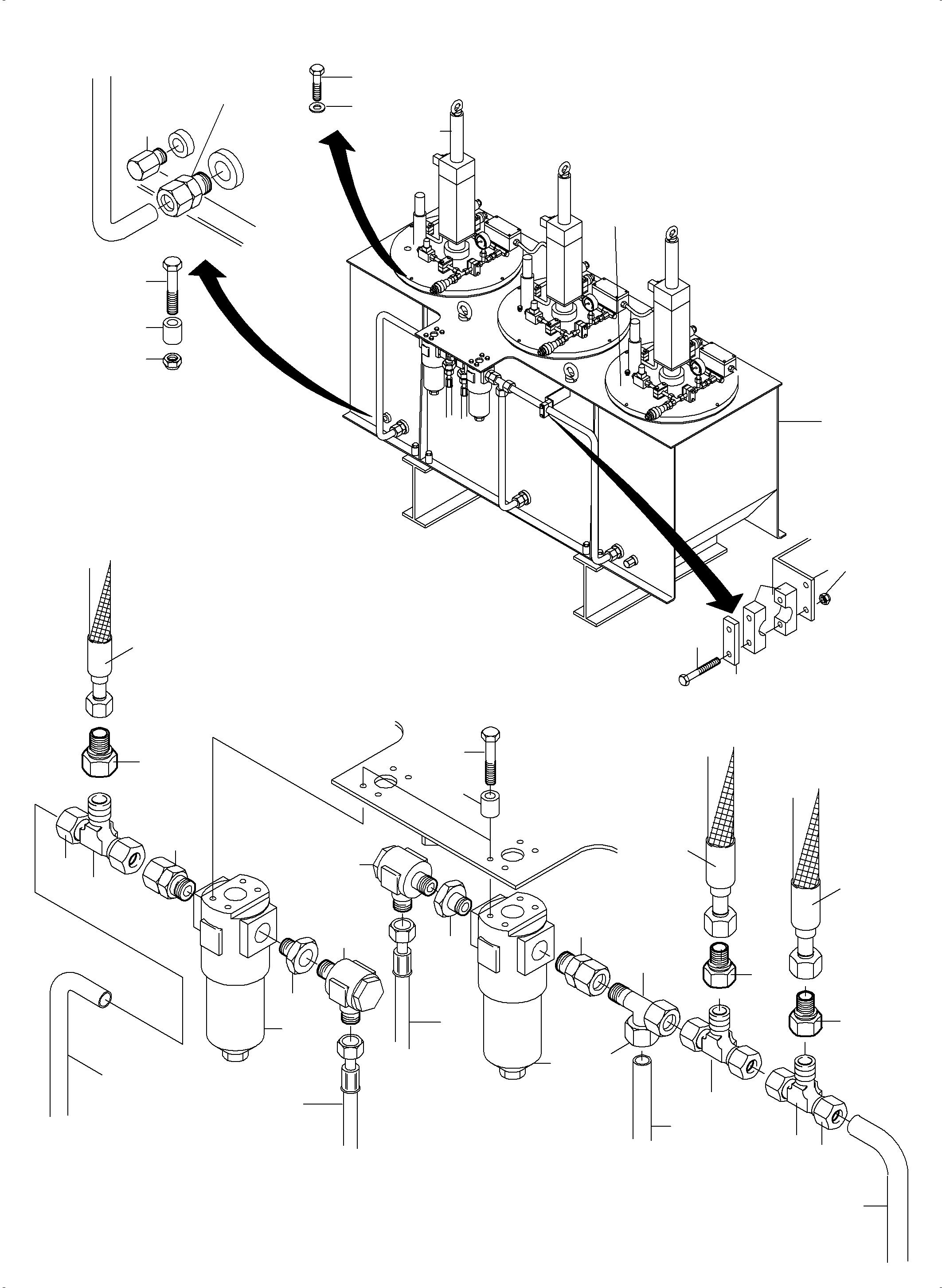

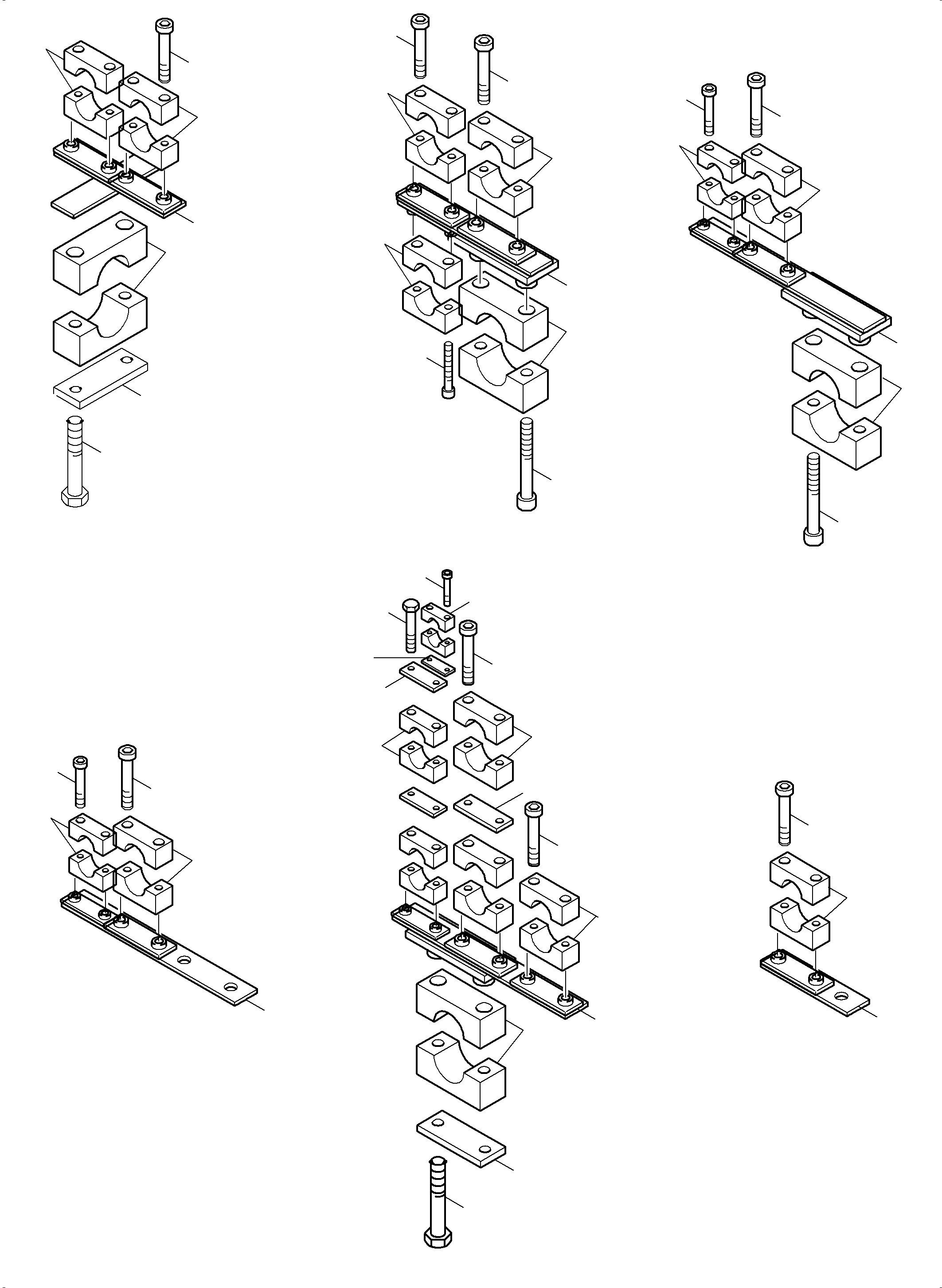

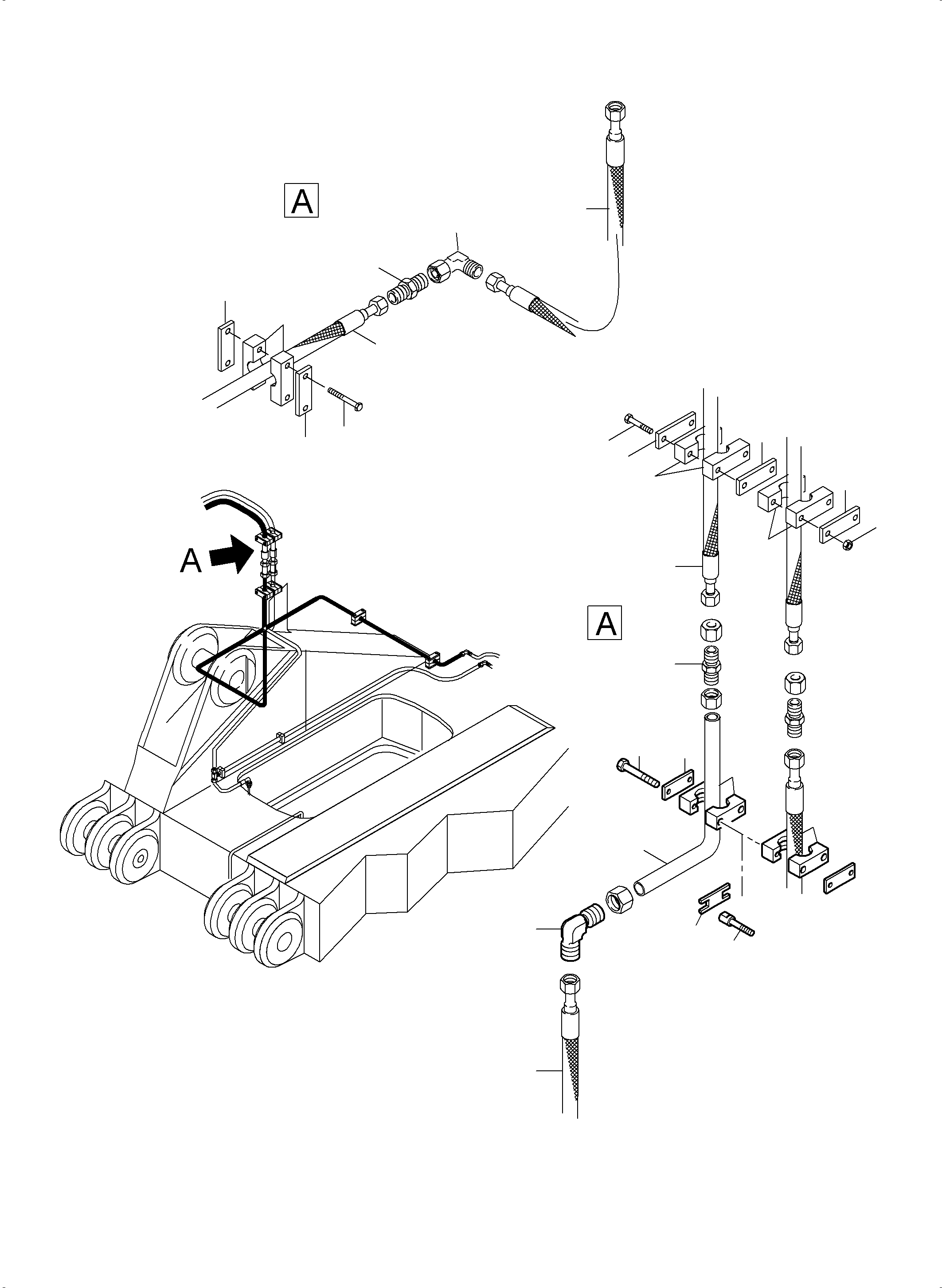

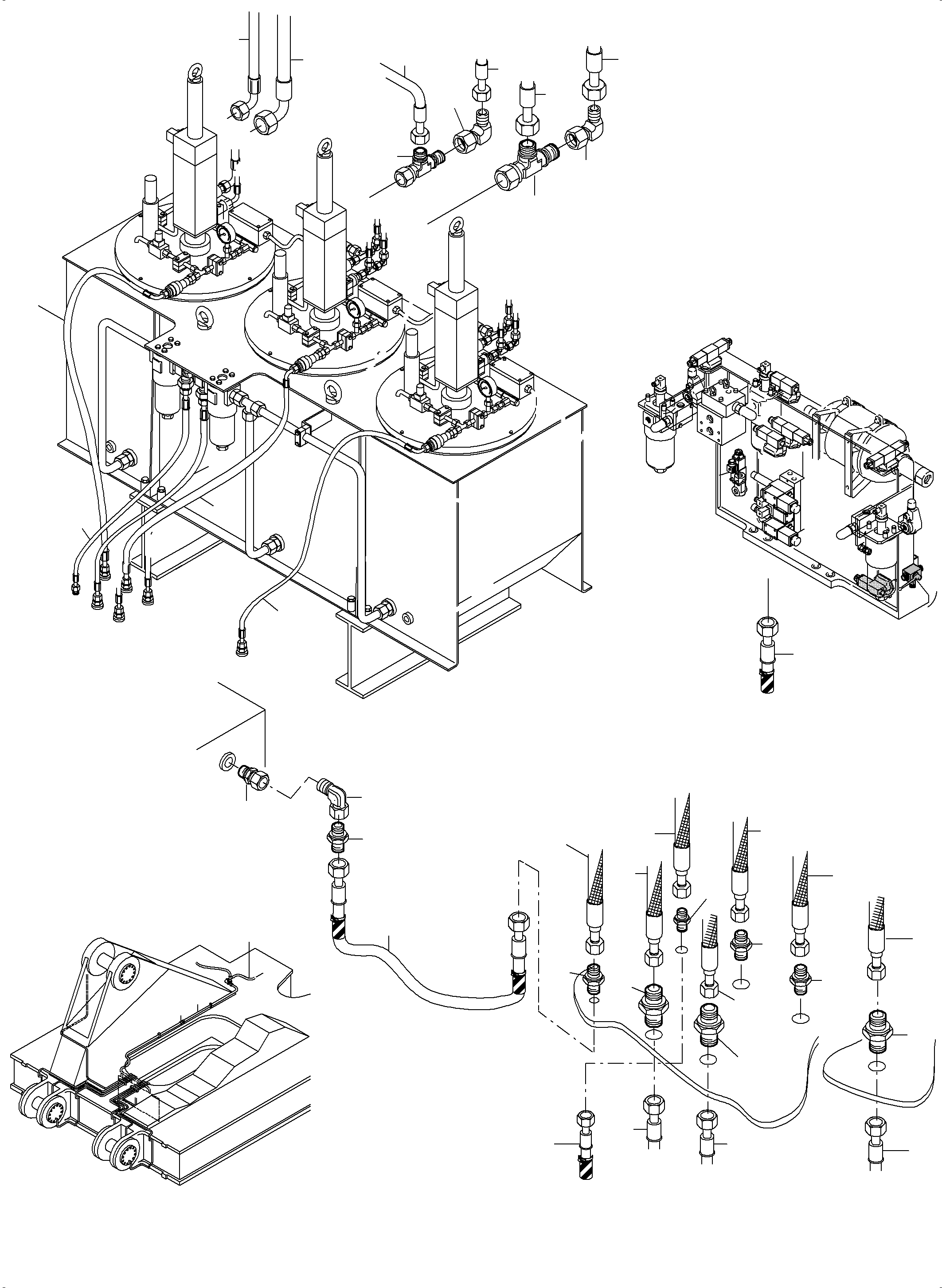

LUBE STATION ARRANGEMENT AND GREASE PIPE (515-2314f) in PC5500-6 S/N 15083. Diagram image and parts list.
