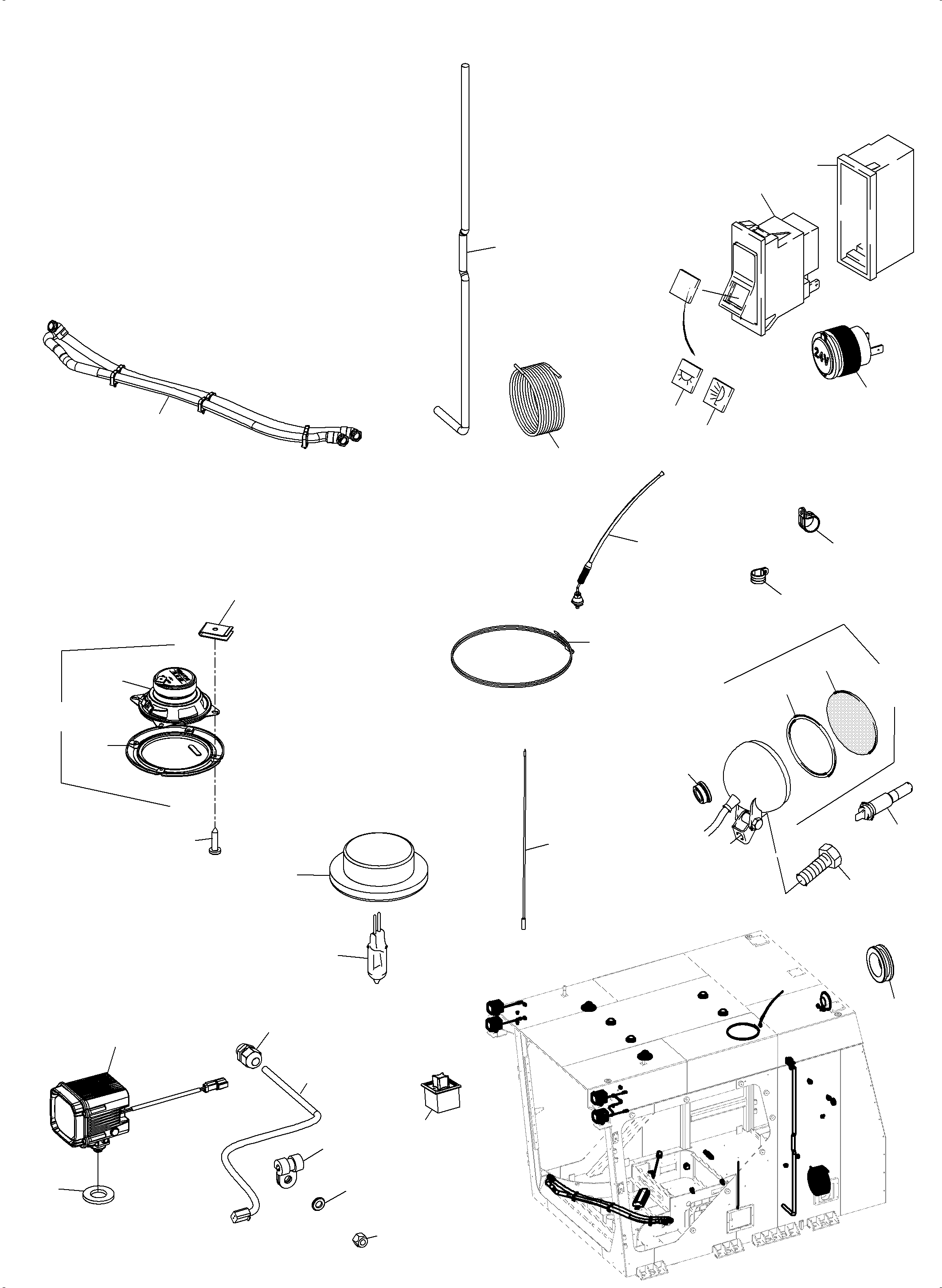

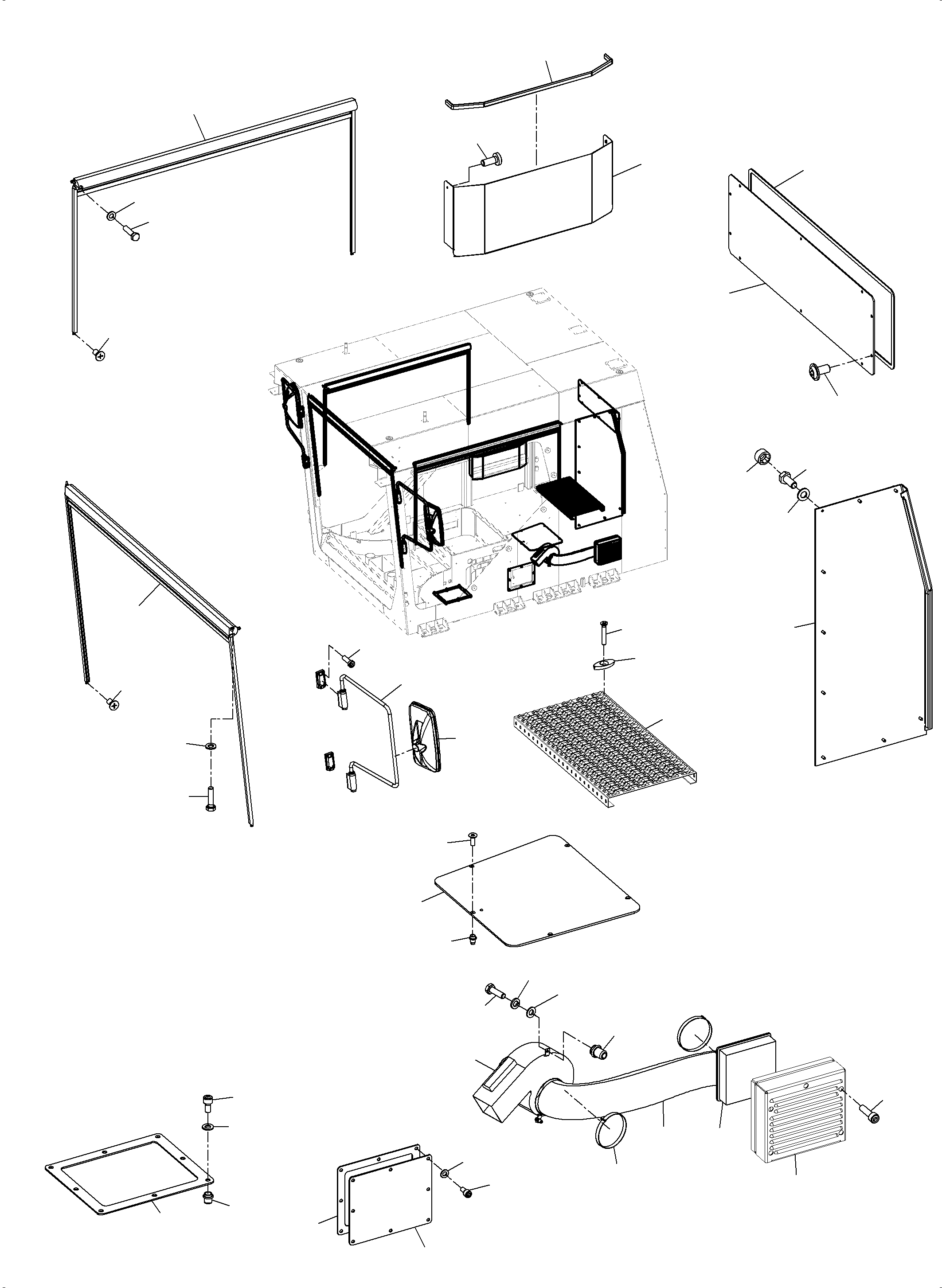

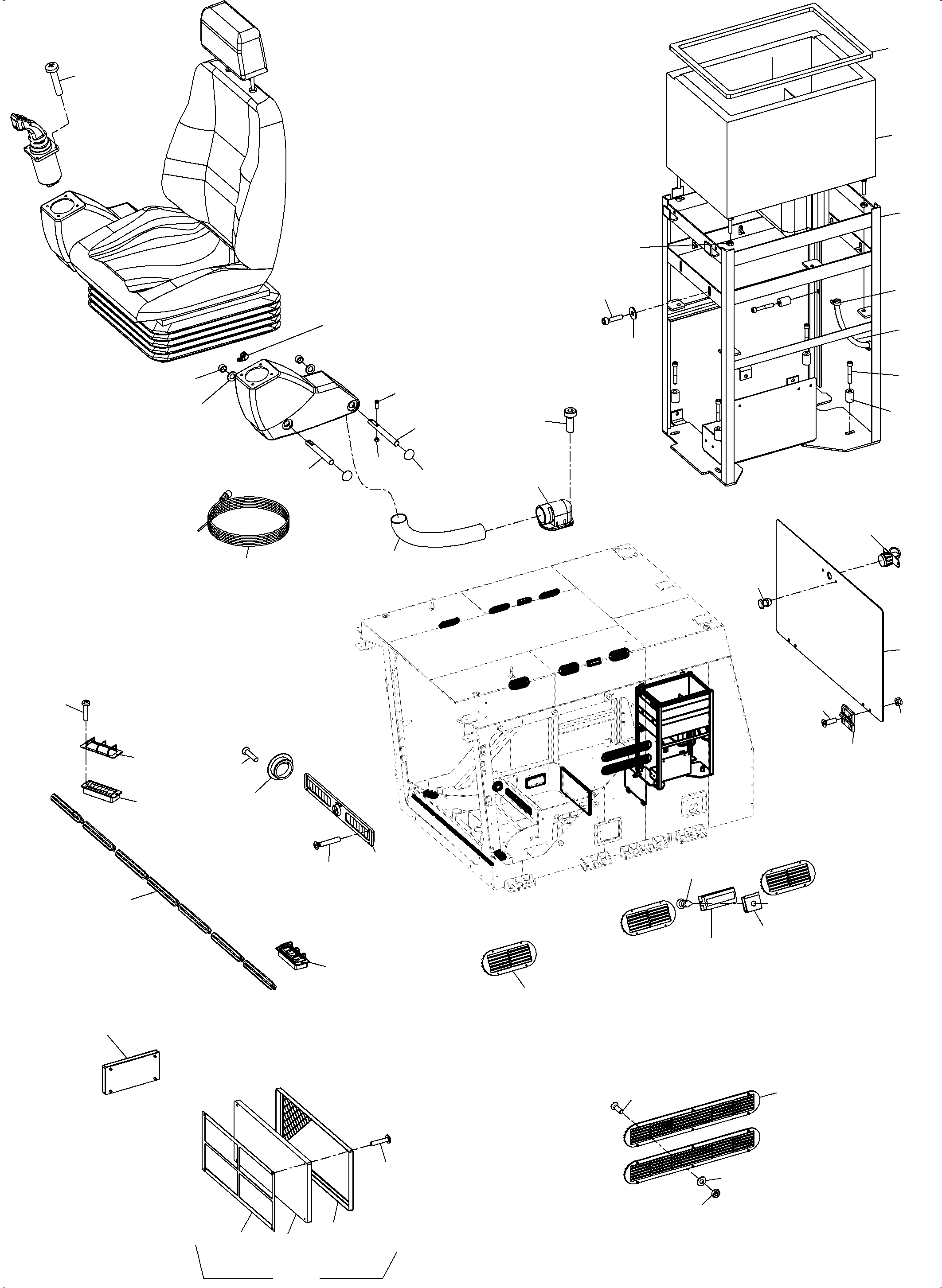

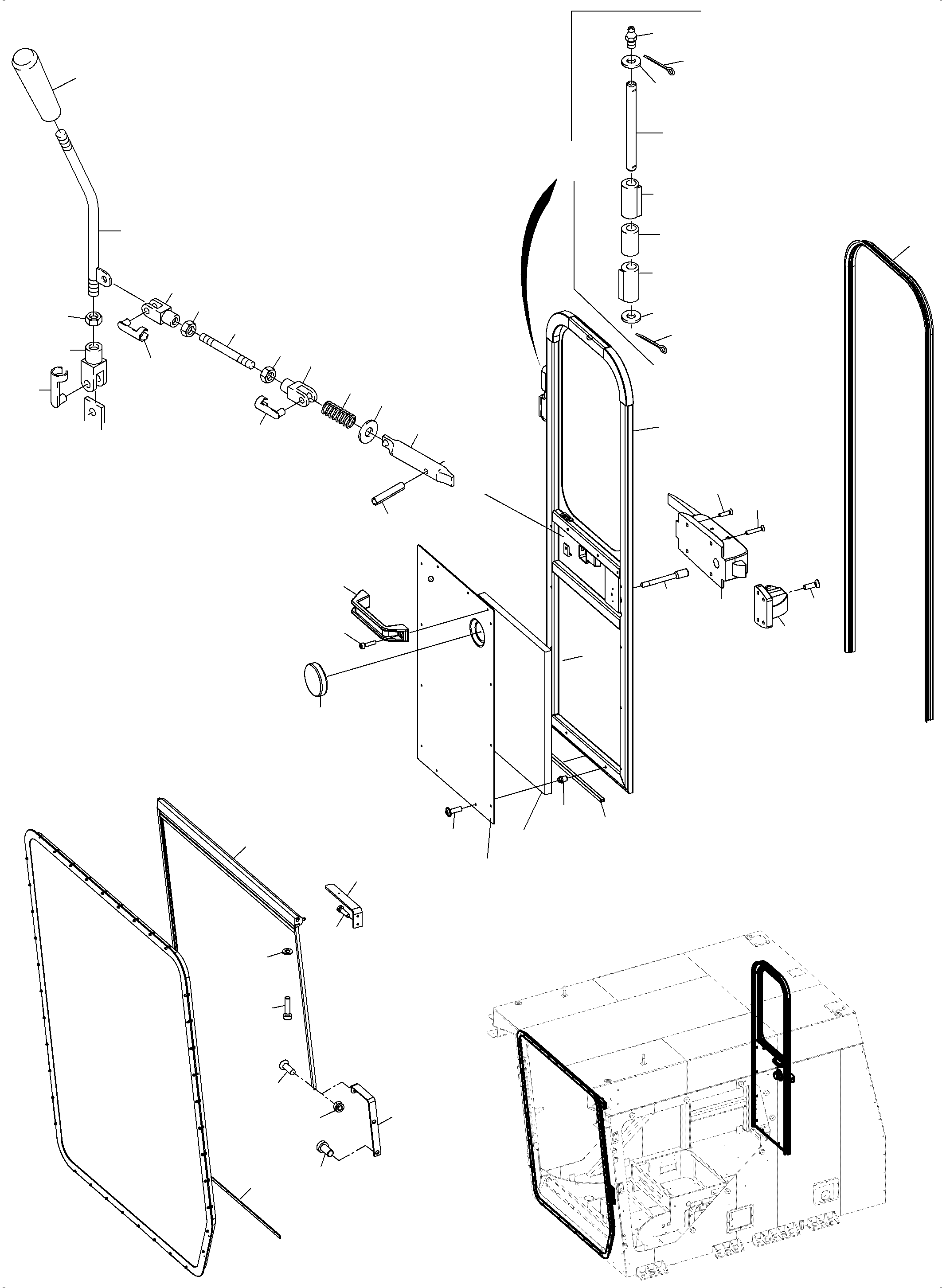

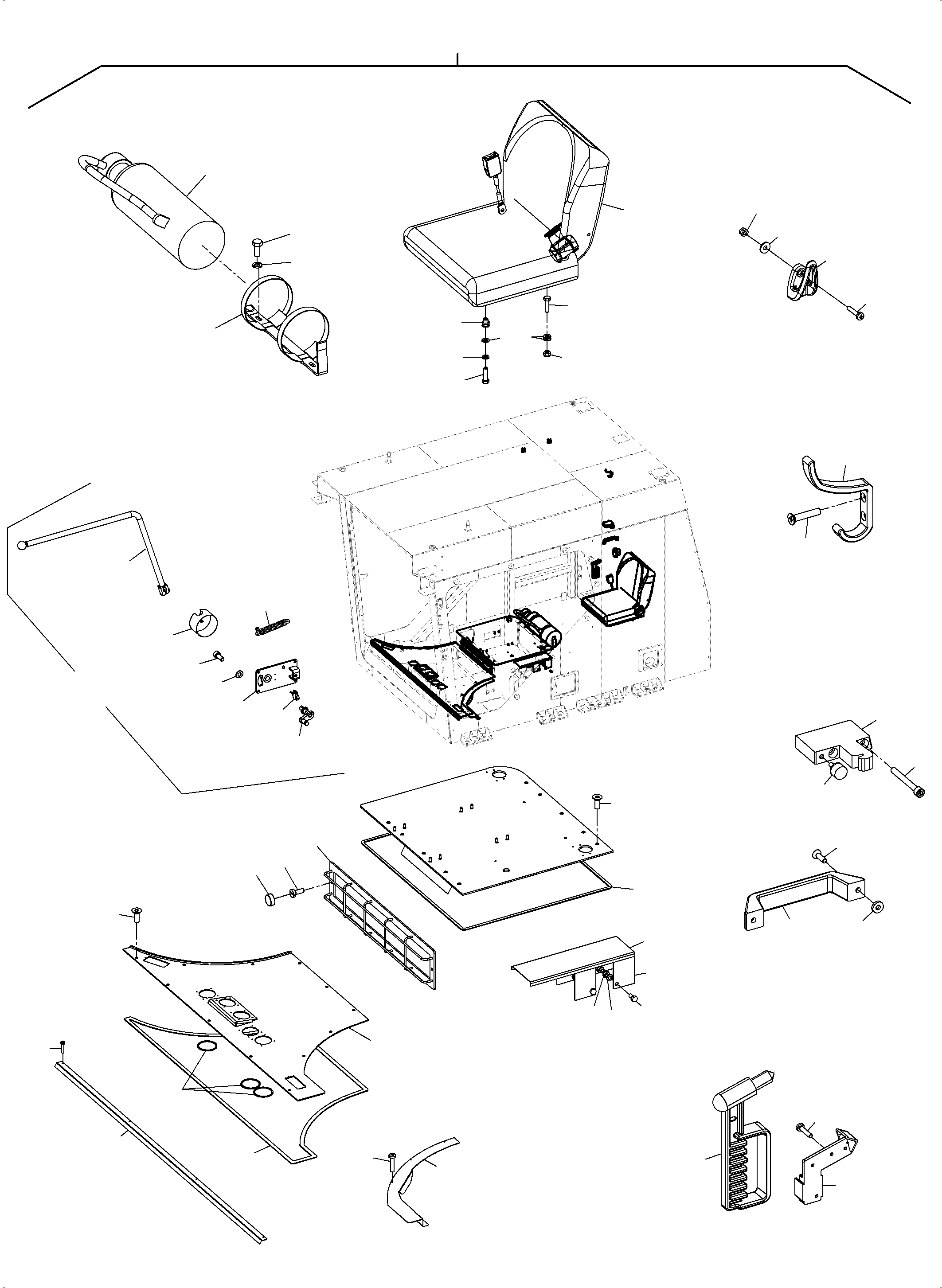

Diagram image 1 of 5

PC5500-6 S/N 15083

01 02 03 04 05 06 07 08 11 12 16 17 17 17 17 170 171 172 173 174 175 176 177 178 18 19 22 23 24 25 26 30 31 32 33 33 34 35 36 37 40 41 42 43 44 45 50 51 51 52 53 54 55 56 57

PC5500-6 S/N 15083

101 102 103 105 12 33 53 53 53 60 61 62 64 65 66 68 69 69 70 70 71 71 75 76 77 78 78 79 80 80 83 85 86 88 89 89 91 92 93 94 95 96 97 98 99

PC5500-6 S/N 15083

110 111 112 113 114 115 115 115 116 117 117 118 119 120 121 122 123 124 125 126 126 127 128 130 131 133 134 135 136 137 138 140 141 142 143 144 145 146 147 148 155 156 157 159 160 161 162 163 164 165 166 167 168 17 17 34 37

PC5500-6 S/N 15083

13 135 14 142 190 191 192 195 195 196 197 198 200 201 202 203 204 205 206 207 208 209 210 211 212 213 214 215 215 216 216 217 217 218 219 220 221 222 223 224 227 228 229 230 230 231 232 232 233 233 70 89

PC5500-6 S/N 15083

119 235 236 237 238 239 240 241 245 246 248 249 250 251 252 255 256 257 258 259 26 260 261 262 263 264 265 266 267 268 269 270 271 272 99

#	Part Number	Partname	Quantity	Reference
01	942 085 40	Operator's cab assy. Electro LT PC 4000-6E	1
01	942 096 40	Operator's cab assy. Electro NT PC 4000-6E	1
01	942 093 40	Operator's cab assy. PC 5500-6	1
01	942 094 40	Operator's cab assy. PC 8000-6	1
01	942 099 40	Operator's cab assy. Electro LT PC 8000-6E	1
01	942 097 40	Operator's cab assy. Electro NT PC 8000-6E	1
01	942 095 40	Operator's cab assy. VHMS PC 4000-6,5500-6	1
01	942 098 40	Operator's cab assy. VHMS PC 8000-6	1
01	954 305 40	Operator's cab assy. Electro NT VHMS PC 5500-6E	1
01	954 304 40	Operator's cab assy. Bulletproof PC 8000-6	1
01	954 301 40	Operator's cab assy. Electro NT-Kysor PC 8000-6E	1
01	954 302 40	Operator's cab assy. Electro NT Bulletproof PC 8000-6E	1
02		Fire extinguisher	1
03	307 447 99	Screw	2
04	343 096 99	Spring lockwasher	2
05		Holding device - fire extinguisher	1
06			1
07		Bolt	2
08			2
11	793 735 73	Cover plate	1
12		Contact tape	-2
13	635 262 40	Stop	1
14		Bolt	-2
16	167 698 40	Dressing hook	2
17	504 784 98	Screw	4
18	500 286 99	Washer	4
19	334 649 99	Nut	4
22		Bridge	1
23		Plate	1
24	307 445 99	Bolt	4
25	507 037 98	Nut	4
26	506 890 98	Washer	8
30		Angle	1
31		Cover plate	1
32		Platform plate	1
33	514 217 98	Bolt	12
34		Contact tape	-2
35		Contact tape	-2
36		Coat hook	1
37		Bolt	2
40	374 222 40	Detent	1
41	319 238 99	Screw	2
42	356 130 40	Silent bloc	2
43	769 602 73	Handle	1
44	321 205 99	Bolt	2
45			2
50		Co-Driver's seat	1	991-0907
51	307 429 99	Screw	4
52	509 870 98	Nut	2
53	510 321 98	Washer	6
54	343 869 99	Spring lockwasher	2
55		Blind rivet-nut	2
56	797 588 73	Hammer	1
57	797 589 73	Retainer	1
60	769 609 73	Rod for mirror	2
61	516 246 98	Screw	16
62	769 610 73	Mirror	2
64		Mounting plate	1
65	307 425 99	Bolt	9
66			9
68	793 799 73	Window shade	2
69	307 706 99	Bolt	4
70	340 500 99	Washer	4
71	318 576 99	Bolt	4
75	414 327 40	Grating	1
76	317 318 40	Wing nut, plastic	4
77	318 391 99	Bolt	4
78		Seal	2
79		Blind rivet-nut	8
80	514 180 98	Bolt	8
83		Plate	1
85		Cover	1
86		Bolt	10
88		Cover	1
89	770 081 73	Blind rivet-nut	5
91		Hood	1
92	269 055 40	Air filter	1
93	324 391 40	Blower	1
94		Hose	-2
95		Clamp	2
96	513 629 98	Bolt	5
97	514 071 98	Bolt	3
98	343 106 99	Lock washer	3
99	508 727 98	Washer	3
101		Plate	1
102	500 296 98	Bolt	4
103		Header	-2
105	793 798 73	Window shade	1
110	769 633 73	Air intake	6
111		Tapping screw	28
112		Round nozzle	1
113	769 636 73	Adjustment	1
114	769 635 73	Hot air jet	7
115	769 637 73	Hot air jet, long	4
116		Bolt	6
117		Step protection	2
118	769 638 73	Air intake	2
119		Speed nut	4
120		Bolt	12
121	332 203 99	Nut	12
122	340 497 99	Washer	12
123	793 801 73	Filter box	1
124	793 800 73	Filter box	1
125		Filter frame	1
126		Bolt	4
127	793 803 73	Filter mat	1
128		Filter retainer	1
130		Filter frame	1
131		Filter mat	1
133		Flap	1
134		Hinge	2
135	510 875 98	Nut	8
136		Bolt	8
137		Lock with lock washer	1
138		Blind rivet	2
140		Frame ice box	1
141		Ice box assy.	1
142	319 132 99	Bolt	7
143	350 491 99	Washer	7
144	332 197 99	Nut	4
145		Hose	-2
146		Clamp	-2
147	510 746 98	Resilient sleeve	5
148	319 350 99	Bolt	5
155		Hose	-2
156	793 738 73	Cable flange	2
157	350 378 99	Bolt	9
159	797 813 73	Cable	2
160		Bolt	8
161		Cap	4
162		Washer	4
163		Spacer	4
164		Pin	2
165		Bolt	4
166		Nut	4
167		Pin	2
168		Clamp	1
170	793 736 73	Safety lever assy.	1
171	793 737 73	Tension spring	1
172	319 140 99	Bolt	4
173	340 507 99	Washer	4
174	796 974 73	Arm	1
175	796 975 73	Plate	1
176	796 976 73	Lever	1
177	796 978 73	Hood	1
178	796 977 73	Taster	1
190	798 067 73	Retainer window shade	2
191	798 068 73	Retainer window shade	2
192	798 069 73	Plate	1
195	319 414 99	Bolt	6
196	798 070 73	Window shade, front window 'Bullet proof'	1
197	319 429 99	Bolt	4
198	518 908 98	Bolt	2
200	770 079 73	Door, steel construction	1
201	769 651 73	Profiled joint	-2
202	635 261 40	Handle with lock	1
203		Bolt	4
204		Bolt	-2
205		Nut	-2
206	796 428 73	Tappet	1
207	796 429 73	Handle	1
208	796 430 73	Lever	1
209	769 603 73	Cylinder button	1
210	356 533 40	Catch	1
211	345 178 99	Dowel pin	1
212		Compression spring	1
213	368 431 40	Pane	1
214	356 536 40	Threaded rod	1
215	509 861 98	Nut	2
216	350 748 99	Fork end	2
217	002 823 98	Pin	2
218	350 742 99	Fork end	1
219	002 827 98	Pin	1
220	769 602 73	Handle	1
221	770 094 73	Insulation - door	-2
222	769 607 73	Door moulding	1
223	321 187 99	Fillister-head screw	11
224	769 652 73	Profiled joint ca. 4300 1,5-2	-2
227	390 199 40	Hinge	2
228	350 562 99	Grease nipple	1
229	621 108 40	Pin	1
230	390 600 40	Bushing	2
231	390 601 40	Bushing	1
232	340 612 99	Washer	2
233	342 061 99	Cotter pin	2
235	769 615 73	Antenna	1
236		Extension cable	1
237		Bolt	8
238		Extension cable	1
239	896 705 40	Pair of speakers assy.	1
240	797 854 73	Loudspeaker	2
241	797 855 73	Loudspeaker cover black	2
245	769 188 73	Dome lamp	4
246	769 189 73	Bulb 28V 20W	4
248	950 158 40	Spotlight	4
249	795 990 73	Cable Union	4
250		Tube Clamp	-2
251	512 465 98	Nut	4
252	795 989 73	Harness-Spread beam headlamp	1
255	769 611 73	Push-toggle switch	2
256	769 612 73	Graphical symbol - spotlight	1
257	769 613 73	Graphical symbol - indoor lighting	1
258	769 614 73	Tail piece	2
259		Socket installation	4
260	634 009 40	Spotlight	1
261	769 155 73	Seal	1
262	769 156 73	Pane, white	1
263	507 383 99	Halogen lamp	1
264	307 752 99	Bolt	1
265		Spout	1
266		Switch	1
267		Cable additional socket	2
268		Harness	1
269		Dummy plug	3
270		Pipe clamp	4
271		Clamp	1
272		Cable conduit	1
