OIL COOLER SYSTEM | PC5500-6 S/N 15083 | Komatsu parts book catalogue

Search in All Books

Find books across the catalog from one place.

This page is prepared as the search workspace. The search behavior itself can be connected in the next step.

Search whole Komatsu part number in all books. Example: 6212611203.

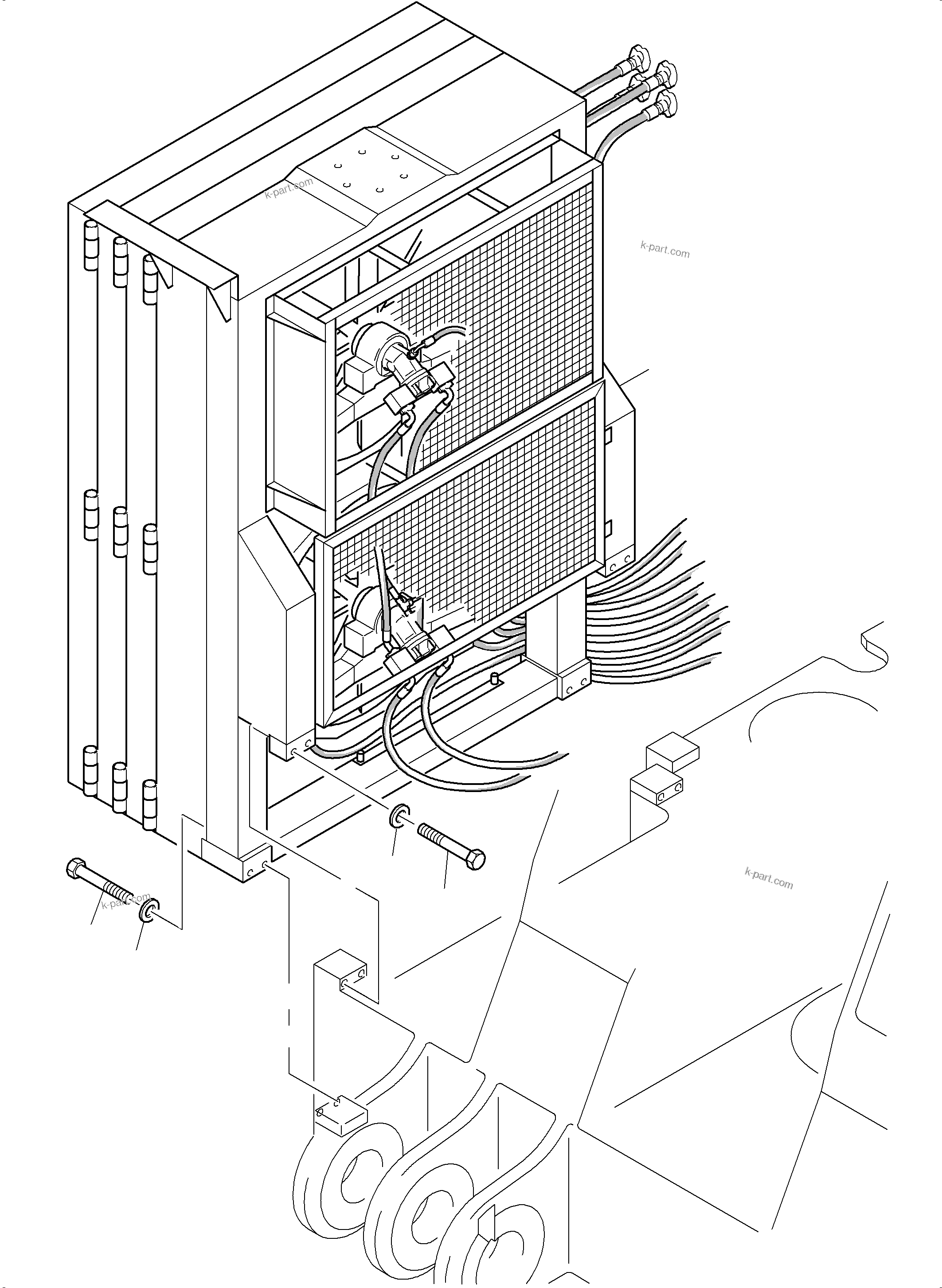

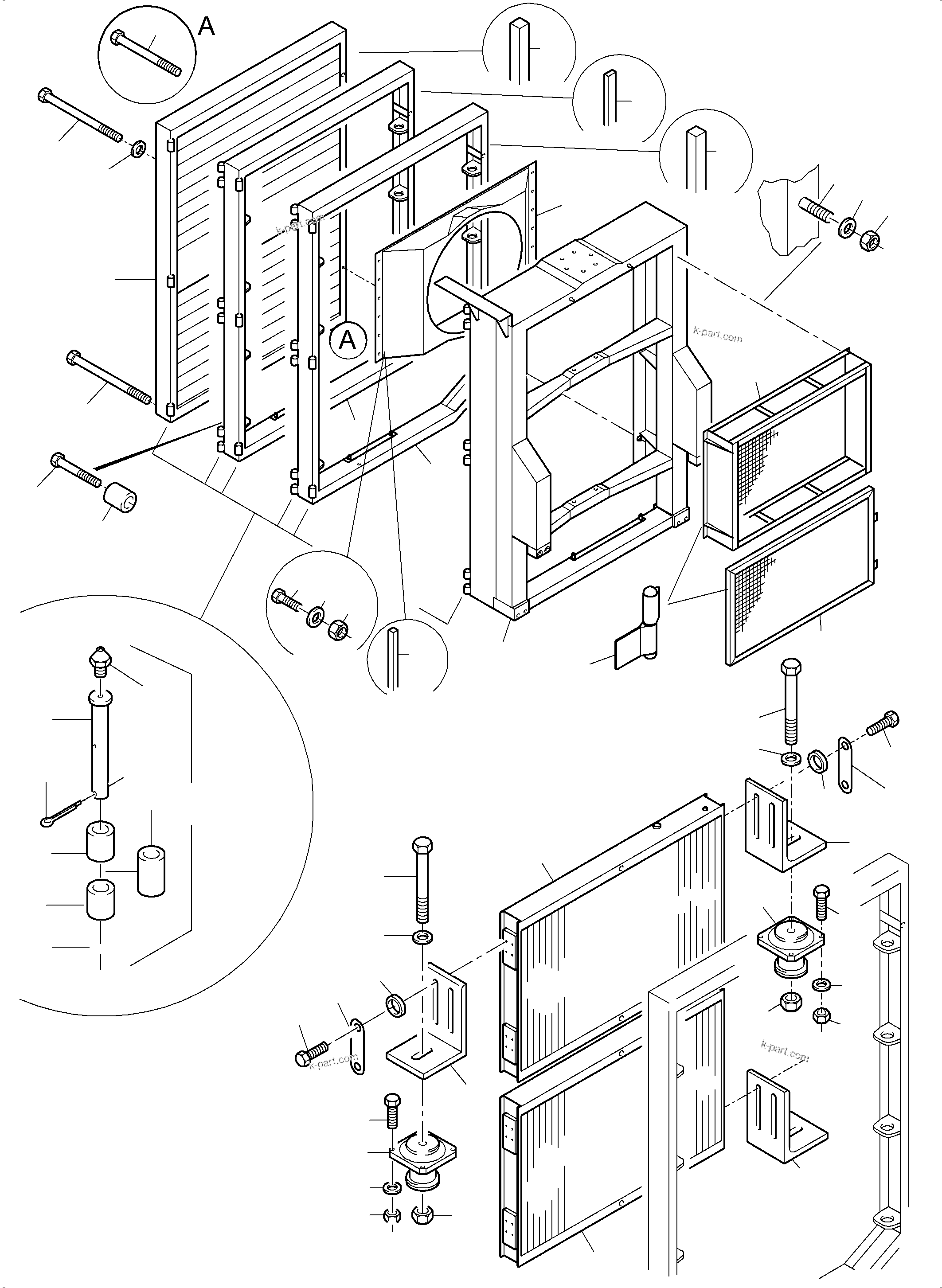

Diagram image 1 of 2

PC5500-6 S/N 15083

? ? ? ? ? ? ?

PC5500-6 S/N 15083

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity
?	944 894 40	Oil radiator mounting	1
?	949 262 40	Radiator mounting	1
?	941 846 40	Oil cooler	4
?	898 373 40	Angle	14
?	461 587 40	Buffer elements	16
?	480 169 40	Locking plate	32
?	307 805 99	Bolt	64
?	308 640 99	Bolt	16
?	316 211 99	Washer	16
?	334 601 99	Nut	16
?	507 037 98	Nut	64
?	308 575 99	Bolt	64
?	340 465 99	Washer	128
?	511 747 98	Bolt Cold weather design	4
?	511 761 98	Bolt Cold weather design	4
?	255 057 40	Washer	8
?	949 287 40	Door Fan Cage Top	1
?	949 285 40	Door Fan Cage Bottom	1
?	516 677 98	Thread pin	4
?	334 600 99	Nut	4
?	949 254 40	Hinge	4
?	341 337 99	Washer	4
?	574 527 40	Fan cowl	2
?	390 641 40	Hinge	9
?	350 562 99	Grease nipple	9
?	949 275 40	Door	1
?	350 757 99	Washer	2
?	509 588 98	Bolt	2
?	592 126 40	Profiled joint 15x30	-2
?	440 821 40	Profiled joint 30x30	-2
?	592 127 40	Profiled joint 15x15	-2
?	949 256 40	Radiator mounting	1
?	621 107 40	Pin	9
?	304 306 99	Bolt Standard	4
?	308 342 99	Bolt Standard	4
?	390 642 40	Round bar steel	18
?	390 643 40	Round bar steel	9
?	340 619 99	Washer	9
?	939 100 40	Oil cooler system assy.	1
?	342 121 99	Cotter pin	9
?	504 682 98	Bolt	8
?	500 814 98	Bolt	6
?	510 745 98	Resilent Sleeve	6
?	308 621 99	Bolt	1
?	949 261 40	Angle	2
?	340 467 99	Washer	64
?	307 804 99	Bolt	24
?			-2
?			-2
