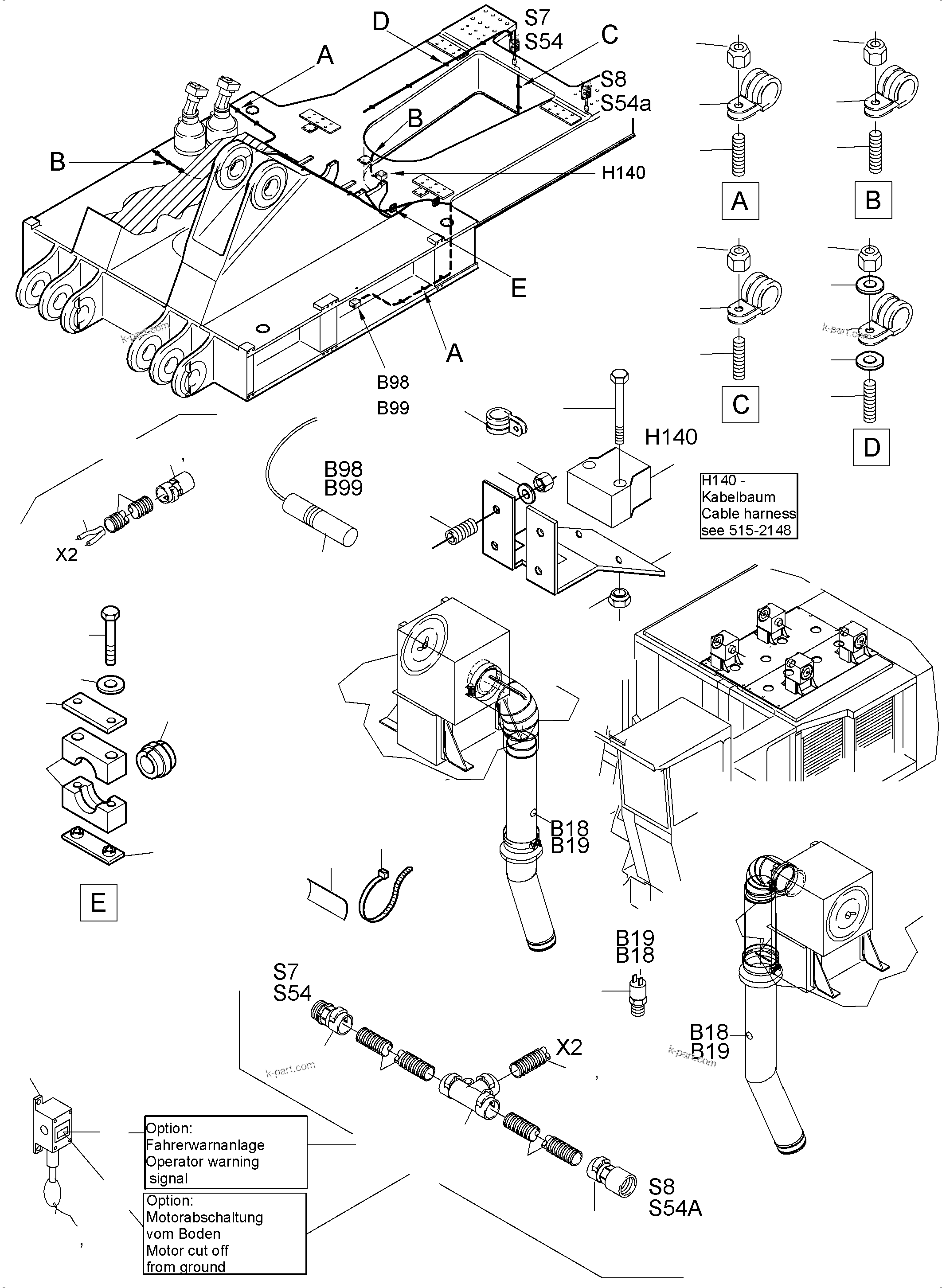

ELECT. PARTS - MOTOR, MOVEM. SIGNAL AND SPROCKET SENSOR | PC5500-6 S/N 15086

Search in All Books

Find books across the catalog from one place.

This page is prepared as the search workspace. The search behavior itself can be connected in the next step.

Search whole Komatsu part number in all books. Example: 6212611203.

PC5500-6 S/N 15086

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity
?	923 171 40	Harness - sensor - sprocket	1
?	896 746 40	Alarm transmitter	1
?	906 951 40	Switch	2
?	006 302 98	Clamp 15/15	3
?	006 301 98	Clamp 12/15	7
?	510 210 98	Thread pin	10
?	507 025 98	Nut	10
?	308 585 99	Screw	2
?	507 037 98	Nut	6
?	954 971 40	Retainer	1
?	006 306 98	Clamp 30/25	4
?	509 875 98	Thread pin	4
?	334 599 99	Nut	4
?	655 649 40	Cable protection hose DN 10	-2
?	941 777 40	Name plate	4
?	056 292 40	Cable strap	4
?	515 213 40	Cable 1,0	-2
?	055 130 40	Tab	2
?	056 070 40	Cable sleeve 1,0-1,5	10
?	907 476 40	Cable union DN 10	2
?	923 544 40	Harness - warning system assy. (option)	1
?	955 429 40	Harness - motor switch off from floor (option)	1
?	655 628 40	T-Distributor DN 10	1
?	255 680 40	Pull switch, E-scheme S7+ S8	2
?	941 669 40	Pull switch, without LED, E-scheme S54+ S54a	2
?	941 592 40	Light emitting diode, red	2
?	098 955 40	Ring	4
?	472 688 99	Chain	-2
?	931 181 40	Plate	2
?	320 974 99	Bolt	2
?	320 975 99	Bolt	4
?	340 459 99	Washer	6
?	0443451210	Clip	15
?	907 989 40	Thread pin	15
?	507 037 98	Nut	15
?	507 596 98	Washer	15
?	340 465 99	Washer	15
?	907 498 40	Maintenance switch	4
?	643 968 40	Cable strap	2
?	500 399 98	Weld on plate	1
?	509 064 98	Clamp set	1
?	500 398 98	Cover plate	1
?	308 641 99	Bolt	2
?	343 008 99	Washer	2
?	505 212 98	Grommet	1
?	907 989 40	Thread pin	4
?	340 465 99	Washer	4
?	910 797 40	Clamp assy.	3
