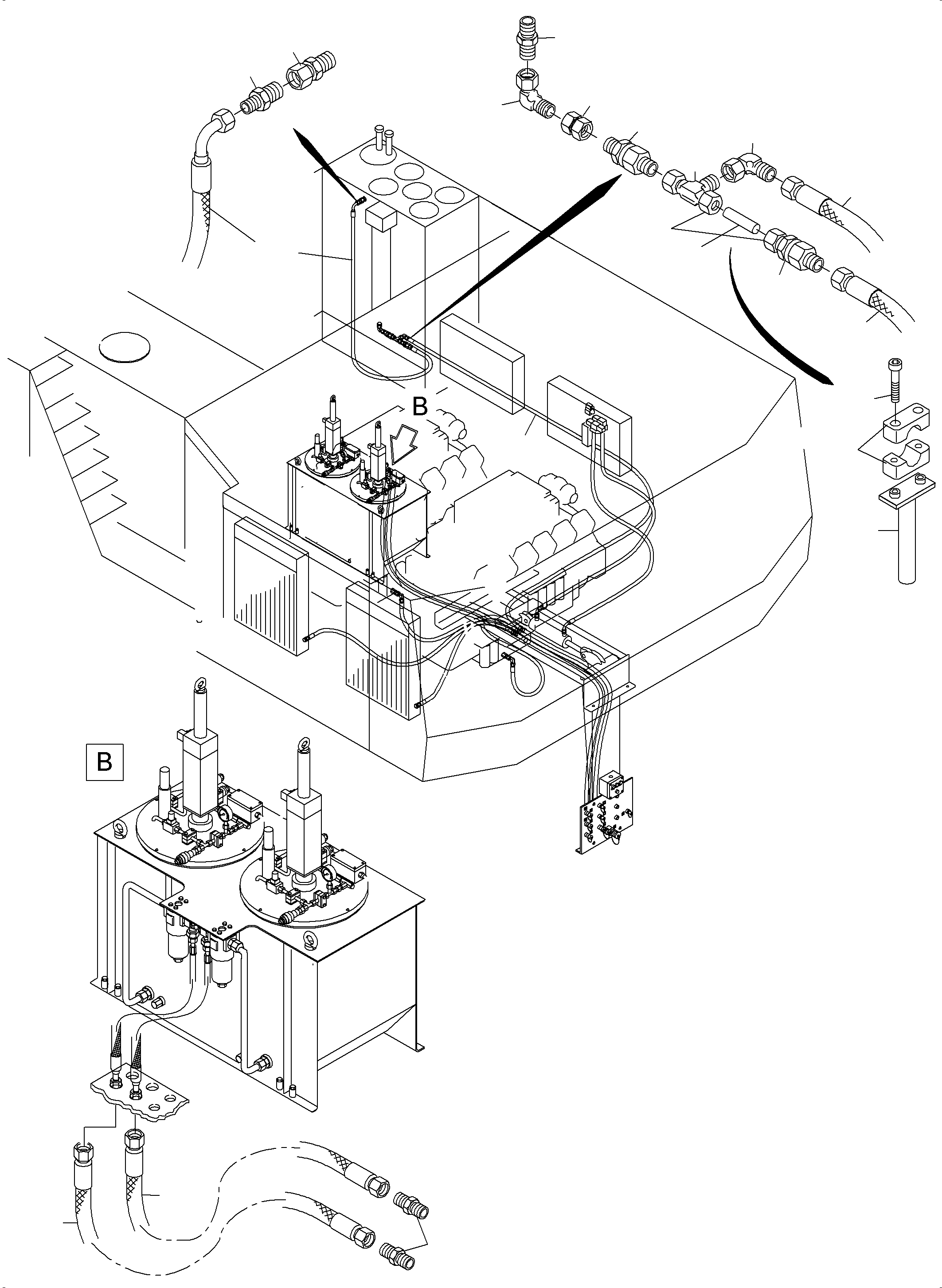

Diagram image 1 of 5

PC5500-6 S/N 15086

04 09 10 104 105 106 107 108 108 108 109 109 109 11 110 110 110 12 17 18 19 20 21 22 23 24 25 26 47 47 61 62 64 65 66 67 68 68 69 69 69 69 70 70 70 97 97 97 97 97 97 98 98 98

PC5500-6 S/N 15086

02 03 05 06 07 08 09 10 11 12 128 129 13 13 13 13 133 134 135 136 138 14 14 14 14 14 141 142 143 144 145 146 147 148 149 15 15 15 15 15 150 151 152 153 156 157 16 164 164 165 166 167 168 169 17 170 171 18 38 38 72 90 91 92

PC5500-6 S/N 15086

01 101 101 102 103 111 112 113 114 115 116 117 118 119 120 71 71 71 73 74 75 76 77 79 80 81 82 89

PC5500-6 S/N 15086

131 132 132 137 137 139 139 139 158 159 160 163 163 163 163 163 163 201 202 203 204 204 204 205 205 205 206 206 206 206 210 211 212 213 214 215 216 216 216 216 217 218 218 219 219 220 220 221 221 222 222 223 224 27 27 27 28 28 29 29 32 33 34 35 35 37 39 39 41 41 42 42 43 43 44 45 46 48 49 50 51 52 53 54 55

PC5500-6 S/N 15086

181 182 184 185 185 186 187 187 188 189 190 191 192 193 194 30 30 31 31 35 35 36

#	Part Number	Partname	Quantity	Reference
01	948 760 40	Refueling arm cpl.	1
02	941 280 40	Fuel receiver VR316	1
03	341 419 99	Screw	6
04	948 797 40	Hose retainer	1
05	948 709 40	Flange f. fuel receiver ZN2B	1
06	896 748 40	Fuel receiver ZN2B	1
07	324 436 40	Cap	1
08	941 570 40	Hose assy.	1
09	941 317 40	Clamp set	6
10	500 398 98	Cover plate	6
11	308 641 99	Bolt	12
12	509 311 98	Locking plate	6
13	501 542 98	Half flange	8
14	501 543 98	O-ring	7
15	307 824 99	Bolt	16
16	319 133 99	Screw	6
17	510 744 98	Sleeve	4
18	308 605 99	Bolt	4
19	509 059 98	Clamp set	2
20	511 857 98	Cover plate	2
21	308 537 99	Bolt	4
22	308 426 99	Bolt	2
23	510 733 98	Resilient sleeve	2
24	308 666 99	Bolt	2
25	504 662 98	Nut	2
26	340 470 99	Washer	4
27	518 553 98	Hose assy. DN 20x1350	1
28	650 712 40	Hose assy. DN 20x2650	1
29	515 482 40	Hose assy. DN 20x2800	1
30	513 484 98	Hose assy. DN 20x3450	2
31	518 554 98	Hose assy. DN 20x7700	1
32	372 476 99	Union	2
33	324 571 40	Adapter	2
34	324 572 40	Washer	2
35	516 160 98	Socket	5
36	504 643 98	Socket	2
37	374 409 99	Socket	2
38	518 391 98	O-ring	1
39	374 438 99	Union	4
41	372 475 99	Union	4
42	515 316 98	Socket	4
43	551 404 40	Union	4
44	516 829 98	Union	2
45	516 159 98	Socket	2
46	604 321 40	Hose assy DN 16x600	2
47	948 794 40	Console	2
48	305 992 99	Ball cock	2
49	518 032 98	Clamp set	7
50	534 004 99	Cover plate	6
51	308 581 99	Bolt 70 lg.	10
52	308 588 99	Bolt 130 lg.	2
53	509 309 98	Locking plate	6
54	515 628 98	Grommet Ш 28	6
55	511 258 98	Grommet Ш 35	1
61	952 818 40	Supporting beam	1
62	952 815 40	Lifting beam	1
64	952 812 40	Lifting beam plate	1
65	903 262 40	Hydraulic cylinder	1	991-0531
66	952 814 40	Retainer	1
67	903 258 40	Pin	1
68	515 827 98	Pin	2
69	500 995 98	Washer	4
70	342 125 99	Cotter pin	4
71	374 409 99	Socket	7
72	941 569 40	Hose assy. DN 76x3950	1
73	341 711 40	Filler neck (greasing)	1
74	360 856 40	Protection cap	1
75	341 710 40	Filler neck (pinion greasing)	1
76	270 861 40	Filler, hydr.-oil	1
77	270 862 40	Cap	1
79	323 905 40	Filler, engine oil	2
80	324 437 40	Cap	2
81	323 906 40	Filler neck (water)	2
82	324 438 40	Protection cap	3
89	903 259 40	Hose assy. D 20	3
90	308 631 99	Bolt	4
91	334 601 99	Nut	4
92	340 510 99	Washer	8
97	941 318 40	Clamp set	22
98	511 856 98	Cover plate	11
101	952 819 40	Hose assy. D 20	4
102	516 618 98	Union	4
103	506 954 98	Nut	4
104	340 465 99	Washer	5
105	512 476 98	Nut	5
106	510 741 98	Resilient sleeve	2
107	308 608 99	Bolt	2
108	308 536 99	Bolt	6
109	504 986 98	Built-up screw	22
110	504 985 98	Locking plate	11
111	952 817 40	Plate	1
112	515 924 98	Graphical symbol (FE)	2
113	515 923 98	Graphical symbol (RE)	2
114	515 874 98	Graphical symbol (engine oil reserve tank)	2
115	515 872 98	Graphical symbol (fuel)	1
116	515 873 98	Graphical symbol (engine oil)	2
117	515 875 98	Graphical symbol (cooling water)	2
118	515 877 98	Graphical symbol (hydraulic oil)	1
119	515 878 98	Graphical symbol (greasing)	1
120	515 879 98	Graphical symbol (pinion greasing)	1
128	948 217 40	Flange	1
129	510 567 98	Breech block	1
131	944 595 40	Cover assy.	1
132	948 724 40	Pipe elbow	2
133	948 783 40	Retainer	1
134	948 784 40	Hose retainer	1
135	948 706 40	Flange	1
136	941 281 40	Fuel receiver	1
137	941 282 40	Bleeder valve	2
138	941 283 40	Sensor	1
139	518 415 98	Hose assy.	-2
141	518 392 98	Union	1
142	518 393 98	Union	1
143	941 289 40	Adapter	1
144	518 441 98	Hose assy.	1
145	518 442 98	Hose assy.	1
146	506 215 98	Clamp set	3
147	509 057 98	Clamp set	3
148	319 132 99	Screw	6
149	319 133 99	Screw	6
150	509 312 98	Locking plate	1
151	511 196 98	Cover plate	1
152	308 679 99	Bolt	2
153	509 646 98	Bolt	6
156	518 391 98	O-ring	1
157	504 190 98	O-ring	1
158	914 939 40	Gasket	1
159	307 752 99	Bolt	6
160	346 510 99	Lock washer	6
163	511 528 98	Clamp	6
164	502 583 98	Clamp set	6
165	505 712 98	Cover plate	6
166	308 542 99	Bolt	12
167	941 400 40	Clamp set	2
168	343 003 99	Washer	12
169	340 509 99	Washer	4
170	307 805 99	Bolt	2
171	334 600 99	Nut	2
181	914 965 40	Retainer	1
182	374 409 99	Socket	1
184	515 882 98	Socket	1
185	654 458 40	Valve	2
186	516 281 98	Socket	2
187	512 951 98	Hose assy. DN 20x6800	1
188	903 208 40	Pipe	1
189	906 752 40	Clamp ring	2
190	371 277 99	Union nut	2
191	518 369 98	Clamp set	1
192	319 133 99	Bolt	2
193	516 189 98	Socket	1
194	634 301 40	Union	1
201	180 325 40	Base plate	2
202	896 619 40	Switch valve	1
203	896 531 40	4/3-Directional spool valve	1
204	643 879 40	Hose assy. DN 10x4250	1
205	512 336 98	Hose assy. DN 10x4600	1
206	215 424 99	Pipe Ш 12	-2
210	896 680 40	Throttle	1
211	319 174 99	Screw	4
212	307 734 99	Bolt	4
213	507 025 98	Nut	4
214	340 463 99	Washer	4
215	374 430 99	Socket	2
216	371 459 99	Socket	4
217	255 694 40	Plug	2
218	516 184 98	Socket	2
219	516 174 98	Socket	2
220	906 748 40	Valve	2
221	906 347 40	Clamp ring	8
222	371 274 99	Union nut	8
223	516 157 98	Socket	1
224	514 340 98	Screw	4

Komatsu PC5500-6 S/N 15086 parts catalog PDF

REFUELING EQUIPMENT FUEL LINE WIGGINS VR 300 (515-2301c1) in PC5500-6 S/N 15086. Diagram image and parts list.
